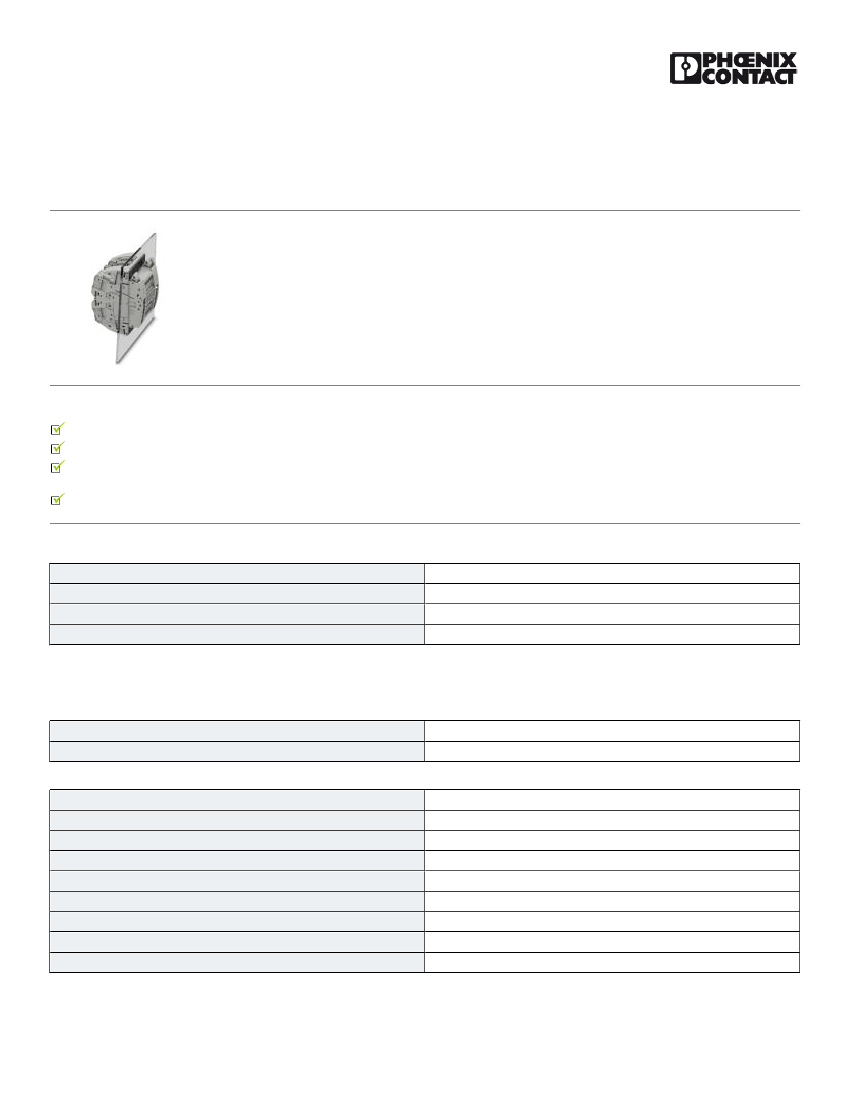

Test terminal strip - RSCWE 6-3/4 - 3969920
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Test terminal strip, Connection method: Ring cable lug, Number of positions: 4, Cross section: 0.5 mm² - 10 mm²,
AWG: 24 - 8, Width: 65.2 mm, Height: 70.1 mm, Color: gray, Mounting type: Wall mounting
Why buy this product
Cost-effective, thanks to the tailored, modular design and use of standardized CLIPLINE complete accessories
Space saving, thanks to compact, modular test terminal strips
The integrated, robust switch contact is designed for the most stringent demands, and the use of high-quality materials ensures the transmission of
signal currents, even after multiple actuations
Maximum safety with leading and automatic transformer short circuit
Key Commercial Data
Packing unit
Weight per Piece (excluding packing)
Custom tariff number
Country of origin
1 STK
240.000 g
85366990
Poland
Technical data
Environmental Product Compliance
China RoHS
Environmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values
General
Number of positions
Number of levels
Number of connections
Potentials
Nominal cross section
Color
Insulating material
Flammability rating according to UL 94
Rated surge voltage
4
1
8
4
6 mm²
gray
PA
V0
4 kV
09/30/2016 Page 1 / 19
https://www.phoenixcontact.com/us/products/3969920
Test terminal strip - RSCWE 6-3/4 - 3969920
Technical data
General
Overvoltage category
Insulating material group
Ambient temperature (operation)
Maximum load current
Current I
th
Nominal voltage U
N
Open side panel
Terminal block mounting
Shock protection test specification
Back of the hand protection
Result of surge voltage test
Surge voltage test setpoint
Result of power-frequency withstand voltage test
Power frequency withstand voltage setpoint
Result of the test for mechanical stability of terminal points (5 x conductor
connection)
Result of tight fit on support
Setpoint
Result of voltage-drop test
Requirements, voltage drop
Result of temperature-rise test
Short circuit stability result
Conductor cross section short circuit testing
Short-time current
Conductor cross section short circuit testing
Short-time current
Conductor cross section short circuit testing
Short-time current
Result of thermal test
Proof of thermal characteristics (needle flame) effective duration
Oscillation, broadband noise test result
Test specification, oscillation, broadband noise
Test spectrum
Test frequency
ASD level
Acceleration
Test duration per axis
III
I
-60 °C ... 100 °C
30 A (with 10 mm² conductor cross section)
24 A
400 V AC/DC
No
0.8 Nm ... 1 Nm
DIN EN 50274 (VDE 0660-514):2002-11
guaranteed
Test passed
4.8 kV
Test passed
1.89 kV
Test passed
Test passed
5N
Test passed
≤ 4.8 mV
Test passed
Test passed
4 mm²
300 A
4 mm²
500 A
4 mm²
150 A
Test passed
30 s
Test passed
DIN EN 50155 (VDE 0115-200):2008-03
Service life test category 2, bogie mounted
f
1
= 5 Hz to f
2
= 250 Hz
6.12 (m/s ) /Hz
3.12 g
5h
09/30/2016 Page 2 / 19
2 2
https://www.phoenixcontact.com/us/products/3969920
Test terminal strip - RSCWE 6-3/4 - 3969920
Technical data
General
Test directions
Shock test result
Test specification, shock test
Shock form
Acceleration
Shock duration
Number of shocks per direction
Test directions
Relative insulation material temperature index (Elec., UL 746 B)
Static insulating material application in cold
Behavior in fire for rail vehicles (DIN 5510-2)
Flame test method (DIN EN 60695-11-10)
Oxygen index (DIN EN ISO 4589-2)
NF F16-101, NF F10-102 Class I
NF F16-101, NF F10-102 Class F
Surface flammability NFPA 130 (ASTM E 162)
Specific optical density of smoke NFPA 130 (ASTM E 662)
Smoke gas toxicity NFPA 130 (SMP 800C)
Calorimetric heat release NFPA 130 (ASTM E 1354)
Fire protection for rail vehicles (DIN EN 45545-2) R22
Fire protection for rail vehicles (DIN EN 45545-2) R23
Fire protection for rail vehicles (DIN EN 45545-2) R24
Fire protection for rail vehicles (DIN EN 45545-2) R26
X-, Y- and Z-axis
Test passed
DIN EN 50155 (VDE 0115-200):2008-03
Half-sine
30g
18 ms
3
X-, Y- and Z-axis (pos. and neg.)
130 °C
-60 °C
Test passed
V0
>32 %
2
2
passed
passed
passed
28 MJ/kg
HL 1 - HL 3
HL 1 - HL 3
HL 1 - HL 3
HL 1 - HL 3
Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)) 125 °C
Dimensions
Width
Length
Height
Plate thickness
Pitch
65.2 mm
81 mm
70.1 mm
1 mm ... 4 mm
8.2 mm
Connection data
Connection method
Connection in acc. with standard
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section AWG min.
Ring cable lug
IEC 60947-7-1
0.5 mm²
10 mm²
24
09/30/2016 Page 3 / 19
https://www.phoenixcontact.com/us/products/3969920
Test terminal strip - RSCWE 6-3/4 - 3969920
Technical data
Connection data
Conductor cross section AWG max.
Conductor cross section flexible min.
Conductor cross section flexible max.
Min. AWG conductor cross section, flexible
Max. AWG conductor cross section, flexible
2 conductors with same cross section, solid min.
2 conductors with same cross section, solid max.
2 conductors with same cross section, stranded min.
2 conductors with same cross section, stranded max.
Cable lug connection according to standard
Min. cross section for cable lug connection
Max. cross section for cable lug connection
Hole diameter, min.
Cable lug width, max.
Bolt diameter
Cable lug connection according to standard
Min. cross section for cable lug connection
Max. cross section for cable lug connection
Hole diameter, min.
Cable lug width, max.
Bolt diameter
Stripping length
Internal cylindrical gage
Screw thread
Tightening torque, min
Tightening torque max
8
0.5 mm²
10 mm²
24
8
0.5 mm²
6 mm²
0.5 mm²
6 mm²
DIN 46234
0.5 mm²
10 mm²
4.3 mm
8 mm
4.1 mm
DIN 46237
0.5 mm²
10 mm²
4.3 mm
8 mm
4.1 mm
12 mm
A5
No 8 UNC
1.5 Nm
1.8 Nm
Assembly
Mounting type
Plate thickness
Min. tightening torque of the mounting screw:
Max. tightening torque of the mounting screw:
Wall mounting
1 mm ... 4 mm
0.8 Nm
1 Nm
Standards and Regulations
Connection in acc. with standard
IEC 60947-7-1
DIN 46234
DIN 46237
Flammability rating according to UL 94
V0
09/30/2016 Page 4 / 19
https://www.phoenixcontact.com/us/products/3969920
Test terminal strip - RSCWE 6-3/4 - 3969920

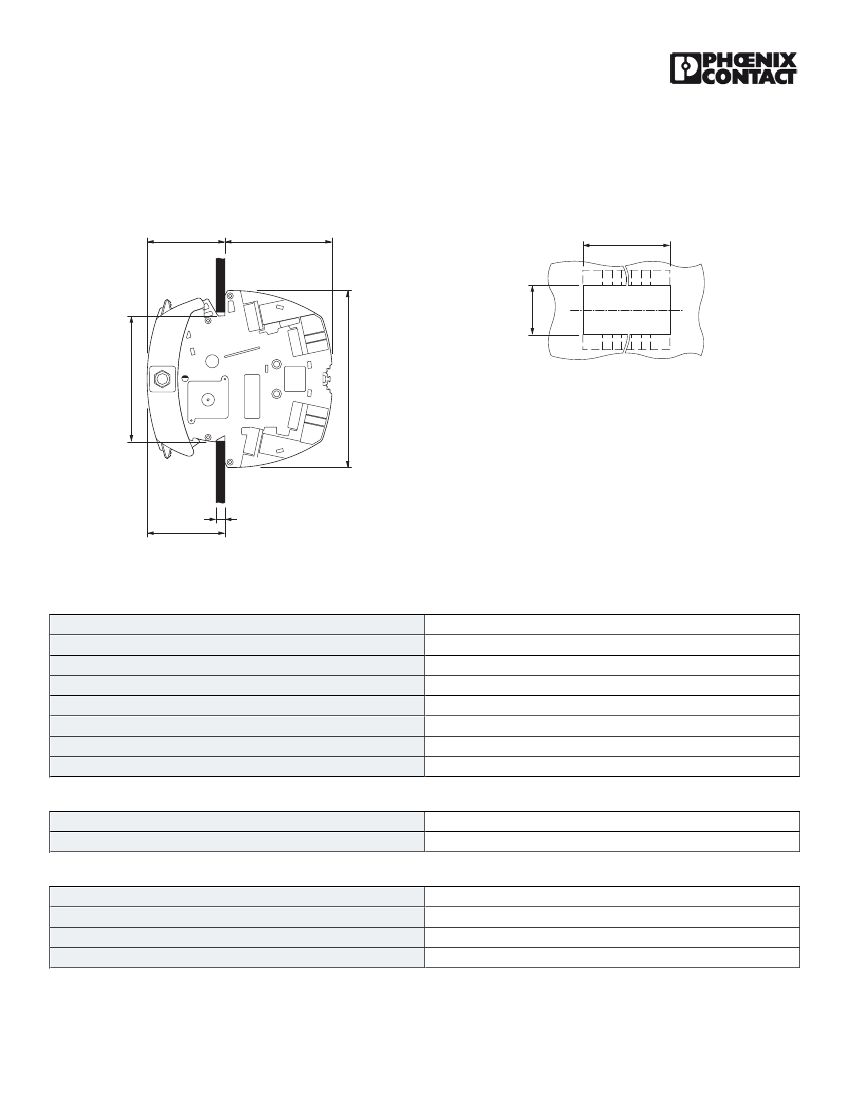

Drawings
Dimensional drawing
22
49
Dimensional drawing
66
+0,5
57,6
35,6
1
4
Classifications
