1.22.392.392/2200 datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > accessories> 1.22.392.392/2200

Preview

1.22.392.392/2200: DescriptionE-BOX M12, 2 PUSHBUTTONS FLAT WH; Categoryaccessories; File Size89KB，1 Pages; ManufacturerRAFI USA; Environmental Compliance

Download Datasheet Parametric View All

1.22.392.392/2200 Overview

E-BOX M12, 2 PUSHBUTTONS FLAT WH

1.22.392.392/2200 Parametric

Parameter Name	Attribute value
type	Standard, illuminated
circuit	SPST-NO x 2
switch function	Off - instantaneous
Rated current	100mA（AC/DC）
Actuator type	round, button, double
Color - Actuator/Cap	White
lighting type, color	LED, white
Lighting voltage (nominal)	-
Installation type	free hanging
Terminal type	Connector
Intrusion protection	IP65 - dust and water resistant
characteristic	Control box shell
Panel opening size	-
Operating temperature	-25°C ~ 70°C
Mechanical life	-
Electrical life	-

Preview

Download Datasheet

View All

18.01.2018

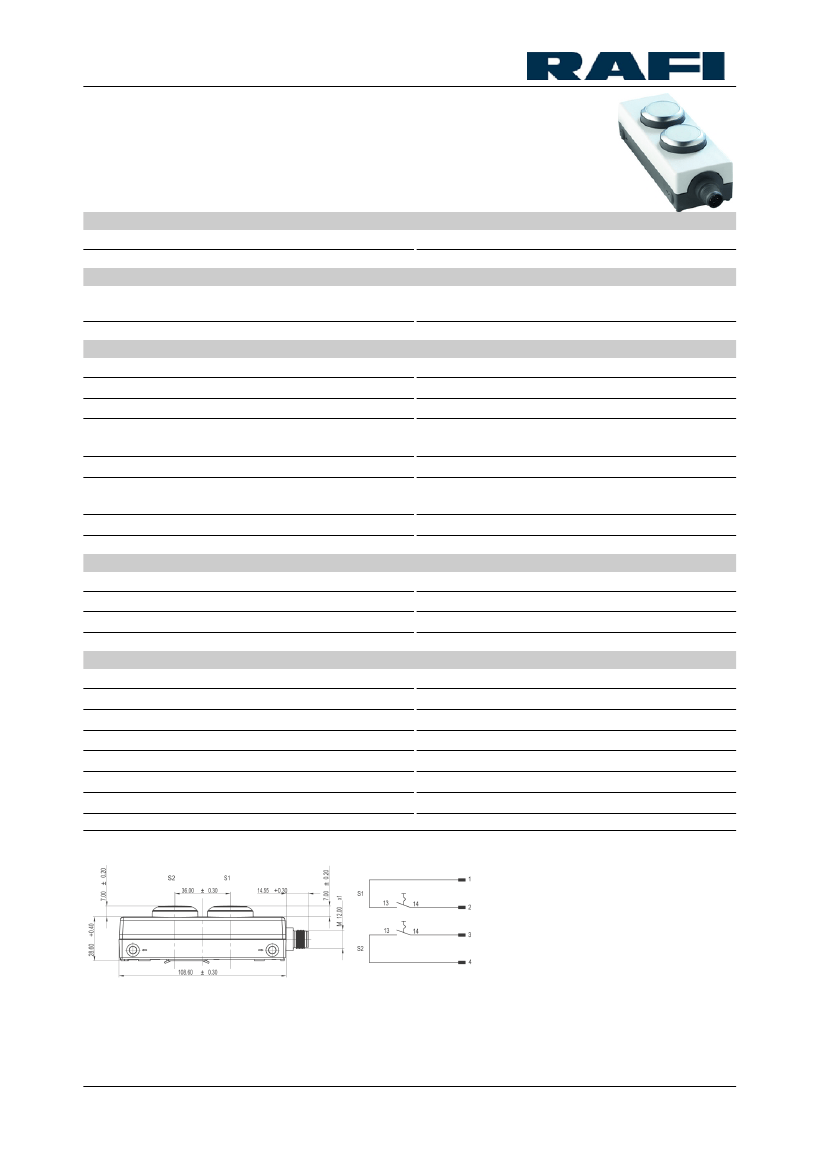

E-Box M12, 2 pushbuttons flat white, illuminated. FLEXLAB

1.22.392.392/2200

General information

Color of housing cap

Dimensions

grey

123,2 mm x 40 mm, height depending on actuators used

Mechanical design

Mounting

Connection

Plug M12

Actuator 1

LED actuator 1

Actuator 2

LED actuator 2

Electrical characteristics

Operating current min.

Operating current max.

Rated power max.

Other specifications

Protection as per EN 60529

Protection class

Operating temperature min.

Operating temperature max.

Operating life / B10

ROHS compliant

REACH compliant

with clip in 40 mm aluminum rails

M12

8-pin

Pushbutton FLEXLAB flat white (1NO); 1NO: 3-4

LED white; 7-8

Pushbutton FLEXLAB flat white (1NO); 1NO: 1-2

LED white; 5-6

1 mA

100 mA

250 mW

IP65

II

-25 °C

+70 °C

depending on actuators used

yes

Technical data are approximate and intended solely for general orientation in the selection of a product.

Subject to modifications and errors. Images and other graphics may only be similar.

For more information, refer to www.rafi.de chapter Imprint / Data Protection.
