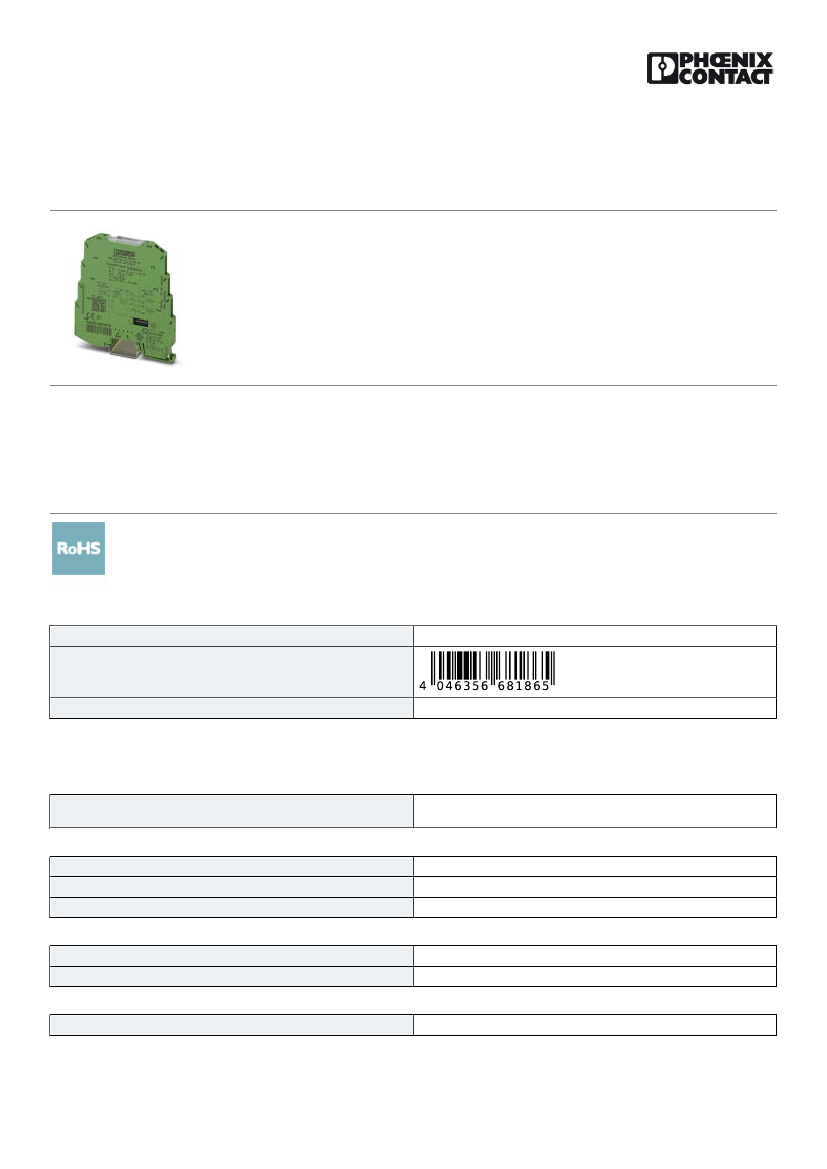

Signal conditioner - MINI MCR-SL-UI-I-LP-SP-NC - 2902830
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
2-way loop-powered isolating amplifier (supplied on the output side), can be configured via DIP switches, with
spring-cage connection technology and standard configuration.
Product Description
The 6.2 mm wide MINI MCR-SL-UI-I-LP... configurable 2-way isolating amplifier is used to electrically isolate, condition, and filter analog signals.
The output loops that supply the loop-powered isolating amplifier enable the isolating amplifier to operate on an active analog input module. The
modules are supplied via the current loop of the controller.
On the input side, standard analog signals and non-standard analog signals can be connected, starting from 2 mA or 50 mV up to 40 mA or 30 V.
These are converted to a 4...20 mA signal.
The DIP switches accessible on the housing side enable the configuration of input signal ranges.
Key Commercial Data
Packing unit
GTIN
GTIN
4046356681865
1 pc
Technical data
Note
Utilization restriction
EMC: class A product, see manufacturer's declaration in the download
area
Dimensions
Width
Height
Depth
6.2 mm
93.1 mm
102.5 mm
Ambient conditions
Ambient temperature (operation)
Ambient temperature (storage/transport)
-25 °C ... 70 °C
-40 °C ... 85 °C
Input data
Number of inputs
1
10/25/2018 Page 1 / 8
https://www.phoenixcontact.com/pi/products/2902830
Signal conditioner - MINI MCR-SL-UI-I-LP-SP-NC - 2902830
Technical data
Input data
Voltage input signal
0 mV ... 1000 mV
0 mV ... 750 mV
0 mV ... 500 mV
0 mV ... 300 mV
0 mV ... 250 mV
0 mV ... 200 mV
0 mV ... 150 mV
0 mV ... 125 mV
0 mV ... 120 mV
0 mV ... 100 mV
0 mV ... 75 mV
0 mV ... 60 mV
0 mV ... 50 mV
0 V ... 10 V
0 V ... 7.5 V
0 V ... 5 V
0 V ... 3 V
0 V ... 2.5 V
0 V ... 2 V
0 V ... 1.5 V
0 V ... 1.25 V
0 V ... 1.2 V
0 V ... 30 V
0 V ... 25 V
0 V ... 20 V
0 V ... 12.5 V
0 V ... 12 V
0 V ... 15 V
-1000 mV ... 1000 mV
-750 mV ... 750 mV
-500 mV ... 500 mV
-300 mV ... 300 mV
-250 mV ... 250 mV
-200 mV ... 200 mV
-125 mV ... 125 mV
-120 mV ... 120 mV
-150 mV ... 150 mV
-100 mV ... 100 mV
-75 mV ... 75 mV
-60 mV ... 60 mV
10/25/2018 Page 2 / 8
https://www.phoenixcontact.com/pi/products/2902830
Signal conditioner - MINI MCR-SL-UI-I-LP-SP-NC - 2902830
Technical data
Input data
-50 mV ... 50 mV
-10 V ... 10 V
-7.5 V ... 7.5 V
-5 V ... 5 V
-3 V ... 3 V
-2.5 V ... 2.5 V
-2 V ... 2 V
-1.25 V ... 1.25 V
-1.2 V ... 1.2 V
-1.5 V ... 1.5 V
-30 V ... 30 V
-25 V ... 25 V
-20 V ... 20 V
-12.5 V ... 12.5 V
-12 V ... 12 V
-15 V ... 15 V
200 mV ... 1000 mV
150 mV ... 750 mV
100 mV ... 500 mV
60 mV ... 300 mV
50 mV ... 250 mV
40 mV ... 200 mV
25 mV ... 125 mV
24 mV ... 120 mV
30 mV ... 150 mV
20 mV ... 100 mV
15 mV ... 75 mV
12 mV ... 60 mV
10 mV ... 50 mV
2 V ... 10 V
1.5 V ... 7.5 V
1 V ... 5 V
0.6 V ... 3 V
0.5 V ... 2.5 V
0.4 V ... 2 V
0.25 V ... 1.25 V
0.24 V ... 1.2 V
0.3 V ... 1.5 V
6 V ... 30 V
5 V ... 25 V
10/25/2018 Page 3 / 8
https://www.phoenixcontact.com/pi/products/2902830
Signal conditioner - MINI MCR-SL-UI-I-LP-SP-NC - 2902830
Technical data
Input data
4 V ... 20 V
2.5 V ... 12.5 V
2.4 V ... 12 V
3 V ... 15 V
Current input signal
0 mA ... 40 mA
0 mA ... 30 mA
0 mA ... 20 mA
0 mA ... 12 mA
0 mA ... 10 mA
0 mA ... 8 mA
0 mA ... 7.5 mA
0 mA ... 5 mA
0 mA ... 6 mA
0 mA ... 4 mA
0 mA ... 3 mA
0 mA ... 2.5 mA
0 mA ... 2 mA
-40 mA ... 40 mA
-30 mA ... 30 mA
-20 mA ... 20 mA
-12 mA ... 12 mA
-10 mA ... 10 mA
-8 mA ... 8 mA
-7.5 mA ... 7.5 mA
-5 mA ... 5 mA
-6 mA ... 6 mA
-4 mA ... 4 mA
-3 mA ... 3 mA
-2.5 mA ... 2.5 mA
-2 mA ... 2 mA
8 mA ... 40 mA
6 mA ... 30 mA
4 mA ... 20 mA
2.4 mA ... 12 mA
2 mA ... 10 mA
1.6 mA ... 8 mA
1.5 mA ... 7.5 mA
1 mA ... 5 mA
1.2 mA ... 6 mA
0.8 mA ... 4 mA
10/25/2018 Page 4 / 8
https://www.phoenixcontact.com/pi/products/2902830
Signal conditioner - MINI MCR-SL-UI-I-LP-SP-NC - 2902830
Technical data
Input data
0.6 mA ... 3 mA
0.5 mA ... 2.5 mA
0.4 mA ... 2 mA
max. input voltage
Max. input current
Input resistance of voltage input
Input resistance current input
< 40 V
< 50 mA (Dielectric strength up to 30 V)
approx. 100 kΩ (At ≤ 1 V, otherwise approximately 1 MΩ)
≤ 50 Ω
Output data
Number of outputs
Configurable/programmable
Current output signal
Max. output current
Load/output load current output
Ripple
1
Yes, preconfigured
4 mA ... 20 mA
35 mA (output limit)
< 1000 Ω ((U
B
- 8 V) / 22 mA)
< 20 mV
PP
(at 500 Ω)
Power supply
Supply voltage range
Power consumption
no separate supply voltage necessary
28 mW (without signal)
Connection data
Connection method
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section AWG min.
Conductor cross section AWG max.
Conductor cross section flexible min.
Conductor cross section flexible max.
Stripping length
Spring-cage connection
0.2 mm²
2.5 mm²
24
12
0.2 mm²
2.5 mm²
8 mm
General
No. of channels
Maximum transmission error
Maximum temperature coefficient
Temperature coefficient, typical
Limit frequency (3 dB)
Alignment zero
Alignment span
Step response (10-90%)
Electrical isolation
Overvoltage category
Degree of pollution
1
< 0.1 % (of final value)
< 0.2 % (Without adjustment)
0.01 %/K
0.005 %/K
approx. 30 Hz
±2%
±2%
approx. 16 ms
Basic insulation according to EN 61010
II
2
