【MPI
Series】
SMD Mini Power Inductor

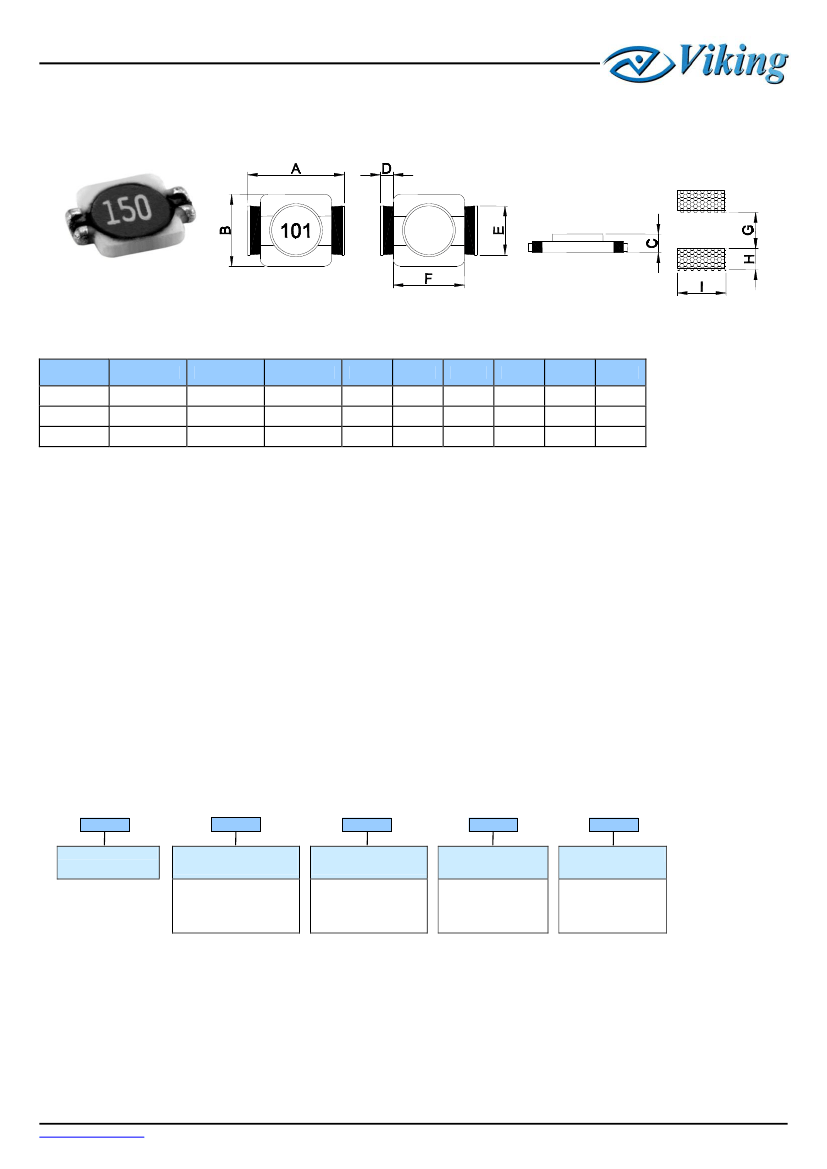

■Dimensions
Type
MPI0610
MPI0612
MPI0620
A
6.5 max.
6.5 max.
6.5±0.5
B
5.3±0.3
5.3±0.3
5.3±0.3
C
1.0±0.2
1.2 max.
2.0 max.
D
0.9
0.9
0.9
E
3.0
3.0
3.0
F
4.5
4.5
4.5
G
4.0
4.0
4.0
H
1.5
1.5
1.5
Unit: mm
I
3.4
3.4
3.4
■Features
－Very
low profile.
－Constructed
enclosed in a rugged to provide
optimum pick and place operations.
－High
inductance & high current ultra low profile
power inductors.
■Inductance
and rated current ranges
－MPI0610
－MPI0612
－MPI0620
1.2½330μH
1.2½100μH
1.0½1000μH
2.1½0.13A
1.8½0.235A
2.5½0.08A
－Test
equipment:
L: HP4192A LCR meter Zentech301A
DCR: Milli-ohm meter
－Electrical
specifications at 25°C
■Applications
－LCD
Televisions
－Personal
Computers
－Handheld
Communication
－DC/DC
Converters, etc.
■Characteristics
－Rated
Current (IDC): The DC current when the inductance becomes 10% lower
than its initial value. (Ta=25°C)
－Operating
temperature range: -40½+100°C
■Product
Identification
MPI
Product Type
0610
Dimensions
(AxBxC)
0610: 6.5×5.3×1.0
0612: 6.5×5.3×1.2
0620: 6.5×5.3×2.0
M
Inductor
Tolerance
M:
±20%
T
Packaging
Style

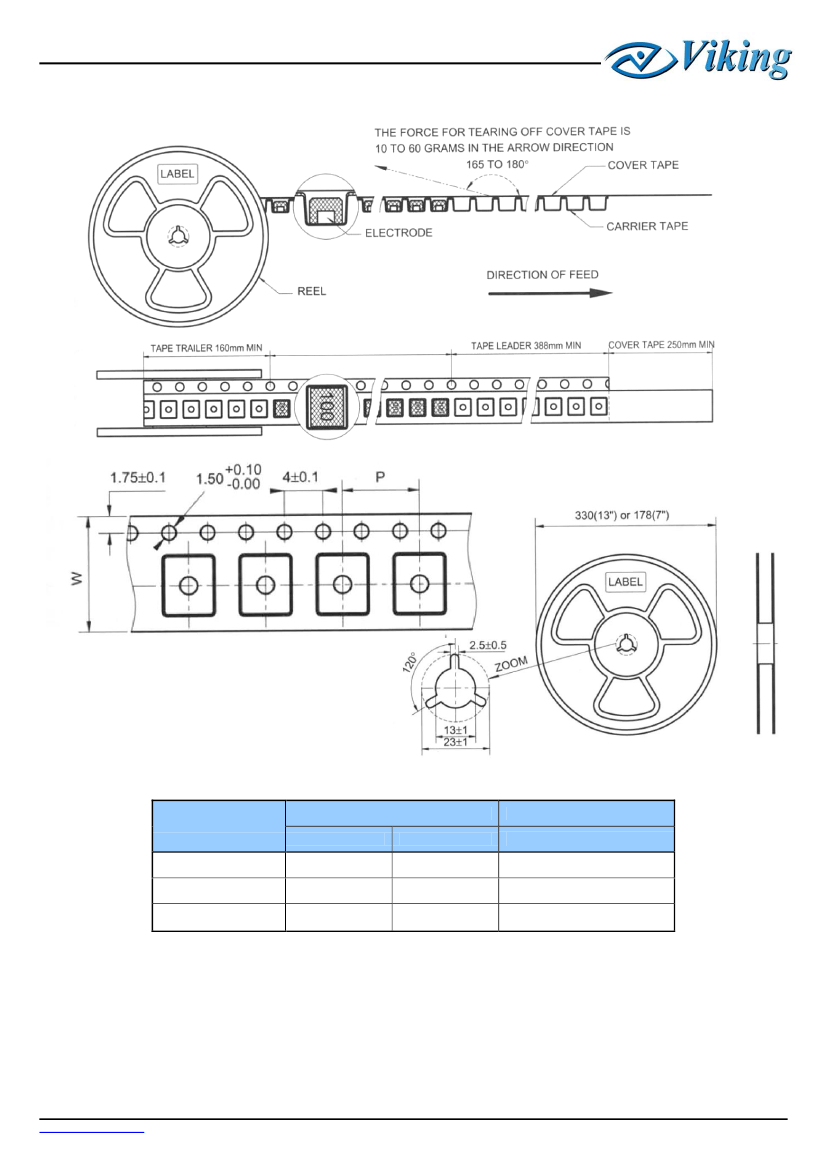

T: Tape and Reel
101
Inductance
1R0: 1.0μH
470: 47μH
101: 100μH
www.viking.com.tw
For detail questions, contact : sales@viking.com.tw
1
Edition : REV.A6
Revision: 6-Dec-2012
【MPI
Series】
SMD Mini Power Inductor
▓SMT
Power Inductor Environmental Specifications
General
Items
Shelf Storage conditions
Environmental test
Test Items
Specifications
Test Conditions / Test Methods
Temperature 85±2℃,
High temperature Storage test
Time: 48±2 hours,
Tested after 1hour at room temperature.
Temperature -25±2℃,
Low temperature Storage test
No case deformation or change in
appearance.
△
L/L≦10%
Humidity test
Time: 48±2 hours,
Tested after 1hour at room temperature.
Temperature 40±2℃, 90~95% relative humidity
Time: 96±2 hours
Tested after 1hour at room temperature.
First -25℃ 30minutes then 25℃ 10 minutes last 85℃
Thermal shock test
30 minutes, as 1 cycle. Go through 5 cycles.
Tested after 1 hour at room temperature.
Mechanical test
Test Items
Specifications
Terminal area must have 90% minimum
solder coverage.
Test Conditions / Test Methods
Product with Lead-free terminal:
Dip pads in flux then dip in solder pot
seconds.
Flux should cover the whole of the sample before
Resistance to Soldering Heat
No case deformation or change in
appearance.
heating, then be preheated for about 2 minutes over
temperature of 130~150℃. Immersing to 260±5℃ for
10 seconds.
Vibration test
No case deformation or change in
appearance.
△L/L≦10%
Shock resistance
Apply frequency 10~55Hz. 1.5mm amplitude in each of
perpendicular direction for 2 hours.
Drop down with 981m/s (100G) shock attitude upon a
rubber block method shock testing machine, for 1 time.
In each of three orientations.

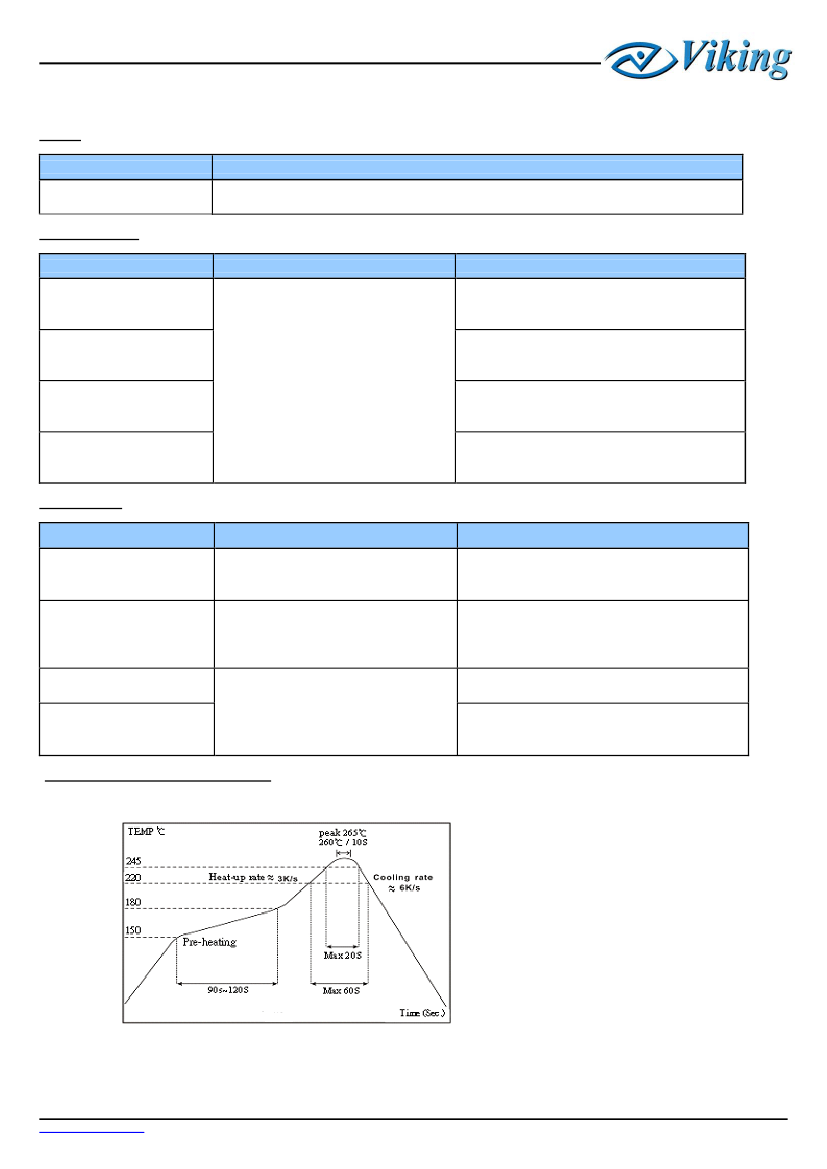

The condition of reflow (recommendation):
2
Specifications
Temperature range: 25±3℃; Humidity: <80% relative humidity.
Recommended product should be used within six months from the time of delivery.
Solderability test
at 245±5℃ for 3
www.viking.com.tw
For detail questions, contact : sales@viking.com.tw
4
Edition : REV.A6
Revision: 6-Dec-2012
