FG
Handle Series
FG16-02
FG16-05

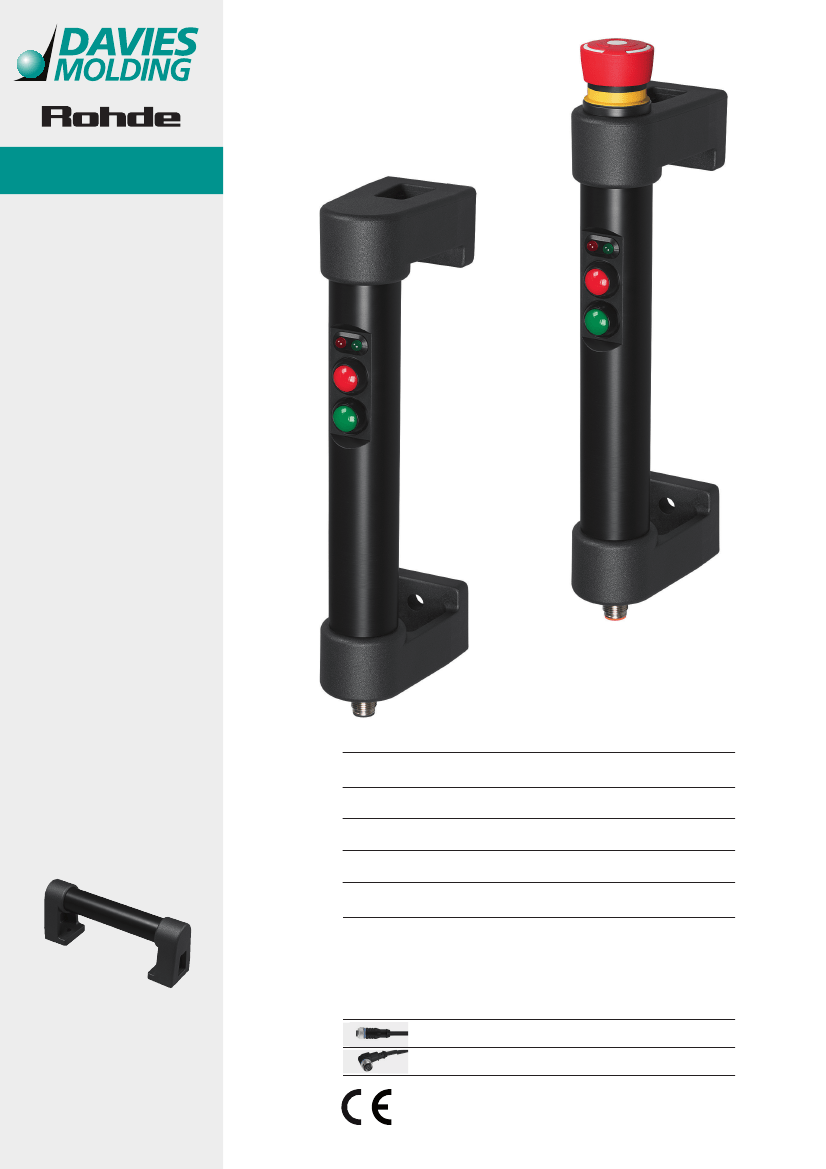

Material and surface:
Handle shanks made of high
strength polyamide PA 6, black
with fine structure. Handle
ledge made of lathed PVC
black.
Function elements:
FG16-02:
Push button 1 (change-over
contact)
Push button 2 (NO contact)
2 LED's.
FG16-05:
Emergency-stop (2 NC contacts)
Push button 1 (change-over
contact)
Push button 2 (NO contact)
2 LED's
FG16-00:
Basic handle, as FG16-02 and
FG16-05, but without switch
elements as counter-handle.
Connection:
8-pole or 12-pole connector
positioned at the tubular axle
of the handle ledge in the
handle shank.
Coupling with 10 m ready-
made cable available as
accessory.
Protection class:
IP 65 with coupling screwed on.
Note:
With connection cable other
push button assignment or
other handle lengths on
request.

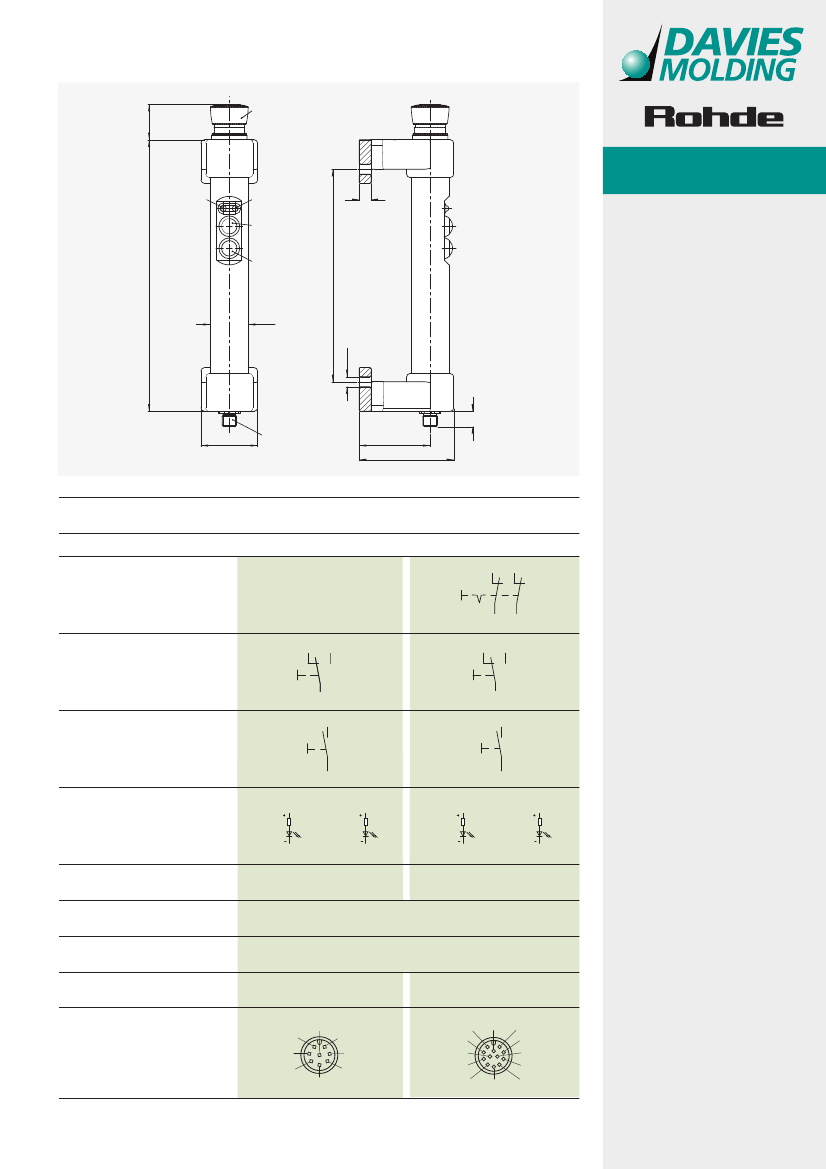

Switching function
without switch elements
2 push button and 2 LED's
Emergency stop, 2 push button and 2 LED's
Other handle lengths on request
Typ FG16-05
Typ FG16-02
Order no.
FG16-00.180.84
FG16-02S.180.84
FG16-05S.180.84
Handle accessories
Coupling with cable
8-pole
12-pole
(M12 x 1)
(M12 x 1)
FG16-00.180.84
Counter-handle without
electrical function elements.
L
10 m
10 m
Order no.
FZ-KS.G08.10
FZ-KS.W08.10
Order no.
FZ-KS.G12.10
FZ-KS.W12.10
