MLT
•

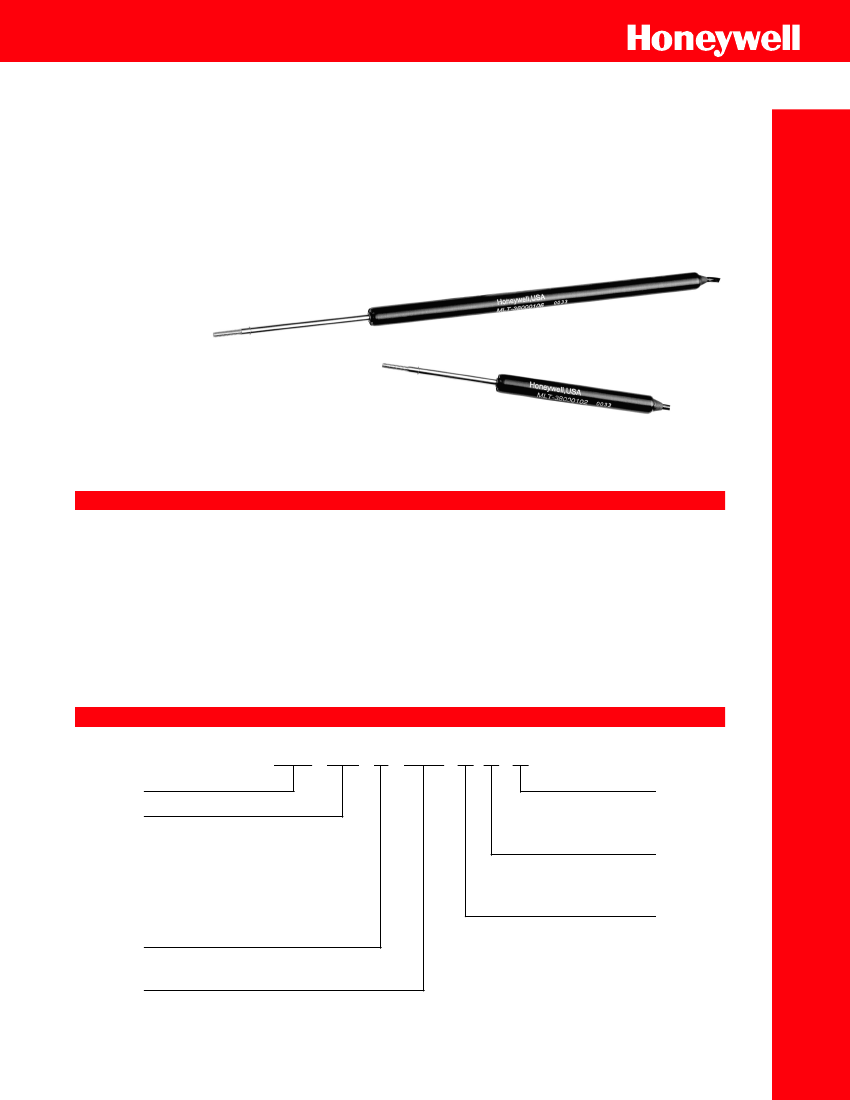

3/8 INCH DIAMETER LINEAR POSITION TRANSDUCER
The Models MLT are small diameter linear position transducers rugged
enough to withstand the hostile environment of the factory. Using a
proprietary dual wiper, internal ball joint and the MystR
®
conductive plastic
film the MLT provides usable output at high vibration levels for long periods.
MLT Transducers use precious metal wipers to further enhance reliability.
Intrinsically Safe for Class I, II, and III Division 1, Groups A, B, C, D,
E, F and G for Hazardous (indoor/outdoor) NEMA 4 locations. V max
= 30 V, I max = 100 mA, Ci = 0, uF, Li, = 0 mH.
SMALL DIAMETER LINEAR POSITION TRANSDUCER
MLT S
ERIES
FEATURES
BENEFITS
•
•
•
•
•
•
•
•
•
0.375 inch diameter
Dual wiper design
Extruded wiper block guides
MystR
®
plastic element
Internal spring loaded ball joint
Anodized extruded aluminum housing
Stainless steel shaft
Precious metal contact
Absolute continuous measurement
•
•
•
•
•
•
•
•
•
Fits into tight spaces, clamps easily to cylinders
Improves shock and vibration performance
Smooth quiet motion; extends operating life
Tested up to one billion operations
Less error from shaft misalignment
Tolerates clamping loads
Full performance in hostile environments
Low noise level over entire life
Accurate position at power up
HOW TO ORDER
MLT
Model
Electrical
Travel*
0R5
N
0750
F
5
C
Termination
C = Cable
0R5
001
002
003
004
005
006
=
=
=
=
=
=
=
750
1500
3000
4500
6000
7500
9000
Shaft
5 = 4-40 Thread
Linearity
B = 0.1%
F = 1.0% (Best possible on 0.5 in. device)
D = 0.25% (Best possible on 1.0 in. device)
Unit of
Measure
Total
Resistance*
N = Inches
0750, 1500, 3000, 4500, 6000, 7500, 9000
Note: Not all combinations are available. Minimum quantity orders apply. Contact the factory for more details.
* Note: The
Electrical Travel
correlates to the
Total Resistance (Ohms).
MLT S
ERIES
TECHNICAL SPECIFICATIONS
MECHANICAL
Total Mechanical Travel
Starting Force
Shock
Vibration
Life
•
SMALL DIAMETER LINEAR POSITION TRANSDUCER
0.55 to 6.05 in. (min)
13.9 to 153.7 mm (min)
1.0 oz (max)
50 g 11 ms half sine
20 g rms 5 Hz to 2 KHz
One Billion dither operations
DIMENSIONS
xx.xx = inches
(xx.x) = mm
Housing length 'X'
(Electrical Travel +1.2 [30.48])
3/8"
[9.53]
3/4"
[19.05]
(Retracted)
#4-40 UNC-2A
Thd x .50 [12.7] long
ELECTRICAL
Theoretical Electrical
Travel (1 inch increments)
Independent Linearity
Total Resistance
Resistance Tolerance
Operating Temperature
Resolution
Insulation Resistance
Dielectric Strength
Max. Applied Voltage
Backlash
Recommended Wiper Current
0.5 to 6 in.
(12.7 to 152.4 mm)
See How to Order
1500 Ohms per inch
electrical travel
±20%
-40° to 80°C
(-40° to 176°F)
Infinite
500 M Ohms @ 500 Vdc
1000 V rms
30 Vdc
0.0005 in. max
<1
µA
Model
1/8" x .063
[4.75 x 1.6]
3 - conductor cable
#26 AWG [65/44] 12.0 [305] long min.
(color coded per schematic)
(Black)
Ground
1/8"
[3.18]
(Red)
V-in
Shaft
Extended
(Orange)
V-out
Connect to High Impedance Circuit
Caution: Do not test on an Ohm Meter on the Rx 1 scale or other current devices.
Caution: Excessive Wiper Current can cause Output errors or damage.
Caution: Zero shaft side load is recommended to achieve maximum life.
Electrical Travel
in inches
0.5
1.0
2.0
3.0
4.0
5.0
6.0
Total Resistance
Ohms
750
1500
3000
4500
6000
7500
9000
Housing Length
‘X’ in inches
1.7
2.2
3.2
4.2
5.2
6.2
7.2
Weight
in grams
11
14
20
23
28
30
31
MLT0R5
MLT001
MLT002
MLT003
MLT004
MLT005
MLT006
SPECIALS AND ACCESSORIES
• Other Mechanical Travels
• Other Electrical Travels
• Other Resistance Values
• Rod-end bearing
• Metric Shaft Adapter
WARRANTY/REMEDY
Honeywell warrants goods of its manufacture as being free of defective materials and faulty workmanship. Contact your local
sales office for warranty information. If warranted goods are returned to Honeywell during the period of coverage, Honeywell
will repair or replace without charge those items it finds defective. The foregoing is Buyer’s sole remedy and is in lieu of all other
warranties, expressed or implied, including those of merchantability and fitness for a particular purpose.
Specifications may change without notice. The information we supply is believed to be accurate and reliable as of this printing.
However, we assume no responsibility for its use.
While we provide application assistance personally, through our literature and the Honeywell web site, it is up to the customer
to determine the suitability of the product in the application.
Item # 1124900 M.G. 10/01 Rev. A
Sensing and Control
Honeywell
100 Discovery Way
Acton, MA 01720 USA
Tel: (877) 384-1300; Fax: (978) 263-0630
www.honeywell.com/sensing/products/di
