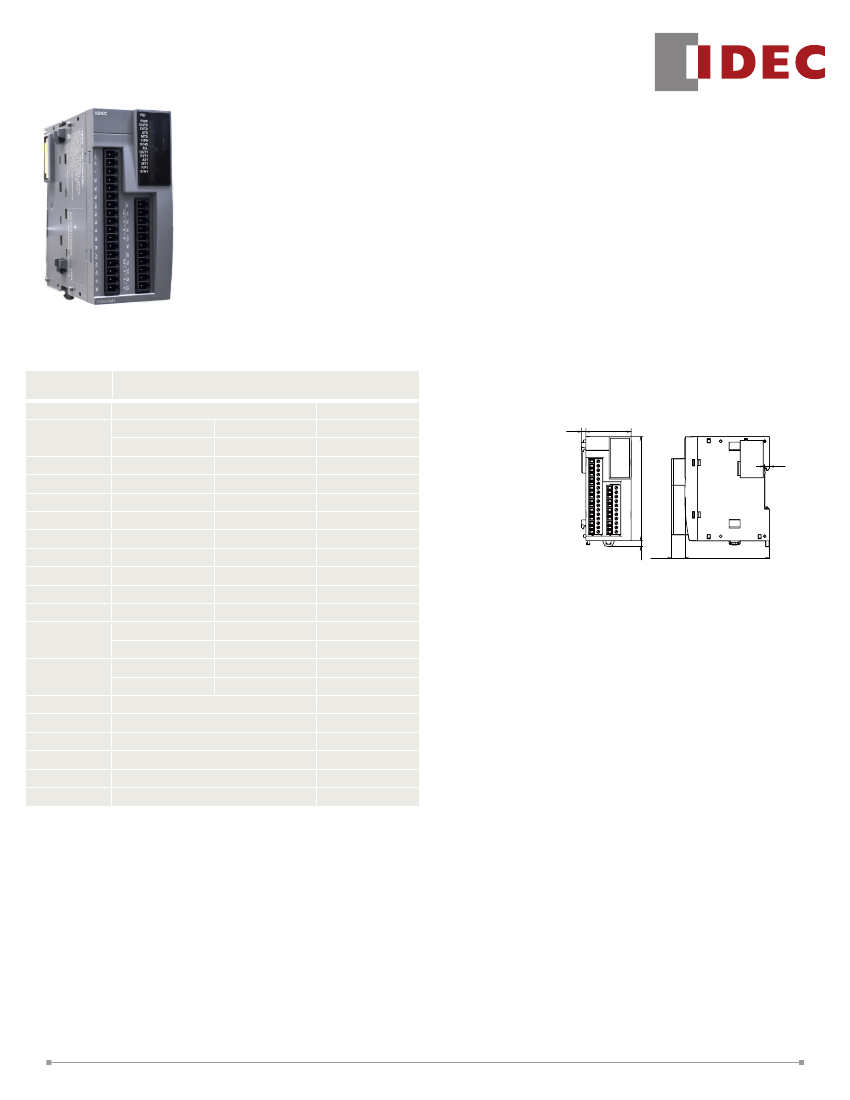

MicroSmart FC6A PLC
PID Module Specifications
KEY FEATURES
• Configure up to 15 modules
• Maximum 30 PID loops
• 2 analog inputs and 2 relay or 4-20mA
Non-contact voltage output for SSR drive
SPECIFICATIONS
Input Range
Part Number
Input
K
J
R
S
B
E
T
N
PL-II
C (W/Re5-26)
Pt100
FC6A-F2MR1
FC6A-F2M1
Input Range (Digital Resolution)
-200 to 1,370°C
-200.0 to 400.0°C
-200 to 1,000°C
0 to 1,760°C
0 to 1,760°C
0 to 1,820°C
-200 to 800°C
-200.0 to 400.0°C
-200 to 1,300°C
0 to 1,390°C
0 to 2,315°C
-200 to 850°C
-200.0 to 850.0°C
-200 to 500°C
-200.0 to 500.0°C
-328 to 2,498°F
-328.0 to 752.0°F
-328 to 1,832°F
32 to 3,200°F
32 to 3,200°F
32 to 3,308°F
-328 to 1,472°F
-328.0 to 752.0°F
-328 to 2,372°F
32 to 2,534°F
32 to 4,199°F
-328 to 1,562°F
-328.0 to 1,562.0°F
-328 to 932°F
-328.0 to 932.0°F
DIMENSIONS
Input Value of LSB
1°C (°F)
0.1°C (°F)
1°C (°F)
1°C (°F)
1°C (°F)
1°C (°F)
1°C (°F)
0.1°C (°F)
1°C (°F)
1°C (°F)
1°C (°F)
1°C (°F)
0.1°C (°F)
1°C (°F)
0.1°C (°F)
1.333μA
1.666μA
0.083mA
0.416mA
0.333mA
0.833mA
∗
5.0
11.4
73. 0
90.0
4.0
FC6A-M24BR1/FC6A-F2M1 FC6A-F2MR1
3.8
39.2
∗
9.3 mm when the clamp is pulled out.
JPt100
DC 4 to 20mA
DC 0 to 20mA
DC 0 to 1V
DC 0 to 5V
DC 1 to 5V
DC 0 to 10V
-2,000 to 10,000 (12,000 increments)
1
-2,000 to 10,000 (12,000 increments)
1
-2,000 to 10,000 (12,000 increments)
1
-2,000 to 10,000 (12,000 increments)
1
-2,000 to 10,000 (12,000 increments)
1
-2,000 to 10,000 (12,000 increments)
1
Note 1: Linear-conversion is possible.
1
RATINGS
Part Number
Independent PID Control
Heating/Cooling Control
Control Mode
Difference Input Temperature
Control
Cascade Control
Input Points
Thermocouple
Resistance Thermometer
Input Type
Input Range
Current Input
FC6A-F2MR1
Possible
Possible (overwrapping deadband settings available)
1
Possible
1
Possible
1
2ch
K, J, R, S, B, E, T, N, PL-II, C (W/Re5-26)
External resistance: 100Ω maximum
Pt100, JPt100, 3-wire type
0 to 20 mA DC, 4 to 20 mA DC
Input impedance: 50Ω
0 to 1V DC
Input impedance: 1MΩ minimum
0 to 5V DC, 1 to 5V DC, 0 to 10V DC
Input impedance: 100kΩ minimum
FC6A-F2M1
Voltage Input
Sampling Duration Time
Sampling Repetition Time
AD
Conversion
Total Input System Transfer Time
Type of Input
Conversion Method
100 ms
100 ms
Sampling time + sampling interval + 1 scan time
Differential input
∑ ∆ type ADC
±0.2% of full scale or ±2°C (4°F), whichever is greater
However, R, S inputs: 0 to 200°C (0 to 400°F): ±6°C (12°F)
B input: 0 to 300°C (0 to 600°F) Accuracy is not guaranteed.
K, J, E, T, N inputs: Less than 0°C (32°F): ±0.4% of full scale
Maximum
Error
at 25°C
Thermocouple Input
Resistance Thermometer Input
Voltage/Current Inputs
±0.1% of full scale or ±1°C (2°F), whichever is greater
±0.2% of full scale
±1°C at 0 to 55°C
±0.005%/°C of full scale
Yes
Twisted pair shielded cable (current/voltage) / Twisted pair cable (temperature input)
None
Transformer-isolated
Photocoupler-isolated
2ch
Relay output 1NO
Rated load 5A 250V AC/30V DC (resistive load)
3A 250V AC (inductive load cos ø=0.4)
3A 30V DC (resistive load VR=7ms)
Minimum open/closed load:
10 mA 5V DC (reference value)
Electrical life: 100,000 cycles
(at the maximum rating of resistive load)
Non-contact voltage output (for SSR drive)
12V DC±15%
Maximum 40 mA (short circuit protected)
Analog current output
4 to 20 mA DC
Load resistance: 550Ω maximum
Analog output digital resolution: 1,000
LSB input value: 0.016 mA
Cold Junction Temperature Compensation Accuracy
Temperature Coefficient
Input Filter
Noise
Resistance
Recommended Cable for Noise
Immunity
Cross Talk
Isolation
Output Points
Between input and power circuit
Between input and internal circuit
Output
Noise
Resistance
Recommended Cable for Noise
Immunity
Cross Talk
—
—
Between input and power circuit: Transformer-isolated
Between input/output and internal circuits: Photocoupler-isolated
Between input circuits: Photocoupler-isolated
Twisted pair shielded cable
None
Isolation
Power Voltage
Allowable Voltage Range
Maximum Power Consumption
Internal Power Consumption
Weight (approx.)
24V DC (External power), 5V DC (Internal power)
20.4 to 28.8V DC
3.6W
65mA (5V DC)
140g
Note 1: Dual channel input is required for one loop control.
