QuickNet
™
SFQ Series
MTP* Fiber Optic Cassettes
technical information
QuickNet
™

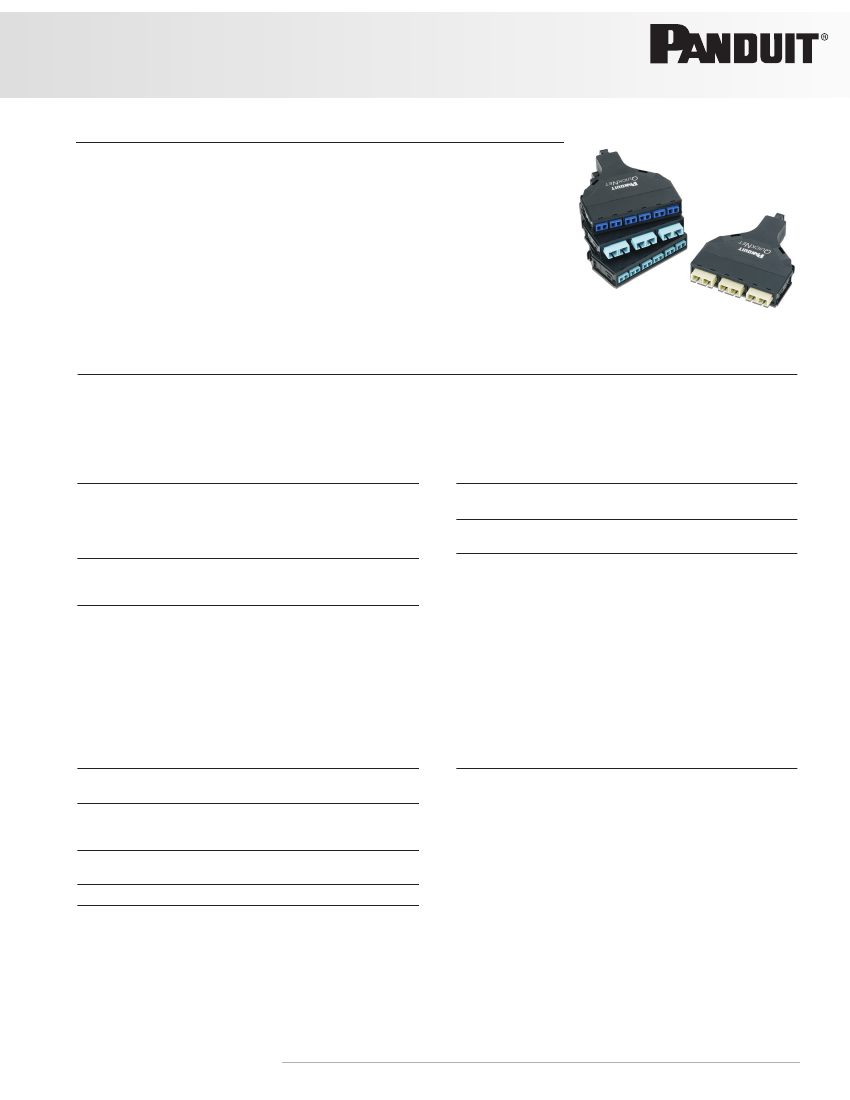

SFQ Series MTP* Fiber Optic Cassettes comply with IEEE 802.3ae 10 GbE
and ANSI T11.2 Fibre Channel requirements. Fiber optic cassettes support network
data rates up to 10 Gb/s for link lengths up to 300 meters using laser optimized OM3
fiber and link lengths up to 550 meters using OM4 fiber. Optimized cassettes provide
insertion loss of 0.5dB max., and standard cassettes provide 0.75dB max. to meet
IEEE 802.3ae max. channel loss specification of <26dB. QuickNet
™
SFQ Series MTP*
Fiber Optic Cassettes employ high performance MTP* connectors on the rear of
the units routed to 6 or 4 duplex LC colors shall follow TIA/EIA-568-C.3 suggested
color identification scheme. They interconnect with high-density SFF MTP* ribbon
interconnect cable assemblies. High-density cassette patch panels shall hold up to 8
cassettes, allowing up to 96 fiber connections to be deployed in one rack unit (1 RU).
S P E C I F I C AT I O N S H E E T
application
Allows system designers to tailor configuration, reach and breakout construction to application requirements; to minimize waste,
optimize cable management, speed deployment, and improve flexibility and manageability for lower installation costs.
construction
Fiber types:
Singlemode:
Multimode:
OS1/OS2 9/125μm
OM1 62.5/125μm
OM2 50/125μm
OM3 10Gig 50/125μm
OM4 10Gig 50/125μm
environmental properties
Operating temperature:
Storage and shipping temperature:
Installation temperature
0°C to +70°C
(32°F to 158°F)
-40°C to +70°C
(-40°F to 158°F)
0°C to +60°C
(32°F to 140°F)
Front
connectivity:
Rear
connectivity:
SC Duplex or LC Duplex adapters
Multimode with PC Polish
Singlemode with UPC Polish
Multimode:
Singlemode:
MTP* adapter(s) with
male ferrules (pins)
and PC Polish
MTP* adapters with
male ferrules (pins)
and APC Polish
performance
Return loss:
Per fiber:
properties
>20dB (OM1/OM2)
>26dB (OM3/OM4)
>55dB (OS1/OS2)
standards
Connectivity meets or exceeds TIA/EIA-568-C.3
performance requirements.
Supports IEEE 802.3ae (10 Gigabit Ethernet) and ANSI
T11.2 (Fibre Channel) channel and link specifications.
Compliant with ROHS 2002/95/EC
Insertion loss
Optimized (per fiber): 0.5dB max.
(link loss):
Standard (per fiber): 0.75dB max.
Connector
durability:
Fiber count:
Split sleeve
material:
Connectors meet TIA/EIA-568C.3 A.4.9
Durability:
500 mating cycles
6, 8, and 12
Zirconia ceramic: Optimized 10Gig and
10Gig OM3 and OM4
multimode cassettes
OS1/OS2 singlemode
cassettes
Phosphor bronze: OM1 and OM2
multimode cassettes
w w w.pand uit.co m
QuickNet
™
SFQ Series MTP* Fiber Optic Cassettes

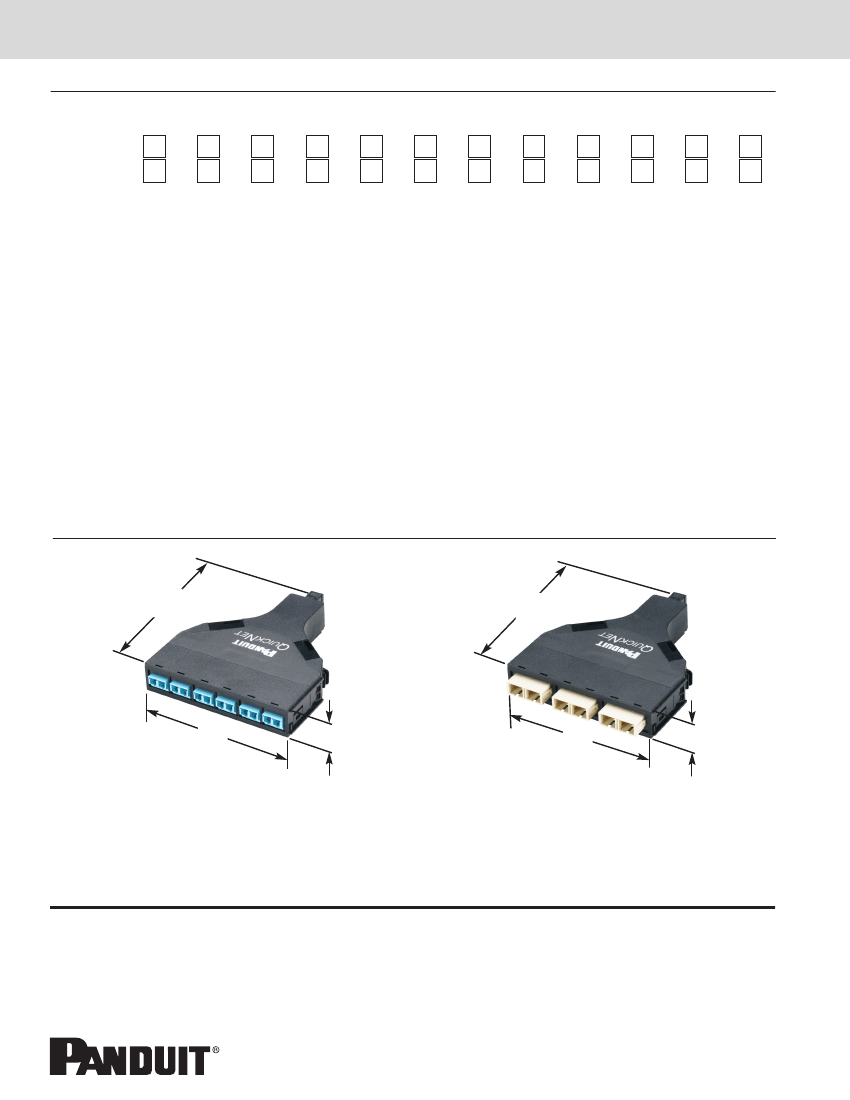

part number configurator
Example: FQXO-12-10AS = Fiber, QuickNet
™
, OM3 10 GbE, optimized cassette, 12-fiber with duplex LC adapter and standard Method
A polarity.
Character
Example
1
F
2
Q
3
X
4
O
5
-
6
1
7
2
8
-
9
1
10
0
11
A
12
S
1 – Fiber Product
F = Fiber
2 – Product Type
Q = QuickNet
™
3 – Fiber Type
5 = OM2 Fiber (50/125μm);
Available with standard loss only
6 = OM1 Fiber (62.5/125μm);
Available with standard loss only
9 = OS1/OS2 Fiber; Available with
standard loss only
X = OM3 Fiber (10Gig 50/125μm)
Z = OM4 Fiber (10Gig 50/125μm)
S = Signature Core OM+ Fiber;
Available with ultra low loss only
and in 12-fiber LC connectivity
4 – Fiber Type
N = Standard Loss
(0.75dB Link Loss)
O = Optimized Cassette
(0.5dB Link Loss)
A = Ultra Low Loss (0.35dB Link
Loss); only available with
Signature Core
™
OM4 + Fiber
and in 12-fiber LC Connectivity
5 – Dash
6, 7 – Fiber Count
06 = 6-fiber total
08 = 8-fiber total
12 = 12-fiber total
8 – Dash
9, 10 – Adapter Type
03 = Duplex SC Adapter
(6-fiber only)
10 = Duplex LC Adapter
(8 or 12-fiber only)
11, 12 – Polarity
AS = Method A, standard
AF = Modified Method A,
pair-flipped
B1 = Method B, B1 (1-1 array)
B2 = Method B, B2 (1-12 array)
Note: AS and AF used as a pair in a two cassette method A link.
B1 and B2 used as a pair in a two cassette method B link.
QuickNet
™
SFQ Series MTP
*
Fiber Optic Cassettes
5.15.1
[129]
[129]
5.15.1
[129]
[129]
4.24.2
[106]
[106]
0.80.8
[21]
[21]
4.24.2
[106]
[106]
0.80.8
[21]
[21]
Notes:
1. Reference TIA-568-C.0 for details on Method A and Method B Polarities.
2. Method B Cassettes are available upon request. Please contact Panduit for details.
*MTP is a registered trademark of US Conec Ltd.
Dimensions are in inches. [Dimensions in brackets are metric].
