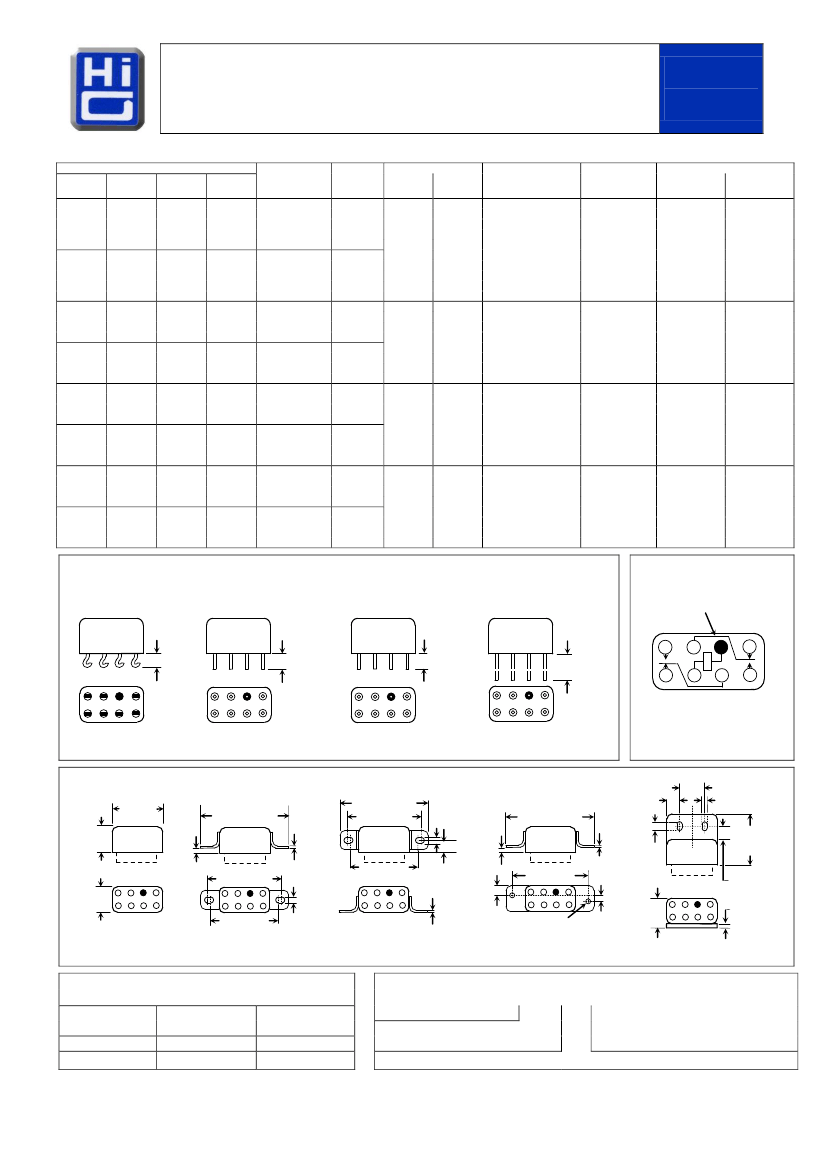

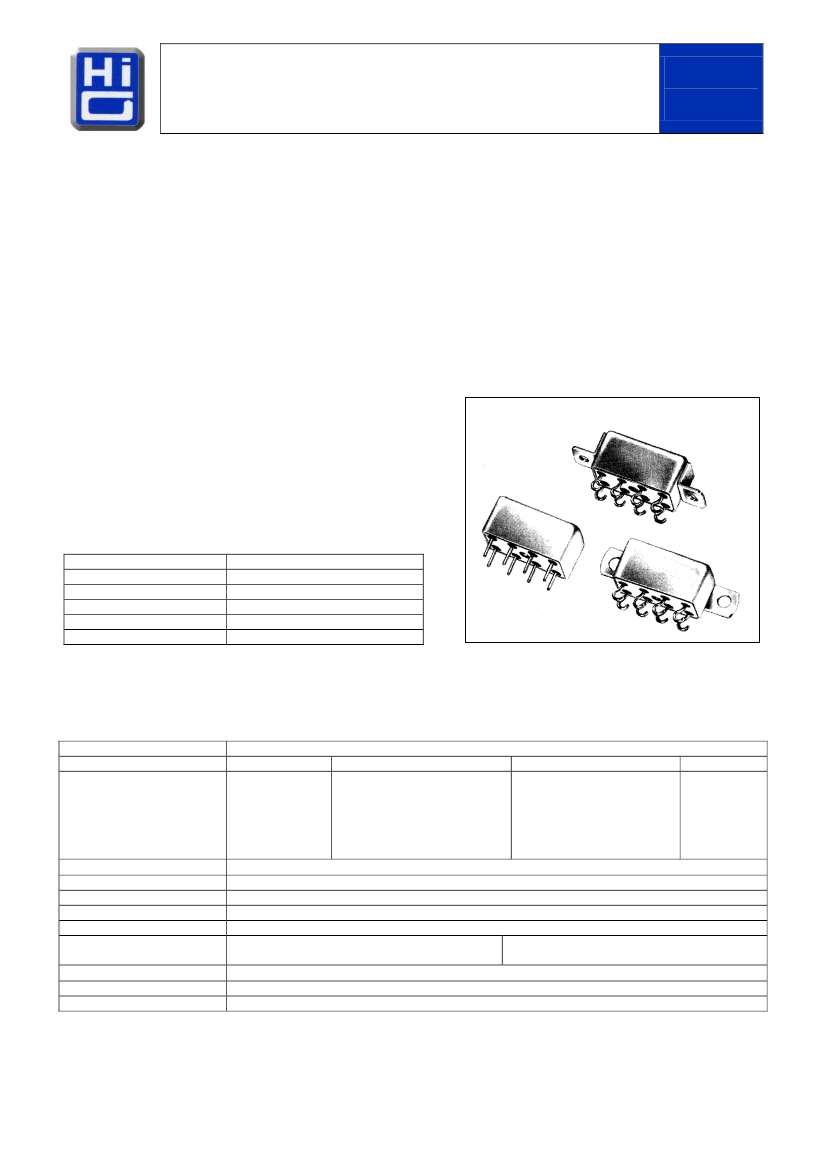

HALF SIZE CRYSTAL CAN RELAY
2 AMPERE DPDT
Product Description
Series
I 2K
A complete series of half crystal can hermetically sealed relays manufactured and qualified to the referenced Military specification.
The leading relay design in military and commercial application is represented in Hi-G Italia I2K series relay. The product advanced
design provides superior performance in the environmental and operational requirements of today’s sophisticated equipment.
Volume production coupled with continuing qualification programs, ensure product consistency and the highest degree of reliability.
The following construction features ensure the highest reliability in extreme environments:
-
All welded relay construction
-
Cleaning and sealing techniques ensures maximum internal cleanliness
-
Low level to 2 amperes switching
-
2 form C, DPDT contacts, special metal alloy with gold plating
-
Frame, armature designs and force / mass ratio provides exceptional immunity to shock and vibration.
MIL-PRF-39016/6
Series Type
-
I2K
2 form C, DPDT
Environmental and Physical Specifications
Temperature (Ambient)
Shock
Vibration (sinusoidal)
Acceleration
Sealing
Weight
- 65°C to + 125°C
100 g, 6 ms.
30 g, 10 to 3000 Hz
50 g
All welded, Hermetic
0,46 oz. (13,0 grams) max.
Electrical Characteristics
(over the Temperature range. Unless otherwise noted)
Coil Data
Contact Rating
(Note: All ratings with grounded
case)
Contact Resistance
Operate Time
Release Time
Contact Bounce
Contact Stabilisation Time
Dielectric Strength
Insulation Resistance
Intercontact Capacitance
Sensitivity
See Typical Characteristics chart
Contact Load
Type 1
Type 2
Cycles min.
Low Level
1.000.000
10 to 50
A
/ 10 to 50 mV
10 to 50
A
/ 10 to 50 mV
Resistive
100.000
2 A / 28 Vdc
2 A / 28 Vdc
0,3 A / 115 Vac, 60 and 400 Hz
0,1 A / 115 Vac, 60 and 400 Hz 100.000
Overload
100
4 A / 28 Vdc
4 A / 28 Vdc
Inductive
100.000
0,75 A / 28 Vdc (200 mH)
0,50 A / 28 Vdc (200 mH)
Lamp
100.000
0,16 A / 28 Vdc
0,16 A / 28 Vdc
0,05
max. initial, 0,1
max. after life high level, 0,15
max. after low level
4,0 ms. max. at 25°C
4,0 ms. max. at 25°C
2,0 ms. max. at 25°C
2,0 ms. max. at 25°C
1.000 Vrms min., 60 Hz, all points, 500 Vrms min.
350 Vrms min., 60 Hz, all points at 70.000 ft.
between open contacts and coil to case, at sea level
10.000 M min. all points at 500 Vdc
2,5 pF between contacts
250 mW at pick-up, 1 W typical at nominal rated coil voltage, at 25 °C
High Generation S.r.l.
Tel: + 39 06 96873136
Fax: + 39 06 94443060
13
REV. 0/2012
HALF SIZE CRYSTAL CAN RELAY
2 AMPERE DPDT
Typical Characteristics
(over the Temperature range. Unless otherwise noted)
Terminal Codes
Wire Lead
(PI)
141
Solder Lug
(L)
104
107
128
129
149
204
207
228
229
249
111
114
130
150
211
214
230
250
118
121
131
151
218
221
231
251
132
135
138
152
232
235
238
252
Wire Lead
(SP)
105
125
109
205
225
209
112
126
116
212
226
216
119
127
123
219
227
223
133
136
139
233
236
239
Wire Lead
(W)
106
108
110
206
208
210
113
115
117
213
215
217
120
122
124
220
222
224
134
137
140
234
237
240
Mounting Styles
B
C
D
None
E
B
C
D
None
E
B
C
None
E
B
C
None
E
B
C
None
E
B
C
None
E
B
C
None
E
B
C
None
E
Load
Rating
Coil Voltage (Vdc)
Max.
Nom.
DC Coil Resistance ()
10%
at 25°C
Pick-up (Vdc)
Max
Series
I 2K
Drop-out (Vdc)
Max.
Min.
Type 1
142
241
32,0
Type 2
26,5
700
18,0
14,0
1,00
242
143
144
243
244
145
146
245
246
147
148
247
248
Type 1
15,0
Type 2
12,0
160
9,0
5,8
0,50
Type 1
7,5
Type 2
6,0
40
4,5
2,9
0,25
Type 1
6,0
Type 2
5,0
27
3,8
2,4
0,21
Terminal Styles
L
Solder Lug
Schematic Diagram
SP
Wire Lead Solder Pin
PI
Wire Lead Plug in
(Gold Plated)
W
Wire Lead
B1
Blue Bead
A2
X1 A3
.190
(4,83)
max.
.187 (4,75)
± .020 (0,51)
.187 (4,75)
± .020 (0,51)
2.950 (74,93)
min.
B3
Note:
- Dimensions are shown in inches (millimetres).
- Terminal spacing is .200 (5,08). Terminal diameter is .030 (0,76) + .003 (0,08) - .002 (0,05)
X2
B2
A1
Note:
- Schematic is viewed
from terminals
.400
(10,10)
Mounting Styles
.810 (20,57)
max.
1.320 (33,53)
max.
1.320 (33,53)
max.
.015
(0,38)
min.
1.078 (27,38)
.120 (3,05)
±.002 (0,05)
.125
(3,18)
1.000 (25,4)
± .005 (0,13)
1.180 (29,97) max.
.200 (5,08)
±.015 (0,38)
.250
(6,35)
.120 (3,05)
± .005 (0,13)
.850 (21,59)
max.
.410 (10,41)
max.
.125 (3,18)
1.078 (27,38)
.120 (3,05)
±.002 (0,05)
1.062 (26,97)
.250
(6,35)
.015 (0,38)
min.
.015(0,38)
min.
.200 (5,08)
±.015 (0,38)
.450
(11,43)
max.
.040
(1,02)
max.
.410 (10,41)
max.
1.062 (26,97)
.137
(3,48)
.096 (2,44) Dia.
± .005 (0,13)
.125 (3,18)
±.005 (0,13)
NONE
Note:
1 Failure Rate (Reliability Level)
Military
Suffix
L
M
High Generation S.r.l.
Tel: + 39 06 96873136
Fax: + 39 06 94443060
B
C
D
E
Note: Dimensions are shown in inches (millimetres)
How to Order, (Part Numbering System)
I 2K - 104 A
FR % / 10.000
cycles
3,0
1,0
Series
Terminal Code
Reliability levels A or B (note 1)
Hi-G
Suffix
A
B
14
REV. 0/2012
