MICROSMD010F-2: DescriptionPTC RESET FUSE 30V 100MA 1210; CategoryPassive components The resistor; File Size838KB，26 Pages; ManufacturerLittelfuse; Websitehttp://www.littelfuse.com; Environmental Compliance

Download Datasheet Parametric View All

MICROSMD010F-2 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	MICROSMD010F-2	-	-	View	Buy Now

MICROSMD010F-2 Overview

PTC RESET FUSE 30V 100MA 1210

MICROSMD010F-2 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Littelfuse
package instruction	SMT,
Reach Compliance Code	compliant
Samacsys Description	Micro SMD polyswitch fuse,100mA TE Connectivity 0.1A Surface Mount Resettable Fuse, 30 V dc
Other features	MINIMUM RESISTANCE IS 2.1 OHMS
Circuit maximum DC voltage	30 V
JESD-609 code	e3
Installation features	SURFACE MOUNT
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package height	0.85 mm
Package length	3.43 mm
Package shape	RECTANGULAR PACKAGE
Package form	SMT
Package width	2.8 mm
method of packing	TR, 7 INCH
Rated power dissipation(P)	0.5 W
Resistor type	PTC RESETTABLE FUSE
surface mount	YES
Terminal surface	Matte Tin (Sn) - with Nickel (Ni) barrier
Terminal location	DUAL ENDED
Terminal shape	ONE SURFACE
Thermistor Applications	TEMPERATURE SENSING
Operating Voltage	30 V

Preview

Download Datasheet

View All

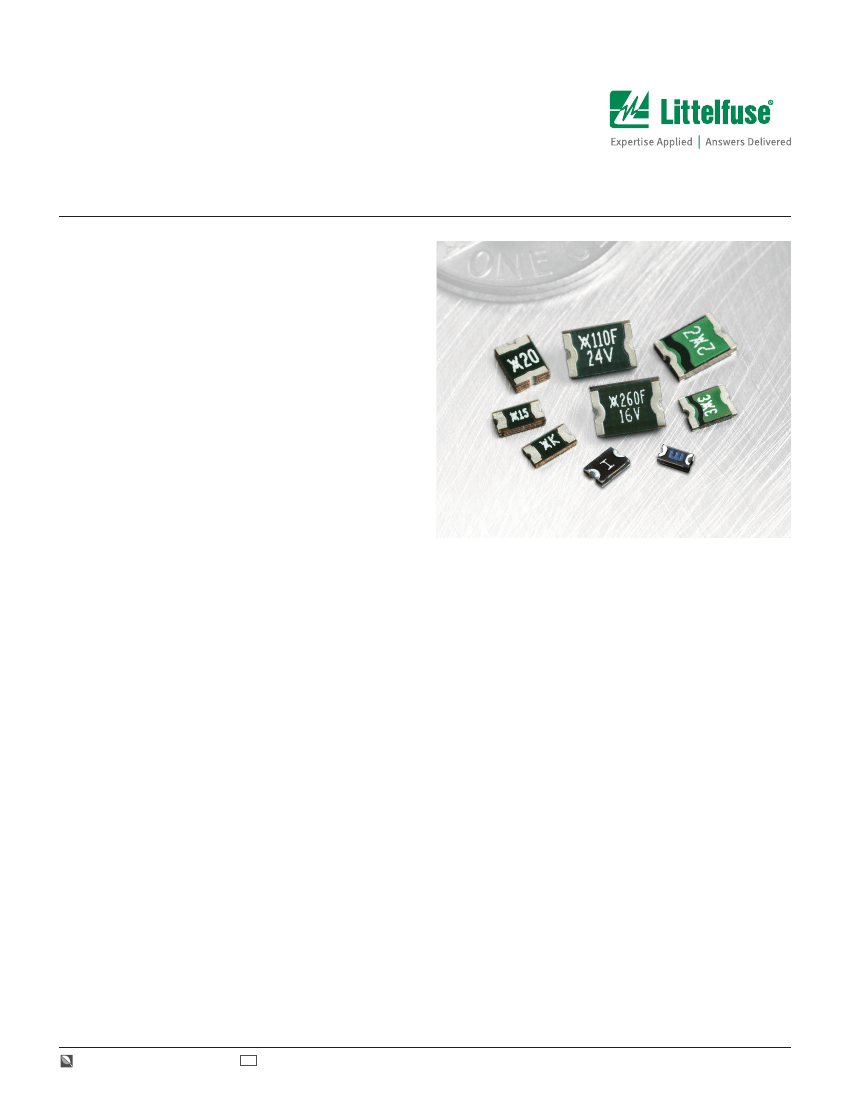

POLYSWITCH RESETTABLE

DEVICES

Surface-Mount Devices

portable and automotive electronics applications.

In an affort to reduce the size and cost of surface-

mount devices, Littelfuse PolySwitch team introduced

the miniSMD product series in 1995. Subsequently,

we developed the microSMD, nanoSMD, picoSMD and

femtoSMD family of products. The femtoSMD series

reduced the device size to a 1608mm (0603 mils)

footprint, which is one-twelfth the size of the popular

miniSMD series.

Recent additions to the PolySwitch surface-mount series

include 1.1A picoSMD 1210mm (0805 mils) and 0.35A

femtoSMD 1608mm (0603 mils) devices.

PolySwitch surface-mount devices are an effective circuit

protection method for computer, consumer, multimedia,

BENEFITS

• Smaller size helps save board space and cost

• Many product choices optimizes design flexibility

• Compatible with high-volume electronics assembly

• Assists in meeting regulatory requirements

• Higher voltage ratings allow use in new applications

APPLICATIONS

• Computer

• Portable electronics

• Multimedia

• Game machines

• Telephony and broadband

• Mobile phones

• Automotive

• Industrial controls

• Battery

FEATURES

• RoHS compliant

• Halogen free

(refers to: Br

≥

900ppm, Cl

≥

900ppm, Br+Cl

≥

1500ppm)

• Broadest range of resettable devices available in the

industry

• Current ratings from 0.05 to 3.1A

• Voltage ratings from 6V computer and electronic

applications to 60V telecom applications

• Agency recognition: UL, CSA, TÜV

• Small footprint

• Fast time-to-trip

• Low resistance

RoHS Compliant, ELV Compliant

Halogen Free

123
