Preview

5400BL15B100E: DescriptionBALUN CERAMIC CHIP WIFI 5400MHZ; CategoryTopical application Wireless rf/communication; File Size201KB，2 Pages; ManufacturerJohanson Technology; Websitehttp://www.johansontechnology.com; Environmental Compliance

Download Datasheet Parametric Compare View All

5400BL15B100E Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	5400BL15B100E	-	-	View	Buy Now

5400BL15B100E Overview

BALUN CERAMIC CHIP WIFI 5400MHZ

5400BL15B100E Parametric

Parameter Name	Attribute value
Frequency Range	4.9GHz ~ 5.9GHz
Impedance - Unbalanced/Balanced	50 / 100 ohms
phase difference	180° ±10°
Insertion loss (max)	1.0dB
Return loss (minimum)	9.5dB
Package/casing	0805 (2012 Metric)
Installation type	surface mount

Preview

Download Datasheet

View All

“High Frequency Ceramic Solutions”

5.5 GHz Balun

Detail Specification: 10/23/12

P/N 5400BL15B100

Page 1 of 2

Part

Number

Frequency

(MHz)

Impedance

Unbal. / Bal.

50/100 Ω

Insertion

Loss

1.0 dB max.

Return

Loss

9.5 dB min.

Phase

Difference

180°±10°

Amplitude

Difference

2.0 dB max.

5400BL15B100_ 4900 - 5875

Input Power

3 Watts max

Impedance

50 /100 Ω

Operating Temperature Range

-40 to +85°C

Reel Qty

4,000

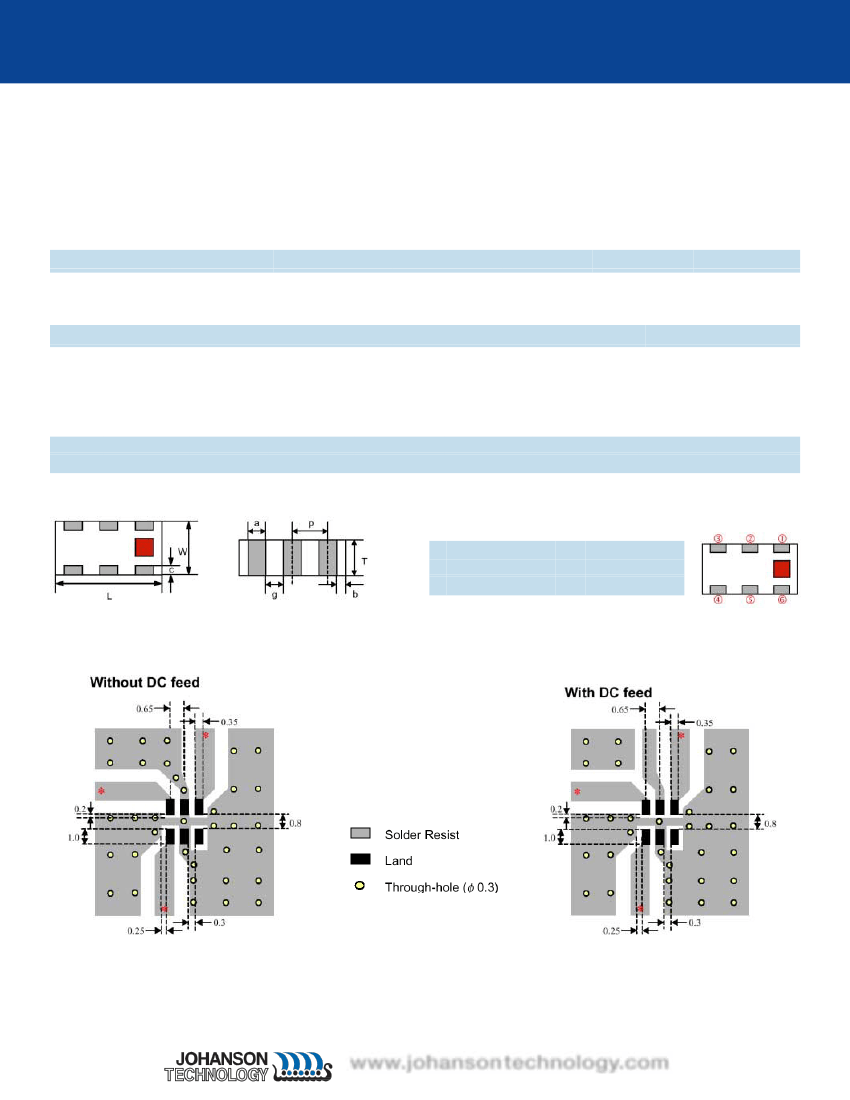

Mechanical Dimensions

L

Inches

mm

0.079 ± .004

2.0 ± 0.1

W

0.049± .004

1.25 ± 0.1

T

0.037 ± .004

0.95 ± 0.1

a

0.012 ± .004

0.30 ± 0.1

b

0.008 ± .004

0.20 ± 0.1

c

g

p

0.026 ±.002

0.65 ± 0.05

0.012 + .004/-.008 0.014 ± .004

0.30+0.1/-0.2

0.35 ± 0.1

Terminal Configuration

1

2

3

Unbalanced Port

GND or DC Feed

Balanced Port

4

5

6

Balanced Port

GND

NC

Mounting Considerations

Mount devices with colored mark facing up.

*

Line width should be designed to

provide 50Ω impedance matching

characteristics.

Units: mm

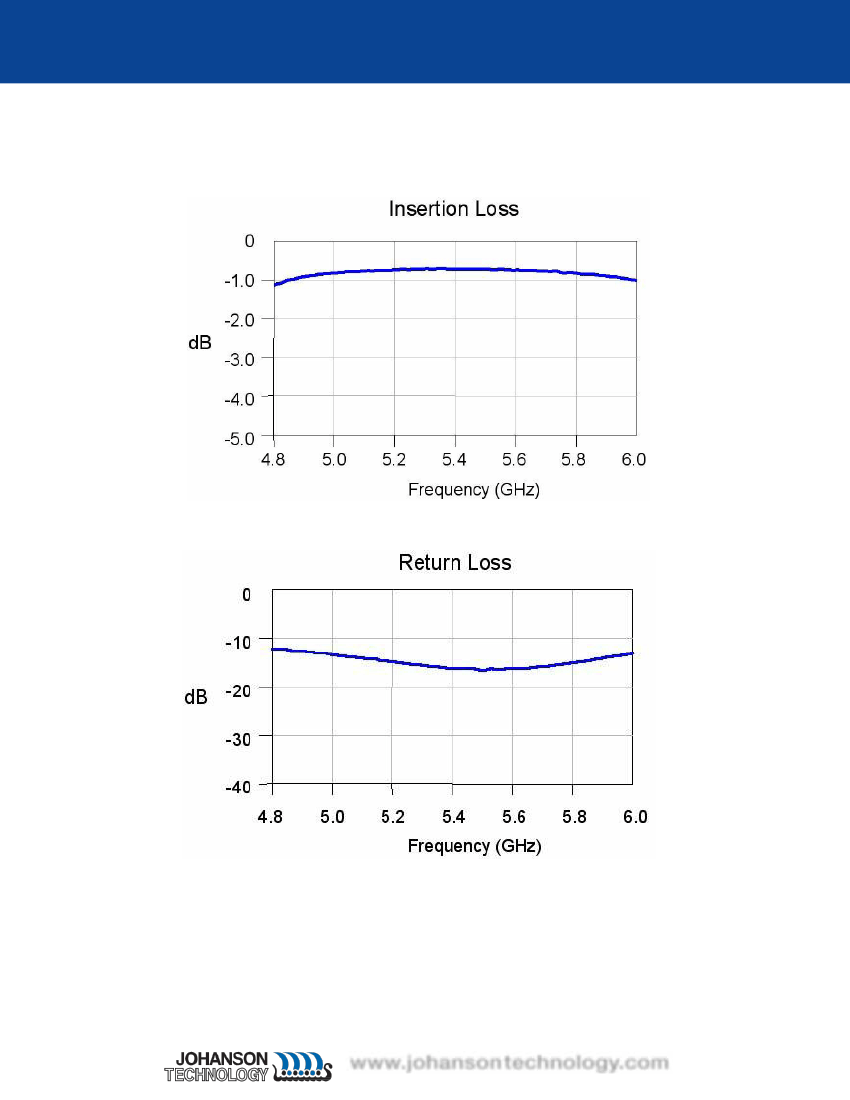

Johanson Technology, Inc. reserves the right to make design changes without notice.

All sales are subject to Johanson Technology, Inc. terms and conditions.

www.johanson technology.com

931 Via Alondra • Camarillo, CA 93012 • TEL 805.389.1166 FAX 805.389.1821

5400BL15B100E Related Products

	5400BL15B100E
Description	BALUN CERAMIC CHIP WIFI 5400MHZ
Frequency Range	4.9GHz ~ 5.9GHz
Impedance - Unbalanced/Balanced	50 / 100 ohms
phase difference	180° ±10°
Insertion loss (max)	1.0dB
Return loss (minimum)	9.5dB
Package/casing	0805 (2012 Metric)
Installation type	surface mount

Recommended Resources

Broadband high frequency power amplifier circuit

RTD temperature measurement-voltage and current output circuit

Reference source circuit diagram using LT1495 op amp

CMOS camera device control circuit

Phase control circuit using PUT thyristor

Computer motherboard circuit diagram 820 1_07
