EEWORLDEEWORLDEEWORLD

Part Number

Search

DAM15P

Description
High Performance D-Sub Power Board Mount Connectors, Input Output Connectors, machined contacts 15 Way Pin, Solder bucket
CategoryThe connector    The connector
File Size151KB,1 Pages
ManufacturerAmphenol
Websitehttp://www.amphenol.com/
Download Datasheet Parametric Compare View All

DAM15P Online Shopping

Suppliers Part Number Price MOQ In stock
DAM15P - - View Buy Now

DAM15P Overview

High Performance D-Sub Power Board Mount Connectors, Input Output Connectors, machined contacts 15 Way Pin, Solder bucket

DAM15P Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
Objectid1416578026
Contacts15
Reach Compliance Codecompliant
ECCN codeEAR99
YTEOL8.18
body width0.494 inch
subject depth0.232 inch
body length1.526 inch
Body/casing typeRECEPTACLE
Connector typeD SUBMINIATURE CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact completed and terminatedGOLD OVER NICKEL
Contact point genderMALE
Contact materialNOT SPECIFIED
contact modeSTAGGERED
Contact resistance5 mΩ
Contact styleRND PIN-SKT
DIN complianceNO
Dielectric withstand voltage1000VAC V
empty shellNO
Filter functionNO
IEC complianceNO
Insulation resistance5000000000 Ω
insulator materialPOLYETHYLENE
JESD-609 codee4
MIL complianceNO
Plug contact pitch0.108 inch
Match contact row spacing0.112 inch
Mixed contactsNO
Installation option 1HOLE .112-.124
Installation option 2NON-THREADED
Installation typePANEL
Number of rows loaded2
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
OptionsGENERAL PURPOSE
Rated current (signal)7.5 A
GuidelineUL
reliabilityMIL-C-24308
Shell surfaceCADMIUM
Shell materialSTEEL
Housing size2/A
Terminal length0.107 inch
Termination typeSOLDER
Total number of contacts15
UL Flammability Code94V-0

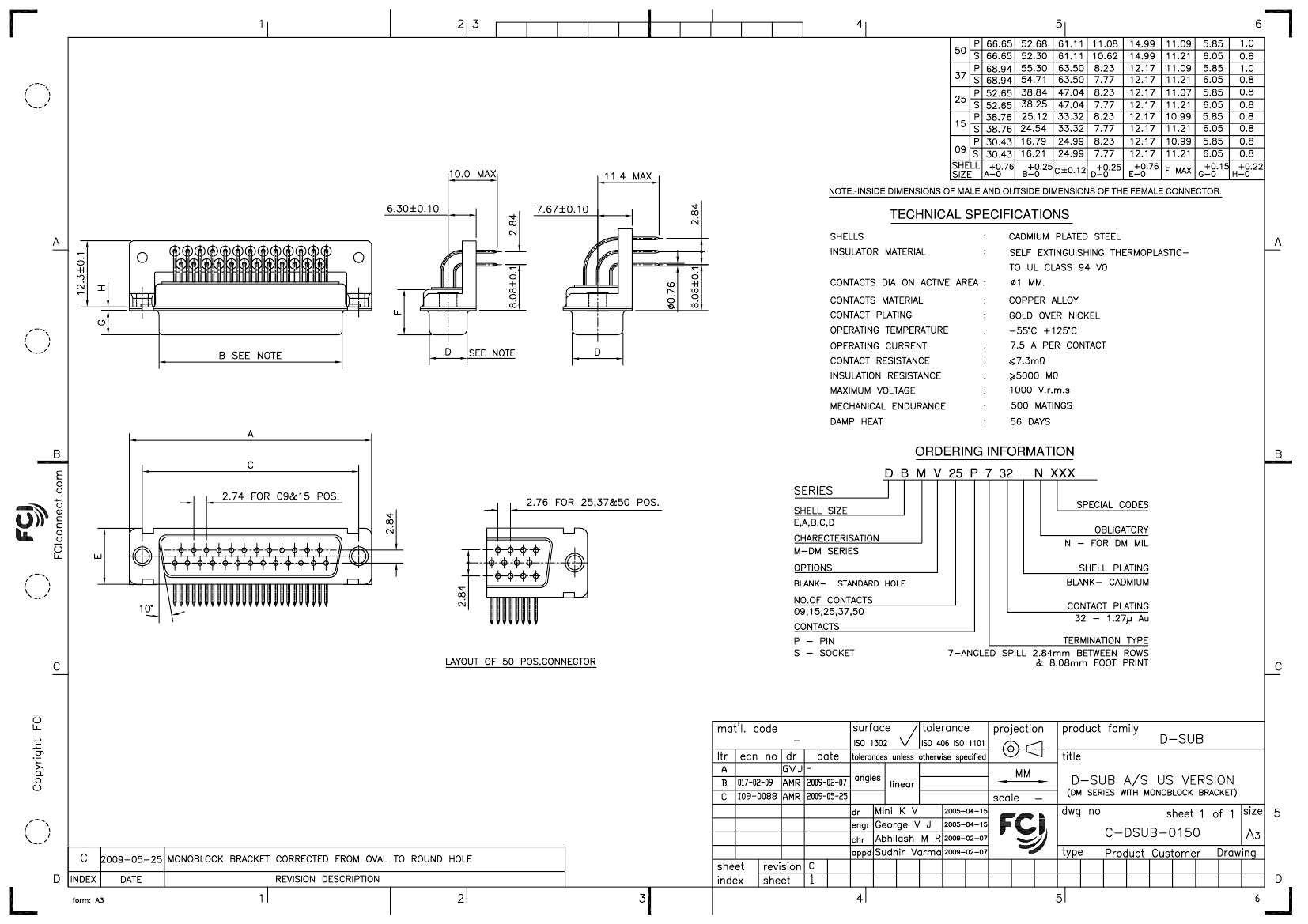

PDM: Rev:C
STATUS:
Released
Printed: Dec 15, 2009
.

DAM15P Related Products

DAM15P DBM25P DCM37P DBM25S DCM37S DEM09S732N
Description High Performance D-Sub Power Board Mount Connectors, Input Output Connectors, machined contacts 15 Way Pin, Solder bucket CONN D-SUB PLUG 25P STR SLDR CUP High Performance D-Sub Power Board Mount Connectors, Input Output Connectors, Cable Connector, machined contacts 37 Way Pin Solder bucket CONN D-SUB RCPT 25P STR SLDR CUP CONN D-SUB RCPT 37P STR SLDR CUP D Subminiature Connector, 9 Contact(s), Female, Solder Terminal
Reach Compliance Code compliant compliant compliant compliant compliant compliant
Connector type D SUBMINIATURE CONNECTOR D SUBMINIATURE CONNECTOR D SUBMINIATURE CONNECTOR D SUBMINIATURE CONNECTOR D SUBMINIATURE CONNECTOR D SUBMINIATURE CONNECTOR
Contact to complete cooperation NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED GOLD (50) OVER NICKEL
Contact completed and terminated GOLD OVER NICKEL Gold (Au) - with Nickel (Ni) barrier Gold (Au) - with Nickel (Ni) barrier Gold (Au) - with Nickel (Ni) barrier Gold (Au) - with Nickel (Ni) barrier GOLD (50) OVER NICKEL
Contact point gender MALE MALE MALE FEMALE FEMALE FEMALE
DIN compliance NO NO NO NO NO NO
empty shell NO NO NO NO NO NO
Filter function NO NO NO NO NO NO
IEC compliance NO NO NO NO NO NO
insulator material POLYETHYLENE POLYETHYLENE POLYETHYLENE POLYETHYLENE POLYETHYLENE POLYETHYLENE
JESD-609 code e4 e4 e4 e4 e4 e4
MIL compliance NO NO NO NO NO NO
Mixed contacts NO NO NO NO NO NO
Installation type PANEL PANEL PANEL PANEL PANEL BOARD
Options GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE
Shell surface CADMIUM CADMIUM CADMIUM CADMIUM CADMIUM CADMIUM
Shell material STEEL STEEL STEEL STEEL STEEL STEEL
Housing size 2/A 3/B 4/C 3/B 4/C 1/E
Termination type SOLDER SOLDER SOLDER SOLDER SOLDER SOLDER
Total number of contacts 15 25 37 25 37 9
UL Flammability Code 94V-0 94V-0 94V-0 94V-0 94V-0 94V-0
Is it Rohs certified? incompatible - incompatible incompatible incompatible -
ECCN code EAR99 EAR99 EAR99 EAR99 EAR99 -
body width 0.494 inch 0.494 inch 0.485 inch 0.494 inch 0.494 inch -
subject depth 0.232 inch 0.232 inch 0.232 inch 0.224 inch 0.313 inch -
body length 1.526 inch 2.073 inch 2.72 inch 2.073 inch 2.714 inch -
Body/casing type RECEPTACLE RECEPTACLE RECEPTACLE SOCKET SOCKET -
Contact material NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED -
contact mode STAGGERED STAGGERED STAGGERED STAGGERED STAGGERED -
Contact resistance 5 mΩ 5 mΩ 5 mΩ 7.3 mΩ 7.3 mΩ -
Contact style RND PIN-SKT RND PIN-SKT RND PIN-SKT RND PIN-SKT RND PIN-SKT -
Insulation resistance 5000000000 Ω 5000000000 Ω 5000000000 Ω 5000000000 Ω 5000000000 Ω -
Plug contact pitch 0.108 inch 0.109 inch 0.109 inch 0.109 inch 0.109 inch -
Match contact row spacing 0.112 inch 0.112 inch 0.112 inch 0.112 inch 0.112 inch -
Installation option 1 HOLE .112-.124 HOLE .112-.124 HOLE .112-.124 LOCKING LOCKING -
Number of rows loaded 2 2 2 2 2 -
Maximum operating temperature 125 °C 125 °C 125 °C 125 °C 125 °C -
Minimum operating temperature -55 °C -55 °C -55 °C -55 °C -55 °C -
Rated current (signal) 7.5 A 7.5 A 7.5 A 7.5 A 7.5 A -
Guideline UL UL UL UL UL -
reliability MIL-C-24308 MIL-C-24308 - COMMERCIAL COMMERCIAL -
Maker - Amphenol - Amphenol Amphenol Amphenol
