73028 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 73028

73028: DescriptionCONN MMCX RCPT R/A 50 OHM PCB; CategoryThe connector; File Size102KB，1 Pages; ManufacturerPomona Electronics; Environmental Compliance

Download Datasheet Parametric View All

73028 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	73028	-	-	View	Buy Now

73028 Overview

CONN MMCX RCPT R/A 50 OHM PCB

73028 Parametric

Parameter Name	Attribute value
Connector style	MMCX
Connector type	socket, female socket
Contact termination	welding
Protective termination	welding
impedance	50 ohms
Installation type	Through hole, right angle
Installation features	-
cable set	-
Fastening type	snap-in
Frequency - maximum	6GHz
Number of ports	1
characteristic	-
Shell color	gold
Intrusion protection	-
include	-
Matrix material	brass
substrate surface	gold
Center contact plating	gold
dielectric materials	Polytetrafluoroethylene (PTFE)
Operating temperature	-65°C ~ 165°C
center contact material	copper beryllium
Rated voltage	170V
Number of patches	500
Insertion loss	-

Preview

Download Datasheet

View All

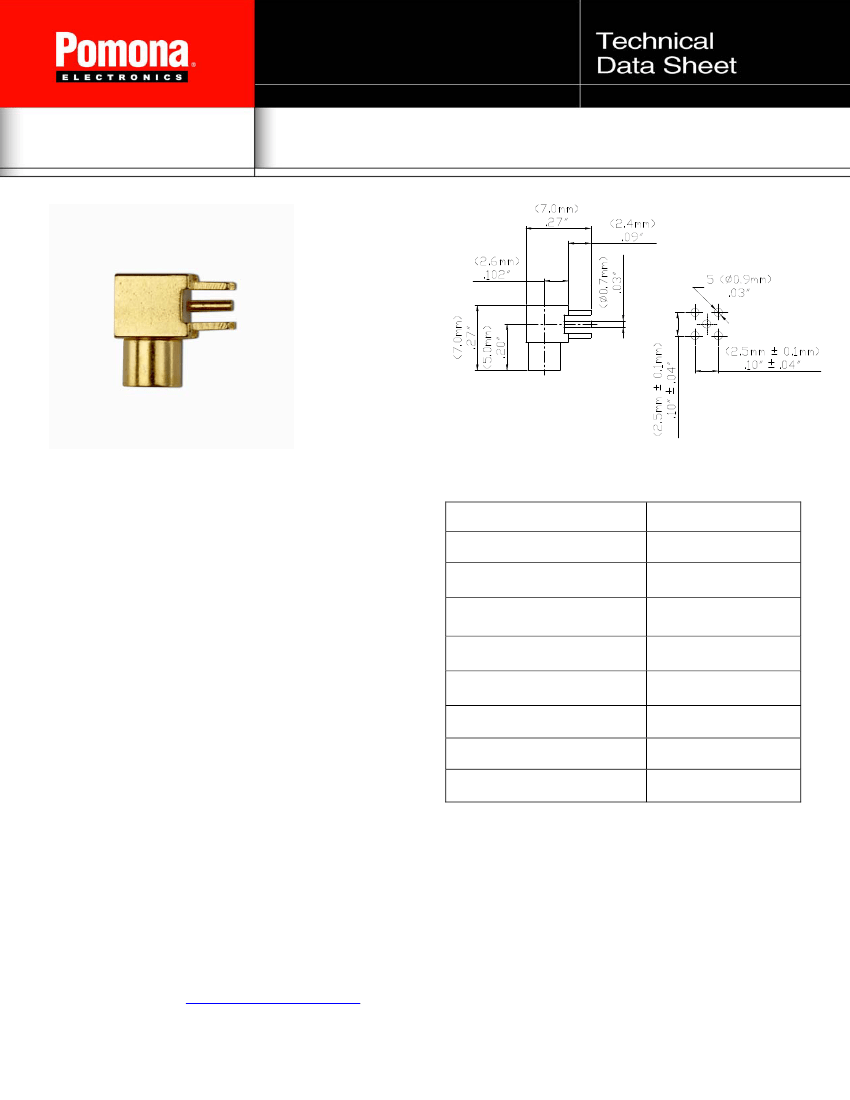

Model 73028

MMCX JACK R/A PCB RECEPTACLE

Model 73028 MMCX JACK R/A PCB RECEPTACLE

Specifications

Snap-on coupling and micro-

miniature size for fast connect

and disconnect where space is

limited

Features

•

DC - 6 GHz bandwidth.

50% smaller than MCX connectors.

Connectors allow rotation of 360˚ for layout

flexibility.

Non-slotted contact design for low RF leakage.

Meets CECC 22340.

Perfect for applications where space, weight,

performance and ease of assembly are required.

Impedance

Frequency Range

Working Voltage

Dielectric Withstanding

Voltage

VSWR

Center / Outer contact

resistance

Number of insertions

Insulation resistance

Temperature Range

Ω

DC - 6 GHz

170 Vrms max.

500 Vrms

1.25 max

10 / 5 mΩ

500 cycles minimum

> 500 MΩ

-65˚ C to 165˚ C, -85˚

F to 329˚ F

Materials

•

Body is machined brass with gold plating.

Center contacts – Plug is gold plated Phosphor

bronze and Jack is gold plated beryllium copper.

High quality PTFE insulators.

Crimp Ferrules are gold or nickel plated copper.

Ordering

Information

Model: 73028

Description: MMCX JACK R/A PCB RECEPTACLE

USA:

Sales: 800-490-2361

Technical Support:

technicalsupport@pomonatest.com

Fax: 425-446-5844

Europe:

31-(0) 40 2675 150

International:

425-446-5500

Where to Buy:

www.pomonaelectronics.com

All dimensions are in inches. Tolerances (except noted): .xx = ±.02” (.51 mm),

.xxx = ± .005” (.127 mm). All specifications are to the latest revisions.

Specifications are subject to change without notice. Registered trademarks

are the property of their respective companies.

D2003459 REV 001

Page 1 of 1
