133-3303-406: DescriptionRF MCX Connector, Female, Panel Mount, Cable Mount, Crimp Terminal, Jack; CategoryThe connector The connector; File Size46KB，1 Pages; ManufacturerVertiv

Download Datasheet Parametric Compare View All

133-3303-406 Overview

RF MCX Connector, Female, Panel Mount, Cable Mount, Crimp Terminal, Jack

133-3303-406 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknow
Other features	APPLICABLE CABLES: RG 188/U; RG 136, CAPTIVE CONTACT, INSERTION LOSS MAX AT 1 GHZ
Body/casing type	JACK
Characteristic impedance	50 Ω
Connector type	RF MCX CONNECTOR
Contact to complete cooperation	GOLD (30)
Contact completed and terminated	GOLD (30)
Contact point gender	FEMALE
Coupling type	THREADED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insertion loss	0.1 dB
insulator material	POLYTETRAFLUORO ETHYLENE
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	133-3303
Installation method	STRAIGHT
Installation type	CABLE
Maximum operating frequency	6 GHz
Options	GENERAL PURPOSE
Panel mounting	YES
Termination type	CRIMP
voltage standing wave ratio	1.37
Base Number Matches	1

Preview

Download Datasheet

View All

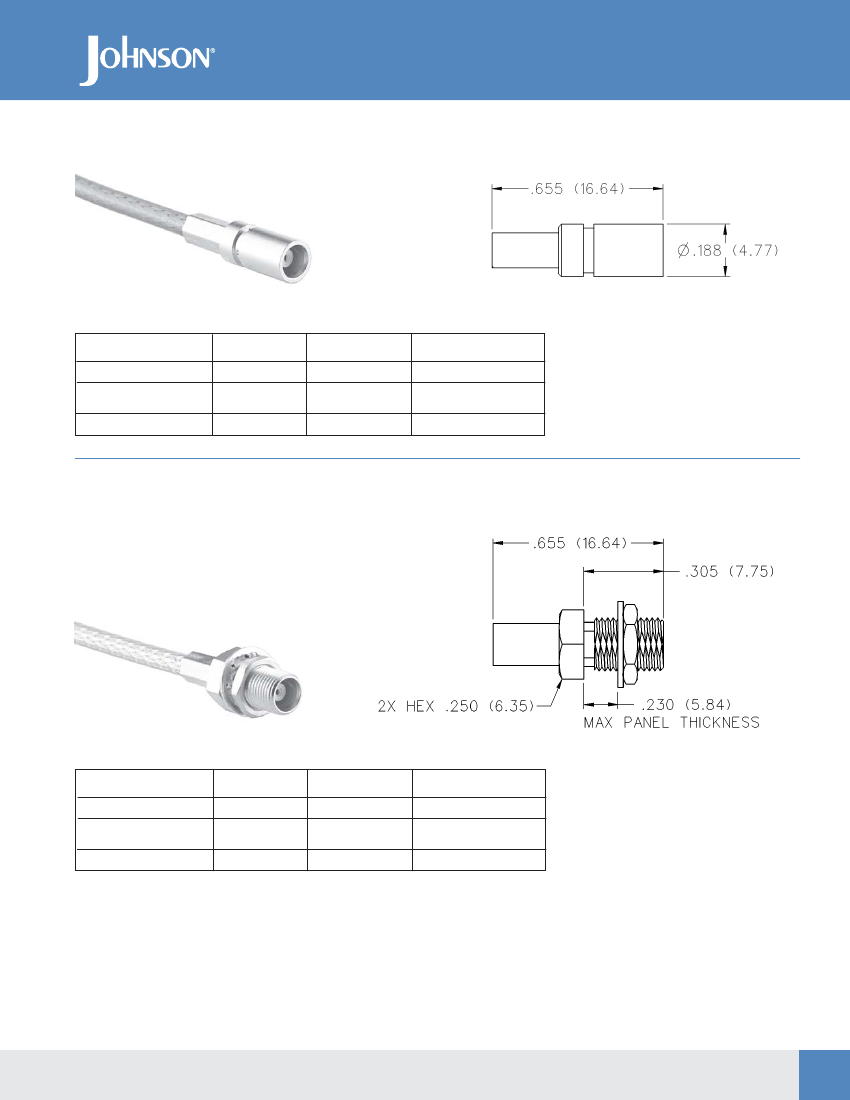

MCX - 50 Ohm Connectors

For Flexible Cable

INCHES (MILLIMETERS) • CUSTOMER DRAWINGS AVAILABLE ON REQUEST

Straight Crimp Type Jack - Solder or Crimp Contact

CABLE TYPE

RG-178/U, 196

RG-188/U, 316,

161, 174, 179, 187

RG-188 DS, RG-316 DS

GOLD PLATED

133-3302-001

133-3303-001

133-3304-001

NICKEL PLATED

133-3302-006

133-3303-006

133-3304-006

CAPTIVATED CONTACT

NO

YES

Assembly instructions page 216.

See page 190 for Cable Assembly tools.

Straight Crimp Type Bulkhead Jack -

Solder or Crimp Contact

CABLE TYPE

RG-178/U, 196

RG-188/U, 316,

161, 174, 179, 187

RG-188 DS, RG-316 DS

GOLD PLATED

133-3302-401

133-3303-401

133-3304-401

NICKEL PLATED

133-3302-406

133-3303-406

133-3304-406

CAPTIVATED CONTACT

NO

YES

Assembly instructions page 216.

Mounting hole layout figure 5 page 201

See page 190 for Cable Assembly tools.

Connectivity Solutions

Tel: 800-247-8256

•

Fax: 507-833-6287

•

www.EmersonNetworkPower.com/connectivity

13

133-3303-406 Related Products

	133-3303-406
Description	RF MCX Connector, Female, Panel Mount, Cable Mount, Crimp Terminal, Jack
Reach Compliance Code	unknow
Other features	APPLICABLE CABLES: RG 188/U; RG 136, CAPTIVE CONTACT, INSERTION LOSS MAX AT 1 GHZ
Body/casing type	JACK
Characteristic impedance	50 Ω
Connector type	RF MCX CONNECTOR
Contact to complete cooperation	GOLD (30)
Contact completed and terminated	GOLD (30)
Contact point gender	FEMALE
Coupling type	THREADED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insertion loss	0.1 dB
insulator material	POLYTETRAFLUORO ETHYLENE
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	133-3303
Installation method	STRAIGHT
Installation type	CABLE
Maximum operating frequency	6 GHz
Options	GENERAL PURPOSE
Panel mounting	YES
Termination type	CRIMP
voltage standing wave ratio	1.37
Base Number Matches	1
