HM2P07PDA2N0E9LF datasheet, PDF

Datasheet> All Categories > The connector> The connector> HM2P07PDA2N0E9LF

HM2P07PDA2N0E9LF: DescriptionBoard Connector, 110 Contact(s), 5 Row(s), Male, Straight, Wire Wrap Terminal, LEAD FREE; CategoryThe connector The connector; File Size147KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

HM2P07PDA2N0E9LF Overview

Board Connector, 110 Contact(s), 5 Row(s), Male, Straight, Wire Wrap Terminal, LEAD FREE

HM2P07PDA2N0E9LF Parametric

Parameter Name	Attribute value
Maker	Amphenol
package instruction	LEAD FREE
Reach Compliance Code	compliant
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	MATTE TIN
Contact point gender	MALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	HM2
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	5
Options	GENERAL PURPOSE
Terminal pitch	2 mm
Termination type	WIRE WRAP
Total number of contacts	110
UL Flammability Code	94V-0

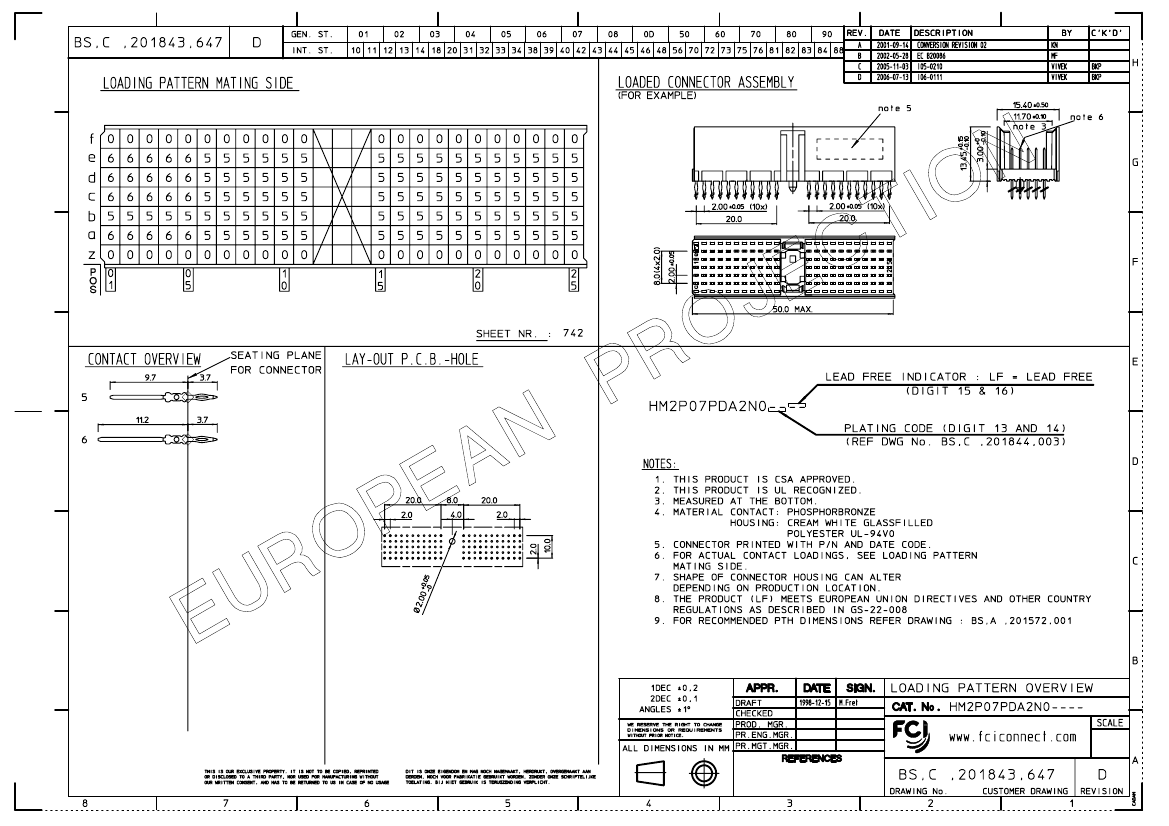

Preview

Download Datasheet

View All

PDM: Rev:D

STATUS:

Released

Printed: Dec 02, 2007
