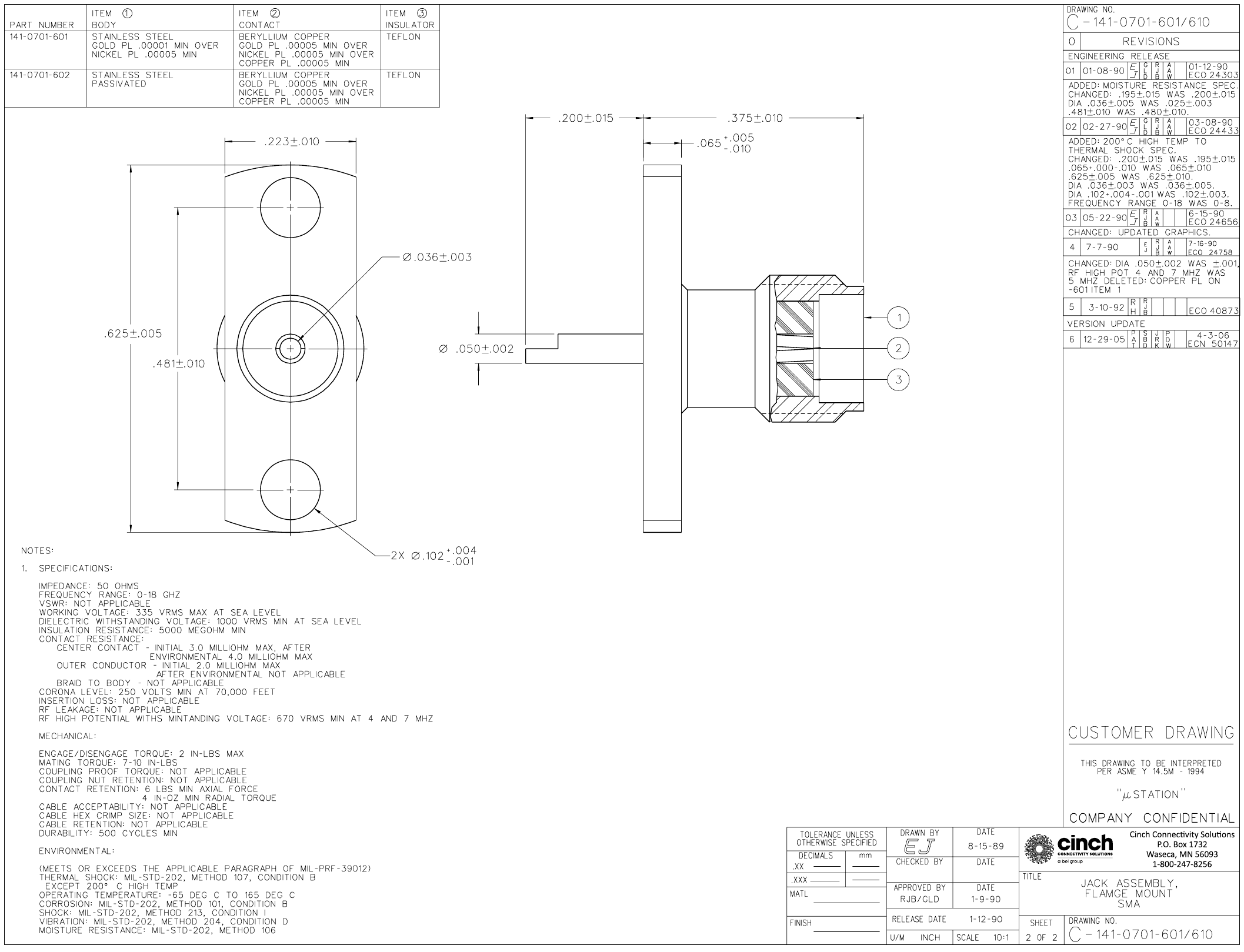

141-0701-601: DescriptionRF SMA Connector, 1 Contact(s), Female, Panel Mount, Solder Lug Terminal, Locking, Jack; CategoryThe connector The connector; File Size638KB，1 Pages; ManufacturerBel; Websitehttp://www.belfuse.com

Download Datasheet Parametric Compare View All

141-0701-601 Overview

RF SMA Connector, 1 Contact(s), Female, Panel Mount, Solder Lug Terminal, Locking, Jack

Parameter Name	Attribute value
Reach Compliance Code	compli
body width	0.625 inch
subject depth	0.375 inch
body length	0.223 inch
Body/casing type	JACK
Characteristic impedance	50 Ω
Connector type	RF SMA CONNECTOR
Contact point gender	FEMALE
Contact resistance	3 mΩ
Contact style	COAX
Dielectric withstand voltage	1400VAC V
Durability	500 Cycles
Insulation resistance	5000000000 Ω
insulator material	TEFLON
Manufacturer's serial number	141
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	PANEL
Number of ports	1
Maximum operating frequency	18 GHz
Maximum operating temperature	165 °C
Minimum operating temperature	-65 °C
reliability	COMMERCIAL
Shell surface	GOLD OVER NICKEL
Shell material	STAINLESS STEEL
Terminal length	0.2 inch
Termination type	SOLDER LUG
Total number of contacts	1
Base Number Matches	1

U

N

C

O

N

TR

O

LL

ED

C

O

PY

	141-0701-601	141-0701-602
Description	RF SMA Connector, 1 Contact(s), Female, Panel Mount, Solder Lug Terminal, Locking, Jack	RF SMA Connector, 1 Contact(s), Female, Panel Mount, Solder Lug Terminal, Locking, Jack
Reach Compliance Code	compli	unknown
body width	0.625 inch	0.625 inch
subject depth	0.375 inch	0.375 inch
body length	0.223 inch	0.223 inch
Body/casing type	JACK	JACK
Characteristic impedance	50 Ω	50 Ω
Connector type	RF SMA CONNECTOR	RF SMA CONNECTOR
Contact point gender	FEMALE	FEMALE
Contact resistance	3 mΩ	3 mΩ
Contact style	COAX	COAX
Dielectric withstand voltage	1400VAC V	1400VAC V
Durability	500 Cycles	500 Cycles
Insulation resistance	5000000000 Ω	5000000000 Ω
insulator material	TEFLON	TEFLON
Manufacturer's serial number	141	141
Installation option 1	LOCKING	LOCKING
Installation method	STRAIGHT	STRAIGHT
Installation type	PANEL	PANEL
Number of ports	1	1
Maximum operating frequency	18 GHz	18 GHz
Maximum operating temperature	165 °C	165 °C
Minimum operating temperature	-65 °C	-65 °C
reliability	COMMERCIAL	COMMERCIAL
Shell material	STAINLESS STEEL	STAINLESS STEEL
Terminal length	0.2 inch	0.2 inch
Termination type	SOLDER LUG	SOLDER LUG
Total number of contacts	1	1
Base Number Matches	1	1
