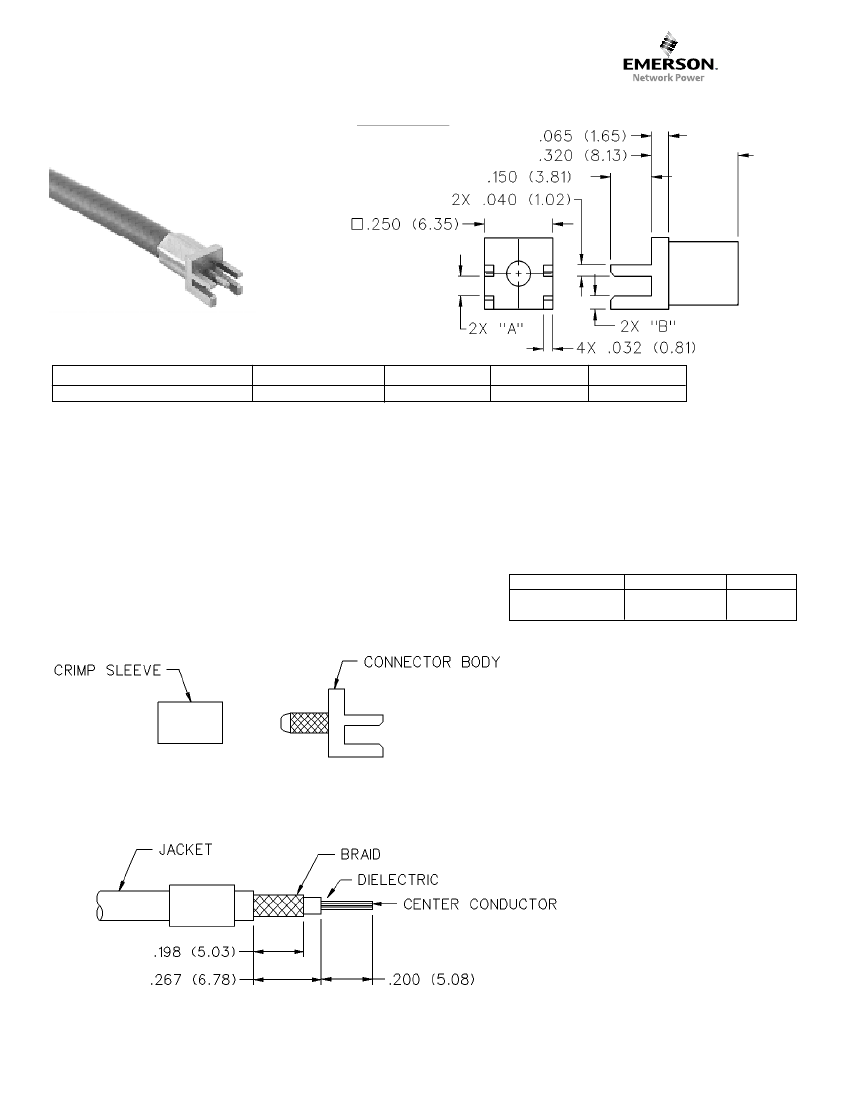

Shielded Cable Termination

Flexible Cable - Straight Crimp Type

End Launch

INCHES (MILLIMETERS)

CUSTOMER DRAWINGS AVAILABLE UPON REQUEST

CABLE TYPE

RG178/U, 196

BOARD THICKNESS

0.047 (1.19)

GOLD PLATED

142-0002-811

“A”

0.053 (1.35)

“B”

0.065 (1.65)

CABLE GROUP

RG-178/u,

196

PART NUMBER

142-0002-811

CRIMP HEX

.105 (2.67)

1. Identify connector parts. (2 piece

parts)

2. Strip cable to dimensions shown. Do

not nick braid or center conductor. A

wire stripper of correct size is recom-

mended for this step. Twist stranded

center conductor into tight bundle and

tin. Slide crimp sleeve onto cable as

shown.

3. Flare braid and slide cable into body

making certain that the cable insula-

tion is flush with bottom of connector

body.

4. Arrange braid uniformly around crimp

stem. Slide crimp sleeve over braid

and crimp securely using recom-

mended crimp tool.

Emerson Network Power Connectivity Solutions

299 Johnson Avenue SW, Waseca, MN 56093 • 800 -247- 8256 • +1 (507) 833-8822 • www.EmersonConnectivity.com
