Note: In case of 5 V drive circuit, it is recommended to use 4.5 V type relay.
ds_61018_0000_en_tk: 110509J
1
TK
TYPES
1) Standard PC board terminal
Contact
arrangement
Nominal coil
voltage
1.5V DC
3V DC
4.5V DC
1 Form C
5V DC
6V DC
9V DC
12V DC
24V DC
Standard packing: Tube: 50 pcs.; Case: 1,000 pcs.
Single side stable
Part No.
TK1-1.5V
TK1-3V
TK1-4.5V
TK1-5V
TK1-6V
TK1-9V
TK1-12V
TK1-24V
1 coil latching
Part No.
TK1-L-1.5V
TK1-L-3V
TK1-L-4.5V
TK1-L-5V
TK1-L-6V
TK1-L-9V
TK1-L-12V
TK1-L-24V
2 coil latching
Part No.
TK1-L2-1.5V
TK1-L2-3V
TK1-L2-4.5V
TK1-L2-5V
TK1-L2-6V
TK1-L2-9V
TK1-L2-12V
TK1-L2-24V
2) Self-clinching terminal
Contact
arrangement
Nominal coil
voltage
1.5V DC
3V DC
4.5V DC
1 Form C
5V DC
6V DC
9V DC
12V DC
24V DC
Single side stable
Part No.
TK1-H-1.5V
TK1-H-3V
TK1-H-4.5V
TK1-H-5V
TK1-H-6V
TK1-H-9V
TK1-H-12V
TK1-H-24V
1 coil latching
Part No.
TK1-L-H-1.5V
TK1-L-H-3V
TK1-L-H-4.5V
TK1-L-H-5V
TK1-L-H-6V
TK1-L-H-9V
TK1-L-H-12V
TK1-L-H-24V
2 coil latching
Part No.
TK1-L2-H-1.5V
TK1-L2-H-3V
TK1-L2-H-4.5V
TK1-L2-H-5V
TK1-L2-H-6V
TK1-L2-H-9V
TK1-L2-H-12V
TK1-L2-H-24V
Standard packing: Tube: 50 pcs.; Case: 1,000 pcs.
RATING
1. Coil data
1) Single side stable
Nominal coil
voltage
1.5V DC
3V DC
4.5V DC
5V DC
6V DC
9V DC
12V DC
24V DC
75%V or less of
nominal voltage*
(Initial)
10%V or more of
nominal voltage*
(Initial)
Pick-up voltage
(at 20°C
68°F)
Drop-out voltage
(at 20°C
68°F)
Nominal operating
current
[±10%] (at 20°C
68°F)
93.8mA
46.7mA
31mA
28.1mA
23.3mA
15.5mA
11.7mA
11.3mA
Coil resistance
[±10%] (at 20°C
68°F)
16Ω
64.3Ω
145Ω
178Ω
257Ω
579Ω
1,028Ω
2,133Ω
270mW
120%V of
nominal voltage
140mW
150%V of
nominal voltage
Nominal operating
power
Max. applied voltage
(at 20°C
68°F)
2) 1 coil latching
Nominal coil
voltage
1.5V DC
3V DC
4.5V DC
5V DC
6V DC
9V DC
12V DC
24V DC
*Pulse drive (JIS C 5442-1986)
75%V or less of
nominal voltage*
(Initial)
75%V or less of
nominal voltage*
(Initial)
Set voltage
(at 20°C
68°F)
Reset voltage
(at 20°C
68°F)
Nominal operating
current
[±10%] (at 20°C
68°F)
66.7mA
33.3mA
22.2mA
20mA
16.7mA
11.1mA
8.3mA
6.3mA
Coil resistance
[±10%] (at 20°C
68°F)
22.5Ω
90Ω
202.5Ω
250Ω
360Ω
810Ω
1,440Ω
3,840Ω
150mW
120%V of
nominal voltage
100mW
150%V of
nominal voltage
Nominal operating
power
Max. applied voltage
(at 20°C
68°F)
2
ds_61018_0000_en_tk: 110509J
TK
3) 2 coil latching
Nominal coil
voltage
1.5V DC
3V DC
4.5V DC
5V DC
6V DC
9V DC
12V DC
24V DC
*Pulse drive (JIS C 5442-1986)
75%V or less of
nominal voltage*
(Initial)
75%V or less of
nominal voltage*
(Initial)
Set voltage
(at 20°C
68°F)
Reset voltage
(at 20°C
68°F)
Nominal operating
current
[±10%] (at 20°C
68°F)
Set coil
133.9mA
66.7mA
44.5mA
40mA
33.3mA
22.2mA
20.8mA
16.7mA
Reset coil
133.9mA
66.7mA
44.5mA
40mA
33.3mA
22.2mA
20.8mA
16.7mA
Coil resistance
[±10%] (at 20°C
68°F)
Set coil
11.2Ω
45Ω
101.2Ω
125Ω
180Ω
405Ω
576Ω
1,440Ω
Reset coil
11.2Ω
45Ω
101.2Ω
125Ω
180Ω
405Ω
576Ω
1,440Ω
250mW
400mW
250mW
400mW
120%V of
nominal voltage
110%V of
nominal voltage
200mW
200mW
150%V of
nominal voltage
Nominal operating
power
Set coil
Reset coil
Max. applied voltage
(at 20°C
68°F)
2. Specifications
Characteristics
Arrangement
Contact
Initial contact resistance, max.
Contact material
Nominal switching capacity
Max. switching power
Max. switching voltage
Rating
Max. switching current
Min. switching capacity (Reference value)*
1
Single side stable
Nominal operating
power
1 coil latching
2 coil latching
Insulation resistance (Initial)
Breakdown voltage
(Initial)
Electrical
characteristics
Surge breakdown
voltage (Initial)
Between open contacts
Between contact and coil
Between open contacts
Between contacts and coil
Item
1 Form C
Max. 50 mΩ (By voltage drop 6 V DC 1A)
Ag+Au clad
2 A 30 V DC (resistive load)
60 W (DC) (resistive load)
220 V DC
2A
10μA 10mV DC
140 mW (1.5 to 12 V DC), 270 mW (24 V DC)
100 mW (1.5 to 12 V DC), 150 mW (24 V DC)
200 mW (1.5 to 9 V DC), 250 mW (12 V DC), 400 mW (24 V DC)
Min. 1,000MΩ (at 500V DC)
Measurement at same location as “Initial breakdown voltage” section.
750 Vrms for 1 min. (Detection current: 10 mA)
1,500 Vrms for 1 min. (Detection current: 10 mA)
1,500 V (10×160μs) (FCC Part 68)
2,500 V (2×10μs) (Telcordia)
Max. 50°C
(By resistive method, nominal coil voltage applied to the coil; contact carrying current: 2A.)
Max. 3 ms [Max. 3 ms] (Nominal coil voltage applied to the coil, excluding contact bounce
time.)
Max. 2 ms [Max. 3 ms] (Nominal coil voltage applied to the coil, excluding contact bounce
time.) (without diode)
Min. 750 m/s
2
(Half-wave pulse of sine wave: 6 ms; detection time: 10μs.)
Min. 1,000 m/s
2
(Half-wave pulse of sine wave: 6 ms.)
10 to 55 Hz at double amplitude of 3.3 mm (Detection time: 10μs.)
10 to 55 Hz at double amplitude of 5 mm
Min. 10
8
(Single side stable), Min. 5×10
7
(1 or 2 coil latching) (at 180 cpm)
Min. 10
5
(2 A 30 V DC resistive) (at 20 cpm)
Ambient temperature: –40°C to 85°C
–40°F to 185°F*
3
;
Humidity: 5 to 85% R.H. (Not freezing and condensing at low temperature)
20 cpm
Approx. 1 g
.035 oz.
Specifications
Temperature rise (at 20°C
68°F)
Operate time [Set time] (at 20°C
68°F)
Release time [Reset time] (at 20°C
68°F)
Shock resistance
Mechanical
characteristics
Vibration resistance
Expected life
Mechanical
Electrical
Conditions for operation, transport and storage*
2
Max. operating speed (at rated load)
Unit weight
Functional
Destructive
Functional
Destructive
Conditions
Notes: *1 This value can change due to the switching frequency, environmental conditions, and desired reliability level, therefore it is recommended to check this with the
actual load. (SX relays are available for low level load switching [10V DC, 10mA max. level])
*2 Refer to 6. Conditions for operation, transport and storage mentioned in
*3 The maximum ambient temperature allows for coil temperature rise at maximum allowable coil voltage.
As for the applicable range of continuous carrying current against temperature, please refer to “Maximum value of continuous carrying current” chart. (Page 4)
ds_61018_0000_en_tk: 110509J
3
TK

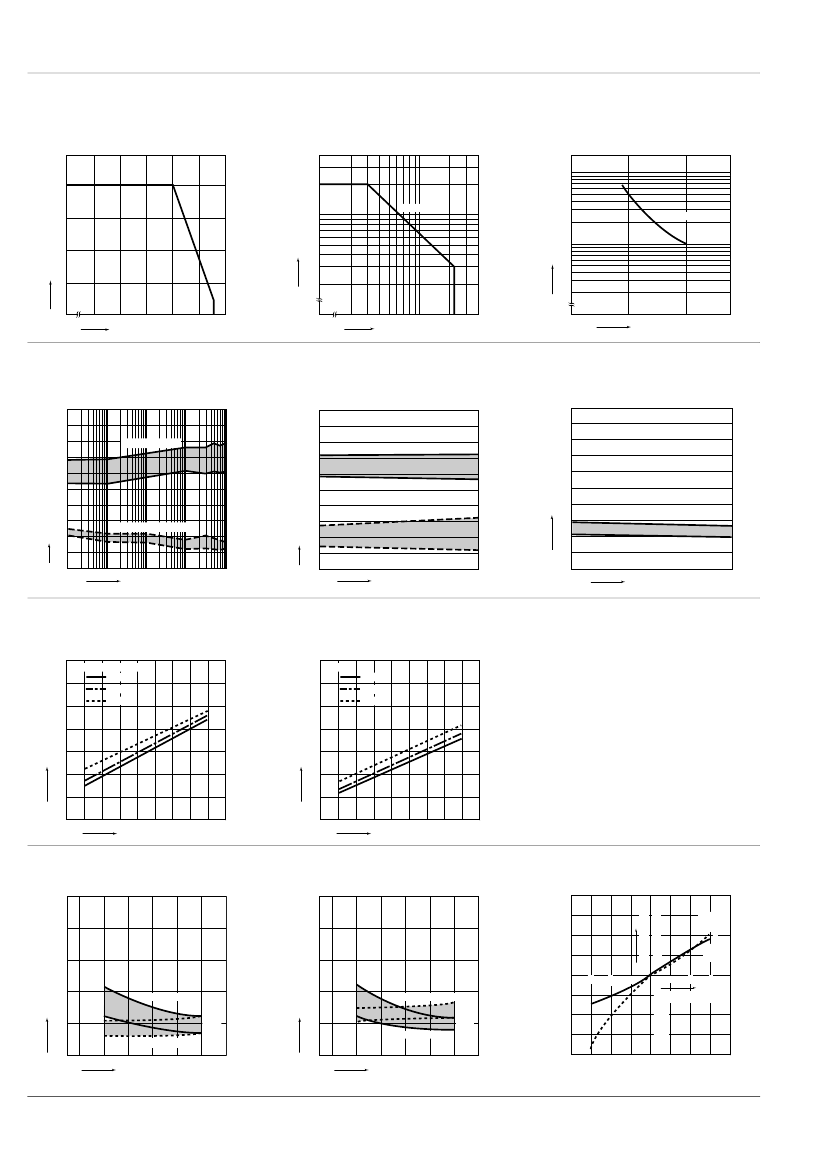

REFERENCE DATA
1. Maximum value of continuous carrying current
Test conditions:
Coil applied voltage: 110% of rated voltage
Continuous carrying current: 1,000 hours
Continuous carrying current, A
3.0
Switching current, A
2. Maximum switching capacity
3. Life curve
100
No. of operations,
×10
4
2
2.0
DC load
1.0
30 V DC resistive
10
1
0.5
0.4
0.3
0.2
0
40
50
60
70
80 85 90
Ambient temperature,
°C
20 30
50
100
200 300
Switching voltage, V
0
1
2
Switching current, A
4. Mechanical life
Tested sample: TK1-12V, 8 pcs.
Switching frequency: 30 Hz
100
Ratio against the rated voltage, %V
90
80
70
60
50
40
30
20
10
0
10
Drop-out voltage
Max.
Min.
100
1,000
10,000
No. of operations,
×10
4
Min.
Pick-up voltage
Max.
5. Electrical life (DC load)
Tested sample: TK1-12V, 10 pcs.
Condition: 2 A 30 V DC resistive load, 20 cpm
Change of pick-up and drop-out voltage
Ratio against the rated voltage, %V
100
90
80
70
60
50
40
30
20
10
0
No. of operations,
×10
4
Change of contact resistance
100
90
80
70
60
50
40
30
20
Max.
Min.
Pick-up voltage
Max.
Min.
Drop-out voltage
Max.
Min.
10
Contact resistance, mΩ
10
0
No . of operations,
×10
4
10
6.-(1) Coil temperature rise
Tested sample: TK1-12V, 6 pcs.
Measured portion: Inside the coil
Ambient temperature: 25°C
77°F
Room temperature
0A
60
1A
2A
50
40
30
20
10
0
6.-(2) Coil temperature rise
Tested sample: TK1-12V, 6 pcs.
Measured portion: Inside the coil
Ambient temperature: 70°C
158°F
70°C
Temperature rise,
°C
60
50
40
30
20
10
0
0A
1A
2A
Temperature rise,
°C
80 90 100 110 120 130 140 150
Coil applied voltage, %V
80 90 100 110 120 130 140 150
Coil applied voltage, %V
7.-(1) Operate/release time characteristics
Tested sample: TK1-5 V, 50 pcs.
7.-(2) Operate/release time characteristics
Tested sample: TK1-5 V, 50 pcs.
8. Ambient temperature characteristics
Tested sample: TK1-12V, 5 pcs.
Variation ratio, %
40
30
20
10
20 40
60
Drop-out
voltage
−
x
−
x
Pick-up
voltage
<Without diode>
<With diode>
Operate/release time, ms
4
Operate/release time, ms
4
3
3
–40 –20
2
Release time
Max.
Max.
Min.
Min.
Operate time
80
90
100 110 120
Coil applied voltage, %V
0
0
80
Ambient
–10 temperature,
°C
–20
–30
–40
2
Operate time
Max.
Max.
Min.
Min.
1
Release time
0
80
1
90
100 110 120
Coil applied voltage, %V
0
4
ds_61018_0000_en_tk: 110509J
TK
9.-(1) High-frequency characteristics
(Isolation)
9.-(2) High-frequency characteristics (Insertion
loss)
1.8
1.6
1.4
Z
Y
,
Y
,Z XX
10. Malfunctional shock
Tested sample: TK1-12V, 6 pcs. (single side stable);
[i=s]This post was last edited by 574433742 on 2015-6-16 13:31[/i] I have heard of this magical thing called Arduino before. It is the treasure of makers. As someone who only knows a little bit of C l...
I have a question for you all, what protocol does the POS receipt printer use?
I recently worked on a project in which I used STM32F407 to receive printer data captured by a USB packet capture module ...
How to generate negative voltage? 1. Charge pump provides negative voltage. TTL level/232 level conversion chip (such as MAX232, MAX3391, etc.) is the most typical charge pump device that can output n...
I tried to unlock it with JLINK but it still didn't work. I was so frustrated. The error message was as followsIs there any expert who knows how to unlock it? Please give me some guidance. I have trie...
Google's driverless technology is not only an eye-catching technology, but also a subversion of the car usage model.
Those who have watched anti-terrorism films and TV dramas must have been im...[Details]
Battery life is critical for portable applications. For applications such as smoke detectors, security devices, and thermostats, factory-installed batteries need to last for more than 10 years. The...[Details]
Overview
As a remote network communication control method with advanced technology, high reliability, complete functions and reasonable cost, CAN-bus has been widely used in various automa...[Details]
On the afternoon of July 10, Beijing time, Taiwan's largest chip designer MediaTek expects its smartphone chip shipments to grow by double digits in the third quarter of this year, and the company is ...[Details]
The automotive lighting and signal control system is responsible for controlling the vehicle's lighting, signal lights, electric horns, reversing and brake buzzers. Traditional automotive lighting...[Details]
The typical fault troubleshooting listed below is for reference of maintenance personnel.
When the computer is turned on, the indicator light is off and there is no screen display
Mainte...[Details]
At very low temperatures, certain metals and alloys lose their resistance to electric
current
and become
superconductors
. Two parameters that are often measured are the transition ...[Details]
Liquid crystal display (LCD) panels have a wide range of applications, from small portable electronic devices to large fixed devices, including digital cameras, laptops, personal data assistants, d...[Details]
0 Introduction
Ultrasonic waves
are mechanical waves with a frequency of more than 20KHz, and the propagation speed in the air is about 340 m/s (at 20°C). Ultrasonic waves can be gene...[Details]
When the so-called "copycat phones" that flood the domestic mobile phone market move towards large screens, stereo amplifiers, touch controls, and even GPS navigation and mobile TV, the homogeneity...[Details]
1 Introduction
Power supply ripple will interfere with the normal operation of electronic equipment, causing malfunctions such as computer crashes, data processing errors and control system fa...[Details]
1 Introduction to the overall system solution
The hardware part is mainly used to amplify the sound. When the sound is loud enough, the signal can be introduced into the microcontroller for de...[Details]
introduction
Sudan's Muglad Oilfield is a large oilfield jointly invested, developed and constructed by a four-party consortium of China, Malaysia, Canada and Sudan. It consists of 8 satellite...[Details]
Introduction
Temperature and humidity control are widely used in people's production and life. People use thermometers and hygrometers to collect temperature and humidity, and control temperatu...[Details]
The rotor of the brushless DC motor used in electric bicycles is composed of 30 to 40 pieces of NdFeB magnets. Since the surface magnetic field strength of NdFeB magnets exceeds 500mT, the position se...[Details]
MCU
京公网安备 11010802033920号
EEWORLD
