Connector Built-in U-shaped Micro Photoelectric Sensor
PM-64
SERIES
Related Information
Amplifier Built-in
■
General terms and conditions ............. F-7
■
Glossary of terms ........................ P.1455~
■
Sensor selection guide.................. P.427~
■
General precautions ................... P.1458~
Conforming to
EMC Directive
Recognition
panasonic.net/id/pidsx/global

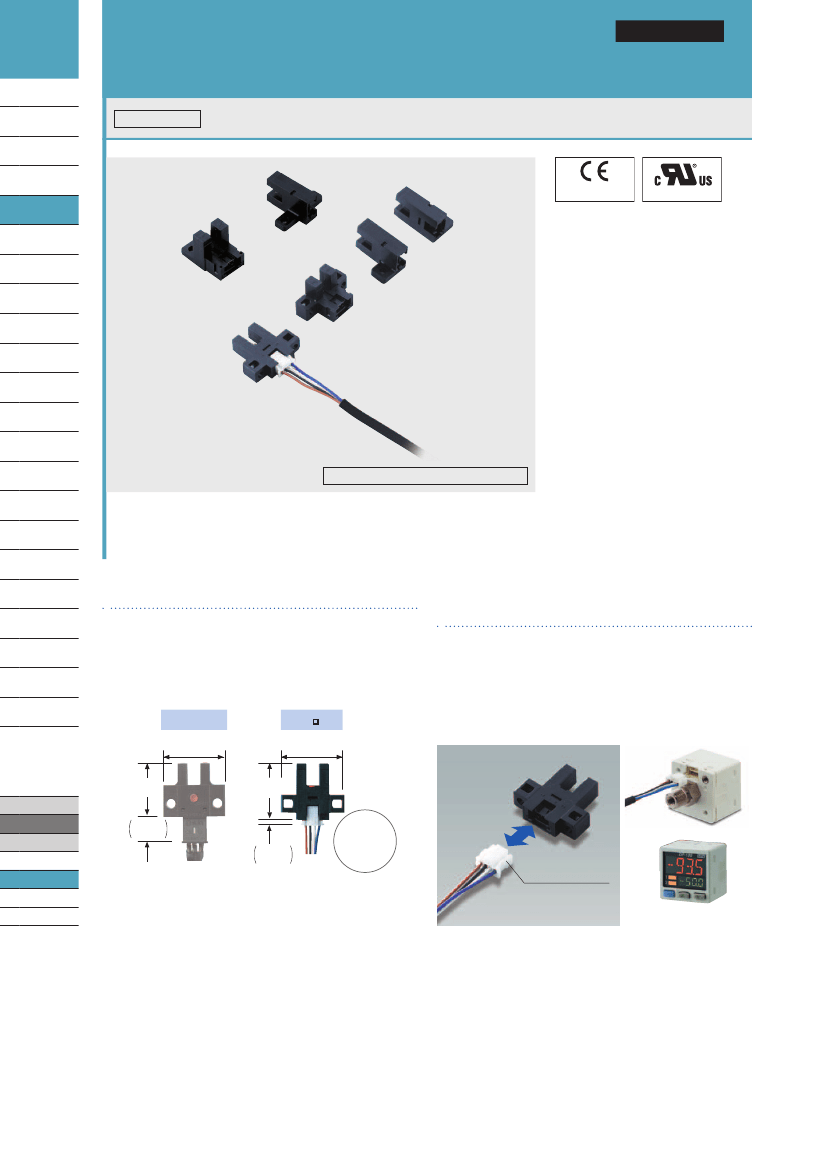

Easy connection with a single touch
using commercially-available connectors
Built-in connector saves space
This greatly reduces the amount of space taken up
compared to previous models.
The dimension between the beam axis and cable
bending part has been reduced to half at maximum.
Can be connected using commercially-
available connectors
The connector connection type eliminates the extra
work of soldering and insulation processing. In addition,
the connector used is a commercially-available multi-
purpose connector which is also currently used by the
DP-100
series of digital pressure sensors.
Previous model
Connector type
PM- 64
26 mm
1.024 in
23 mm
0.906 in
Approximately
60 %
of previous
model
Detachable
Commercially-
available connector
Digital pressure sensor
DP-100
series
25.4 mm
1.000 in
22.3 mm
0.878 in
11 mm
0.433 in
Selection
Guide
U-shaped
Convergent
Reflective
2.1 mm
0.083 in
PM-64
PM-24
PM-44/PM-54
Connector Built-in U-shaped Micro Photoelectric Sensor
PM-64
SERIES
430
FIBER
SENSORS
LASER
SENSORS
PHOTOELECTRIC
SENSORS
MICRO
PHOTOELECTRIC
SENSORS
AREA
SENSORS
LIGHT CURTAINS /
SAFETY
COMPONENTS
PRESSURE /
FLOW
SENSORS
INDUCTIVE
PROXIMITY
SENSORS
PARTICULAR
USE SENSORS
SENSOR
OPTIONS
SIMPLE
WIRE-SAVING
UNITS
WIRE-SAVING
SYSTEMS
MEASUREMENT
SENSORS
STATIC ELECTRICITY
PREVENTION
DEVICES
LASER
MARKERS
APPLICATIONS
Positioning of a pallet
Sensing the starting point and
overrun of a moving body
Overrun sensing
Dog
Sensing the starting point
on a rotating body
The starting
point can be
sensed by
making a slit in
the rotating
body.
Starting
point
Starting point sensing
Overrun
sensing
Pallet is stopped by sensing the dog.
Starting point and overrun is
sensed using the dog on the base.

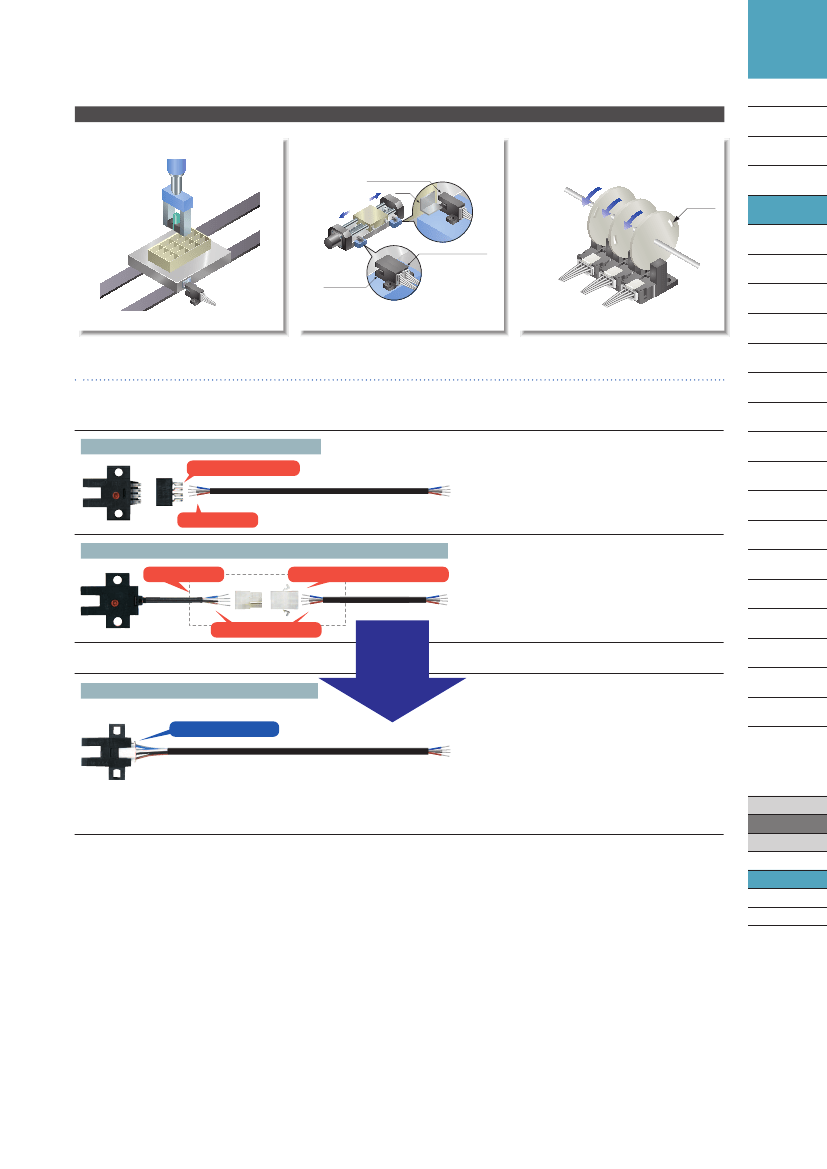

Improved maintenance and workability significantly reduces total cost
The processing cost of the connector cables can be drastically reduced through the use of commercially-available
crimping connectors.
Previous model (Soldering: Connector type)
Insulation processing
• Automation is hard because of soldering.
• Insulation processing is required.
• A large space is necessary at the terminal area.
• Connectors are not reliable
(not fully connected or seated).
• Crimping processing is required in two places.
• A set of commercially-available connectors is
necessary.
• There are many processes for cable connections.
• An intermediate box is required.
Soldering
Previous model (Converted to the cable-type commercially-available connector)
Intermediate box
Commercially-available connector
PLC
HUMAN MACHINE
INTERFACES
ENERGY CONSUMPTION
VISUALIZATION
COMPONENTS
FA COMPONENTS
Crimping processing
Suggestion
PM-64 series (Commercially-available connectors can be used)
Crimping processing
•
Crimping processing makes automation
possible so the connectors are also highly
reliable.
•
Soldering, insulation processing, and an
intermediate box are not necessary.
•
Connectors are widely available.
•
Mounting in a small space is easy.
•
Strongly connected using a locking connector.
•
1 m
3.281 ft,
2 m
6.562 ft,
3 m
9.843 ft,
and 5 m
16.404 ft
connector cables are available.
MACHINE VISION
SYSTEMS
UV CURING
SYSTEMS
Selection
Guide
U-shaped
Convergent
Reflective
PM-64
PM-24
PM-44/PM-54
431
FIBER
SENSORS
LASER
SENSORS
PHOTO-
ELECTRIC
SENSORS
MICRO
PHOTO-
ELECTRIC
SENSORS
AREA
SENSORS
LIGHT
CURTAINS /
SAFETY
COMPONENTS
PRESSURE /
FLOW
SENSORS
INDUCTIVE
PROXIMITY
SENSORS
PARTICULAR
USE
SENSORS
SENSOR
OPTIONS
SIMPLE
WIRE-SAVING
UNITS
WIRE-SAVING
SYSTEMS
MEASURE-
MENT
SENSORS
STATIC
ELECTRICITY
PREVENTION
DEVICES
LASER
MARKERS
PLC
HUMAN
MACHINE
INTERFACES
ENERGY
CONSUMPTION
VISUALIZATION
COMPONENTS
FA
COMPONENTS
MACHINE
VISION
SYSTEMS
UV
CURING
SYSTEMS
Connector Built-in U-shaped Micro Photoelectric Sensor
PM-64
SERIES

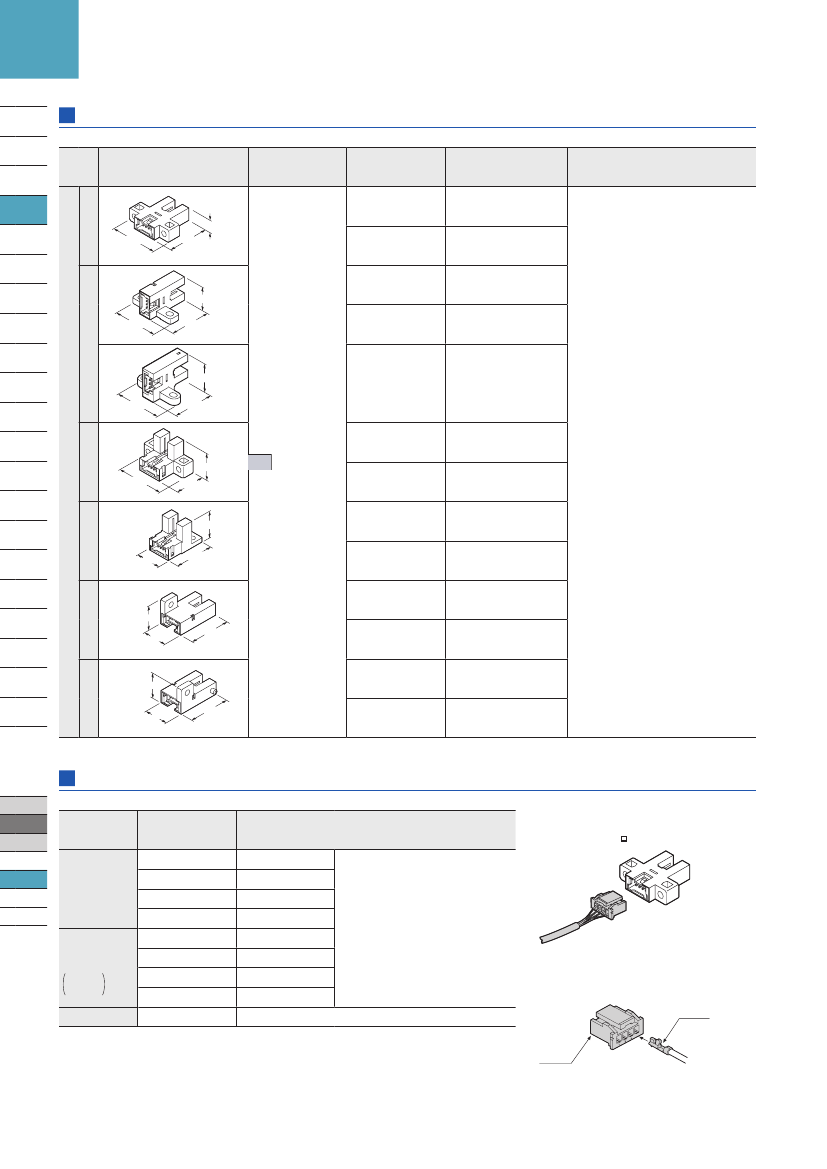

ORDER GUIDE
