MGM1/23.9M1%R: DescriptionRESISTOR, METAL GLAZE/THICK FILM, 0.5W, 1%, 100ppm, 3900000ohm, THROUGH HOLE MOUNT, AXIAL LEADED; CategoryPassive components The resistor; File Size108KB，2 Pages; ManufacturerSEI(Stackpole Electronics Inc.); Websitehttps://www.seielect.com/; Related ProductsFound1parts with similar functions to MGM1/23.9M1%R

Download Datasheet Parametric View All

MGM1/23.9M1%R Overview

RESISTOR, METAL GLAZE/THICK FILM, 0.5W, 1%, 100ppm, 3900000ohm, THROUGH HOLE MOUNT, AXIAL LEADED

MGM1/23.9M1%R Parametric

Parameter Name	Attribute value
package instruction	,
Reach Compliance Code	unknow
JESD-609 code	e3
Manufacturer's serial number	MGM
Installation features	THROUGH HOLE MOUNT
Number of terminals	2
Maximum operating temperature	155 °C
Minimum operating temperature	-55 °C
Package shape	TUBULAR PACKAGE
method of packing	TR
Rated power dissipation(P)	0.5 W
Rated temperature	70 °C
resistance	3900000 Ω
Resistor type	FIXED RESISTOR
surface mount	NO
technology	METAL GLAZE/THICK FILM
Temperature Coefficient	100 ppm/°C
Terminal surface	MATTE TIN
Terminal shape	WIRE
Tolerance	1%
Operating Voltage	1800 V
Base Number Matches	1

Preview

Download Datasheet

View All

MG/MGM Series

High Voltage Metal Glaze Resistors

Features:

•

Stackpole Electronics, Inc.

Resistive Product Solutions

High voltage capability from 1600 to 4000 volts

Inexpensive high voltage leaded resistor solution

High resistance values up to 200M

Tolerances as low as 1%, TC’s as low as 100ppm/ºC

Electrical Specifications

Type / Code

MG 1/4

MG 1/2

MG 1

MG 2

MGM 1/2

MGM 1

MGM 2

MGM 3

Power Rating

(Watts) @ 70ºC

0.25W

0.5W

Maximum

Working

Voltage

1600V

2000V

3500V

1800V

2200V

3700V

4000V

Dielectric

Withstanding

Voltage

700V

10KΩ - 200MΩ

±10%

±5%

±1%

±200 ppm/ºC

±100 ppm/ºC

Resistance

Range

Resistance

Tolerance

Resistance

Temperature

Coefficient

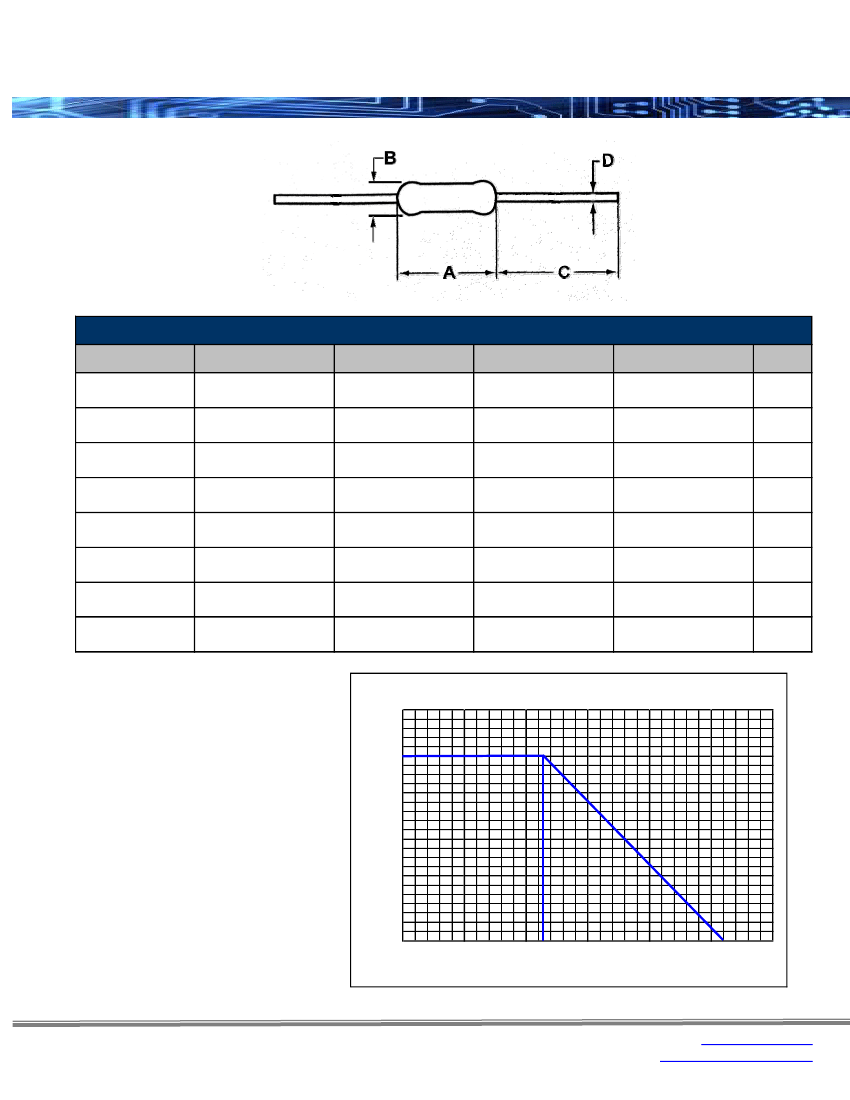

Performance Characteristics

Test

Short Time Overload

Moisture Resistance

Load Life

Insulation Resistance

Resistance to Soldering Heat

Temperature Cycling

Terminal Strength

Low Temperature Operation

Requirement

± (1% + 0.05Ω)

± (5% + 0.05Ω)

± (3% + 0.05Ω)

> 10,000 MΩ

± (1% + 0.05Ω)

How to Order

SEI Type

Code

Nominal

Resistance

Tolerance

Packaging

Type

MGM

Description

EIA Std

Mini

1/2

Code

1/4

1/2

100K

Tolerance

10%

Values

E24

Type

All

MG 1/4, MGM 1/2

MG 1/2, MGM 1, MG 1

MGM 2, MG 2, MGM 3

MG 1/4, MGM 1/2

MG 1/2, MGM 1

MG 1, MGM 2

MG 2, MGM 3

Qty

1,000

5,000

1,000

5,000

3,000

2,500

1,000

Description

Bulk

Ammo

Code

Reel

Rev Date: 06/22/2010

This specification may be changed at any time without prior notice

Please confirm technical specifications before you order and/or use.

www.seielect.com
