BK/GDA-V-250MA datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Circuit protection> Circuit protection> BK/GDA-V-250MA

BK/GDA-V-250MA: DescriptionFUSE CERAMIC 250MA 250VAC 5X20MM; CategoryCircuit protection Circuit protection; File Size269KB，2 Pages; ManufacturerEaton; Environmental Compliance

Download Datasheet Parametric Compare View All

BK/GDA-V-250MA Overview

FUSE CERAMIC 250MA 250VAC 5X20MM

BK/GDA-V-250MA Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
ECCN code	EAR99
Fusing characteristics	FAST
body height	21.1 mm
Body length or diameter	5.4 mm
Circuit protection type	ELECTRIC FUSE
Fuse size	5x20mm
JESD-609 code	e3
Joule integral nominal
Installation features	THROUGH HOLE
method of packing	BOX
physical size	5.4mm x 21.1mm
Pre-discharge rating	0.027 A2/s
Rated breaking capacity	1500 A
Rated current	0.25 A
Rated voltage	250 V
Rated voltage (AC)	250 V
Guideline	CCC; CSA; IMQ; SEMKO; UL
surface mount	NO
Terminal surface	Tin (Sn)
Terminal shape	PIN WIRE
Base Number Matches	1

Preview

Download Datasheet

View All

Technical Data

2014

Effective

May

2017

Supersedes

February

2009

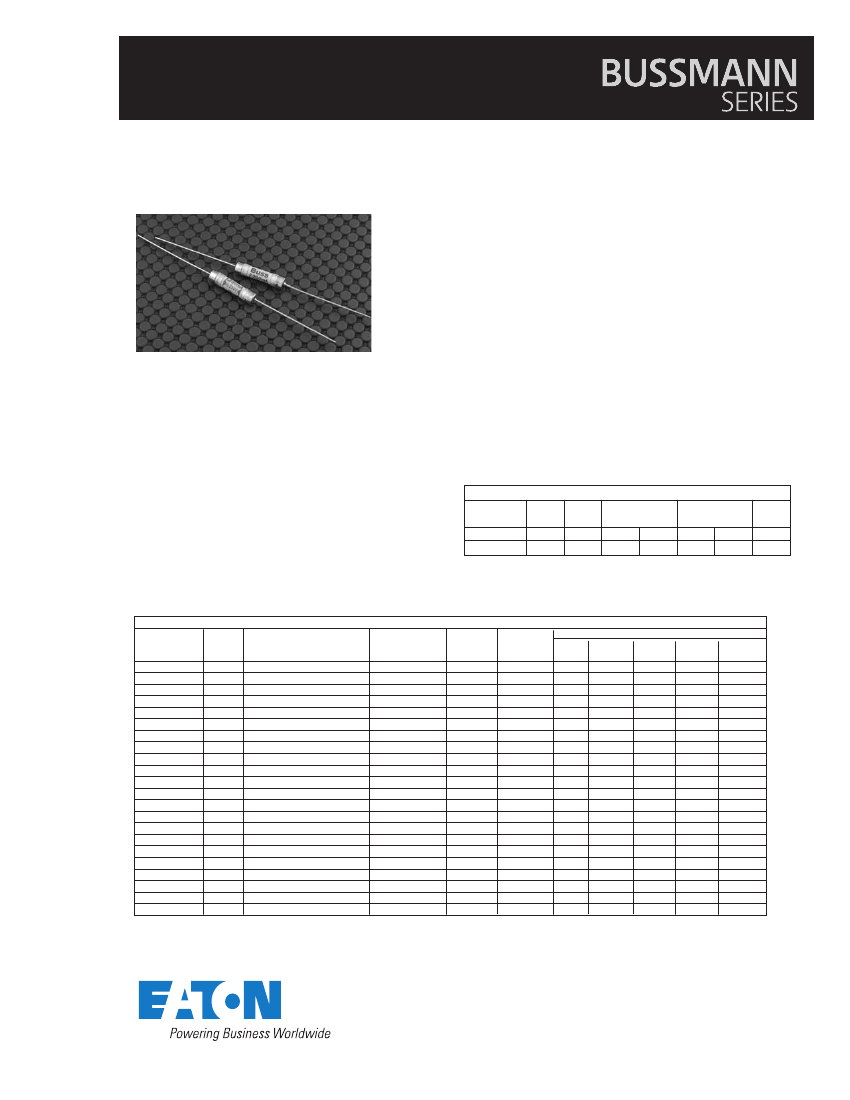

5 mm x 20 mm Fast-acting ceramic tube fuses

Agency information

•

UL Recognized Card: Guide JDYX2, File

E19180

•

CSA Component Acceptance: File 53787

•

Semko Approval: File 413779, File 512433

•

IMQ Approval: File EB405

•

CCC: File 2005010207155691

GDA

Product features

•

Fast-acting, high breaking capacity

•

5 x 20mm physical size

•

Ceramic tube, nickel-plated brass endcap

construction

•

Silver-plated endcap construction

(50mA-400mA)

•

Optional axial leads are 0.032" x 1.5"

copper tinned

•

Designed to IEC 60127-2

Ordering

•

Specify product code: Insert packaging code prefix

before part number. E.g. BK/GDA-250mA

•

Specify option code if desired: For axial leads,

insert “V” between catalog series and amp rating.

E.g. BK/GDA-V-250mA

50mA-3.15A

4A-10A

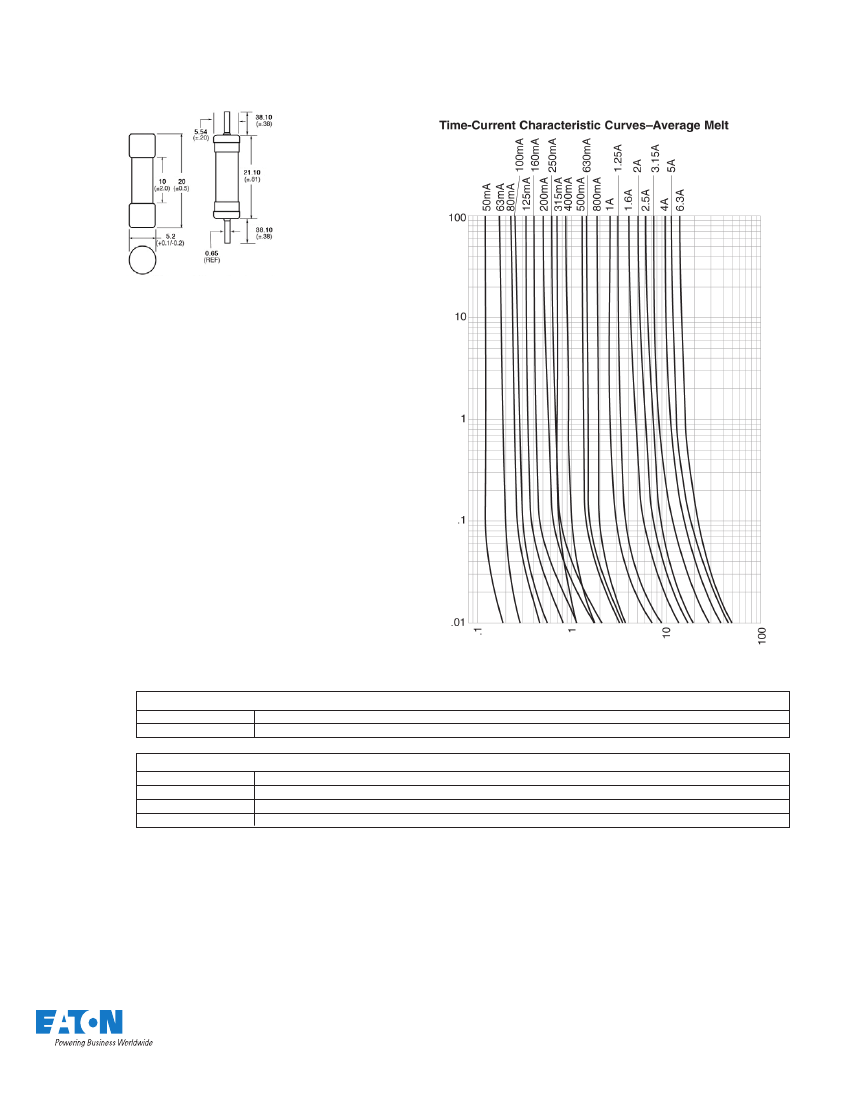

Electrical Characteristics

1.5 I n 2.1 I n

2.75 I n

min

max

min

max

60 min 30 min 10 ms 2 sec

60 min 30 min 10 ms 3 sec

min

3 ms

4 In

10 I n

max

300 ms 20 ms

Part Number

GDA-50mA

GDA-63mA

GDA-80mA

GDA-100mA

GDA-125mA

GDA-160mA

GDA-200mA

GDA-250mA

GDA-315mA

GDA-400mA

GDA-500mA

GDA-630mA

GDA-800mA

GDA-1A

GDA-1.25A

GDA-1.6A

GDA-2A

GDA-2.5A

GDA-3.15A

GDA-4A

GDA-5A

GDA-6.3A

Voltage Interrupting Rating (amps)

Rating

at Rated Voltage (50Hz)

Vac

250

1500

250

1500

250

1500

250

1500

250

1500

250

1500

250

1500

250

1500

250

1500

250

1500

250

1500

250

1500

250

1500

250

1500

250

1500

250

1500

250

1500

250

1500

250

1500

250

1500

250

1500

250

1500

Typical DC

Cold Resistance

(Ω)*

157.5

39.0

27.9

20.0

12.3

8.5

6.0

4.4

3.3

2.2

0.460

0.340

0.245

0.231

0.176

0.113

0.073

0.053

0.037

0.027

0.019

0.014

Speci cations

Typical

Melting I

t Voltage

(amps)

Drop (mV)‡

0.0017

9000

0.0005

3300

0.0011

2600

0.0018

2300

0.0037

1900

0.008

1600

0.020

1350

0.027

1300

0.010

1400

0.018

1200

0.038

1050

0.064

1200

0.097

490

0.146*

330

0.313*

297

0.748*

239

2.0

205

3.9

190

8.1

160

155

150

IMQ

Agency Approvals

SEMKO

CCC

CSA

X**

‡ Typical Voltage Drop (Voltage drop was measured at 20ºC ambient temperature at rated current)

t of 1A, 1.25A, 1.6A is measured at 10I

n DC.

**CSA Approvals on these ratings will not be marked on the fuse cap.

BK/GDA-V-250MA Related Products

	BK/GDA-V-250MA	BK/GDA-V-2.5A	BK/GDA-V-2A	BK/GDA-V-500MA	BK/GDA-V-5A	BK/GDA-V-6.3A	BK/GDA-63MA	BK/GDA-V-200MA
Description	FUSE CERAMIC 250MA 250VAC 5X20MM	FUSE CERAMIC 2.5A 250VAC 5X20MM	FUSE CERAMIC 2A 250VAC 5X20MM	FUSE CERAMIC 500MA 250VAC 5X20MM	FUSE CERAMIC 5A 250VAC 5X20MM	FUSE CERAMIC 6.3A 250VAC 5X20MM	FUSE CERAMIC 63MA 250VAC 5X20MM	FUSE CERAMIC 200MA 250VAC 5X20MM
Is it Rohs certified?	conform to	conform to	incompatible	incompatible	incompatible	conform to	conform to	conform to
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Fusing characteristics	FAST	FAST	FAST	FAST	FAST	FAST	FAST	FAST
body height	21.1 mm	21.1 mm	21.1 mm	21.1 mm	21.1 mm	21.1 mm	20 mm	21.1 mm
Body length or diameter	5.4 mm	5.4 mm	5.4 mm	5.4 mm	5.4 mm	5.4 mm	5.2 mm	5.4 mm
Circuit protection type	ELECTRIC FUSE	ELECTRIC FUSE	ELECTRIC FUSE	ELECTRIC FUSE	ELECTRIC FUSE	ELECTRIC FUSE	ELECTRIC FUSE	ELECTRIC FUSE
Fuse size	5x20mm	5x20mm	5x20mm	5x20mm	5x20mm	5x20mm	5x20mm	5x20mm
Installation features	THROUGH HOLE	THROUGH HOLE	THROUGH HOLE	THROUGH HOLE	THROUGH HOLE	THROUGH HOLE	INLINE/HOLDER	THROUGH HOLE
method of packing	BOX	BOX	BOX	BOX	BOX	BOX	BOX	BOX
physical size	5.4mm x 21.1mm	5.4mm x 21.1mm	5.4mm x 21.1mm	5.4mm x 21.1mm	5.4mm x 21.1mm	5.4mm x 21.1mm	5.2mm x 20mm	5.4mm x 21.1mm
Pre-discharge rating	0.027 A2/s	3.9 A2/s	2 A2/s	0.038 A2/s	25 A2/s	48 A2/s	0.0005 A2/s	0.02 A2/s
Rated breaking capacity	1500 A	1500 A	1500 A	1500 A	1500 A	1500 A	1500 A	1500 A
Rated current	0.25 A	2.5 A	2 A	0.5 A	5 A	6.3 A	0.063 A	0.2 A
Rated voltage	250 V	250 V	250 V	250 V	250 V	250 V	250 V	250 V
Rated voltage (AC)	250 V	250 V	250 V	250 V	250 V	250 V	250 V	250 V
Guideline	CCC; CSA; IMQ; SEMKO; UL	CCC; CSA; IMQ; SEMKO; UL	CCC; CSA; IMQ; SEMKO; UL	CCC; CSA; IMQ; SEMKO; UL	CCC; CSA; IMQ; SEMKO; UL	CCC; CSA; IMQ; SEMKO; UL	CCC; SEMKO; UL	CCC; CSA; IMQ; SEMKO; UL
surface mount	NO	NO	NO	NO	NO	NO	NO	NO
Terminal surface	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	Nickel (Ni)	Tin (Sn)
Terminal shape	PIN WIRE	PIN WIRE	PIN WIRE	PIN WIRE	PIN WIRE	PIN WIRE	END CAP	PIN WIRE
Base Number Matches	1	1	1	1	1	1	1	1
JESD-609 code	e3	e3	e3	e3	e3	e3	-	e3
