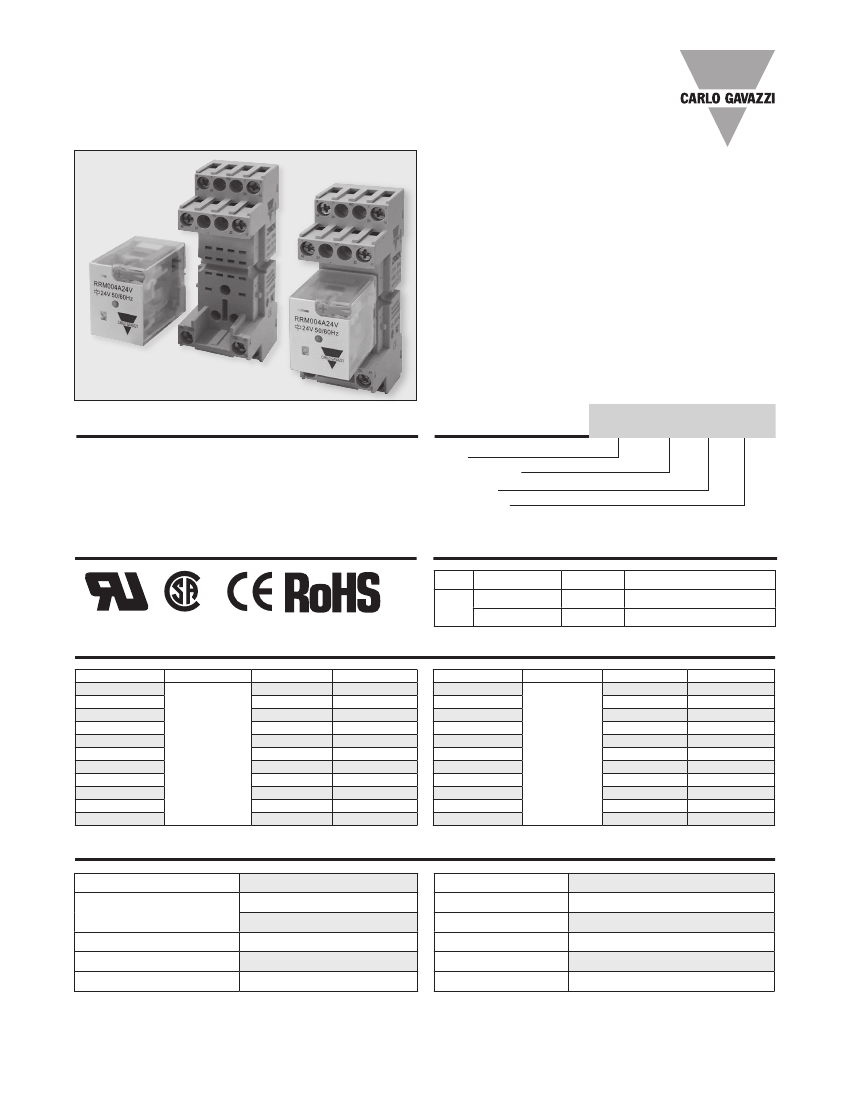

Industrial Relay
Type RRM
Monostable
l
l
l
l
l
l
l
l
l
l
l
8 or 14 -blades socket mounting
2 or 4 change over contacts
10A maximum switching current (DPDT version)
250 VAC/VDC maximum switching voltage
AC coils 12 ~ 240 VAC
DC coils 12 ~ 110VDC
Electrical life of 100,000 cycles
Mechanical life of 10,000,000 cycles
DIN sockets with two terminal layout options
Standard indicating LED, push arm and test flag
UL, CSA, CE, ROHS approvals
Product Description
The RRM is an industrial tions. It is available in 2 or
relay that can be used in 4 change over contacts con-
a wide range of applica- figurations.
Ordering Key
Type
Contact Code
Coil Type
Coil Voltage
RRM 004 A 24V
Approvals
Type Selection
Type
Contact Code
002
- DPDT
004
- 4PDT
Coil Type
A
- AC
D
- DC
Coil Voltage
12V, 24V, 48V, 120V, 240V
AC
5V, 6V, 12V, 24V, 48V, 110V
DC
C
US
RRM
Product Selection
Part Number
RRM002A12V
RRM002A24V
RRM002A48V
RRM002A120V
RRM002A240V
RRM002D5V
RRM002D6V
RRM002D12V
RRM002D24V
RRM002D48V
RRM002D110V
Contact Code
Coil voltage
12 VAC
24 VAC
48 VAC
120 VAC
240 VAC
5 VDC
6 VDC
12 VDC
24 VDC
48VDC
110 VDC
Stock Code
D
A
D
A
A
A
D
A
A
D
D
Part Number
RRM004A12V
RRM004A24V
RRM004A48V
RRM004A120V
RRM004A240V
RRM004D5V
RRM004D6V
RRM004D12V
RRM004D24V
RRM004D48V
RRM004D110V
Contact Code
Coil voltage
12 VAC
24 VAC
48 VAC
120 VAC
240 VAC
5 VDC
6 VDC
12 VDC
24 VDC
48VDC
110 VDC
Stock Code
D
A
D
A
A
A
D
A
A
D
D
DPDT
2 change over
contacts, 8-blades
4PDT
4 change
over contacts,
14-blades
Contact Characteristics
Arrangement:
Contact Rating:
Hp rating at 240VAC
Maximum Switching Voltage:
Minimum Switching Current:
DPDT, 4PDT
RRM002:
10A 250VAC/30VDC
RRM004:
5A 250VAC/30VDC
RRM002:
1/3 Hp,
RRM004:
1/6 Hp
250VAC, 30 VDC
100mA, 5VDC
Material :
Contact Resistance:
Reaction Time to Close:
Reaction Time to Open:
Electrical Life:
Mechanical Life
AgSnO2
≤
100 mOhms (at 6 VDC 1A)
≤
20ms
≤
20ms
100,000 cycles (1800 per hour)
10,000,000 cycles (18,000 per hour)
Specifications are subject to change without notice — September 2017
1
Industrial
Electrical
Relay
Type RRM
Monostable
Coil Characteristics
AC Coil
Coil Code
12V
24V
48V
120V
240V
Nominal
Voltage
VAC
12V
24V
48V
110/120V
220/240V
80%
30%
Pick-up
Drop-out
at +23°C
≥
VAC
≤
VAC
Coil
Resistance
W ±10%
46.5
192
783
4000
15000
aprox.
1.2
Coil
Power
VA
5V
6V
12V
24V
48V
110V
Coil Code
Nominal
Voltage
VAC
5V
6V
12V
24V
48V
110V
80%
10%
DC Coil
Pick-up
Drop-out
at +23°C
≥
VAC
≤
VAC
Coil
Resistance
W ±10%
28
40
160
650
2560
11000
aprox.
0.9
Coil
Power
VA
Minimum and Maximum Coil Voltage vs Ambient Temperature
AC Coil
2.2
2.0
DC Coil
2.2
2.0
1
U / Un
U / Un
1.5
1
1.5
1.0
0.7
-20 C
-4 F
1.0
2
0C
32F
20 C
68 F
40 C
104 F
60 C
140 F
80 C
176 F
2
0C
32F
20 C
68 F
40 C
104 F
60 C
140 F
80 C
176 F
0.7
-20 C
-4 F
1- Maximum coil voltage vs. temperature
2- Minimum coil voltage vs. temperature
Insulation
Between Open Contacts (1mA leakage)
Environmental Specifications
≥
1000 VAC for 1 minute
≥
1200 VAC for 1 second
≥
2500 VAC for 1 minute
≥
2750 VAC for 1 second
≥
1500 VAC for 1 minute
≥
1700 VAC for 1 second
Operational Temperature
Operational Humidity
Storage Temperature
Storage Humidity
Storage Environment
-40°C ~ +70°C
35% ~ 85%
-40°C ~ +70°C
20% ~ 85%
avoid corrosive gas environments and direct sun
Between Contact and Coil and
Contact to Contact (1mA leakage)
Dimensions
RRM003
6.2 mm
[0.25"]
36.0 mm
[1.42"]
21 mm
[0.83"]
13.2mm
[0.52"]
6.2 mm
[0.25"]
36.0 mm
[1.42"]
RRM004
21 mm
[0.83"]
13.2 mm
4.4 mm
4.2 mm
[0.17"]
27.2 mm
[1.07"]
6.3 mm
[0.25"]
6.5 mm
[0.26"]
27.2 mm
[1.07"]
4.2 mm
[0.17"]
6.3 mm
[0.25"]
6.5 mm
[0.26"]
Specifications are subject to change without notice — September 2017
2
Industrial
Electrical
Relay
Type RRM
Monostable

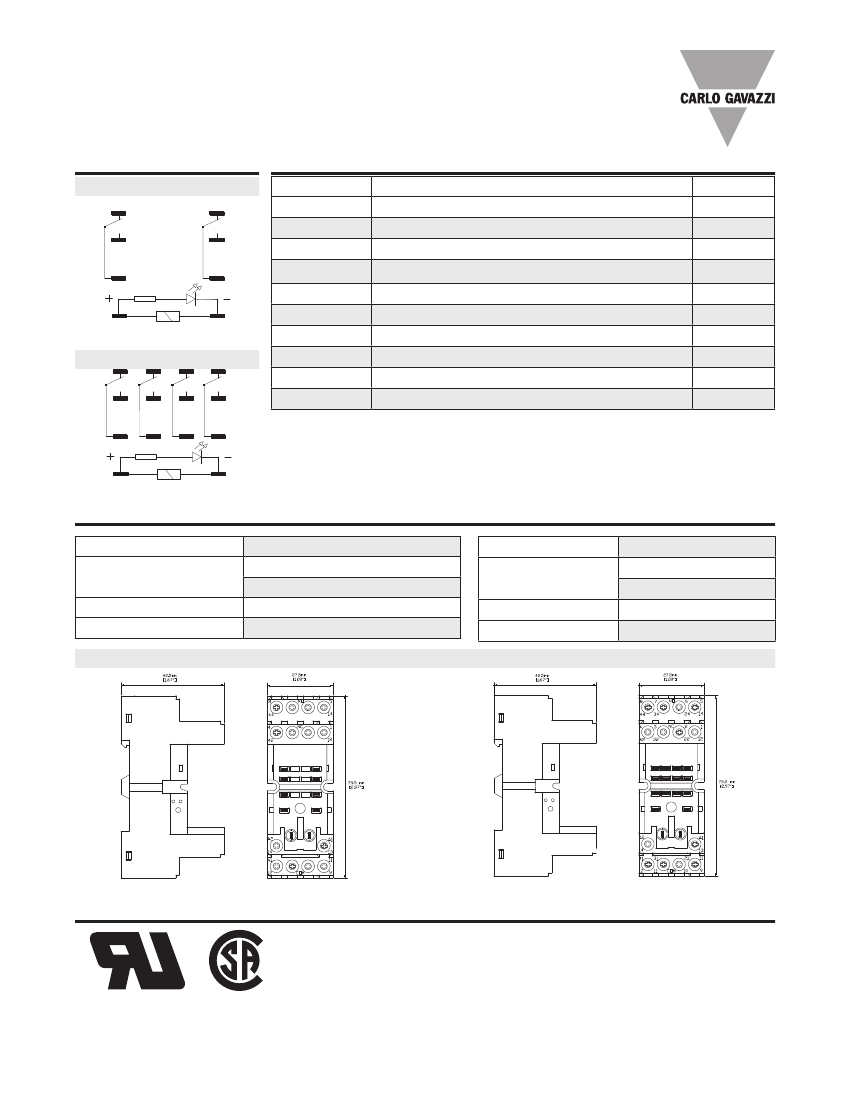

Diagrams
RRM002
(1)
12
(4)
42
Accessories
Part Number
Description
Stock Code
ZRM2N
ZRM4N
ZRMB35
ZRMK35
ZRMRC24
ZRMRC110240
ZRMMOV240
ZRMMOV24
ZRMMOV120
ZRMFWD
DIN Socket for RRM002 relay without hold down spring
DIN Socket for RRM004 relay without holding spring
Plastic hold down clip for ZRM socket
Metal hold down spring for ZRM socket
Auxiliary Module for ZRM Sockets RC 6-24 VAC
Auxiliary Module for ZRM Sockets RC 110-240 VAC
Auxiliary Module for ZRM Sockets MOV 240 VAC/VDC
Auxiliary Module for ZRM Sockets MOV 24 VAC/VDC
Auxiliary Module for ZRM Sockets MOV 120 VAC/VDC
Auxiliary Module for ZRM Sockets Diode 6-250VDC
A
A
A
A
A
A
A
A
A
A
(5)
14
(8)
44
(9)
11
(12)
41
(13)
A1
(14)
A2
(1)
12
(2)
(3)
RRM004
22
32
(4)
42
(5)
14
(6)
24
(7)
34
(8)
44
(9)
11
(10)
21
(11)
31
(12)
41
(13)
A1
(14)
A2
Socket Specifications
Arrangement:
Insertion and extraction force
Max screw torque
Dielectric strength
ZRM2N
ZRM2N:
8-blades,
ZRM4N:
14-blades
ZRM2N:
15-80 N
ZRM4N:
25-100 N
0.8Nm (7.1 lb.-inch)
DIN-rail standard
Load capacity
Operational temp. range
Wire size range
ZRM4N
35 mm
ZRM2N:
12A, 300V
ZRM4N:
10A, 300V
-40°C ~ +85°C
20-14 AWG / 0.5-2.5 mm2
> 2000V
Agency Approvals
E489542
E489543
C
269657
US
Specifications are subject to change without notice — September 2017
3
