FSDM0465RE, FSDM0565RE, FSDM07652RE — Green Mode Power Switch
FSDM0465RE, FSDM0565RE, FSDM07652RE
Green Mode Power Switch
Features
Internal Avalanche-Rugged SenseFET
Advanced Burst-Mode Operation Consumes Under
1W at 240V
AC
& 0.5W load
Precision Fixed Operating Frequency (66kHz)
Internal Start-up Circuit
Improved Pulse-by-Pulse Current Limiting
Over-Voltage Protection (OVP)
Overload Protection (OLP)
Internal Thermal Shutdown Function (TSD)
Auto-Restart Mode
Under-Voltage Lockout (UVLO) with hysteresis
Low Operating Current (2.5mA)
Built-in Soft-Start
Description
The FSDM0465RE, FSDM0565RE and FSDM07652RE
are an integrated Pulse Width Modulator (PWM) and
SenseFET specifically designed for high-performance
offline Switch Mode Power Supplies (SMPS) with
minimal external components. This device is an
integrated high-voltage power-switching regulator that
combines an avalanche-rugged SenseFET with a
current mode PWM control block. The PWM controller
includes an integrated fixed-frequency oscillator, under-
voltage lockout, leading-edge blanking (LEB), optimized
gate driver, internal soft-start, temperature-compensated
precise-current sources for a loop compensation, and
self-protection circuitry. Compared with a discrete
MOSFET and PWM controller solution, it can reduce total
cost; component count, size, and weight; while
simultaneously increasing efficiency, productivity, and
system reliability. This device is a basic platform well
suited for cost-effective designs of flyback converters.
Applications
SMPS for LCD monitor and STB
Adaptor
Ordering Information
Product Number
FSDM0465REWDTU
(1)
FSDM0565REWDTU
FSDM07652REWDTU
Note:
1. WDTU: Forming Type.
Package
TO-220F-6L (Forming)
TO-220F-6L (Forming)
TO-220F-6L (Forming)
Marking Code
DM0465RE
DM0565RE
DM07652RE
BV
DSS
650V
650V
650V
R
DS(ON)
Max.
2.6
Ω
2.2
Ω
1.6
Ω
All packages are lead free per JEDEC: J-STD-020B standard.
© 2006
Semiconductor Components Industries, LLC.
October-2017,
Rev.
2
Publication Order Number:
FSDM0465RE/D
FSDM0465RE, FSDM0565RE, FSDM07652RE — Green Mode Power Switch
Typical Circuit
AC
IN
DC
OUT
V
str
PWM
FB
Drain
V
CC
Source
FSDM0565RE Rev: 00
Figure 1. Typical Flyback Application
Output Power Table
Product
FSDM0465RE
FSDM0565RE
FSDM07652RE
Adapter
(2)
48W
60W
70W
230V
AC
±15%
(4)
Open Frame
(3)
56W
70W
80W
Adapter
(2)
40W
50W
60W
85–265V
AC
Open Frame
(3)
48W
60W
70W
Notes:
2. Typical continuous power in a non-ventilated enclosed adapter measured at 50°C ambient.
3. Maximum practical continuous power in an open-frame design at 50°C ambient.
4. 230V
AC
or 100/115V
AC
with doubler.
www.onsemi.com
2
FSDM0465RE, FSDM0565RE, FSDM07652RE — Green Mode Power Switch
Internal Block Diagram
V
CC
3
NC 5
0.5/0.7V
+
-
V
CC
I
delay
FB 4
R
Q
V
str
6
I
start
V
ref
Internal
Bias
Drain
1
8V/12V
V
CC
good
V
ref
OSC
I
FB
2.5R
PWM
S
Q
Soft-start
R
LEB
Gate
driver
V
SD
V
CC
S
Q
Q
2 GND
V
ovp
TSD
V
CC
good
R
V
CL
FSDM0565RE Rev: 00

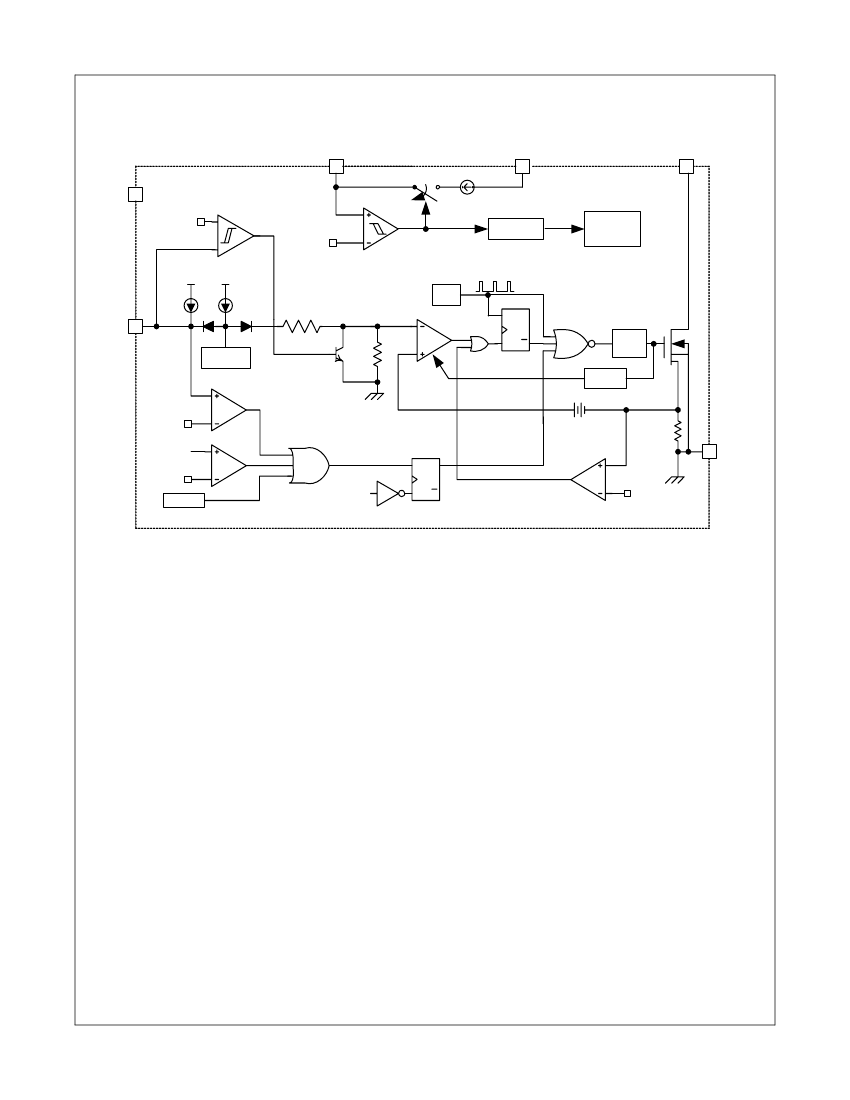

Figure 2. Functional Block Diagram of FSDM0x65RE
www.onsemi.com
3
FSDM0465RE, FSDM0565RE, FSDM07652RE — Green Mode Power Switch
Pin Configuration
TO-220F-6L
6. V
str
5. NC
4. FB
3. V
CC
2. GND
1. Drain
Figure 3. Pin Configuration (Top View)
Pin Definitions
Pin #
1
2
Name
Drain
GND
Description
SenseFET drain.
This pin is the high-voltage power SenseFET drain. It is de-
signed to drive the transformer directly.
Ground.
This pin is the control ground and the SenseFET source.
Power Supply.
This pin is the positive supply voltage input. During start-up,
the power is supplied by an internal high-voltage current source connected to
the V
str
pin. When V
CC
reaches 12V, the internal high-voltage current source
is disabled and the power is supplied from the auxiliary transformer winding.
Feedback.
This pin is internally connected to the inverting input of the PWM
comparator. The collector of an opto-coupler is typically tied to this pin. For
stable operation, a capacitor should be placed between this pin and GND. If
the voltage of this pin reaches 6.0V, the overload protection is activated,
re-sulting in shutdown of the
Power Switch.
No Connection.
Start-up.
This pin is connected directly to the high-voltage DC link. At start-up,
the internal high-voltage current source supplies internal bias and charges the
external capacitor connected to the V
CC
pin. Once V
CC
reaches 12V, the in-
ternal current source is disabled.
3
V
CC
4
FB
5
NC
6
V
str
www.onsemi.com
4
FSDM0465RE, FSDM0565RE, FSDM07652RE — Green Mode Power Switch
Absolute Maximum Ratings
The “Absolute Maximum Ratings” are those values beyond which the safety of the device cannot be guaranteed. The
device should not be operated at these limits. The parametric values defined in the Electrical Characteristics tables
are not guaranteed at the absolute maximum ratings. T
A
= 25°C, unless otherwise specified.
Symbol
BV
DSS
V
str
I
DM
Parameter
Drain Source Breakdown Voltage
Max. Voltage at Vstart pin
FSDM0465RE
Drain Current Pulsed
(5)
FSDM0565RE
FSDM07652RE
FSDM0465RE
T
C
=25°C
T
C
=25°C
T
C
=25°C
T
C
=25°C
T
C
=100°C
T
C
=25°C
T
C
=100°C
T
C
=25°C
T
C
=100°C
FSDM0465RE
FSDM0565RE
FSDM07652RE
Value
650
650
9.6
11
15
2.2
1.4
2.8
1.7
3.8
2.4
190
370
20
-0.3 to V
CC
45
Internally limited
-25 to +85
-55 to +150
2.0
(GND-V
str
/V
FB
=1.5kV)
300
(GND-V
str
/V
FB
=225V)
Unit
V
V
A
DC
I
D
Continuous Drain Current FSDM0565RE
FSDM07652RE
A
E
AS
V
CC
V
FB
T
J
T
A
T
STG
Single Pulsed Avalanche Energy
(6)
Supply Voltage
Input Voltage Range
Operating Junction Temperature
Operating Ambient Temperature
Storage Temperature
ESD Capability, HBM Model
(All pins except V
str
and FB)
ESD Capability, Machine Model
(All pins except V
str
and FB)
mJ
V
V
W
°C
°C
°C
kV
V
P
D
(Watt H/S) Total Power Dissipation (T
C
=25°C)
Notes:
5. Repetitive rating: Pulse width limited by maximum junction temperature.
6. L=14mH, starting T
J
=25°C.
Thermal Impedance
T
A
=25°C, unless otherwise specified.
Symbol
θ
JA(7)
θ
JC(8)
Parameter
Junction-to-Ambient Thermal Resistance
Junction-to-Case Thermal Resistance
Value
49.90
2.78
Unit
°C/W
°C/W
Notes:
7. Free-standing, with no heat-sink, under natural convection.
8. Infinite cooling condition - refer to the SEMI G30-88.
www.onsemi.com
5
