RL-1506
DESCRIPTION
• Conformally Coated Mini-Inductor
MINI-INDUCTORS
CONFORMALLY COATED
FEATURES & APPLICATIONS
• Have high Q and low distributed capacity
• Excellent for use where space, weight and size is a factor
• Suitable for automatic PCB insertion
• Standard industry color codes identify values
ENVIRONMENTAL DATA
•
•
Storage temperature range:
-55°C to +130°C
Operating temperature range:
-40°C to +130°C
PACKAGING INFORMATION
• Packaging information: pg. 493
Verify operation with sample in actual circuit. Order samples at www.rencousa.com.
MECHANICAL DIMENSIONS
U.S. Standard (mm)
PART NUMBER
RL-1506
A (MAX.)
0.16 (4.06)
B (MIN.)
0.79 (20.07)
C (MAX.)
0.41 (10.41)
PART WEIGHT
0.40g (0.014oz)

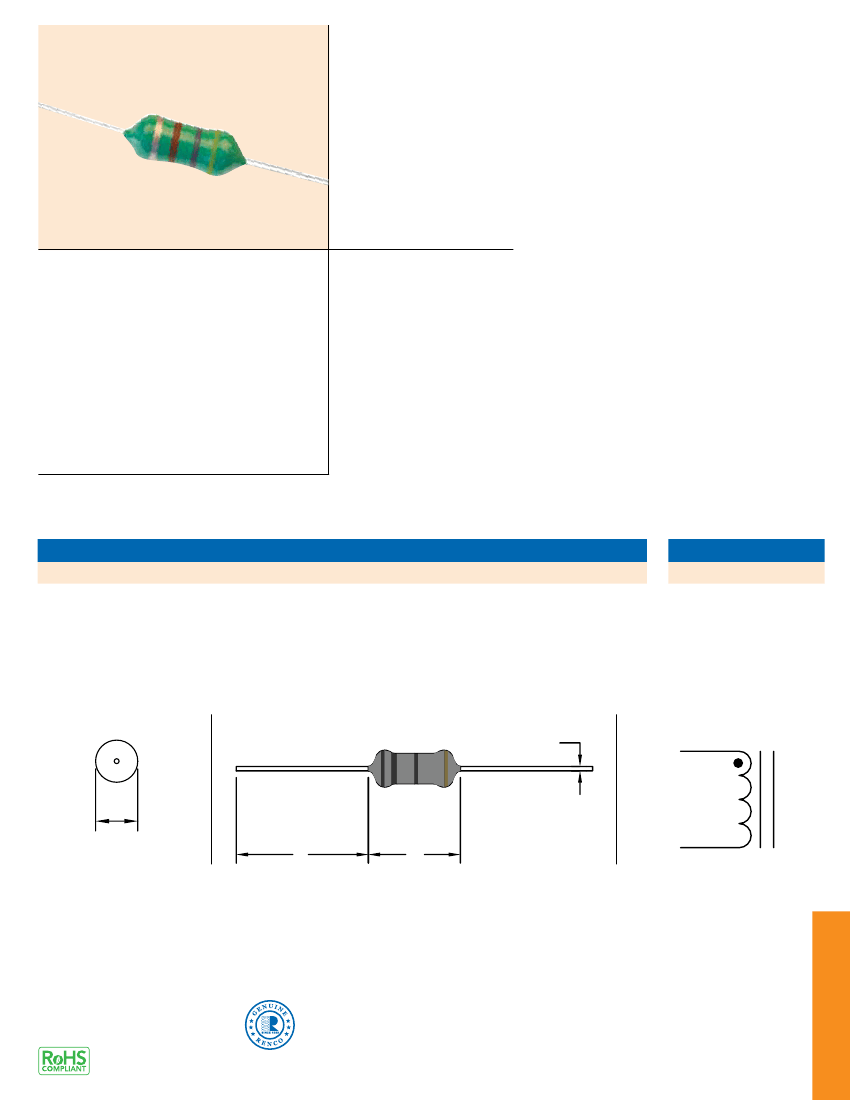

FRONT VIEW
SIDE VIEW
PIN
DIMENSION
0.026 (0.66)
SCHEMATIC
ST
A
FN
B
C
(2X)
RENCO ELECTRONICS INC.
595 International Place, Rockledge, FL 32955-4200 USA • www.rencousa.com • ISO 9001 Certified
Toll Free Engineering Hot Line: 800.645.5828 • P: 321.637.1000 • F: 321.637.1600
INDUCTORS
RL-1506
Renco
Part No.
RL-1506
RL-1506-.22
RL-1506-.27
RL-1506-.33
RL-1506-.39
RL-1506-.47
RL-1506-.56
RL-1506-.68
RL-1506-.82
RL-1506-1.0
RL-1506-1.2
RL-1506-1.5
RL-1506-1.8
RL-1506-2.2
RL-1506-2.7
RL-1506-3.3
RL-1506-3.9
RL-1506-4.7
RL-1506-5.6
RL-1506-6.8
RL-1506-8.2
Inductance
(µH)
0.22
0.27
0.33
0.39
0.47
0.56
0.68
0.82
1.00
1.20
1.50
1.80
2.20
2.70
3.30
3.90
4.70
5.60
6.80
8.20
DCR
Max.
(Ohms)
0.10
0.11
0.12
0.13
0.14
0.15
0.16
0.17
0.19
0.21
0.23
0.25
0.28
0.30
0.34
0.37
0.39
0.43
0.48
0.52
Q
Min.
45.0
45.0
45.0
45.0
45.0
45.0
45.0
45.0
45.0
50.0
50.0
55.0
55.0
60.0
65.0
65.0
70.0
70.0
75.0
80.0
SRF
(MHz)
Min.
300.0
270.0
250.0
230.0
220.0
200.0
190.0
172.0
157.0
144.0
131.0
121.0
110.0
100.0
94.0
65.0
56.0
48.0
37.0
25.0
Isat
(mA)
1400.0
1320.0
1280.0
1200.0
1150.0
1100.0
1030.0
980.0
920.0
880.0
830.0
790.0
750.0
720.0
670.0
640.0
620.0
590.0
550.0
530.0
Renco
Part No.
RL-1506
RL-1506-10
RL-1506-12
RL-1506-15
RL-1506-18
RL-1506-22
RL-1506-27
RL-1506-33
RL-1506-39
RL-1506-47
RL-1506-56
RL-1506-68
RL-1506-82
RL-1506-100
RL-1506-120
RL-1506-150
RL-1506-180
RL-1506-220
RL-1506-270
RL-1506-330
RL-1506-390
RL-1506-470
RL-1506-560
RL-1506-680
RL-1506-820
RL-1506-1000
Inductance
(µH)
10.0
12.0
15.0
18.0
22.0
27.0
33.0
39.0
47.0
56.0
68.0
82.0
100.0
120.0
150.0
180.0
220.0
270.0
330.0
390.0
470.0
560.0
680.0
820.0
1000.0
DCR
Max.
(Ohms)
0.58
0.63
0.72
0.77
0.84
0.94
1.03
1.12
1.22
1.34
1.47
1.62
1.80
3.70
4.20
4.60
5.10
5.80
6.40
7.00
7.70
8.50
9.40
10.50
14.00
Q
Min.
65.0
50.0
50.0
50.0
50.0
55.0
55.0
50.0
45.0
40.0
40.0
35.0
30.0
55.0
45.0
50.0
55.0
65.0
65.0
65.0
60.0
60.0
55.0
55.0
50.0
SRF
(MHz)
Min.
21.0
19.0
17.0
13.0
9.60
7.20
6.30
6.30
6.30
6.20
5.70
5.30
4.80
3.80
3.50
3.30
3.00
2.80
2.60
2.40
2.25
2.10
1.95
1.85
1.40
Isat
(mA)
500.0
480.0
460.0
430.0
410.0
390.0
370.0
350.0
340.0
320.0
305.0
290.0
275.0
185.0
175.0
165.0
155.0
145.0
137.0
133.0
126.0
120.0
113.0
105.0
100.0
Nominal Inductance (µH)
Color
Black
Brown
Red
Orange
Yellow
Green
Blue
Purple
Grey
White
Gold
Silver
First figure
Decade
Power
Multiplier
Tolerance
NOTES:
1. ELECTRICAL SPECIFICATIONS MEASURED AT 25ºC
2. Isat - DC CURRENT THAT WILL CAUSE INDUCTANCE
TO DROP BY 5%
3. INDUCTANCE TESTED AT 10 kHz, 0.1 Vrms
0
1
2
3
4
5
6
7
8
9
--
--
Seocnd figure
1
10
100
1000
--
--
--
--
--
--
0.1
0.01
±20%
±5%
±10%
INDUCTORS
RENCO ELECTRONICS INC.
595 International Place, Rockledge, FL 32955-4200 USA • www.rencousa.com • ISO 9001 Certified
Toll Free
Engineering Hot Line: 800.645.5828 • P: 321.637.1000 • F: 321.637.1600

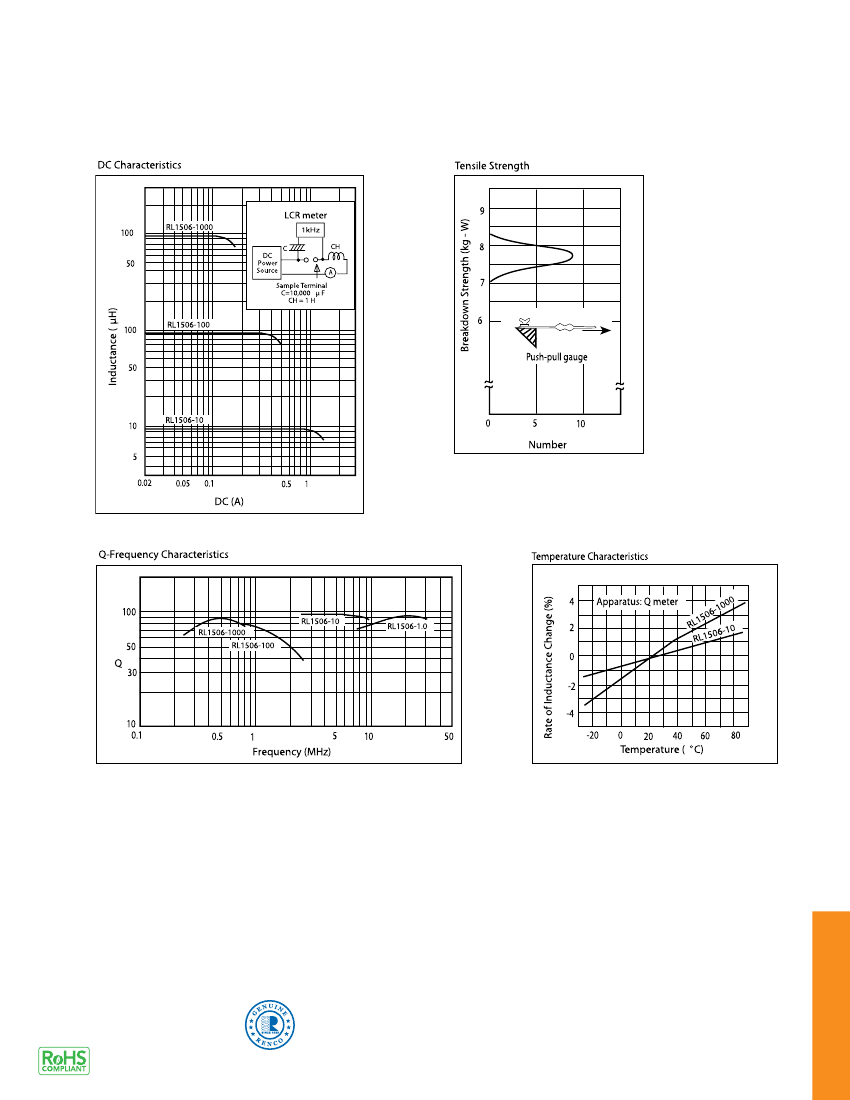

RL-1506
RENCO ELECTRONICS INC.
595 International Place, Rockledge, FL 32955-4200 USA • www.rencousa.com • ISO 9001 Certified
Toll Free Engineering Hot Line: 800.645.5828 • P: 321.637.1000 • F: 321.637.1600
INDUCTORS
