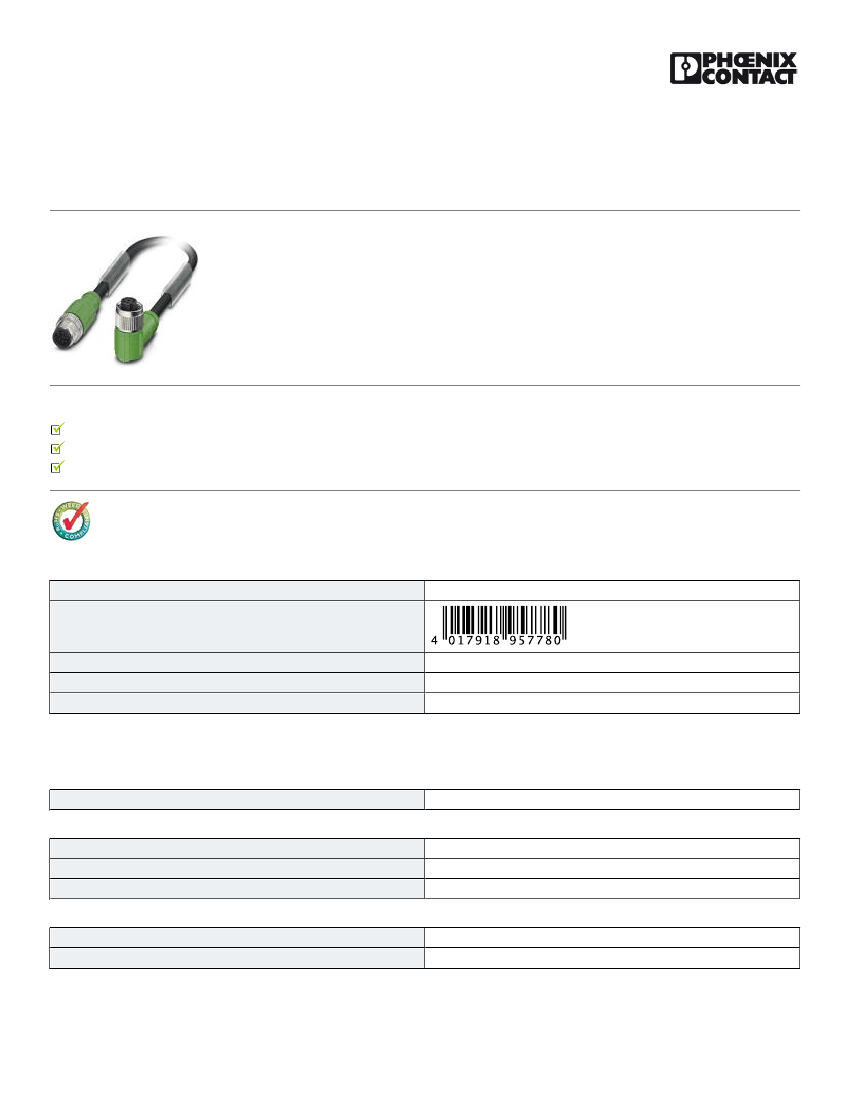

Sensor/Actuator cable - SAC-8P-M12MS/ 1,5-PUR/M12FR SH - 1523036
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://download.phoenixcontact.com)
Sensor/Actuator cable, 8-position, PUR halogen-free, Black-gray RAL 7021, shielded, Plug straight M12, A-
coded, on Socket angled M12, A-coded, Cable length: 1.5 m
Product Features
Easy and safe: 100% electrically tested plug-in components
Our standard: robust halogen-free PUR cable
Reliable signal transmission – 360° shielding in environments with electromagnetic interference
Key commercial data
Packing unit
GTIN
Weight per Piece (excluding packing)
Custom tariff number
Country of origin
110.2 GRM
85444290
Poland
11
Technical data
Dimensions
Length of cable
1.5 m
Ambient conditions
Ambient temperature (operation)
Degree of protection
-25 °C ... 90 °C (Plug / socket)
IP65
IP67
General
Rated current at 40°C
Rated voltage
2A
30 V
04.11.2013 Page 1 / 9
https://www.phoenixcontact.com/us/products/1523036
Sensor/Actuator cable - SAC-8P-M12MS/ 1,5-PUR/M12FR SH - 1523036
Technical data
General
Number of positions
Contact resistance
Insulation resistance
Coding
Standards/regulations
Status display
Surge voltage category
Pollution degree
Insertion/withdrawal cycles
Torque
8
≤ 5 mΩ
≥ 100 MΩ
A - standard
M12 connector IEC 61076-2-101
No
II
3
≥ 100
0.4 Nm (M12 connector)
Material
Inflammability class according to UL 94
Contact material
Contact surface material
Contact carrier material
Material of grip body
Material, knurls
Sealing material
HB
CuZn
Ni/Au
TPU GF
TPU, hardly inflammable, self-extinguishing
Zinc die-cast, nickel-plated
NBR
Cable
Cable type
Cable type (abbreviation)
Cable abbreviation
UL AWM style
Conductor cross section
AWG signal line
Conductor structure signal line
Core diameter including insulation
Wire colors
Overall twist
Shielding
Optical shield covering
External sheath, color
External cable diameter D
Smallest bending radius, fixed installation
Smallest bending radius, movable installation
Number of bending cycles
PUR halogen-free black shielded
PUR
LiF9YC11Y
20549
8x 0.25 mm² (signal line)
24
32x 0.10 mm
1.17 mm ±0.02 mm
Brown, white, green, yellow, gray, pink, blue, red
8 wires around filler to the core
Tinned copper braided shield
85 %
Black RAL 9005
5.9 mm ± 0.2 mm
47.2 mm
59 mm (Up to +60°C)
4000000
04.11.2013 Page 2 / 9
https://www.phoenixcontact.com/us/products/1523036
Sensor/Actuator cable - SAC-8P-M12MS/ 1,5-PUR/M12FR SH - 1523036
Technical data
Cable
Bending radius
Traversing path
Traversing rate
Acceleration
Outer sheath, material
Material conductor insulation
Conductor material
Insulation resistance
Conductor resistance
Nominal voltage, cable
Test voltage Core/Core
Special properties
Flame resistance
Other resistance
Ambient temperature (operation)
59 mm
10 m
3 m/s
10 m/s²
PUR
PP
Bare Cu litz wires
70 GΩ*km (at 20 °C)
max. 79 Ω/km (at 20 °C)
300 V (at 20 °C)
3000 V (at 20 °C)
Flexible cable conduit capable
In accordance with UL FT-2
hydrolysis and microbe resistant
partly UV-resistant in accordance with DIN EN ISO 4892-2-A
-40 °C ... 80 °C (cable, fixed installation)
-25 °C ... 80 °C (cable, flexible installation)
Classifications
eCl@ss
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
eCl@ss 8.0
27060306
27060306
27061801
27061801
27061801
27061801
27061801
ETIM
ETIM 2.0
ETIM 3.0
ETIM 4.0
ETIM 5.0
EC000830
EC001855
EC001855
EC001855
UNSPSC
UNSPSC 6.01
UNSPSC 7.0901
31251501
31251501
04.11.2013 Page 3 / 9
https://www.phoenixcontact.com/us/products/1523036
Sensor/Actuator cable - SAC-8P-M12MS/ 1,5-PUR/M12FR SH - 1523036
Classifications
UNSPSC
UNSPSC 11
UNSPSC 12.01
UNSPSC 13.2
31251501
31251501
31251501
Approvals
Approvals
Approvals
UL Listed / cUL Listed / GOST / cULus Listed
Ex Approvals
Approvals submitted
Approval details
UL Listed
Nominal current IN
Nominal voltage UN
2A
30 V
cUL Listed
Nominal current IN
Nominal voltage UN
2A
30 V
GOST
04.11.2013 Page 4 / 9
https://www.phoenixcontact.com/us/products/1523036
Sensor/Actuator cable - SAC-8P-M12MS/ 1,5-PUR/M12FR SH - 1523036
Approvals
cULus Listed

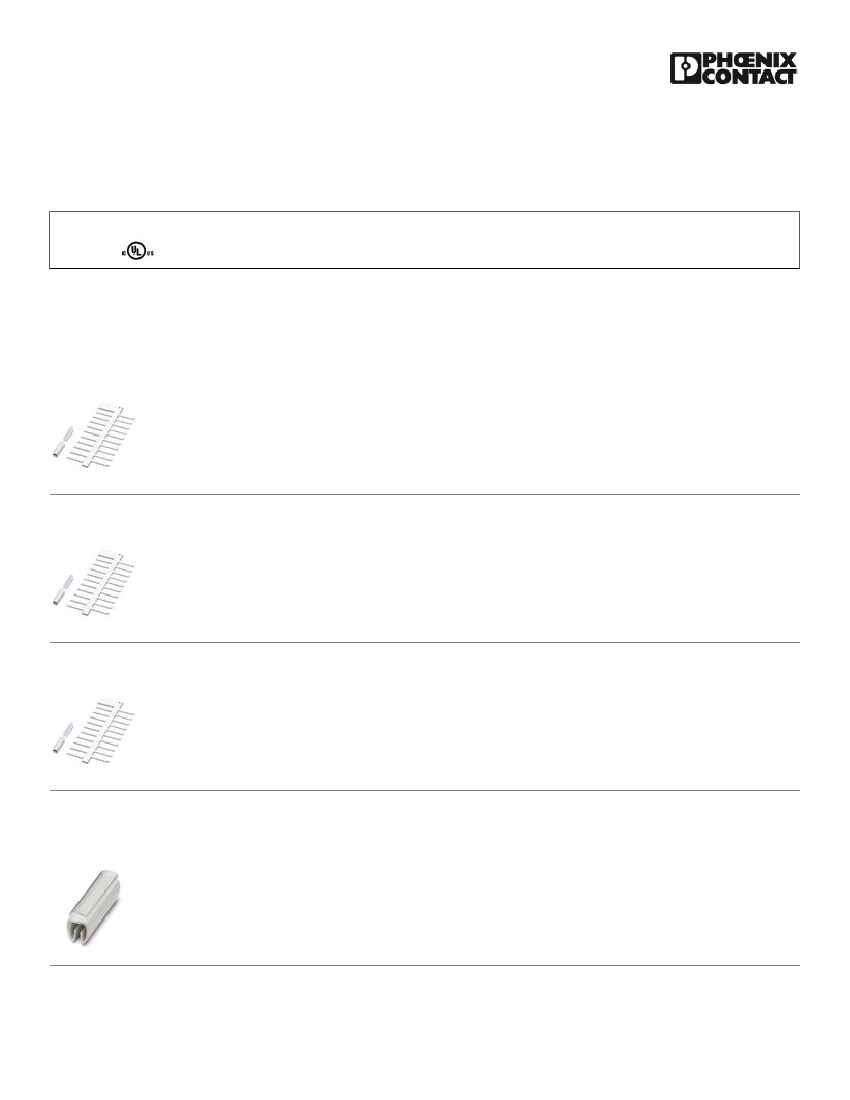

Accessories
Accessories
Conductor marking
Insert label - PABA WH/15 - 1013151
Insert label, Strip, white, Unlabeled, Can be labeled with: Plotter, Mounting type: Thread on, Cable diameter: 0.6-50 mm,
Lettering field: 15 x 4 mm
Insert label - PABA YE/15 - 1013698
Insert label, Strip, yellow, Unlabeled, Can be labeled with: Plotter, Mounting type: Thread on, Cable diameter: 0.6-50 mm,
Lettering field: 15 x 4 mm
Insert label - PABA RD/15 - 1013944
Insert label, Strip, red, Unlabeled, Can be labeled with: Plotter, Mounting type: Thread on, Cable diameter: 0.6-50 mm,
Lettering field: 15 x 4 mm
Marker carrier cable
Conductor marker carrier - PATO 2/15 - 1013122
Conductor marker carrier, transparent, Unlabeled, Mounting type: Clip on, Cable diameter: 2.8-4.4 mm, Lettering field: 4
x 15 mm
