PE7/PE8 Series
Specifications
:
Rated Voltage:
250VAC Maximum - 50/60 Hz
Rated Current:
115VAC
250VAC
3A
3A
6A
6A
Current Overload:
6X for 8 Seconds
Hi-Pot Test (1 min):
Line to Ground
1500VAC
Line to Line
1768VDC
Insulation Resistance:
9 x 10
9
Ω
at 100VDC
Ambient Temperature:
40°C Max. at Rated Current
Humidity Range:
0% to 95% R.H.
Termination:
• IEC Receptacle
• Wire Wrap/Solder
Maximum Leakage Current:
Each Line to Ground
PE7, PE 8
115VAC, 60Hz:
0.25mA
250VAC, 50Hz:
0.40mA
Voltage Select Card:
Installed in 120VAC position
unless otherwise specified
Agency Approvals:
Combination
POWER ENTRY MODULES
Refer to Page 55 for Ordering Instructions

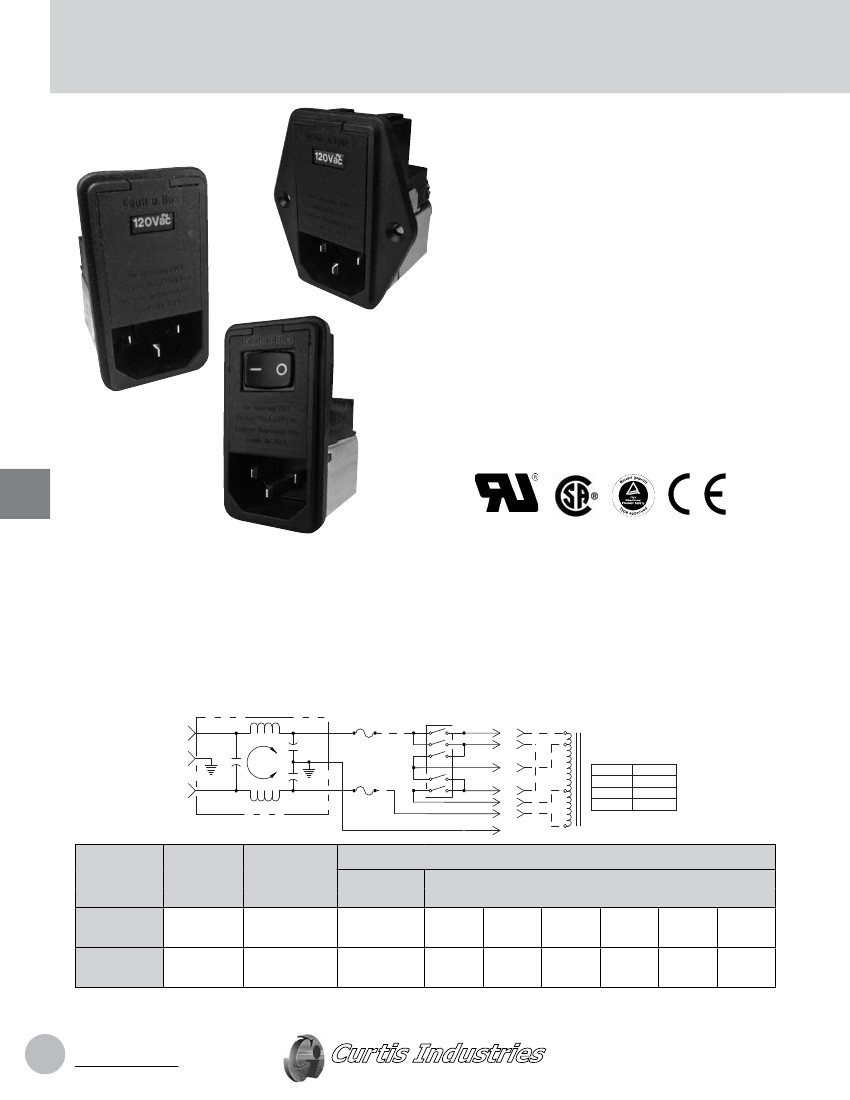

Features:
• RFI Filter Module Combines IEC Connector, Fusing,
and Voltage Select Features in One Unit
• PE7 Series Filters Provide 20% More Differential Mode
Attenuation Than Comparable Units
• Accepts Either U.S. or European Standard Fuse Sizes

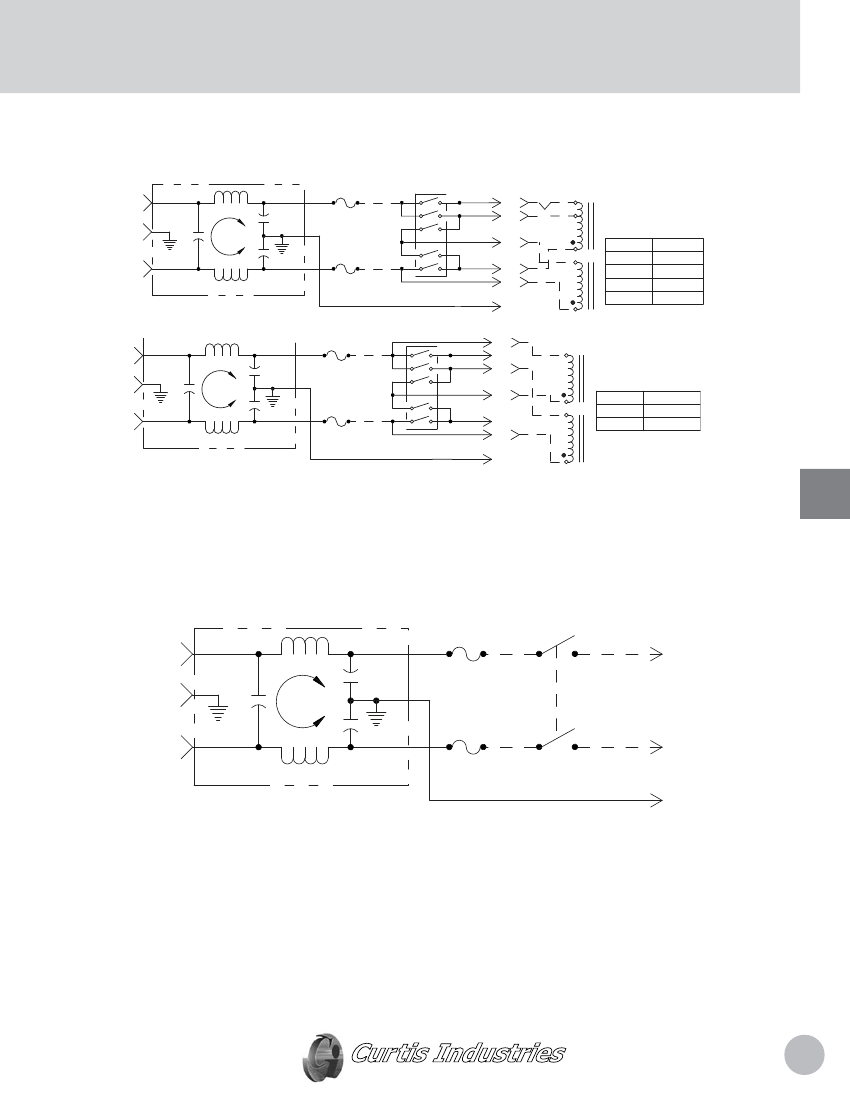

PE7 Series Simplified Schematic
LINE
L
G
D
FUSING
1-POLE
G
B
110-220-
240 V
VOLTAGE
SELECTOR
a
b
c
A
SERIES-SERIES
LOAD
C
FOR TRANSFORMERS WITH TAP
240V
220V
A
C
D
N
2-POLE
H
F
d
e
E
E
F
2a
G
110V
Voltage Contacts
110V
b,e
220V
b,c
240V
a
Nominal
Current
Rating
MINIMUM INSERTION LOSS - dB (50 ohm Circuit)
Part
Number
Termination
Line/Load
IEC/Solder
Tabs
IEC/Solder
Tabs
MODE
Common
Differential
Common
Differential
Frequency - MHz
1.0
5.0
30
24
24
24
45
46
39
39
.15
18
8
10
8
.50
24
18
19
18
10
45
50
44
40
30
50
40
50
40
3A
6A
PE7XXX03
PE8XXX03
PE7XXX06
PE8XXX06
52
www.curtisind.com
Curtis Industries
A Division of Powers Holdings, Inc.
Specifications subject to change.
Dimensions are shown for
reference purposes only.
PE7 Series Simplified Schematic
FUSING
1-POLE
G
B
a
b
100-120-
220-240 V
VOLTAGE
SELECTOR
A
LINE
L
G
SERIES-PARALLEL
LOAD
C
FOR TRANSFORMERS WITH TWO SEPARATE
WINDINGS
120V
100V
A
C
D
c
D
N
2-POLE
H
F
d
e
E
120V
E
F
G
Voltage Contacts
100V
a,c,e
120V
b,c,e
220V
a,d
240V
b,d
L
G
G
B
a
b
c
D
A
C
B
A
C
D
Combination
115V
N
2-POLE
H
F
d
e
E
115V
E
F
G
Voltage Contacts
115V
a,b d,e
230V
c
PE8 Series Simplified Schematic
POWER ENTRY MODULES
LINE
L
G
FUSING
1-POLE
G
ROCKER
SWITCH
1-POLE
1
1a
LOAD
L
N
2-POLE
H
2
2-POLE
2a
N
G
Dimensions are in inches and millimeters
unless otherwise specified.
Values in parentheses are metric equivalents.
Curtis Industries
A Division of Powers Holdings, Inc.
1-800-657-0853
53
PE7/PE8 Series
(continued)

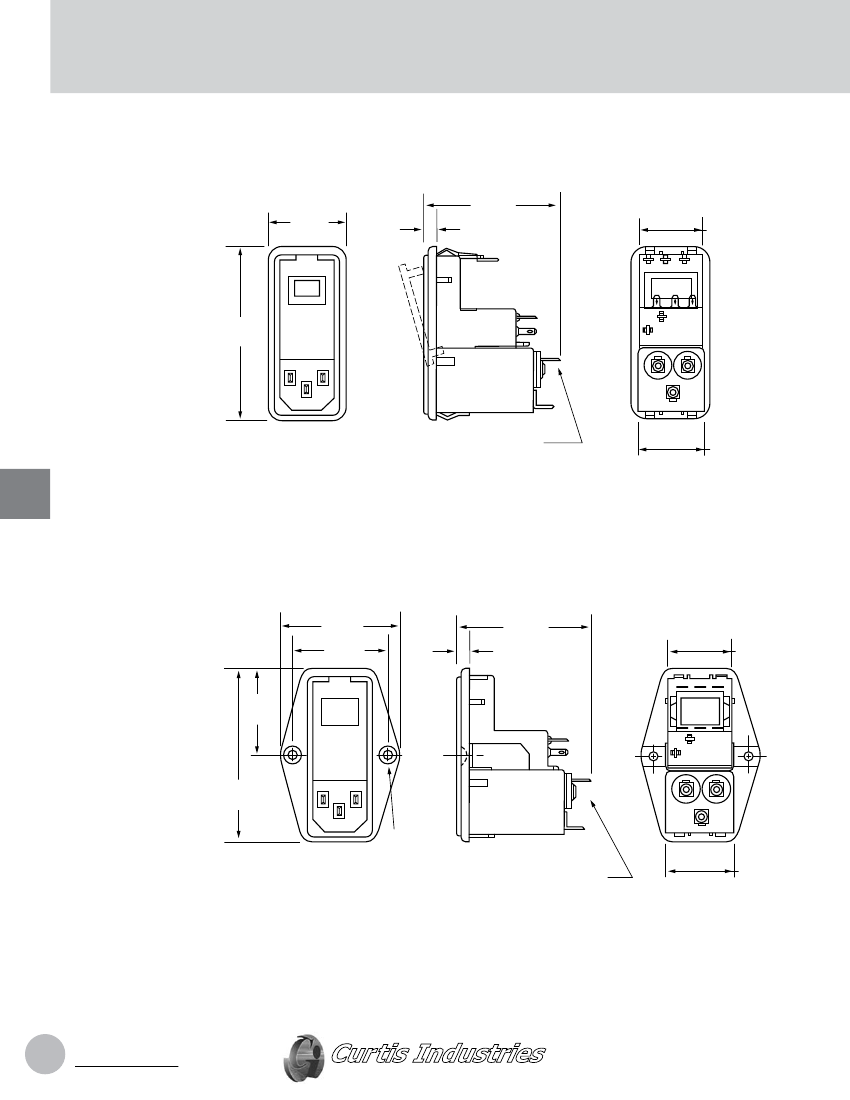

PE7/PE8
Snap-Mount Series
(3 and 6Amp) Dimensions
Refer to Page 55
for Standard
Mounting Cutouts
2.266
(57,55)
.22
(5,5)
1.051
(26,70)
1.260
(32,0)
2.283
(58,0)
Combination
LINE
.100
(2,7) Q.C. Terminals All Locations
LO AD
1.091
(27,71)
POWER ENTRY MODULES
PE7/PE8
Screw-Mount Series
(3 and 6Amp) Dimensions
Refer to Page 55
for Standard
Mounting Cutouts
1.969
(50,0)
1.575
(40,0)
2.266
(57,55)
.22
(5,5)
1.051
(26,70)
1.142
(29,0)
2.283
(58,0)
LINE
.126
(3,20)
Dia. Holes
LO AD
.100
(2,7) Terminals Except Switch
1.091
(27,71)
54
www.curtisind.com
Curtis Industries
A Division of Powers Holdings, Inc.
Specifications subject to change.
Dimensions are shown for
reference purposes only.
How to Order
PE7
PE8
SERIES
PE = Power Entry
X
X
X
X
X
CURRENT RATING
3 = 3 AMP
6 = 6 AMP
MOUNTING
METHOD & FUSING
0 = Snap Mount Metric Fuse
1 = Snap Mount U.S. Fuse
2 = Snap Mount 2 Metric Fuse
3 = Snap Mount 2 U.S. Fuses
6 = Screw Mount Metric Fuse
7 = Screw Mount U.S. Fuse
8 = Screw Mount 2 Metric Fuses
9 = Screw Mount 2 U.S. Fuses
OPTIONS
(Consult Factory)
0 = Standard Units
SWITCH
0 = No Switch
1 = SPST Rocker Switch
w/Q.C.
2 = DPST Rocker Switch
w/Q.C.
VOLTAGE SELECTOR
0 = No Selector (PE80 Series)
1 = 110-220-240 VAC
2 = 100-120-220-240 VAC
3 = 115-230 VAC
Combination
POWER ENTRY MODULES
INSTALLATION INSTRUCTION
IMPORTANT – CHANGING
FUSE/VOLTAGE
PE7/PE8
To change fuse, remove power cord
and open the front cover on the module.
Remove fuse holder and replace fuse.
Reinsert fuse holder and close cover.
To change the operating voltage on the
PE7 Series, remove the power cord and
open front cover. Rotate voltage select
wheel until desired voltage appears in
window of cover.
• Filter shipped without fuse.
Always use caution when selecting
and changing fuses and voltage
requirements. Curtis Industries is not
responsible for malfunction due to
improper installation/selection of fuse
and/or voltage select.
PE7/PE8 Snap-Mount Series
2.20
(55,9)
*See Below
PE7/PE8 Screw Mount Series
.08 R
(2,0)
1.10
(27,9)
2.20
(55,9)
1.122
(28,50)
1.122
(28,50)
1.575
(40,0)
*Panel Thickness
Cutout
.031" - .079" use 2.20"
.080" - .125" use 2.22"
.08 R
(2,0)
4-40
(M3)
Dimensions are in inches and millimeters
unless otherwise specified.
Values in parentheses are metric equivalents.
Curtis Industries
A Division of Powers Holdings, Inc.
1-800-657-0853
55
