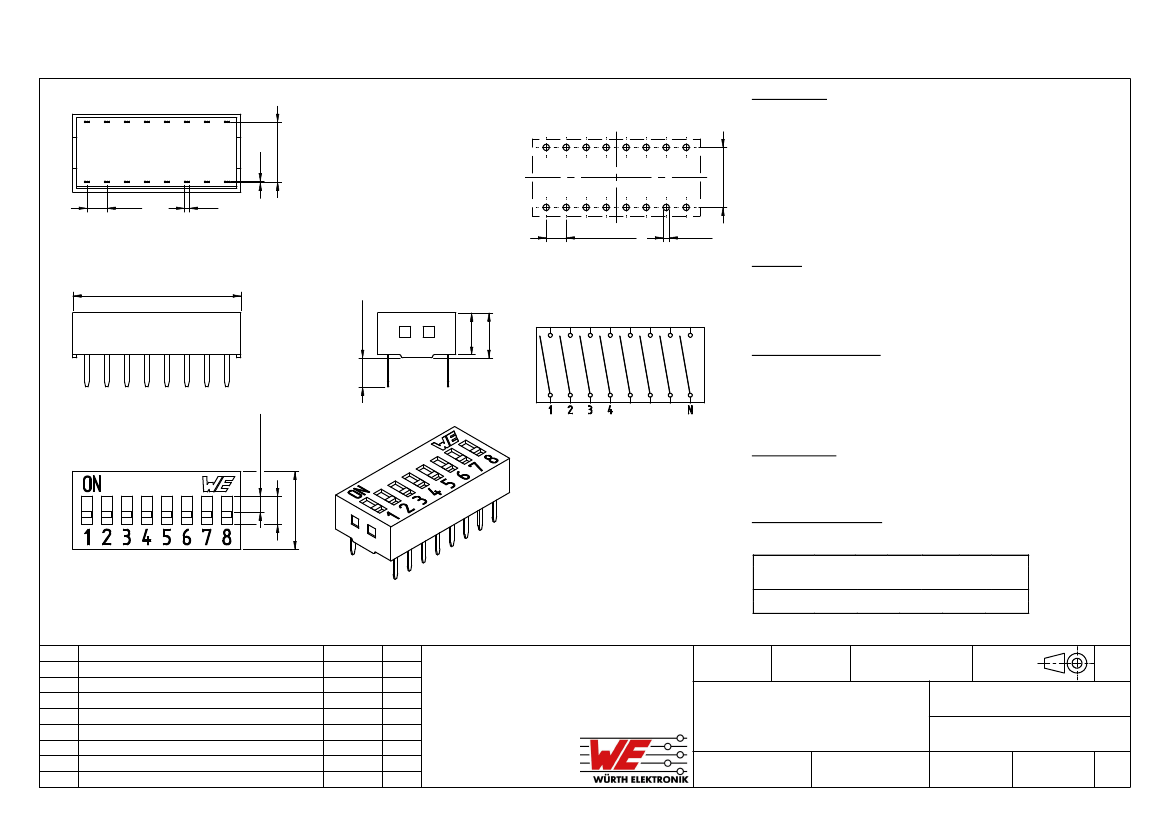

SPECIFICATION
Hole Pattern
2,54
0,6
2,54 ± 0,03
O
0,8
>Contact Rating
Switching :
Non-Switching :
>Contact Resistance
Initial:
After life test :
>Insulation
Resistance :
>Dielectric Strength :
>Operation Force :
>Mechanical Life :
>Electrical Life :
>Flat Actuator Type
MATERIAL
7,62 ± 0,5
25mA, 24VDC
100mA, 50VDC
50mΩ max.
100mΩ max.
min. 100MΩ at 500VDC
500VAC for 1 minute
800g max.
5000 cycles
2000 cycles / 25mA, 24VDC
7,62 ± 0,1
0,2
L
u
0,2
3,7 ± 0,2
Wiring Diagram
5,3
5,7
>Cover :
>Base :
>Actuator :
>Contact :
>Terminal :
PBT UL 94 V-0, color Red
PBT UL 94 V-0, color Black
PBT UL 94 V-0, color White
Gold Plated
Gold Plated
SOLDERING INFORMATION
>Terminal in THT version
>Wave soldering 260°C 10sec. max
>Hand soldering with 30W or under at 350°C for 3 sec. max
>Keep in “off” position during soldering
>Ultrasonic cleaning not re-commended
>Any inflow of Flux into the switch may influence the contact function
ENVIRONMENTAL
Storage condition :
Operation condition :
Compliance :
-40°C ~ +85°C
-40°C ~ +85°C
Lead Free , ROHS, Reach
2,0 Travel
9,9 ± 0,1
3,6
PACKAGING INFORMATION
>Tube
>On delivery in “off” position
Dimension
No. of Poles
Dim. L (mm)
No. of Poles
Dim. L (mm)
1
3.84
7
19.08
2
3
4
5
6.08
8.92
11.16 13.70
8
9
10
21.32
24.16
26.40
6
16.24
12
31.48
Scale - 1:1
Würth Elektronik eiSos GmbH & Co. KG
EMC & Inductive Solutions
Max-Eyth-Str. 1
74638 Waldenburg
Germany
com. +49 79 42 945 - 0
www.we-online.de
eiSos@we-online.de
CREATED
CHECKED
GENERAL TOLERANCE
DaF
DESCRIPTION
Hsu
DIN ISO 2768-1m
PROJECTION
METHOD
SCALE
1:1
TECHNICAL REFERENCE
WS-DITV
Flat Actuator
without top tape sealed
SIZE
STATUS
_________
ORDER CODE
4181171709xx
DATE
BUSINESS UNIT
PAGE
REV.
FILE
DATE
BY
BOX type, THT
Released
2014-03-13
eiCan
1 /1
This electronic component has been designed and developed for usage in general electronic equipment only. This product is not authorized for use in equipment where a higher safety standard and reliability standard is especially required or where a failure of the product is reasonably expected to cause severe personal injury or death, unless the parties have executed an agreement specifically governing such use.
Moreover Würth Elektronik eiSos GmbH & Co KG products are neither designed nor intended for use in areas such as military, aerospace, aviation, nuclear control, submarine, transportation (automotive control, train control, ship control), transportation signal, disaster prevention, medical, public information network etc.. Würth Elektronik eiSos GmbH & Co KG must be informed about the intent of such usage before
the design-in stage. In addition, sufficient reliability evaluation checks for safety must be performed on every electronic component which is used in electrical circuits that require high safety and reliability functions or performance.
