SSR2010CAJDB: DescriptionRectifier Diode, Schottky, 1 Phase, 2 Element, 10A, 100V V(RRM), Silicon, TO-257AA, HERMETIC SEALED, TO-257, 3 PIN; CategoryDiscrete semiconductor diode; File Size164KB，2 Pages; ManufacturerSSDI; Websitehttp://www.ssdi-power.com/

Download Datasheet Compare View All

SSR2010CAJDB Overview

Rectifier Diode, Schottky, 1 Phase, 2 Element, 10A, 100V V(RRM), Silicon, TO-257AA, HERMETIC SEALED, TO-257, 3 PIN

Preview

Download Datasheet

View All

Solid State Devices, Inc.

14701 Firestone Blvd * La Mirada, Ca 90638

Phone: (562) 404-4474 * Fax: (562) 404-1773

ssdi@ssdi-power.com * www.ssdi-power.com

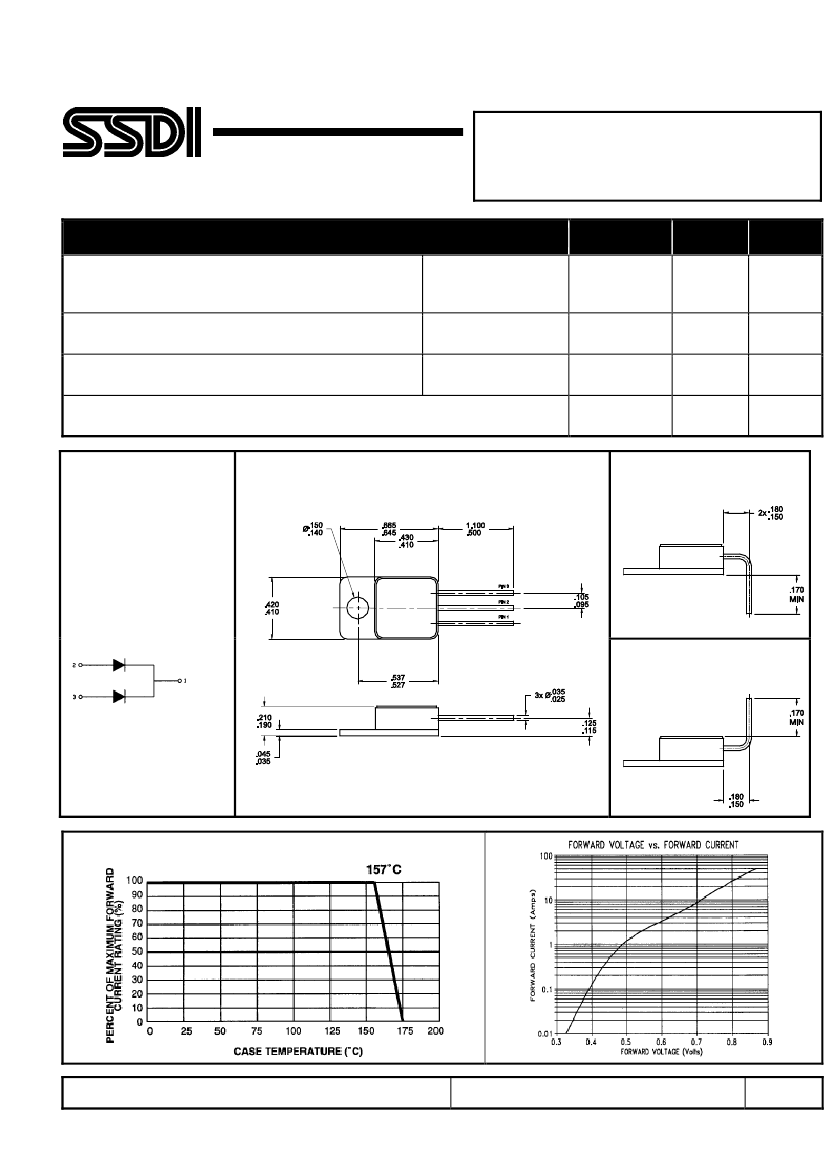

SSR2010J

Series

20 AMPS

100 VOLTS

SCHOTTKY

RECTIFER

TO-257(J)

Designer’s Data Sheet

FEATURES:

•

PIV: 100 Volts

Average Output Current 25 Amps

Low Reverse Leakage Current

Low Forward Voltage Drop

Guard Ring for Overvoltage Protection

Isolated Hermetically Sealed Package

Custom Lead Forming Available

Eutectic Die Attach

Ultrasonic Aluminum Wire Bonds

175

C Operating Junction Temperature

TX, TXV, and Space Level Screening Available.

Consult Factory.

•

MAXIMUM RATINGS 1/

Peak Repetitive Reverse Voltage and

DC Blocking Voltage

Average Rectified Forward Current

(Resistive Load, 60 Hz, Sine Wave, T

= 25

Peak Surge Current

(8.3 ms Pulse, Half Sine Wave, Superimposed on Io, Allow Junction to

reach equilibrium between pulses, T

= 25

Operating and Storage Temperature

Maximum Thermal Resistance

(Junction to Case)

Available in the Following Configurations:

Symbol

RRM

RWM

FSM

& T

stg

θJC

Value

100

300

-65 to +175

1.0

Unit

Volts

Amps

C/W

Rectifier:

SSR2010J, SSR2010JDB, and SSR2010JUB

Common Cathode Centertap:

SSR2010CTJ, SSR2010CTJDB, and SSR2010CTJUB (See Data Sheet RS0073)

Common Anode Centertap:

SSR2010CAJ, SSR2010CAJDB, and SSR2010CAJUB (See Data Sheet RS0073)

NOTE:

at room temperature, unless otherwise specified

pins 2 and 3 connected together

NOTE:

All specifications are subject to change without notification.

SCD's for these devices should be reviewed by SSDI prior to release.

DATA SHEET #: RS0087G

DOC

SSR2010CAJDB Related Products

	SSR2010CAJDB	SSR2010CTJ	SSR2010JDB	SSR2010J	SSR2010JUB	SSR2010CTJUB	SSR2010CAJUB	SSR2010CTJDB	SSR2010CAJ
Description	Rectifier Diode, Schottky, 1 Phase, 2 Element, 10A, 100V V(RRM), Silicon, TO-257AA, HERMETIC SEALED, TO-257, 3 PIN	20 AMPS 100 VOLTS SCHOTTKY RECTIFER	20 AMPS 100 VOLTS SCHOTTKY RECTIFER	20 AMPS 100 VOLTS SCHOTTKY RECTIFER	20 AMPS 100 VOLTS SCHOTTKY RECTIFER	20 AMPS 100 VOLTS SCHOTTKY RECTIFER	20 AMPS 100 VOLTS SCHOTTKY RECTIFER	20 AMPS 100 VOLTS SCHOTTKY RECTIFER	Rectifier Diode, Schottky, 1 Phase, 2 Element, 10A, 100V V(RRM), Silicon, TO-257AA, HERMETIC SEALED, TO-257, 3 PIN
Maker	-	SSDI	SSDI	SSDI	SSDI	SSDI	-	SSDI	-
Parts packaging code	-	TO-257AA	TO-257AA	TO-257AA	TO-257AA	TO-257AA	-	TO-257AA	-
package instruction	-	S-XSFM-P3	S-XSFM-P3	TO-257, 3 PIN	S-XSFM-P3	HERMETIC SEALED, TO-257, 3 PIN	-	HERMETIC SEALED, TO-257, 3 PIN	-
Contacts	-	3	3	3	3	3	-	3	-
Reach Compliance Code	-	compliant	compli	compli	compli	compli	-	compli	-
ECCN code	-	EAR99	EAR99	EAR99	EAR99	EAR99	-	EAR99	-
application	-	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	-	GENERAL PURPOSE	-
Shell connection	-	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	-	ISOLATED	-
Configuration	-	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS	-	COMMON CATHODE, 2 ELEMENTS	-
Diode component materials	-	SILICON	SILICON	SILICON	SILICON	SILICON	-	SILICON	-
Diode type	-	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	-	RECTIFIER DIODE	-
Maximum forward voltage (VF)	-	0.75 V	0.75 V	0.75 V	0.75 V	0.75 V	-	0.75 V	-
JEDEC-95 code	-	TO-257AA	TO-257AA	TO-257AA	TO-257AA	TO-257AA	-	TO-257AA	-
JESD-30 code	-	S-XSFM-P3	S-XSFM-P3	S-XSFM-P3	S-XSFM-P3	S-XSFM-P3	-	S-XSFM-P3	-
Maximum non-repetitive peak forward current	-	200 A	300 A	300 A	300 A	200 A	-	200 A	-
Number of components	-	2	2	2	2	2	-	2	-
Phase	-	1	1	1	1	1	-	1	-
Number of terminals	-	3	3	3	3	3	-	3	-
Maximum operating temperature	-	175 °C	175 °C	175 °C	175 °C	175 °C	-	175 °C	-
Maximum output current	-	10 A	20 A	20 A	20 A	10 A	-	10 A	-
Package body material	-	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	-	UNSPECIFIED	-
Package shape	-	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	-	SQUARE	-
Package form	-	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	-	FLANGE MOUNT	-
Certification status	-	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	-	Not Qualified	-
Maximum repetitive peak reverse voltage	-	100 V	100 V	100 V	100 V	100 V	-	100 V	-
surface mount	-	NO	NO	NO	NO	NO	-	NO	-
technology	-	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY	-	SCHOTTKY	-
Terminal form	-	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	-	PIN/PEG	-
Terminal location	-	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	-	SINGLE	-
