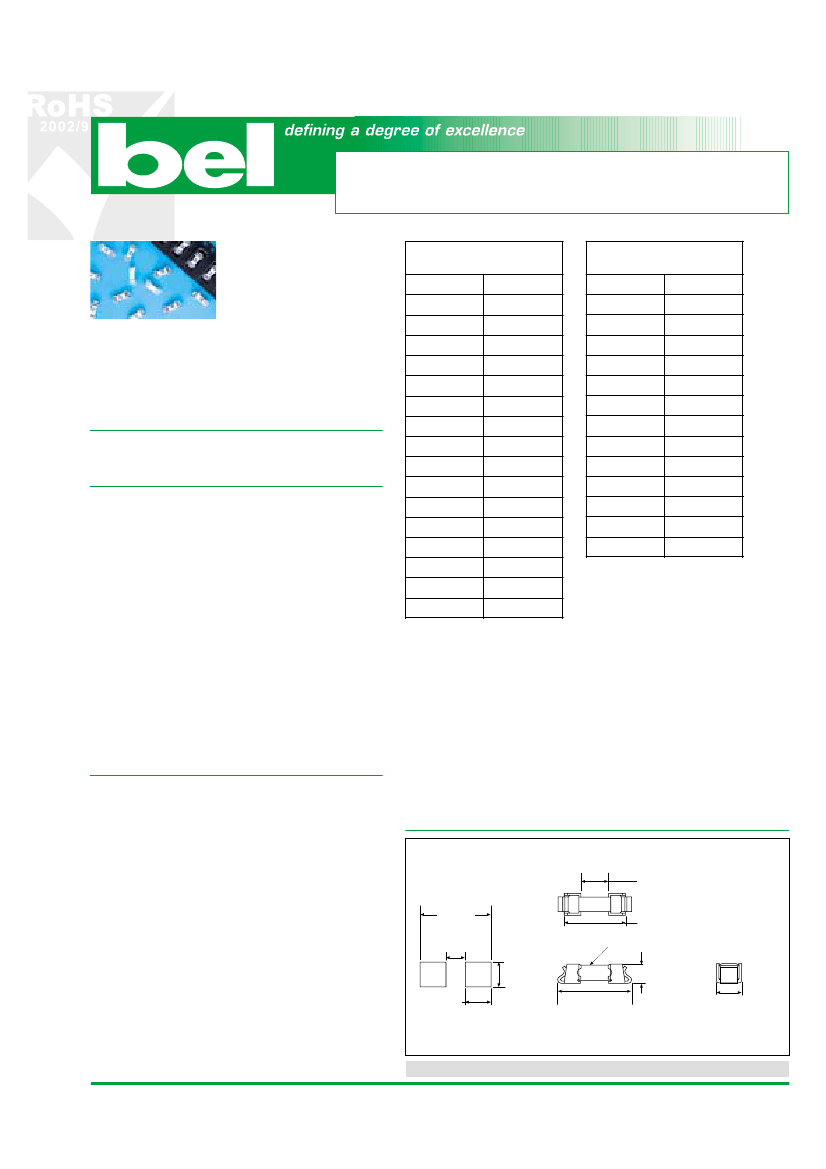

SSQCD1005
ESSQD1005A1
Replaceable SSQ/SST with
Integral Clips
SSQ Square Ceramic Surface Mount
Quick Action Fuse
Catalog Number
Ampere Rating
RoHS Compliant
SST Square Ceramic Surface Mount
Slow Blow Fuse
Catalog Number
Ampere Rating
SSQC 250
These fuse/clip assemblies can efficiently placed in a single
pass. Once reflowed, fuse replacement requires no resoldering.
250mA
375mA
500mA
750mA
1A
1.25A
1.5A
2A
2.5A
3A
3.5A
4A
5A
6.3A
7A
8A
SSTC 375
SSTC 500
SSTC 625
SSTC 750
SSTC 1
SSTC 1.5
SSTC 2
SSTC 2.5
SSTC 3
SSTC 3.5
SSTC 4
SSTC 5
SSTC 7
375mA
500mA
625mA
750mA
1A
1.5A
2A
2.5A
3A
3.5A
4A
5A
7A
SSQC 375
SSQC 500
SSQC 750
SSQC 1
SSQC 1.25
SSQC 1.5
SSQC 2
SSQC 2.5
SSQC 3
SSQC 3.5
SSQC 4
SSQC 5
SSQC 6.3
SSQC 7
SSQC 8
RoHS Compliant Product
RoHS Reflow Reference: Industrial standard 260°C, 40 sec max
Electrical Specification
Maximum Recommended Fuse Current Rating 8 Amperes,
125 Volts
Environmental Specifications
Operating Temperature
-55°C to 125°C
Shock
MIL-STD-202, Method 213, Test Condition I
(100 G’s peak for 6 milliseconds)
Vibration
MIL-STD-202, Method 201
(10-55 Hz, 0.06 inch, total excursion)
Insulation Resistance
MIL-STD-202, Method 302, Test Condition A
(After Opening) 10,000 ohms minimum.
Solderability
MIL-STD-202, Method 208
Thermal Shock
MIL-STD-202, Method107, Test Condition B
(-65°C to +125°C)
Consult manufacturer for other ratings
Physical Specification
Materials
Clip Terminals: Tin Plated Inconel Alloy
Packaging
2,000 fuses in 13 inches dia. reel, 16mm wide tape, 8mm pitch,
per EIA standard 481
Mechanical Dimensions
SSQC
9.15mm
(0.360")
2.49mm
(0.098") REF.
3.81mm
(0.150")
3.33mm
(0.131")
8.38
±
0.5mm
(0.330"
±
0.02")
FUSE
2.92
±
0.2mm
(0.115"
±
0.08")
3.25
±
0.10mm
(0.128"
±
0.004")
7.49mm
(0.295") REF
.
Recommended Pad Layout
ORDERING INFORMATION SEE LAST 2 PAGES
Bel Fuse Inc.
206 Van Vorst Street, Jersey City, NJ 07302 • Tel: 201-432-0463 • Fax: 201-432-9542 • E-Mail: belfuse@belfuse.com
Website: www.belfuse.com
09
Specifications subject to change without notice
3.30mm
(0.130") REF.

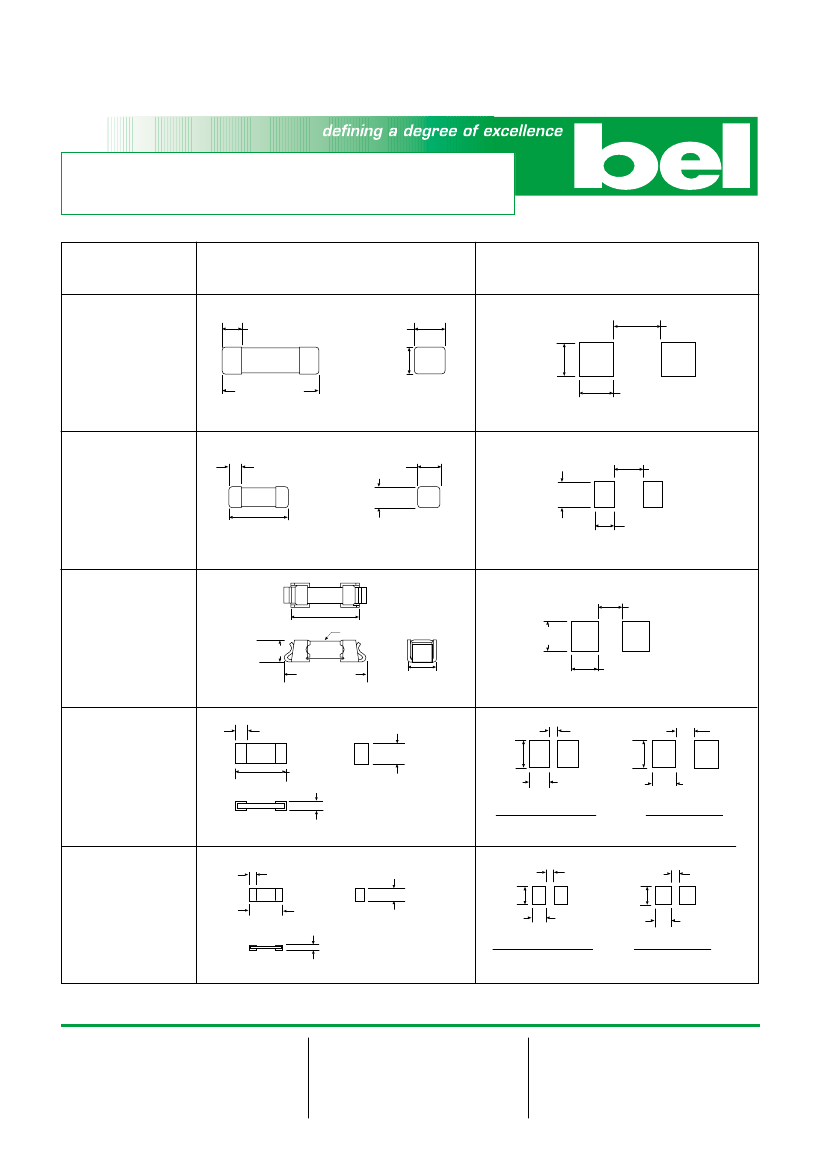

SMD Comparison
SMD1005
FUSE TYPE
MECHANICAL
DIMENSIONS
2.03
±
0.10mm
(0.080"
±
0.004")
3.05
±
0.13mm
(0.120"
±
0.005")
3.05
±
0.13mm
(0.120"
±
0.005")
9.65
±
0.25mm
(0.38"
±
0.01")
PAD LAYOUT
RECOMMENDED
5.08mm
(0.20")
4.06mm
(0.16")
3.81mm
(0.15")
SMP
1.35
±
0.10mm
(0.053"
±
0.004")
2.54
±
0.10mm
(0.100"
±
0.004")
2.54
±
0.10mm
(0.100"
±
0.004")
3.00mm
(0.12")
3.18mm
(0.125")
2.00mm
(0.08")
SSQ / SST
6.10
±
0.25mm
(0.240"
±
0.01")
SSQ / SST
WITH
INTEGRAL
CLIP
2.92
±
0.2mm
(0.115"
±
0.008" )
7.49mm
(0.295" )REF.
FUSE
2.49mm
REF.
(0.098")
3.81mm
(0.150")
3.33mm
(0.131")
8.38
±
0.5mm
(0.330"
±
0.02")REF
3.25
±
0.1mm
(0.128"
±
0.004")
0.36
±
0.15mm
(0.014"
±
0.006")
1.52
±
0.10mm
(0.060"
±
0.004")
1.52mm
(0.06")
1.78mm
(0.07")
2.03mm
(0.08")
1.14mm
(0.045 ")
1.52mm
(0.06")
C1Q
3.07
±
0.13mm
(0.121"
±
0.005")
1.52mm
(0.06")
INFRARED SOLDER
0.58
±
0.08mm
(0.023"
±
0.003")
WAVE SOLDER
Specifications subject to change without notice
0.30
±
0.10mm
(0.012"
±
0.004")
0.79
±
0.10mm
(0.031"
±
0.004")
0.76mm
(0.03")
1.02mm
(0.04")
0.66mm
(0.026")
1.27mm
(0.05")
0.76mm
(0.03")
C2Q
1.60
±
0.13mm
(0.063"
±
0.005")
0.76mm
(0.03")
INFRARED SOLDER
0.48
±
0.08mm
(0.019"
±
0.003")
WAVE SOLDER
NOTE - see important information under “User Guide”on P.08
