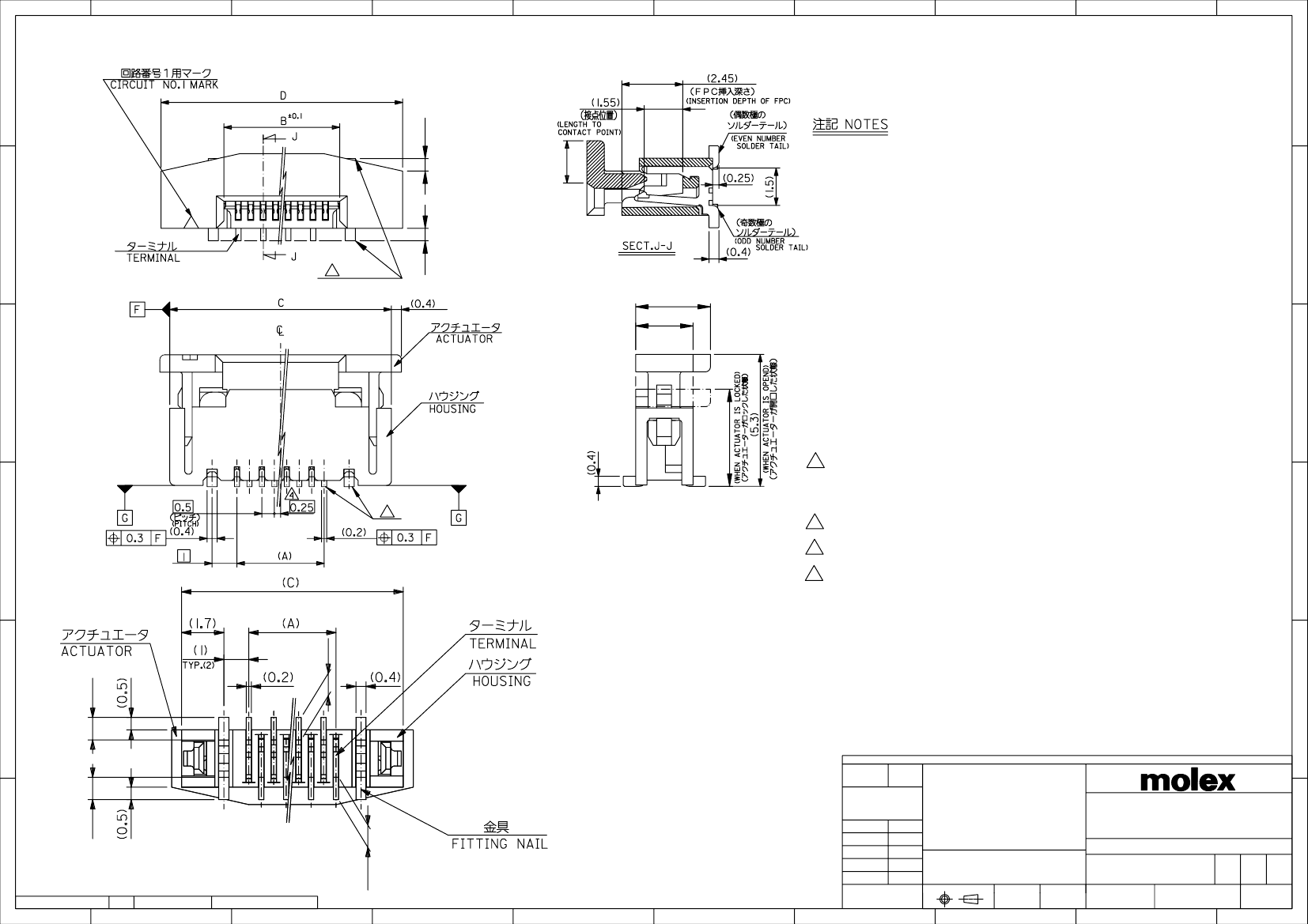

10
9
8
7
6
5
4
3
2
1
F
F
0.50
E
金具
FITTING NAIL
5
3.00
2.30
D
3
C
B
0.90
0.90
1. 材質 MATERIAL
ハウジング：ﾎﾟﾘ½ﾐド（PA）、ガラス充填、ナチュラル（½）、UL94V-0
HOUSING : POLYAMIDE , GLASS FILLED, NATURAL, UL94V-0
アクチュエータ：ポリフェニレンサルファイド(PPS), ガラス充填、ナチュラル、UL94V-0
ACTUATOR : POLYPHENYRENE SULFIDE, GLASS FILLED,
NATURAL(BROWN), UL94V-0
ターミナル：銅合金（t = 0.2）
TERMINAL : COPPER ALLOY ( t = 0.2)
金具：銅合金（t = 0.4）
NAIL ： COPPER ALLOY ( t = 0.4)
2. めっき仕様 PLATING
ターミナル TERMINAL
錫銀ビスマスめっき(1.0μm以上)
下地：ニッケルめっき（1.0μm以上）
TIN SILVER BISMUTH PLATING
(1.0 MICROMETER MINIMUM)
UNDER PLATE : NICKEL PLATING
(1.0 MICROMETER MINIMUM)
金具 FITTING NAIL
錫めっき（1.0μm以上）
下地：ニッケルめっき（1.0μm以上）
TIN PLATING
(1.0 MICROMETER MINIMUM)
UNDER PLATE : NICKEL PLATING
(1.0 MICROMETER MINIMUM)
3
½ルダーテール半田付け面のズレ量、及び金具半田付け面のズレ量は、
基準面 G に対し上方向0.05MAXIMUM、下方向0.15MAXIMUMとする。
MISALIGNMENT OF SOLDER TAILS AND FITTING NAILS FROM
DATUM-G UPPER DIRECTION : 0.05MAXIMUM
LOWER DIRECTION 0.15MAXIMUM.
4
偶数極に適用
APPLY FOR EVEN CIRCUIT
5
パターンはくり止めよう金具
FITTING NAIL FOR PREVENTION OF PEELING OF P.C.B PATTERN.
6
R0.3はFPCの導½部にかからないこと
R0.3 MUST NOT BE OVERLAPED TO PATTERN OF FPC.
7. ½ルダーテールの平坦度は、0.12 MAXIMUMとする。
SOLDER TAIL COPLANARITY IS 0.12 MAXIMUM.
8. ELV及びRoHS適合品
ELV AND RoHS COMPLIANT.
1.70
E
0.50
D
3.90
C
B
THIS DRAWING CONTAINS INFORMATION THAT IS PROPRIETARY TO MOLEX ELECTRONIC TECHNOLOGIES, LLC AND SHOULD NOT BE USED WITHOUT WRITTEN PERMISSION
DIMENSION UNITS
SCALE
CURRENT REV DESC:
mm
8:1
±
±
±
±
±
±
3.0 °
GENERAL TOLERANCES
(UNLESS SPECIFIED)
0.90
ANGULAR TOL
EC NO:
176518
4 PLACES
3 PLACES
0.2
0.2
0.2
0.90
A
2 PLACES
1 PLACE
0 PLACES
0.25
0.3
DRWN:
TNAKAGAWA01
CHK'D: RTAKEUCHI
APPR:
RTAKEUCHI
INITIAL REVISION:
DRWN:
AISHII
APPR:
KMORIKAWA
THIRD ANGLE PROJECTION
DRAWING
2018/05/10
2018/05/14
2018/05/14
2012/09/05
2013/03/15
SERIES
EMBOSS TAPE PACKAGED FOR
0.5MM FPC CONN ZIF S/T HOUSING ASSY
PRODUCT CUSTOMER DRAWING
DOCUMENT NUMBER
DOC TYPE
DOC PART
REVISION
A
SD-52559-058
MATERIAL NUMBER
CUSTOMER
PSD
001
C
DOCUMENT STATUS
FORMAT: master-tb-prod-A3
REVISION: H
DATE: 2018/01/18
P1
RELEASE DATE
2018/05/14
04:50:43
DRAFT WHERE APPLICABLE
MUST REMAIN
WITHIN DIMENSIONS
SHEET NUMBER
A3-SIZE
52559
SEE SHEET 2
GENERAL MARKET
1 OF 6
10
9
8
7
6
5
4
3
2
1
9
8
7
6
5
4
3
2
1
E
6
E
2-R0.30
(2.7)
D

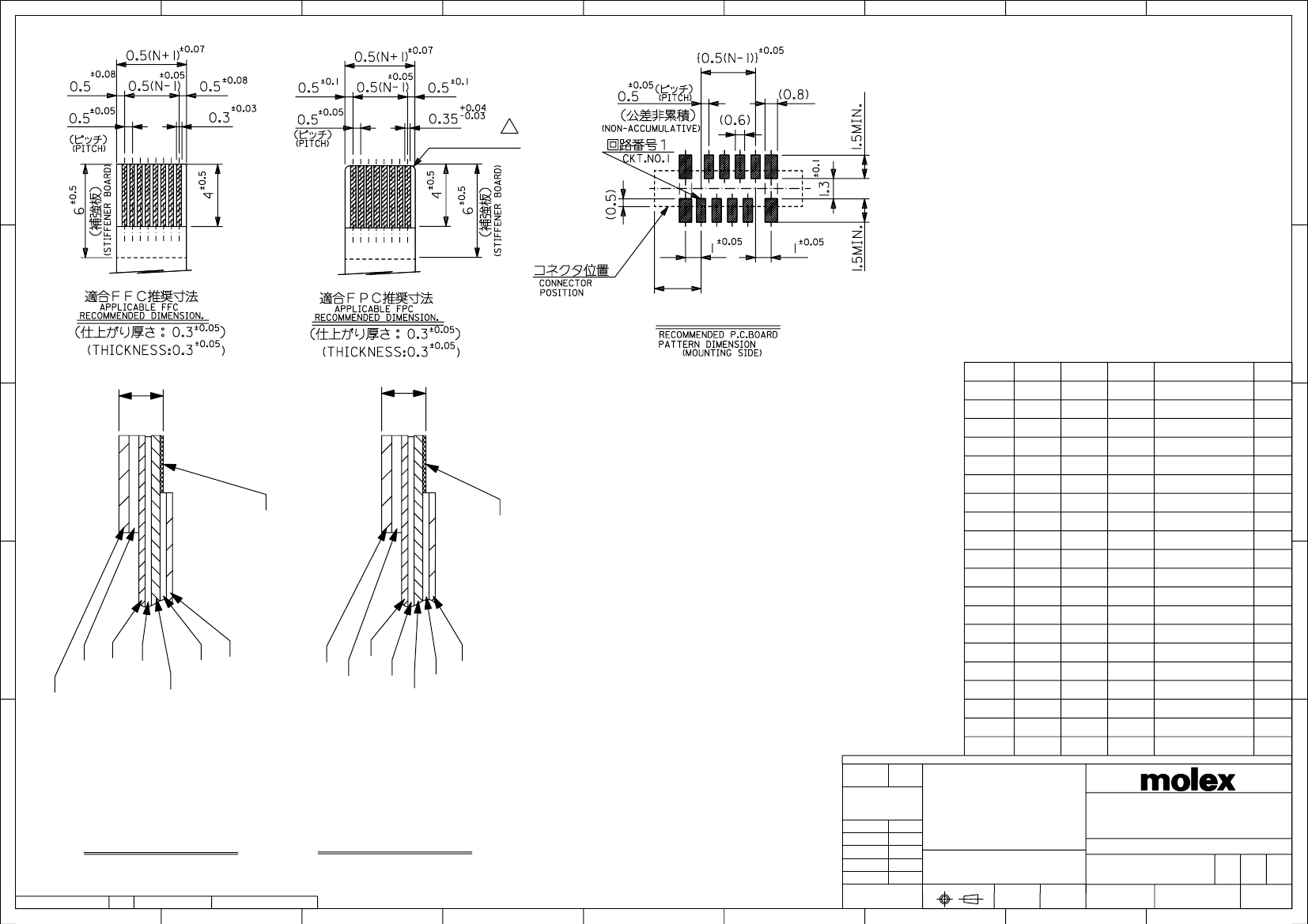

推奨基板レイアウト
（マウンド面）
D
0.3
±
0.05
0.3
±
0.05
仕上がり厚さ
THICKNESS
マスク厚 ： 150μm
マスク開口率 ： 100%
SCREEN THICKNESS : 150μm
SCREEN OPEN RATIO : 100%
仕上がり厚さ
THICKNESS
C
補強板：ポリイミド
REINFORCE BOARD: POLYMIDE
熱硬化接着剤
THERMOSETTING ADHESIVE
ベースフィルム：ポリイミド(25μm)
BASE FILM: POLYIMIDE(25μm)
熱硬化接着剤
THERMOSETTING ADHESIVE
導½部： 銅箔(35 or 50μm)
COPPER FOIL (35 or 50μm)
熱硬化接着剤
THERMOSETTING ADHESIVE
カバーレイ : ポリイミド(25μm)
COVER FILM: POLYIMIDE(25μm)
めっき：錫めっき(0.5-1.2μm)
下地ニッケル(1-5μm)
PLATING: TIN(0.5-1.2μm)
NICKEL UNDER(1-5μm)
B
FPC/FFCについて：
抜き方向は、導½側から補強板側を推奨致します。
尚、接着剤の接点部への付着は導通不良の原因になりますので、
染み出しが無い様お願い致します。
ABOUT FPC/FFC:
RECOMMENDED PUNCHER DIRECTION:
FROM CONDUCTOR SIDE TO STIFFNER SIDE
PLEASE PUT APPROPRIATE AMOUNT OF ADHESIVE ON ADHEREND
BECAUSE THERE IS A POSSIBILITY THAT THE EXTRA ADHESIVE
CAUSES THE DEFECT IN ELECTRICAL CONTINUITY.
補強板：ポリエステル系
REINFORCE BOARD: PET
接着剤(難燃ポリエステル系)
ADHESIVE（FLAME-RETARDANT
POLYESTER ADHESIVE)
絶縁テープ：ポリエステル系(25μm)
INSULATING FILM: PET(25μm)
接着剤(難燃ポリエステル系)
ADHESIVE（FLAME-RETARDANT
POLYESTER ADHESIVE)
導½部： 銅箔(35 or 50μm)
COPPER FOIL (35 or 50μm)
接着剤(難燃ポリエステル系)
ADHESIVE（FLAME-RETARDANT
POLYESTER ADHESIVE)
絶縁テープ：ポリエステル系(25μm)
INSULATING FILM: PET(25μm)
26.7
25.7
23.7
21.7
20.7
19.7
19.2
18.7
17.7
17.2
16.2
15.7
14.2
13.7
13.2
12.7
11.7
10.7
10.2
8.70
D
25.9
24.9
22.9
20.9
19.9
18.9
18.4
17.9
16.9
16.4
15.4
14.9
13.4
12.9
12.4
11.9
10.9
9.90
9.40
7.90
C
21.65
20.65
18.65
16.65
15.65
14.65
14.15
13.65
12.65
12.15
11.15
10.65
9.15
8.65
8.15
7.65
6.65
5.65
5.15
3.65
B
20.5
19.5
17.5
15.5
14.5
13.5
13.0
12.5
11.5
11.0
10.0
9.5
8.0
7.5
7.0
6.5
5.5
4.5
4.0
2.5
(A)
52559-4233
52559-4033
52559-3633
52559-3233
52559-3033
52559-2833
52559-2733
52559-2633
52559-2433
52559-2333
52559-2133
52559-2033
52559-1733
52559-1633
52559-1533
52559-1433
52559-1233
52559-1033
52559-0933
52559-0633
ORDER NO.
42
40
36
32
30
28
C
27
26
24
23
21
20
17
16
B
15
14
12
10
9
6
CKT.
めっき：錫めっき(0.5-1.2μm)
下地ニッケル(1-5μm)
PLATING: TIN(0.5-1.2μm)
NICKEL UNDER(1-5μm)
THIS DRAWING CONTAINS INFORMATION THAT IS PROPRIETARY TO MOLEX ELECTRONIC TECHNOLOGIES, LLC AND SHOULD NOT BE USED WITHOUT WRITTEN PERMISSION
DIMENSION UNITS
SCALE
CURRENT REV DESC:
mm
ANGULAR TOL
±
±
±
±
±
±
5:1
3.0 °
GENERAL TOLERANCES
(UNLESS SPECIFIED)
A
EC NO:
176518
4 PLACES
0.2
0.2
0.2
FFC構成推奨仕様
RECOMMENDED STRUCTURE OF FFC
FPC構成推奨仕様
RECOMMENDED STRUCTURE OF FPC
3 PLACES
2 PLACES
1 PLACE
0 PLACES
0.25
0.3
DRWN:
TNAKAGAWA01
CHK'D: RTAKEUCHI
APPR:
RTAKEUCHI
INITIAL REVISION:
DRWN:
AISHII
APPR:
KMORIKAWA
THIRD ANGLE PROJECTION
DRAWING
2018/05/10
2018/05/14
2018/05/14
2012/09/05
2013/03/15
SERIES
EMBOSS TAPE PACKAGED FOR
0.5MM FPC CONN ZIF S/T HOUSING ASSY
A
PRODUCT CUSTOMER DRAWING
DOCUMENT NUMBER
DOC TYPE
DOC PART
REVISION
SD-52559-058
MATERIAL NUMBER
CUSTOMER
PSD
001
C
DOCUMENT STATUS
FORMAT: master-tb-prod-A3
REVISION: H
DATE: 2018/01/18
P1
RELEASE DATE
2018/05/14
04:50:43
DRAFT WHERE APPLICABLE
MUST REMAIN
WITHIN DIMENSIONS
SHEET NUMBER
A3-SIZE
52559
SEE TABLE
GENERAL MARKET
2 OF 6

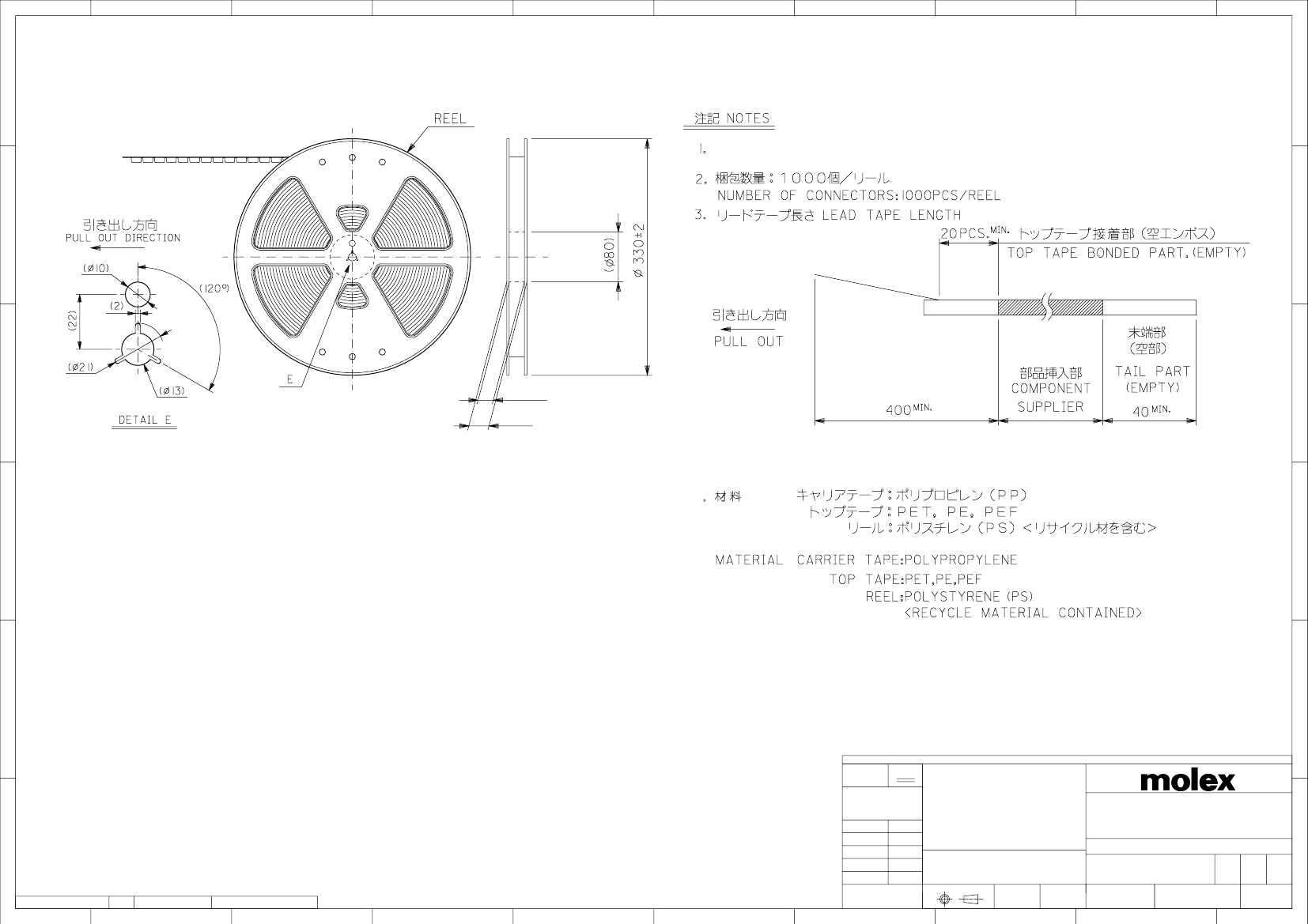

9
8
7
6
5
4
3
2
1
10
9
8
7
6
5
4
3
2
1
F
F
梱包状態はアクチュエータがロックした状態とする。
IN THE PACKAGE, ACTUATOR SHOULD BE LOCKED.
E
E
D
G
±
1
D
H
±
1
4. カバーテープの剥離強度については、IEC60286-3に準拠
COVER TAPE PEEL FORCE IS DEFINED BY IEC 60286-3.
5
C
C
6. ELV及びRoHS適合品
ELV AND RoHS COMPLIANT
B
B
THIS DRAWING CONTAINS INFORMATION THAT IS PROPRIETARY TO MOLEX ELECTRONIC TECHNOLOGIES, LLC AND SHOULD NOT BE USED WITHOUT WRITTEN PERMISSION
DIMENSION UNITS
SCALE
CURRENT REV DESC:
mm
ANGULAR TOL
±
±
±
±
±
±
1:1
3.0 °
GENERAL TOLERANCES
(UNLESS SPECIFIED)
EC NO:
176518
4 PLACES
3 PLACES
0.2
0.2
0.2
A
2 PLACES
1 PLACE
0 PLACES
0.25
0.3
DRWN:
TNAKAGAWA01
CHK'D: RTAKEUCHI
APPR:
RTAKEUCHI
INITIAL REVISION:
DRWN:
AISHII
APPR:
KMORIKAWA
THIRD ANGLE PROJECTION
DRAWING
2018/05/10
2018/05/14
2018/05/14
2012/09/05
2013/03/15
SERIES
EMBOSS TAPE PACKAGED FOR
0.5MM FPC CONN ZIF S/T HOUSING ASSY
PRODUCT CUSTOMER DRAWING
DOCUMENT NUMBER
DOC TYPE
DOC PART
REVISION
A
SD-52559-058
MATERIAL NUMBER
CUSTOMER
PSD
001
C
DOCUMENT STATUS
FORMAT: master-tb-prod-A3
REVISION: H
DATE: 2018/01/18
P1
RELEASE DATE
2018/05/14
04:50:43
DRAFT WHERE APPLICABLE
MUST REMAIN
WITHIN DIMENSIONS
SHEET NUMBER
A3-SIZE
52559
SEE SHEET 4-6
GENERAL MARKET
3 OF 6

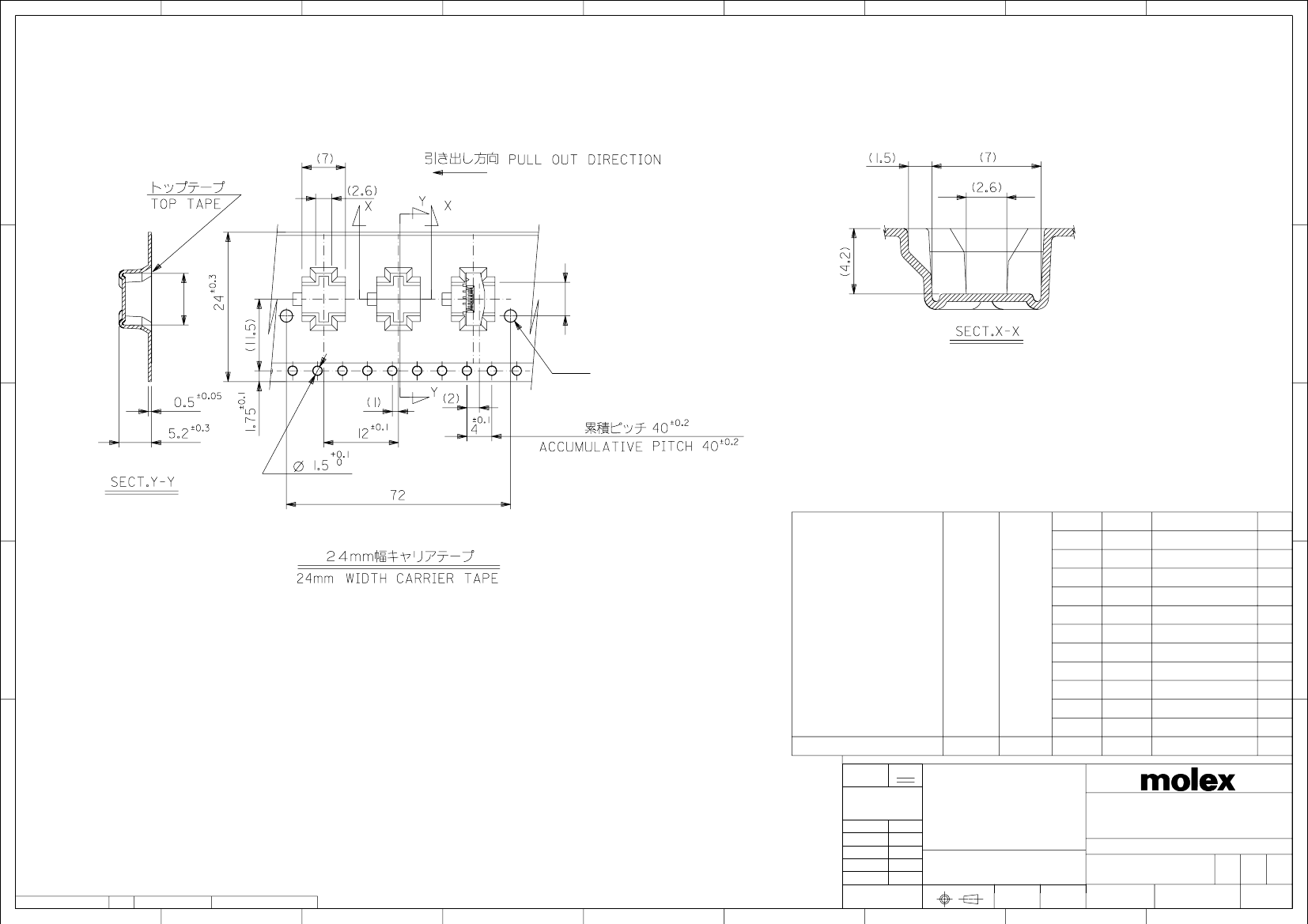

10
9
8
7
6
5
4
3
2
1
9
8
7
6
5
4
3
2
1
E
E
(E)
D
(F)
D
⌀
2
±
0.2
C
C
B
24
29.4
25.4
CARRIER TAPE WIDTH
DIMENSION UNITS
H
G
14.4
13.9
12.9
12.4
10.9
10.4
9.9
9.4
8.4
7.4
6.9
5.4
(F)
17.3
16.8
15.8
15.3
13.8
13.3
12.8
12.3
11.3
10.3
9.8
8.3
(E)
52559-2433
52559-2333
52559-2133
52559-2033
52559-1733
52559-1633
52559-1533
52559-1433
52559-1233
52559-1033
52559-0933
52559-0633
ORDER No.
24
23
21
20
17
16
B
15
14
12
10
9
6
CKT
THIS DRAWING CONTAINS INFORMATION THAT IS PROPRIETARY TO MOLEX ELECTRONIC TECHNOLOGIES, LLC AND SHOULD NOT BE USED WITHOUT WRITTEN PERMISSION
SCALE
CURRENT REV DESC:
mm
1:1
±
±
±
±
±
±
3.0 °
GENERAL TOLERANCES
(UNLESS SPECIFIED)
A
ANGULAR TOL
EC NO:
176518
4 PLACES
3 PLACES
2 PLACES
1 PLACE
0 PLACES
0.2
0.2
0.2
0.25
0.3
DRWN:
TNAKAGAWA01
CHK'D: RTAKEUCHI
APPR:
RTAKEUCHI
INITIAL REVISION:
DRWN:
AISHII
APPR:
KMORIKAWA
THIRD ANGLE PROJECTION
DRAWING
2018/05/10
2018/05/14
2018/05/14
2012/09/05
2013/03/15
SERIES
EMBOSS TAPE PACKAGED FOR
0.5MM FPC CONN ZIF S/T HOUSING ASSY
A
PRODUCT CUSTOMER DRAWING
DOCUMENT NUMBER
DOC TYPE
DOC PART
REVISION
SD-52559-058
MATERIAL NUMBER
CUSTOMER
PSD
001
C
DOCUMENT STATUS
FORMAT: master-tb-prod-A3
REVISION: H
DATE: 2018/01/18
P1
RELEASE DATE
2018/05/14
04:50:43
DRAFT WHERE APPLICABLE
MUST REMAIN
WITHIN DIMENSIONS
SHEET NUMBER
A3-SIZE
52559
SEE TABLE
GENERAL MARKET
4 OF 6

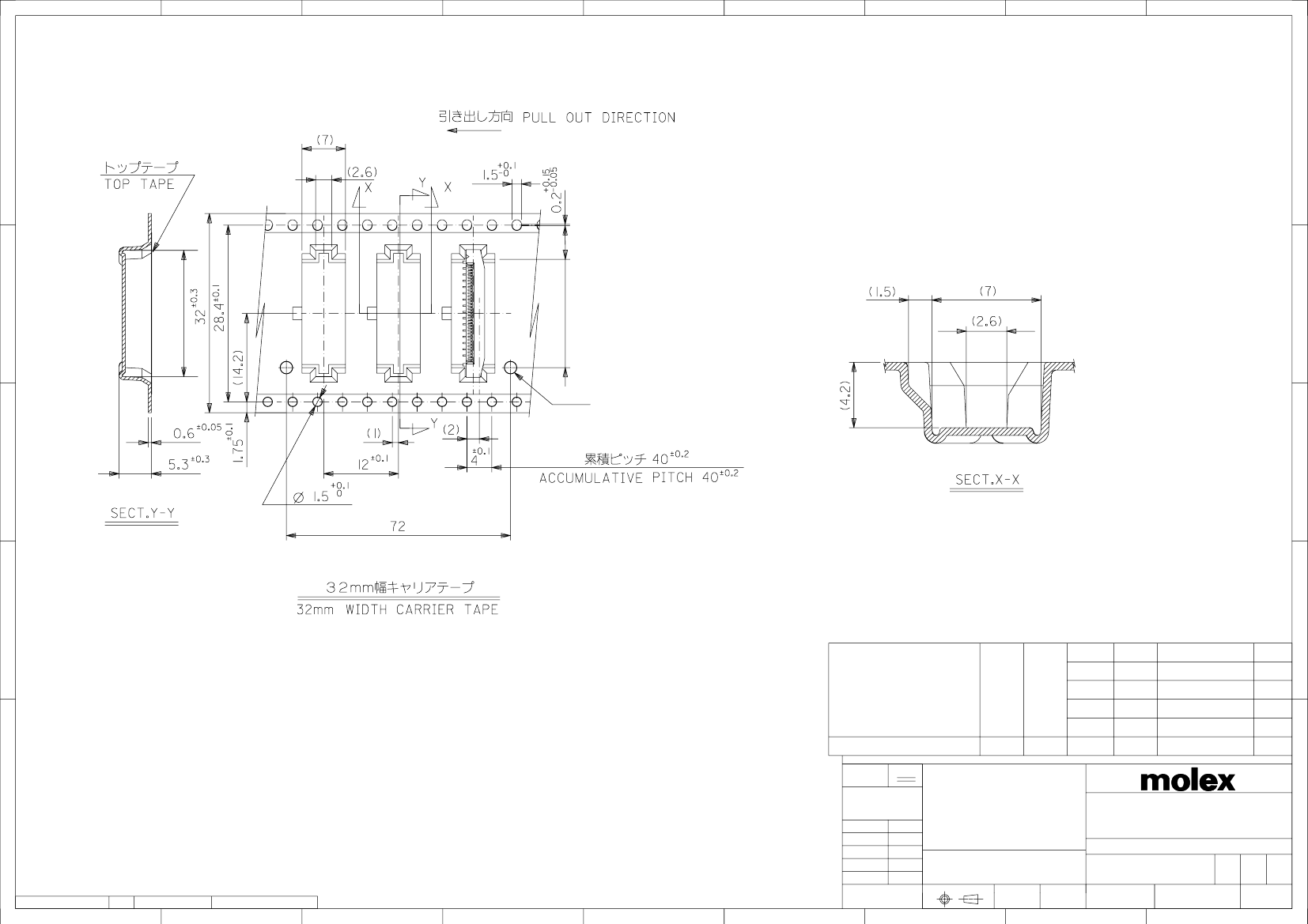

9
8
7
6
5
4
3
2
1
9
8
7
6
5
4
3
2
1
E
E
(E)
C
(F)
D
D
⌀
2
±
0.2
C
B
B
32
37.4
33.4
CARRIER TAPE WIDTH
DIMENSION UNITS
H
G
18.4
17.4
16.4
15.9
15.4
(F)
21.3
20.3
19.3
18.8
18.3
(E)
52559-3233
52559-3033
52559-2833
52559-2733
52559-2633
ORDER No.
32
30
28
27
26
CKT.
THIS DRAWING CONTAINS INFORMATION THAT IS PROPRIETARY TO MOLEX ELECTRONIC TECHNOLOGIES, LLC AND SHOULD NOT BE USED WITHOUT WRITTEN PERMISSION
SCALE
CURRENT REV DESC:
mm
1:1
±
±
±
±
±
±
3.0 °
GENERAL TOLERANCES
(UNLESS SPECIFIED)
A
ANGULAR TOL
EC NO:
176518
4 PLACES
3 PLACES
2 PLACES
1 PLACE
0 PLACES
0.2
0.2
0.2
0.25
0.3
DRWN:
TNAKAGAWA01
CHK'D: RTAKEUCHI
APPR:
RTAKEUCHI
INITIAL REVISION:
DRWN:
AISHII
APPR:
KMORIKAWA
THIRD ANGLE PROJECTION
DRAWING
2018/05/10
2018/05/14
2018/05/14
2012/09/05
2013/03/15
SERIES
EMBOSS TAPE PACKAGED FOR
0.5MM FPC CONN ZIF S/T HOUSING ASSY
A
PRODUCT CUSTOMER DRAWING
DOCUMENT NUMBER
DOC TYPE
DOC PART
REVISION
SD-52559-058
MATERIAL NUMBER
CUSTOMER
PSD
001
C
DOCUMENT STATUS
FORMAT: master-tb-prod-A3
REVISION: H
DATE: 2018/01/18
P1
RELEASE DATE
2018/05/14
04:50:43
DRAFT WHERE APPLICABLE
MUST REMAIN
WITHIN DIMENSIONS
SHEET NUMBER
A3-SIZE
52559
SEE TABLE
GENERAL MARKET
5 OF 6
9
8
7
6
5
4
3
2
1
