MR5FBR150

Description
RES 0.15 OHM 5W 1% AXIAL
CategoryPassive components
File Size126KB,4 Pages
ManufacturerStackpole Electronics Inc
Environmental Compliance
Download Datasheet Parametric View All

MR5FBR150 Online Shopping

Suppliers Part Number Price MOQ In stock
MR5FBR150 - - View Buy Now

MR5FBR150 Overview

RES 0.15 OHM 5W 1% AXIAL

MR5FBR150 Parametric

Parameter NameAttribute value
resistance150 mOhms
Tolerance±1%
Power (W)5W
componentmetal foil
characteristicCurrent sensing, moisture-proof, non-inductive, non-magnetic
Temperature Coefficient-
Operating temperature-55°C ~ 275°C
Package/casingAxial
Supplier device packagingAxial
size/dimensions0.330" diameter x 0.925" length (8.38mm x 23.50mm)
Height - Installation (maximum)-
Number of terminals2
failure rate-
MR/MRS/TMR Series
Low Resistance Value Resistor – Molded 2 and 4 Leads
Features:
Stackpole Electronics, Inc.
Resistive Product Solutions
Metal element resistors
Tinned copper leads
Low temperature coefficient
Molded bodies
TMR – Kelvin Bridge Test
MRS high stability version
Cut and formed product is available on selected sizes - contact factory for details
RoHS compliant

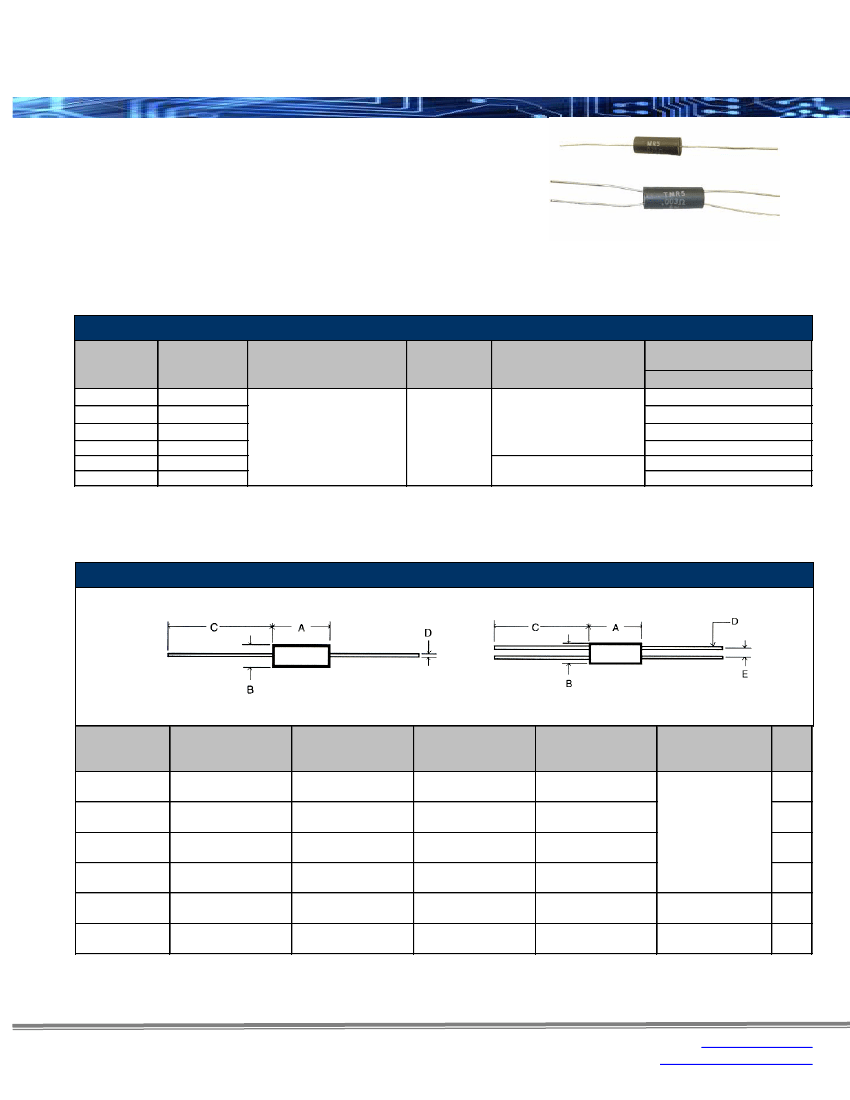

Electrical Specifications
Type / Code
MR1
(2)
MR3
(3)
MR5
(4)
MR10
TMR3
TMR5
(1)
(2)
(3)
(4)
Power Rating
Dielectric
Resistance Temperature
Short Time Overload
(Watts)
Strength
Coefficient
@ 70ºC
1W
3W
(1)
±50 to ±400 ppm/ºC
5 seconds at
5W
500 VAC
5x rated power
10W
3W
±40 ppm/ºC
5W
TCR is value dependent. Contact factory for specific data.
MR1 values 0.05Ω and below are non-magnetic and non-inductive
MR3 values 0.1Ω and below are non-magnetic and non-inductive
MR5 values 0.15Ω and below are non-magnetic and non-inductive
Ohmic Range (Ω) and
Tolerance
1%, 5%
0.01 - 0.1
0.005 - 0.2
0.005 - 0.3
0.01 - 0.5
0.005 - 0.2
0.005 - 0.3

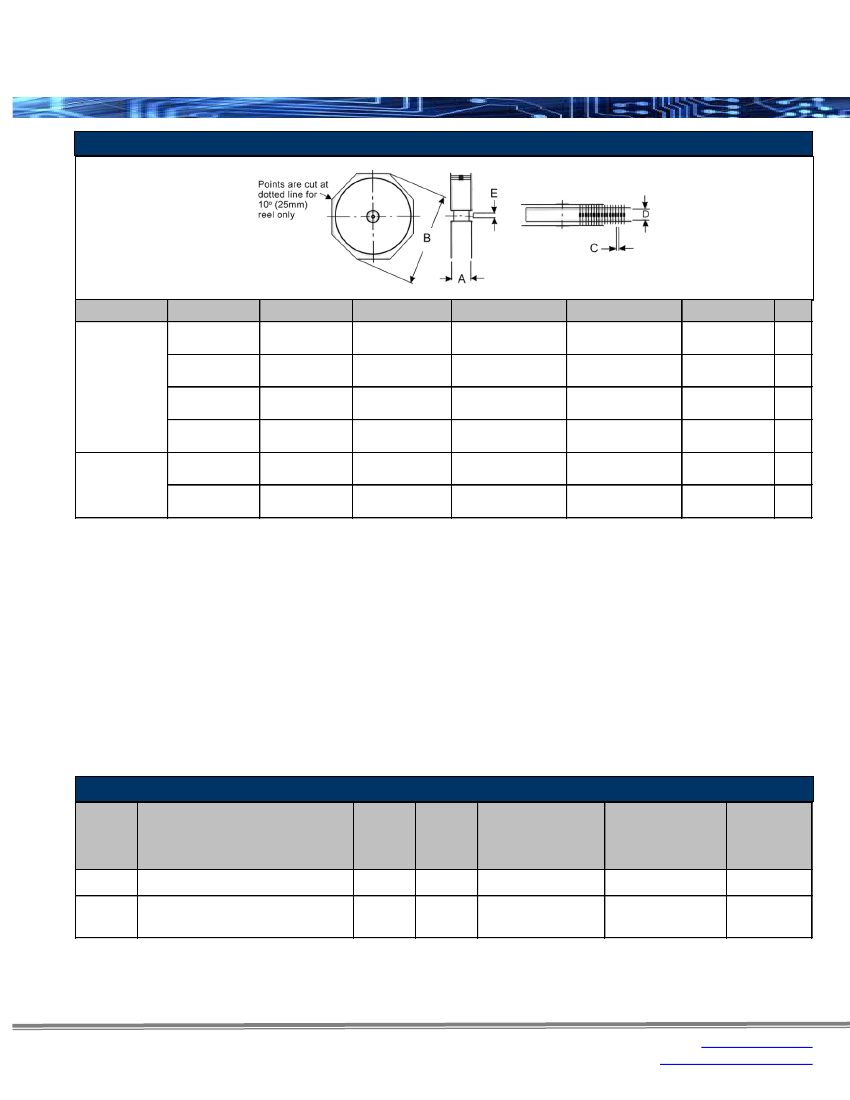

Mechanical Specifications
MR
Type / Code
MR1
MR3
MR5
MR10
TMR3
TMR5
A
Body Length
0.385
9.78
0.560
14.22
0.925
23.50
1.925
48.90
0.625
15.88
0.940
23.88
±
±
±
±
±
±
±
±
±
±
±
±
0.015
0.38
0.015
0.38
0.015
0.38
0.015
0.38
0.015
0.38
0.015
0.38
B
Body Diameter
0.135
3.43
0.205
5.21
0.330
8.38
0.475
12.07
0.205
5.21
0.330
8.38
±
±
±
±
±
±
±
±
±
±
±
±
0.015
0.38
0.015
0.38
0.015
0.38
0.015
0.38
0.015
0.38
0.015
0.38
C
Lead Length (Bulk)
(1)
1.375
34.93
1.375
34.93
1.375
34.93
1.375
34.93
1.375
34.93
1.375
34.93
±
±
±
±
±
±
±
±
±
±
±
±
0.125
3.18
0.125
3.18
0.125
3.18
0.125
3.18
0.125
3.18
0.125
3.18
TMR
D
Lead Diameter
0.032
0.81
0.032
0.81
0.036
0.91
0.036
0.91
0.032
0.81
0.036
0.91
±
±
±
±
±
±
±
±
±
±
±
±
0.002
0.05
0.002
0.05
0.002
0.05
0.002
0.05
0.002
0.05
0.002
0.05
E
Lead Spacing
(Ref.)
Unit
inches
mm
inches
mm
inches
mm
inches
mm
inches
mm
inches
mm
-
0.125
3.18
0.200
5.08
(1) See Packaging Specification for lead length dimension for tape and reel packaged product
Rev Date: 08/30/2017
This specification may be changed at any time without prior notice
Please confirm technical specifications before you order and/or use.
1
www.seielect.com
