Features
Regulated
Converter
Description
•
•
•
•
•
•
4:1 wide input voltage range
1.5kVDC / 1 minute isolation
UL/IEC/EN60950 and EN50155 certified
Efficiency up to 93.3%
OVP, OCP & OTP
+105°C max case temperature

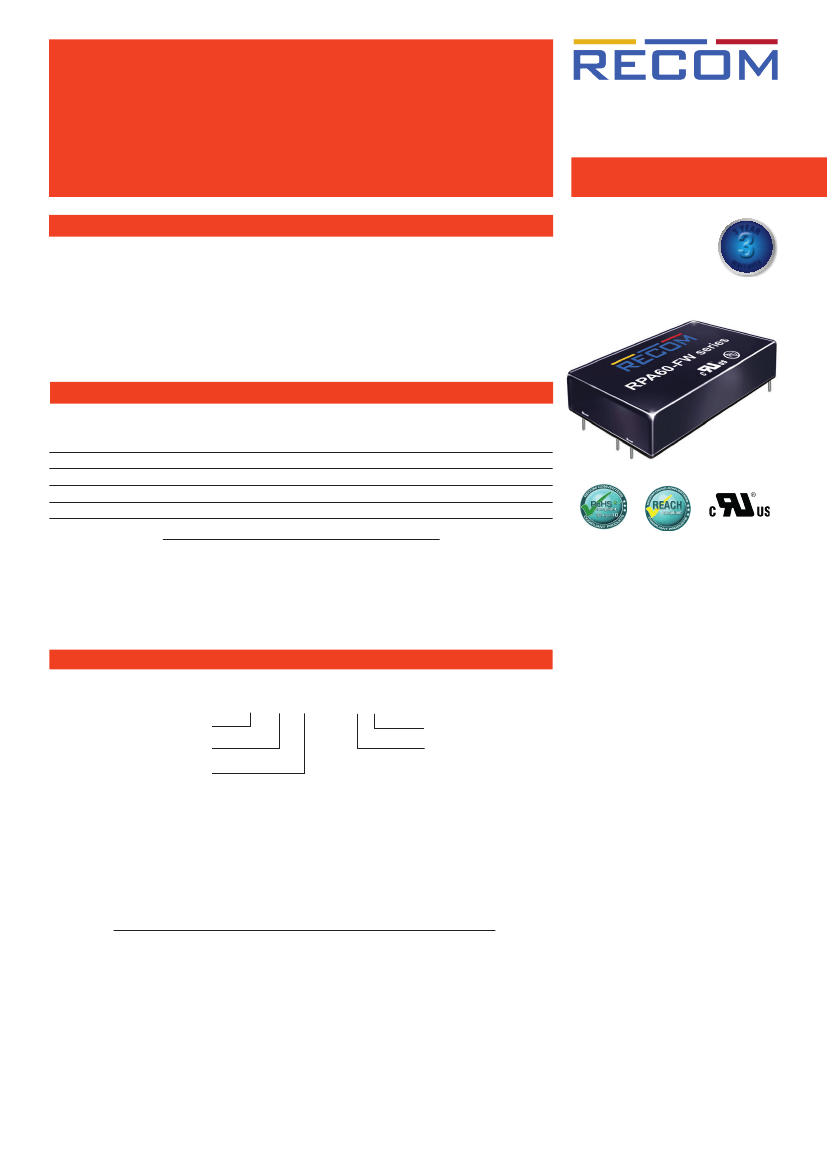

DC/DC Converter
RPA60-FW
60 Watt
3
2“x1“
Single Output
3Y
wa
EAR
The RPA60-FW series are high power density, wide input voltage range 60W DC/DC
converters in an industry standard 2”x1” case size. Despite their small size, the RPA60-FW converters
are fully specified devices with output currents up to 12Amps, up to 93% efficiency, no minimum load,
UVLO, 1500VDC / 1 minute isolation, tight regulation and low ripple/noise figures. The trimmable
outputs are also fully protected against over-temperature, short circuits, overcurrent and overvoltage.
The converters are UL/IEC/EN60950 and EN50155 certified and will find many uses in railway and
industrial applications where board space is at a premium.
rranty
Selection Guide
Part Number
RPA60-2405SFW
(2,3)
RPA60-2412SFW
(2,3)
RPA60-2415SFW
(2,3)
RPA60-2424SFW
(2,3)
Input
Voltage Range
[VDC]
9-36
9-36
9-36
9-36
Output
Voltage
[VDC]
05
12
15
24
Output
Current
[mA]
12000
5000
4000
2500
Input
(1)
Efficiency
(1)
Current
typ.
[mA]
[%]
2706
92.4
2694
92.8
2662
93.3
2688
93
Max. Capacitive
Load
[µF]
20000
6000
4000
2000
Notes:
Note1: Tested at nominal Vin, full load and at +25°C ambient
E224736
UL60950-1 certified
IEC/EN60950 certified
EN50155 certified
Model Numbering
RPA60-__ __ SFW/_ _
Input Voltage
Output Voltage
Single
Package
(3)
CTRL Logic
(2)
Ordering Examples
RPA60-2405SFW = 24V Input, 5V Output, Single, no CTRL pin
RPA60-2405SFW/P = 24V Input, 5V Output, Single, Pos. CTRL function
RPA60-2415SFW/N-HC = 24V Input, 15V Output, Single, Neg. CTRL function, Heat-sink assembled
Notes:
Note2: part without suffixes is without CTRL pin, trim pin fitted
add suffix “P” for positive CTRL function (1=ON, 0=OFF), trim pin fitted
add suffix “N” for negative CTRL function (0=ON, 1=OFF), trim pin fitted
Note3: add suffix “-HC” for glued Heat-sink (compatible with all other suffixes)
www.recom-power.com
REV.: 5/2018
PD-1
RPA60-FW
DC/DC Converter
Specifications
(masured @Ta = 25°C, resistive load, nominal Vin and rated Iout unless otherwise noted)
BASIC CHARACTERISTICS
Parameter
Internal Input Filter
Input Voltage Range
Input Surge Voltage
Quiescent Current
Start-up time
Internal Operating Frequency
Minimum Load
Ripple and Noise
Under Voltage Lockout (UVLO)
20MHz bw, 10µF tantalum capacitor and 1µF ceramic capacitor
DC-DC ON
DC-DC OFF
Positive Logic
ON/OFF Control
(2)
Input current of CTRL pin
Output Voltage Trimming
Negative Logic
DC-DC ON
DC-DC OFF
8VDC
7VDC
0%
100mVp-p
8.5VDC
7.5VDC
9VDC
8VDC
100ms max.
5Vout
12Vout & 15 Vout
24Vout
Power up
Remote ON/OFF
70mA
60mA
40mA
60ms
330kHz
9VDC
24VDC
Series
Condition
Min.
Typ.
Max.
LC Filter
36VDC
50VDC
Open or 2.4 < Vr < 10VDC
Short or 0 < Vr < 0.8VDC
Short or 0 < Vr < 0.8VDC
Open or 2.4 < Vr < 10VDC
10mA
-10%
+10%
DC-DC ON
DC-DC OFF
DC-DC OFF
RPA60-2405SFW
100
90
80
70
60
50
40
30
20
10
0
0
10
20

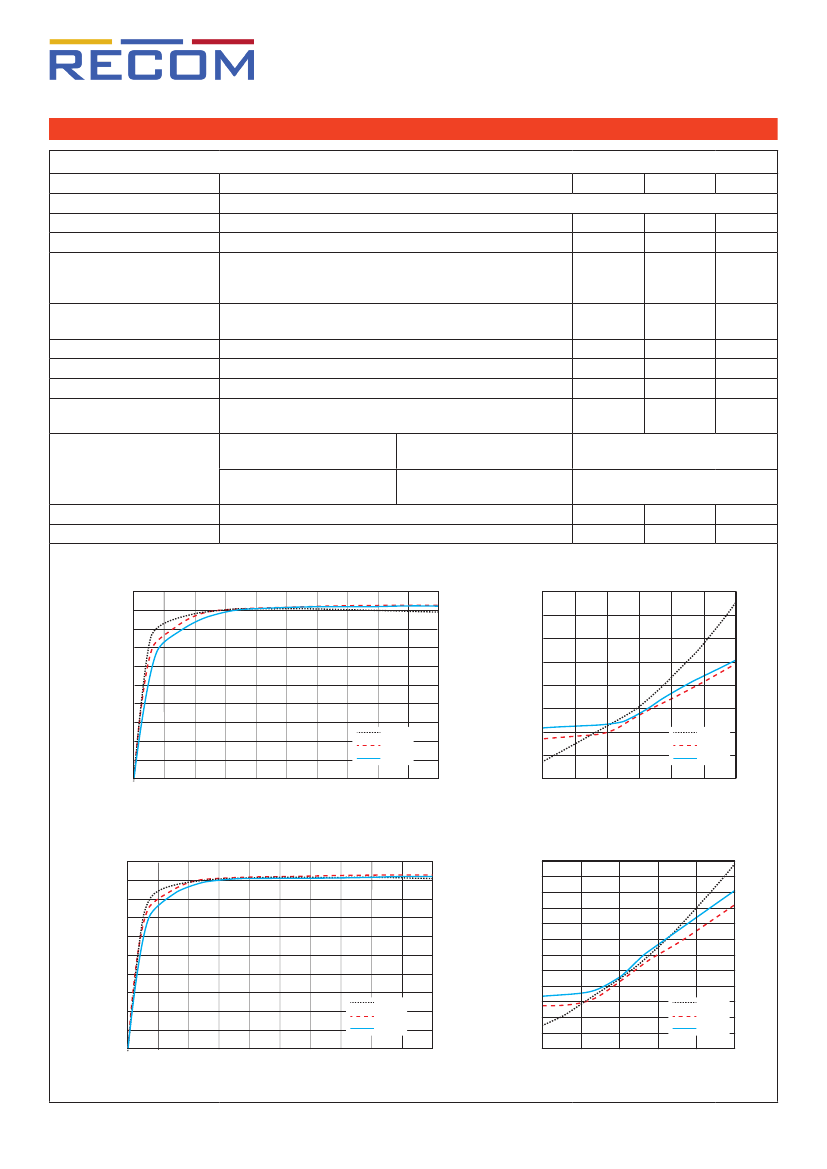

Efficiency vs. Output Current
8
7
6
Power Dissipation vs Output Current
Efficiency [%]
Power Dissipation
5
4
3
2
1
9Vin
24Vin
36Vin
0
2
4
6
8
10
12
9Vin
24Vin
36Vin
30
40
50
60
70
80
90
100
0
Output Current [%]
Output Current [A]
RPA60-2412SFW
100
90
80
70
60
50
40
30
20
10
0
0
10
Efficiency vs. Output Current
6
5.5
5
4.5
4
3.5
3
2.5
2
1.5
1
0.5
0
Power Dissipation vs Output Current
Efficiency [%]
Power Dissipation
9Vin
24Vin
36Vin
20
30
40
50
60
70
80
90
100
9Vin
24Vin
36Vin
0
1
2
3
4
5
Output Current [%]
continued on next page
www.recom-power.com
REV.: 5/2018
Output Current [A]
PD-2
RPA60-FW
DC/DC Converter
Specifications
(masured @Ta = 25°C, resistive load, nominal Vin and rated Iout unless otherwise noted)

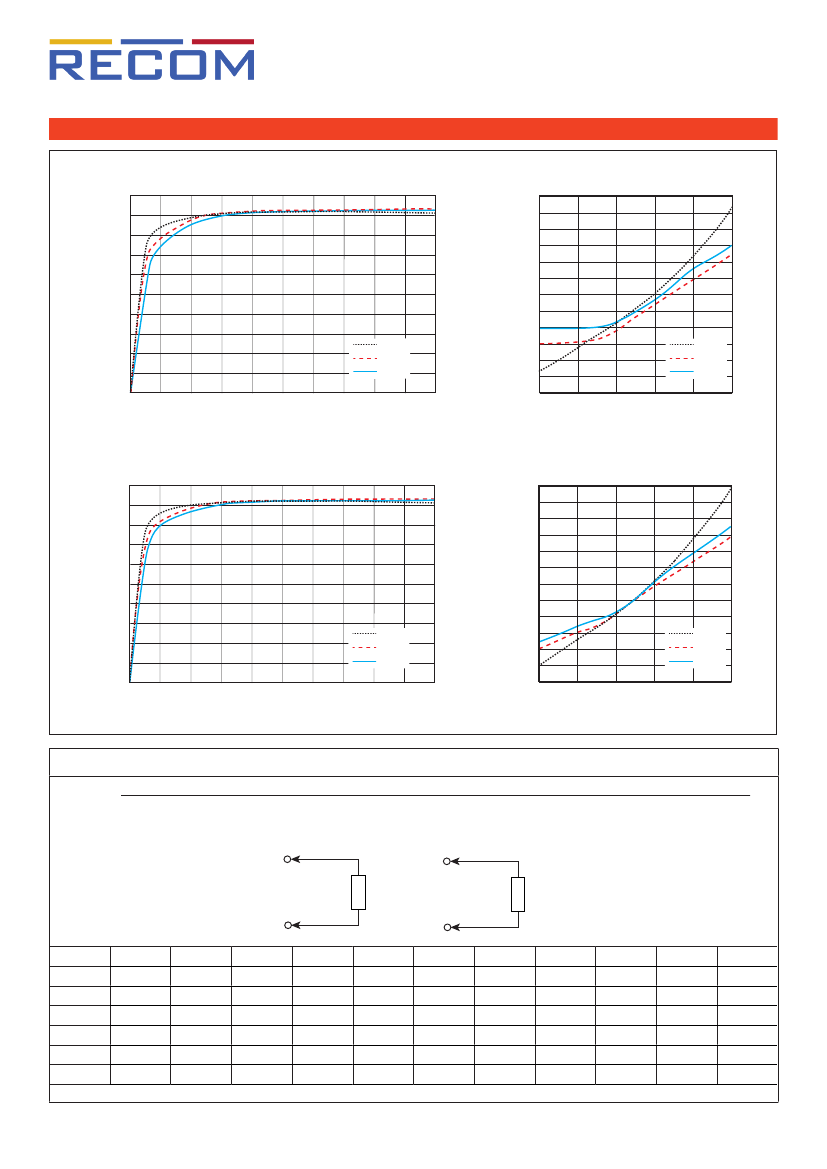

RPA60-2415SFW
100
90
80
70
60
50
40
30
20
10
0
0
10
20
30
40
50
60
70
80
9Vin
24Vin
36Vin
90
100
Series
Power Dissipation vs Output Current
6
5.5
5
4.5
4
3.5
3
2.5
2
1.5
1
0.5
0
Efficiency vs. Output Current
Efficiency [%]
Power Dissipation
9Vin
24Vin
36Vin
0
0.8
1.6
2.4
3.2
4
Output Current [%]
RPA60-2424SFW
100
90
80
70
60
50
40
30
20
10
0
0
10
20
30
40
50
60
70
80
9Vin
24Vin
36Vin
90
100
Output Current [A]
Power Dissipation vs Output Current
6
5.5
5
4.5
4
3.5
3
2.5
2
1.5
1
0.5
0
Efficiency vs. Output Current
Efficiency [%]
Power Dissipation
9Vin
24Vin
36Vin
0
0.5
1
1.5
2
2.5
Output Current [%]
Output Current [A]
OUTPUT TRIM
Output Voltage Trimming
RPA60-FW converters offer the feature of trimming the output voltage over a certain range around the nominal value by using external trim
resistors. The values for trim resistors shown in trim tables below are according to standard E96 values; therefore, the specified voltage may
slightly vary.
TRIM DOWN
TRIM UP
4
R
1
5
4
R
2
6
RPA60-2405SFW
Trim up
Vout =
R
1
=
Trim down
Vout =
R
2
=
1
5.05
604
1
4.95
604
2
5.10
243
2
4.90
301
3
5.15
147
3
4.85
169
4
5.20
95.3
4
4.80
115
5
5.25
68.1
5
4.75
80.6
6
5.30
39.2
6
4.70
56.2
7
5.35
34.8
7
4.65
40.2
8
5.40
22.1
8
4.60
28
9
5.45
15
9
4.55
15
10
5.50
8.06
10
4.50
8.06
%
Volts
kOhms
%
Volts
kOhms
continued on next page
www.recom-power.com
REV.: 5/2018
PD-3
RPA60-FW
DC/DC Converter
Specifications
(masured @Ta = 25°C, resistive load, nominal Vin and rated Iout unless otherwise noted)
RPA60-2412SFW
Trim up
Vout =
R
1
=
Trim down
Vout =
R
2
=
1
12.12
604
1
11.88
698
2
12.24
255
2
11.76
301
3
12.36
154
3
11.64
187
4
12.48
105
4
11.52
121
5
12.60
75
5
11.40
84.5
6
12.72
49.9
6
11.28
60.4
7
12.84
38.3
7
11.16
45.3
8
12.96
24.9
8
11.04
30.1
9
13.08
18.2
9
10.92
20
10
13.20
10
10
10.8
10
%
Volts
kOhms
%
Volts
kOhms
Series
RPA60-2415SFW
Trim up
Vout =
R
1
=
Trim down
Vout =
R
2
=
1
15.15
750
1
14.85
698
2
15.3
309
2
14.70
374
3
15.45
191
3
14.55
226
4
15.60
124
4
14.40
150
5
15.75
71.5
5
14.25
105
6
15.90
59
6
14.10
71.5
7
16.05
40.2
7
13.95
59
8
16.20
28
8
13.80
32.4
9
16.35
15
9
13.65
20
10
16.50
8.06
10
13.50
8.06
%
Volts
kOhms
%
Volts
kOhms
RPA60-2424SFW
Trim up
Vout =
R
1
=
Trim down
Vout =
R
2
=
1
24.24
1000
1
23.76
1500
2
24.48
511
2
23.52
909
3
24.72
324
3
23.38
499
4
24.96
221
4
23.04
324
5
25.2
162
5
22.8
232
6
25.44
121
6
22.56
169
7
25.68
90.9
7
22.32
124
8
25.92
68.1
8
22.08
93.1
9
26.16
48.7
9
21.84
64.9
10
26.4
34.8
10
21.6
45.3
%
Volts
kOhms
%
Volts
kOhms
REGULATION
Parameter
Output Accuracy
Line Regulation
Load Regulation
Transient Response
5Vout
others
50%-75% full load
low line to high line
Condition
Value
±1.0% max.
±0.2% max.
±0.5%
±5.0% Vout typ.
±2.5% Vout typ.
250µs typ.
25% load step change
PROTECTION
Parameter
Short Circuit Protection (SCP)
Over Voltage Protection (OVP)
Over Current Protection (OCP)
Over Temperature Protection (OTP)
Isolation Voltage
(5)
Isolation Resistance
Isolation Capacitance
Insulation Grade
Notes:
Note4: An input fuse is required if the mains supply is not over-current protected. Recommended fuse: 10A slow blow type.
Note5: For repeat Hi-Pot testing, reduce the time and/or the test voltage.
www.recom-power.com
REV.: 5/2018
PD-4
Condition
below 100mΩ
Value
continuous, auto recovery
115%-140% Output Voltage
110%-150% Output Current, Hiccup
115°C ±5°C
I/P to O/P
tested for 1 minute
1.5kVDC
10MΩ min.
2200pF typ.
basic
RPA60-FW
DC/DC Converter
Specifications
(masured @Ta = 25°C, resistive load, nominal Vin and rated Iout unless otherwise noted)
ENVIRONMENTAL
Parameter
Operating Temperature Range
Maximum Case Temperature
Temperature Coefficient
Thermal Impedance
Operating Altitude
Operating Humidity
Shock
Vibration
MTBF

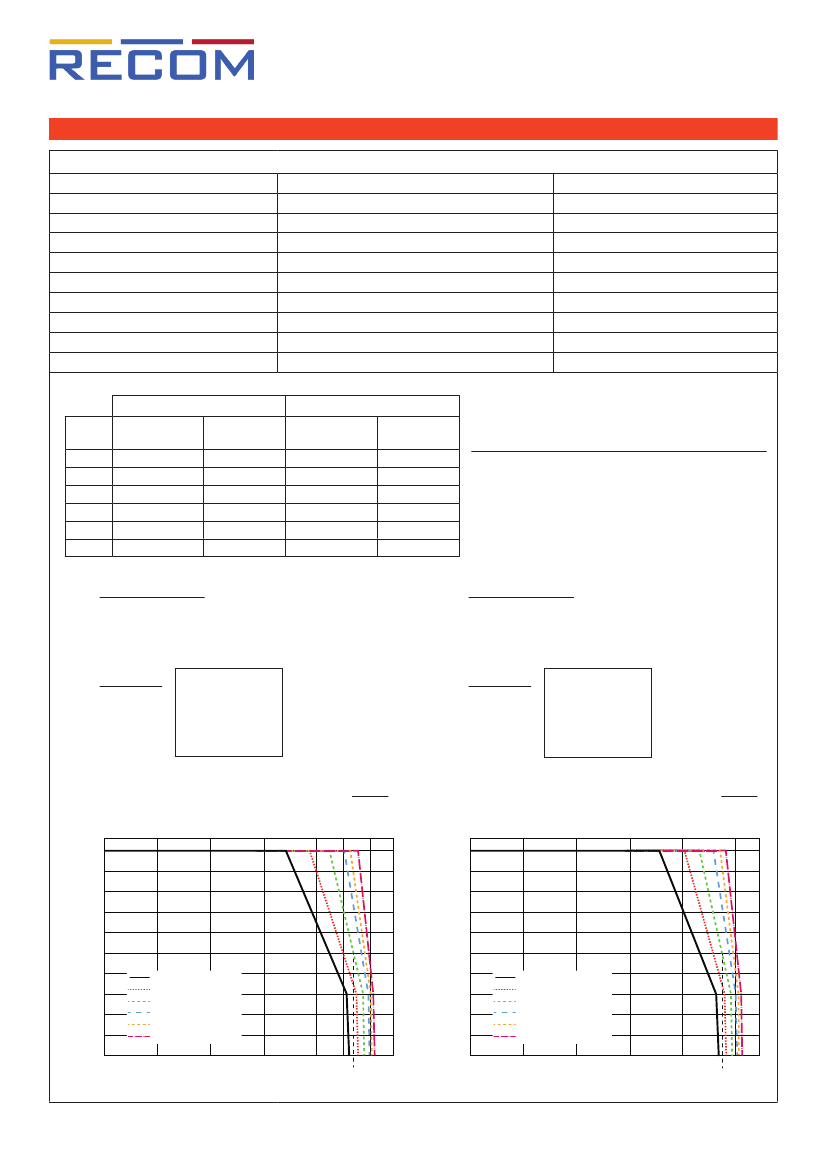

Table 1: Thermal Impedance
according to Telcordia SR332 3, +25°C
(6)
Series
Condition
Value
-40°C to [refer to thermal calculation]
+105°C
0.02%/°C
please refer to table 1
4500m
95% RH
5G, 30ms, 6 times along X,Y and Z axis
10-500Hz, 2.4G, 30mins along X,Y and Z axis
5997 x 10
3
hours
without Heatsink
airflow
[m/s]
0.1
0.2
0.5
1.0
1.5
2.0
Rth without PCB Rth with PCB
[°C/W]
[°C/W]
11.5
7.5
8.9
5.6
6.6
4.1
4.8
3.0
3.9
2.5
3.0
1.9
(6)
with Heatsink
Rth without PCB Rth with PCB
(6)
[°C/W]
[°C/W]
9.6
6.8
7.4
5.1
5.5
3.8
4.0
2.7
3.3
2.2
2.5
1.7
Notes:
Note6:
Test PCB:160x100mm105µm (Eurocard), double layer
Thermal Calculation
choose your model:
RPA60-2405SFW (with PCB )
(6)
choose your model:
RPA60-2405SFW-HC (with PCB
(6)
)
• Load conditions in application (e.g. 50%)
• Airflow conditions in application (e.g. 0.5m/s)
• use Rth from Table1 (3.8°C/W)
• Load conditions in application (e.g. 50%)
• Airflow conditions in application (e.g. 0.5m/s)
• use Rth from Table1 (4.1°C/W)
Iout = 50%
R
th
= 4.1°C/W
P
DISS
= 2.75W
Ambient Temperature [°C]
T
CASEmax
= 105°C
Calculation:
Calculation:
Iout = 50%
R
th
= 3.8°C/W
Ambient Temperature [°C]
P
DISS
= 2.75W
T
CASEmax
= 105°C
T
AMBmax
= T
CASEmax
- T
OVER
= 105°C - 11.3°C =
93.7°C
RPA60-2405SFW
100
90
80
70
60
50
40
30
20
10
0
-40
Nature Convection (0.1m/s)
0.2m/s
0.5m/s
1.0m/s
1.5m/s
2.0m/s
T
OVER
= R
th
x P
Dis
= 4.1°C/W x 2.75W =
11.3°C
T
AMBmax
= T
CASEmax
- T
OVER
= 105°C - 10.5°C =
94.5°C
RPA60-2405SFW-HC
100
90
80
70
60
50
40
30
20
10
0
-40
Nature Convection (0.1m/s)
0.2m/s
0.5m/s
1.0m/s
1.5m/s
2.0m/s
T
OVER
= R
th
x P
Dis
= 3.8°C/W x 3.04W =
10.5°C
Output Power [%]
20
40
60
80
Ambient Temperature [°C]
www.recom-power.com
100 110
93.7
Output Power [%]
20
40
60
80
Ambient Temperature [°C]
100 110
94.5
REV.: 5/2018
PD-5
京公网安备 11010802033920号
EEWORLD
