PREC022DBBN-M71RC datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> PREC022DBBN-M71RC

Preview

PREC022DBBN-M71RC: DescriptionCONN HEADER .100" DUAL R/A 44POS; CategoryThe connector; File Size373KB，1 Pages; ManufacturerSullins Connector Solutions; Environmental Compliance

Download Datasheet Parametric View All

PREC022DBBN-M71RC Overview

CONN HEADER .100" DUAL R/A 44POS

PREC022DBBN-M71RC Parametric

Parameter Name	Attribute value
Connector type	Needle hub, separate
Contact type	Male pin
Spacing - Mating	0.100"（2.54mm）
Number of pins	44
Number of rows	2
Line spacing - patching	0.100"（2.54mm）
Number of pins loaded	all
style	Board to Board or Cable
shield	Uncovered
Installation type	Through hole, right angle
Termination	welding
Fastening type	push-pull
Contact Length - Mating	0.230"（5.84mm）
Contact length - terminal	0.220"（5.58mm）
Overall contact length	-
Insulation height	0.197"（5.00mm）
Contact shape	Square
Contact surface treatment - mating	tin
Contact Surface Treatment Thickness - Mating	-
Contact Surface Preparation - Column	tin
Contact material	brass
Insulation Materials	Polybutylene terephthalate (PBT)
characteristic	-
Operating temperature	-40°C ~ 105°C
Intrusion protection	-
Material flammability rating	UL94 V-0
Insulation color	black
Rated current	3A
Rated voltage	-
Joint stack height	-
Contact Surface Treatment Thickness - Column	-
application	-

Preview

Download Datasheet

View All

8

7

6

5

4

3

2

1

REVISIONS

REV.

B

C

F

ECO. NO

2422

2538

2668

DESCRIPTION

ADD 'P' PLATING OPTION

UPDATE PROCESSING TEMPERATURE IN THE NOTE

ADD 'LCP' MATERIAL AND REMOVE 'NYLON 9T'

DATE

08/09/2011

02/20/2012

09/06/2012

BY

GC

LH

F

D

E

B .012[ 0.30]

.197 5.00

D

.100 2.54

A

TAIL DIM. .012[0.30]

.158 4.02

C

HEAD DIM.

C

.098 2.50

.100 2.54

A

.100 2.54

.025 0.64

.100 2.54

.039 1.00

B

A

NOTES:

1. INSULATOR MATERIAL: SEE PART NUMBER CODING, UL 94V-0, BLACK.

2. CONTACT MATERIAL: SEE PAART NUMBER CODING.

3. CONTACT PLATING: SEE PART NUMBER CODING.

4. CURRENT RATING: 3 AMPS.

5. INSULATOR RESISTANCE: 5000 MEGOHMS MIN.

6. CONTACT RESISTANCE: 20 MILLIOHMS MAX.

7. DIELECTRIC WITHSTANDING: 1000 VAC.

8. OPERATING TEMPERATURE: SEE PART NUMBER CODING.

9. *PROCESSING TEMP.: SEE PART NUMBER CODING.

.100 2.54

B

RECOMMENDED PCB LAYOUT

*INDICATED TEMPERATURE AND TIME IS FOR COMPONENT INSULATOR. HIGHER PROCESSING

TEMPERATURES MAY BE USED, PROVIDED HEAT IS APPLIED FROM BACK SIDE OF PCB,

AND INSULATOR DOES NOT EXCEED INDICATED TEMPERATURE AND TIME.

8

7

6

5

Pb

R

oHS COMPLIANT

4

UNLESS OTHERWISE SPECIFIED: DRAWN

DIMENSIONS ARE IN INCHES [MM]

TOLERANCES:

ANGULAR:

DECIMALS

.XX= .012 [.30]

.XXX= .008 [.20]

.XXXX= .0040 [.100]

DATE

NAME

03/21/2011 LH

THE INFORMATION HEREIN CONTAINS

PROPIETARY INFORMATION OF

SULLINS ELECTRONICS AND IS NOT

TO BE REPRODUCED, USED OR

DISCLOSED TO OTHERS FOR ANY

PURPOSE EXCEPT AS SPECIFICALLY

AUTHORIZED IN WRITING BY AN

OFFICER OF SULLINS ELECTRONICS.

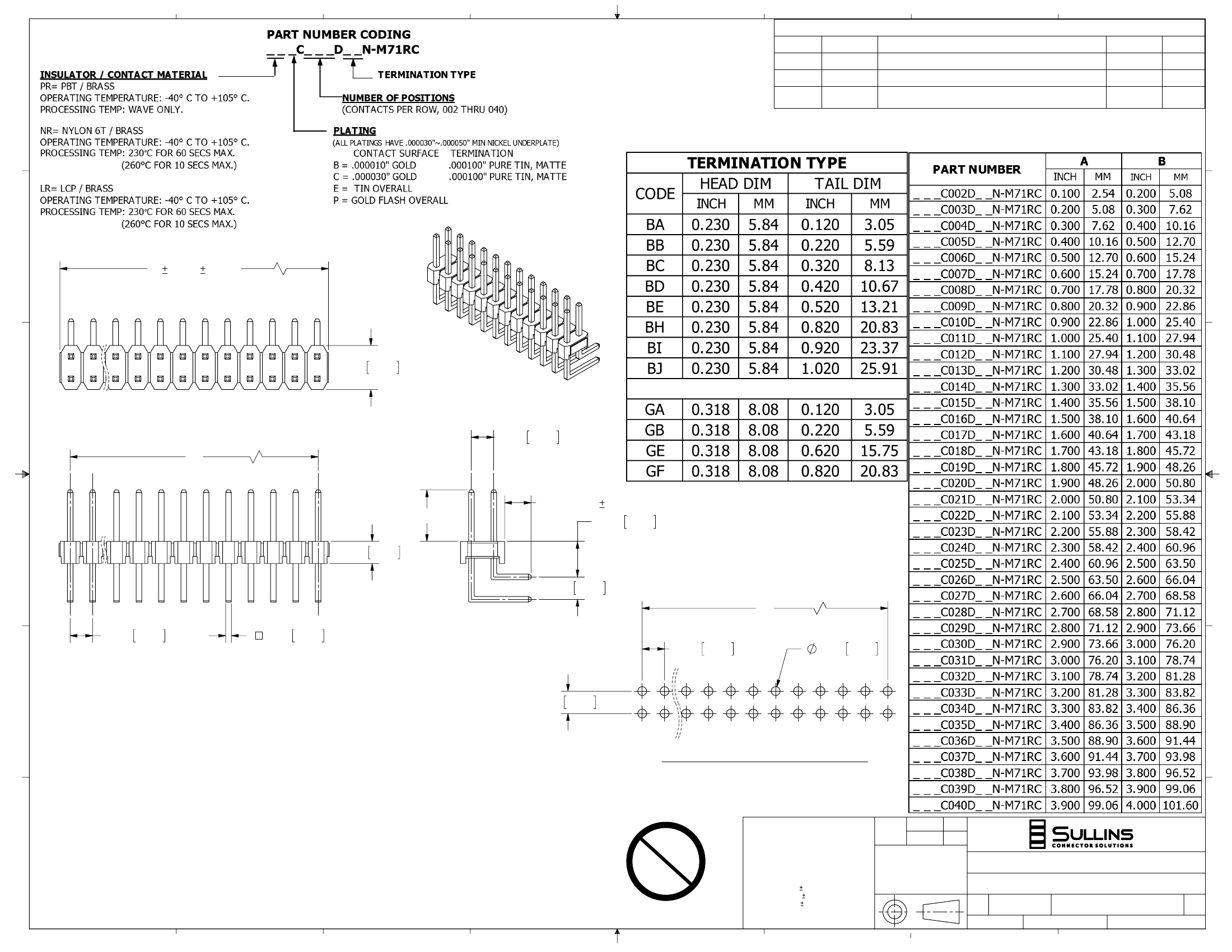

PART NUMBER

SIZE

HEADER .100"[2.54mm]PITCH, 2 ROWS, RA

TITLE

A

SCALE: 4:1

3

2

C

CAGE CODE

_ R _C_ _ _-D_ _N-M71RC

DWG. NO.

54453

11639

REV

SHEET 1 OF 1

1

D

FILE NAME: Z:\ECO PENDING\2668, MALE HEADER .100 TAIWAN PARTS\11639, _ R_C_ _ _D_ _N-M71RC PRINT: 9/21/2012
