0761500016 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 0761500016

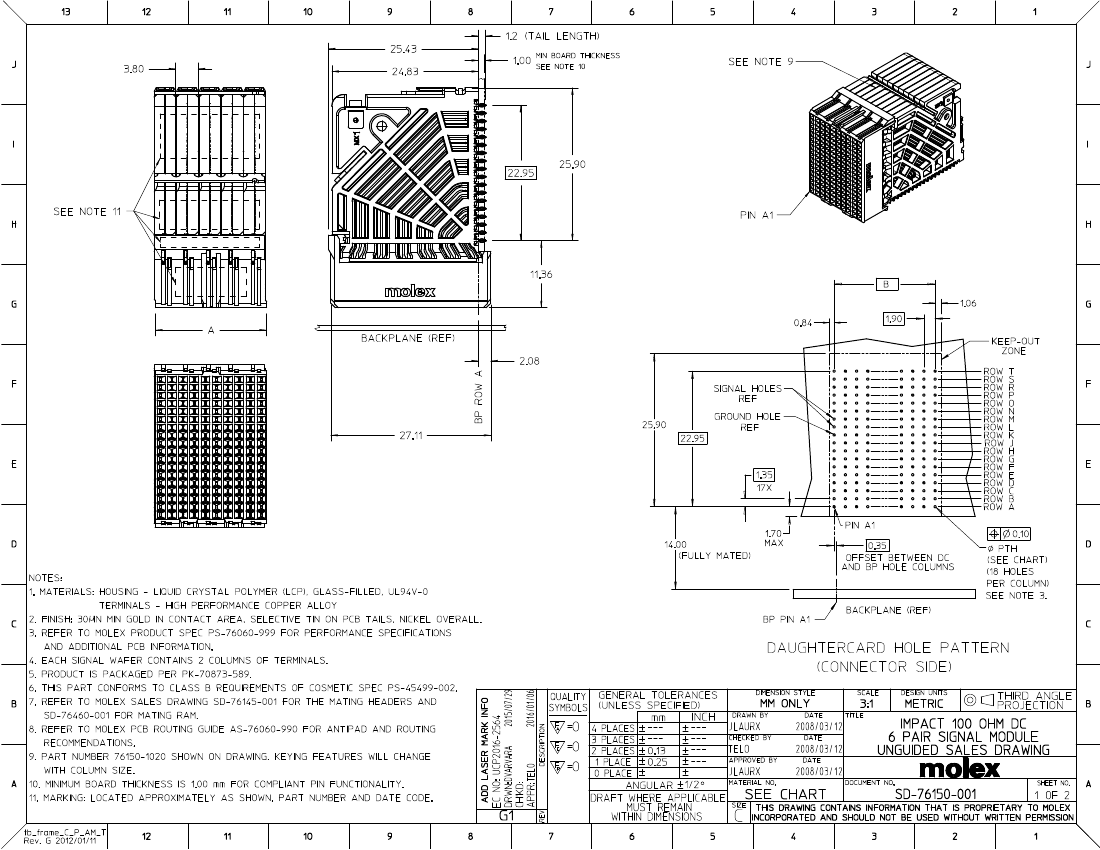

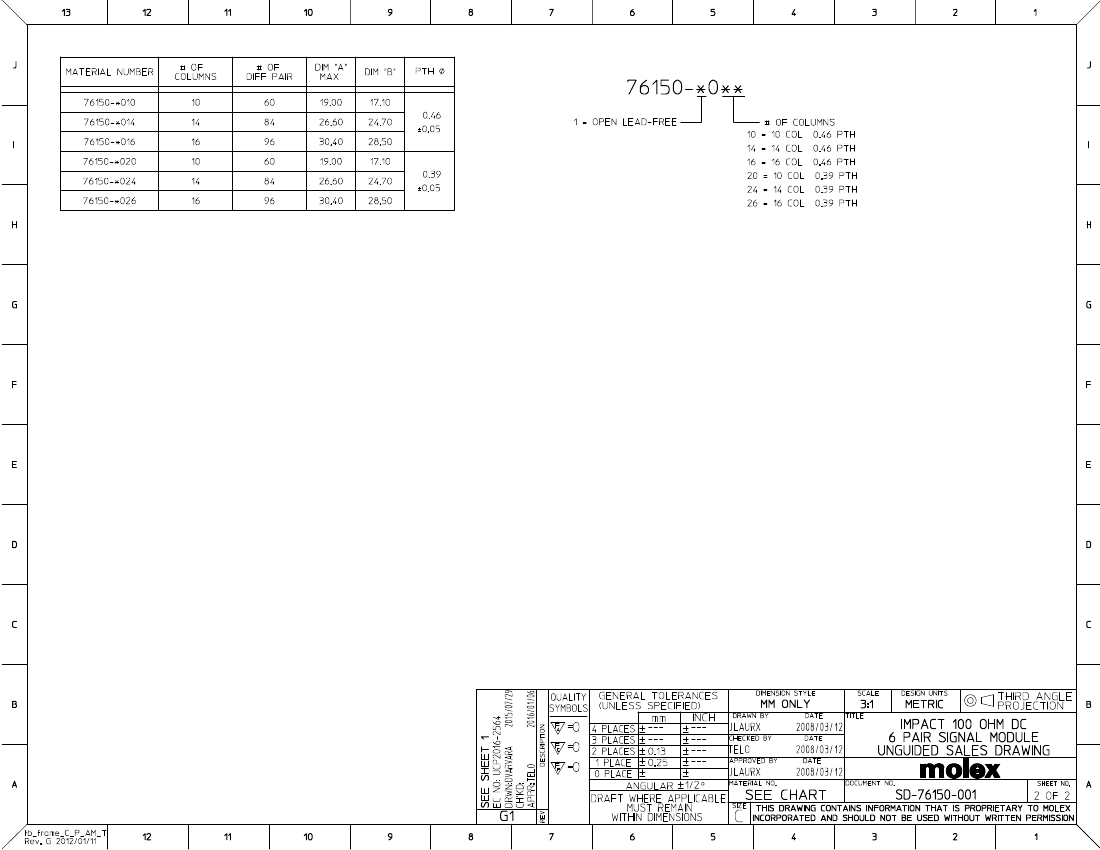

0761500016: DescriptionIMPACT DC 6X16 OPEN SN/PB; CategoryThe connector; File Size279KB，2 Pages; ManufacturerMolex Premise Network; Environmental Compliance

Download Datasheet Parametric Compare View All

0761500016 Overview

IMPACT DC 6X16 OPEN SN/PB

0761500016 Parametric

Parameter Name	Attribute value
Connector usage	-
Connector type	socket, female socket
Connector style	impact
Number of pins	288
Number of pins loaded	all
spacing	-
Number of rows	18
Number of columns	16
Installation type	Board edge, through hole, right angle
Termination	Press fit
Contact layout (typical)	96 differential pairs
characteristic	-
Contact plating	gold
Contact plating thickness	30.0µin（0.76µm）
color	black
Rated current	-
Material flammability rating	UL94 V-0
Operating temperature	-55°C ~ 85°C
Rated voltage	30V

Preview

Download Datasheet

View All

0761500016 Related Products

	0761500016	0761501010	0761501026	0761501020	0761501024	0761501014	0761500010	0761500020	0761500026	0761501016
Description	IMPACT DC 6X16 OPEN SN/PB	IMPACT DC 6X10 OPEN SN	IMPACT DC 6X16 OPEN SN	IMPACT DC 6X10 OPEN SN	IMPACT DC 6X14 OPEN SN	IMPACT DC 6X14 OPEN SN	IMPACT DC 6X10 OPEN SN/PB	IMPACT DC 6X10 OPEN SN/PB	IMPACT DC 6X16 OPEN SN/PB	IMPACT DC 6X16 OPEN SN
Connector type	socket, female socket	socket, female socket	socket, female socket	socket, female socket	socket, female socket	socket, female socket	socket, female socket	socket, female socket	socket, female socket	socket, female socket
Connector style	impact	Impact™	Impact™	Impact™	Impact™	Impact™	impact	Impact™	impact	Impact™
Number of pins	288	180	288	180	252	252	180	180	288	288
Number of pins loaded	all	all	all	all	all	all	all	all	all	all
Number of rows	18	18	18	18	18	18	18	18	18	18
Number of columns	16	10	16	10	14	14	10	10	16	16
Installation type	Board edge, through hole, right angle	Board edge, through hole, right angle	Board edge, through hole, right angle	Board edge, through hole, right angle	Board edge, through hole, right angle	Board edge, through hole, right angle	Board edge, through hole, right angle	Board edge, through hole, right angle	Board edge, through hole, right angle	Board edge, through hole, right angle
Termination	Press fit	Press fit	Press fit	Press fit	Press fit	Press fit	Press fit	Press fit	Press fit	Press fit
Contact layout (typical)	96 differential pairs	60 differential pairs	96 differential pairs	60 differential pairs	84 differential pairs	84 differential pairs	60 differential pairs	60 differential pairs	96 differential pairs	96 differential pairs
Contact plating	gold	gold	gold	gold	gold	gold	gold	gold	gold	gold
Contact plating thickness	30.0µin（0.76µm）	30.0µin（0.76µm）	30.0µin（0.76µm）	30.0µin（0.76µm）	30.0µin（0.76µm）	30.0µin（0.76µm）	30.0µin（0.76µm）	30.0µin（0.76µm）	30.0µin（0.76µm）	30.0µin（0.76µm）
color	black	black	black	black	black	black	black	black	black	black
Material flammability rating	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0
Operating temperature	-55°C ~ 85°C	-55°C ~ 85°C	-55°C ~ 85°C	-55°C ~ 85°C	-55°C ~ 85°C	-55°C ~ 85°C	-55°C ~ 85°C	-55°C ~ 85°C	-55°C ~ 85°C	-55°C ~ 85°C
Rated voltage	30V	30V	30V	30V	30V	30V	30V	30V	30V	30V
