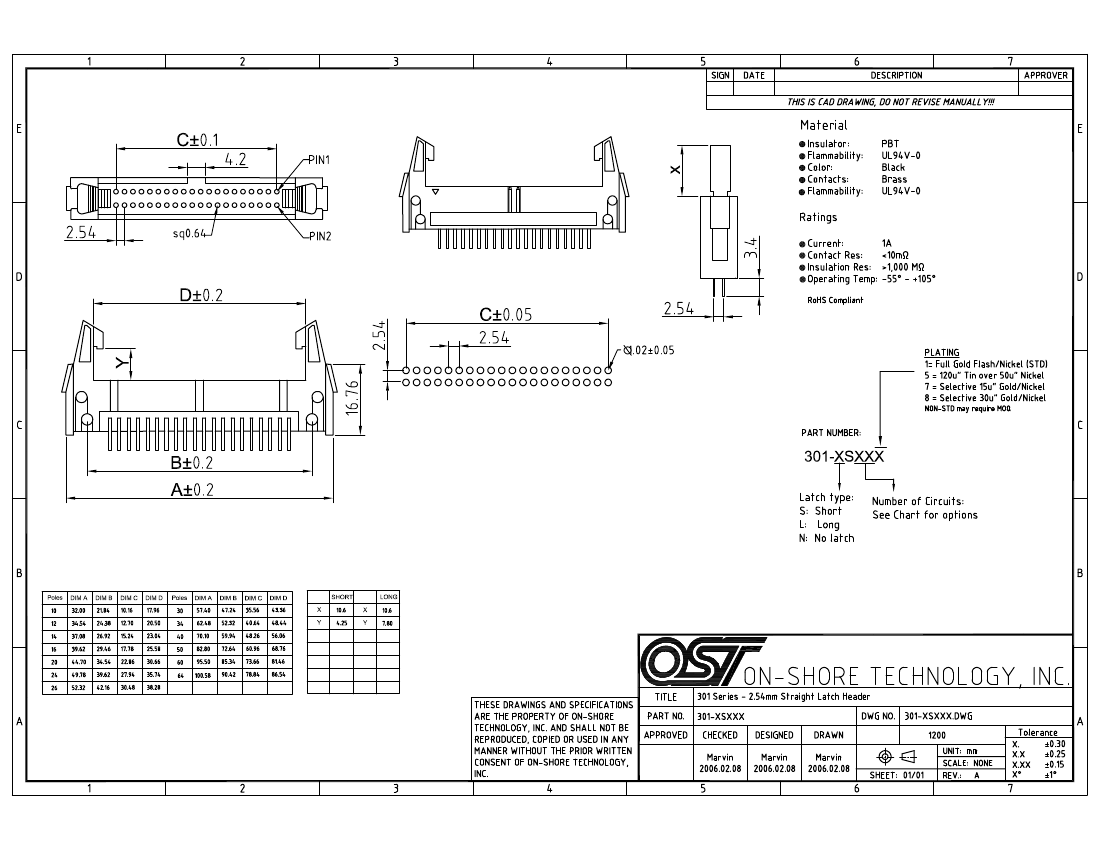

301-LS-141 Overview

CONN HEADER VERT 14POS

Parameter Name	Attribute value
Connector type	Connector
Contact type	Male pin
Spacing - Mating	0.100"（2.54mm）
Number of pins	14
Number of rows	2
Line spacing - patching	0.100"（2.54mm）
Number of pins loaded	all
style	Board to cable/wire
shield	Covered - 4 walls
Installation type	Through hole
Termination	welding
Fastening type	Lock/eject hook, long
Contact Length - Mating	0.228"（5.80mm）
Contact length - terminal	0.122"（3.10mm）
Overall contact length	0.630"（16.00mm）
Insulation height	0.660"（16.76mm）
Contact shape	Square
Contact surface treatment - mating	gold
Contact Surface Treatment Thickness - Mating	flash memory
Contact Surface Preparation - Column	-
Contact material	Phosphor bronze
Insulation Materials	Polybutylene terephthalate (PBT)
characteristic	keyway
Operating temperature	-55°C ~ 120°C
Intrusion protection	-
Material flammability rating	UL94 V-0
Insulation color	black
Rated current	2A
Rated voltage	-
Joint stack height	-
Contact Surface Treatment Thickness - Column	-
application	-

	301-LS-141
Description	CONN HEADER VERT 14POS
Connector type	Connector
Contact type	Male pin
Spacing - Mating	0.100"（2.54mm）
Number of pins	14
Number of rows	2
Line spacing - patching	0.100"（2.54mm）
Number of pins loaded	all
style	Board to cable/wire
shield	Covered - 4 walls
Installation type	Through hole
Termination	welding
Fastening type	Lock/eject hook, long
Contact Length - Mating	0.228"（5.80mm）
Contact length - terminal	0.122"（3.10mm）
Overall contact length	0.630"（16.00mm）
Insulation height	0.660"（16.76mm）
Contact shape	Square
Contact surface treatment - mating	gold
Contact Surface Treatment Thickness - Mating	flash memory
Contact material	Phosphor bronze
Insulation Materials	Polybutylene terephthalate (PBT)
characteristic	keyway
Operating temperature	-55°C ~ 120°C
Material flammability rating	UL94 V-0
Insulation color	black
Rated current	2A
