1SMC5.0A
THRU
1SMC170A
SURFACE MOUNT SILICON
UNI-DIRECTIONAL
GLASS PASSIVATED JUNCTION
TRANSIENT VOLTAGE SUPPRESSORS
1500 WATT, 5.0 THRU 170 VOLT
w w w. c e n t r a l s e m i . c o m
DESCRIPTION:
The CENTRAL SEMICONDUCTOR 1SMC5.0A series
devices are surface mount uni-directional glass
passivated junction Transient Voltage Suppressors
designed to protect voltage sensitive components from
high voltage transients.
THIS DEVICE IS MANUFACTURED WITH A GLASS
PASSIVATED CHIP FOR OPTIMUM RELIABILITY.
Note: For bi-directional devices, please refer to the
1SMC5.0CA series data sheet.
MARKING CODE: SEE ELECTRICAL
CHARACTERISTICS TABLE
SYMBOL
PPK
IFSM
TJ, Tstg
UNITS
W
A
°C
SMC CASE
MAXIMUM RATINGS:
(TA=25°C unless otherwise noted)
Peak Power Dissipation (Note 1)
Peak Forward Surge Current (JEDEC Method)
Operating and Storage Junction Temperature
1500
200
-65 to +150
ELECTRICAL CHARACTERISTICS:
(TA=25°C unless otherwise noted)
REVERSE
STAND-OFF
VOLTAGE
TYPE
VRWM
V
1SMC5.0A
1SMC6.0A
1SMC6.5A
1SMC7.0A
1SMC7.5A
1SMC8.0A
1SMC8.5A
1SMC9.0A
1SMC10A
1SMC11A
1SMC12A
1SMC13A
1SMC14A
1SMC15A
1SMC16A
1SMC17A
1SMC18A
1SMC20A
1SMC22A
1SMC24A
1SMC26A
1SMC28A
1SMC30A
5.0
6.0
6.5
7.0
7.5
8.0
8.5
9.0
10
11
12
13
14
15
16
17
18
20
22
24
26
28
30
BREAKDOWN
VOLTAGE
VBR @ IT
MIN
V
6.40
6.67
7.22
7.78
8.33
8.89
9.44
10
11.1
12.2
13.3
14.4
15.6
16.7
17.8
18.9
20
22.2
24.4
26.7
28.9
31.1
33.3
MAX
V
7.25
7.67
8.30
8.95
9.58
10.23
10.82
11.5
12.8
14
15.3
16.5
17.9
19.2
20.5
21.7
23.3
25.5
28
30.7
33.2
35.8
38.3
TEST
CURRENT
IT
mA
10
10
10
10
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
MAXIMUM
REVERSE
LEAKAGE
CURRENT
IR @ VRWM
µA
1000
1000
500
200
100
50
20
10
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
MAXIMUM
CLAMPING
VOLTAGE
VC @ IPP
V
9.2
10.3
11.2
12
12.9
13.6
14.4
15.4
17
18.2
19.9
21.5
23.2
24.4
26
27.6
29.2
32.4
35.5
38.9
42.1
45.4
48.4
PEAK
PULSE
CURRENT
(Note 1)
IPP
A
163
145.6
133.9
125
116.3
110.3
104.2
97.4
88.2
82.4
75.3
69.7
64.7
61.5
57.7
53.3
51.4
46.3
42.2
38.6
35.6
33
31
CGDE
CGDG
CGDK
CGDM
CGDP
CGDR
CGDT
CGDV
CGDX
CGDZ
CGEE
CGEG
CGEK
CGEM
CGEP
CGER
CGET
CGEV
CGEX
CGEZ
CGFE
CGFG
CGFK
MARKING
CODE
Notes: (1) Non-repetitive 10x1,000µs pulse.
R7 (22-August 2016)
1SMC5.0A
THRU
1SMC170A
SURFACE MOUNT SILICON
UNI-DIRECTIONAL
GLASS PASSIVATED JUNCTION
TRANSIENT VOLTAGE SUPPRESSORS
1500 WATT, 5.0 THRU 170 VOLT
ELECTRICAL CHARACTERISTICS - Continued:
(TA=25°C unless otherwise noted)
REVERSE
STAND-OFF
VOLTAGE
TYPE
VRWM
V
1SMC33A
1SMC36A
1SMC40A
1SMC43A
1SMC45A
1SMC48A
1SMC51A
1SMC54A
1SMC58A
1SMC60A
1SMC64A
1SMC70A
1SMC75A
1SMC78A
1SMC85A
1SMC90A
1SMC100A
1SMC110A
1SMC120A
1SMC130A
1SMC150A
1SMC160A
1SMC170A
33
36
40
43
45
48
51
54
58
60
64
70
75
78
85
90
100
110
120
130
150
160
170
BREAKDOWN
VOLTAGE
VBR @ IT
MIN
V
36.7
40
44.4
47.8
50
53.3
56.7
60
64.4
66.7
71.1
77.8
83.3
86.7
94.4
100
111
122
133
144
167
178
189
MAX
V
42.2
46
51.1
54.9
57.5
61.3
65.2
69
74.1
76.7
81.8
89.5
95.8
99.7
108.2
115.5
128
140.5
153
165.5
192.5
205
217.5
TEST
CURRENT
IT
mA
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
MAXIMUM
REVERSE
LEAKAGE
CURRENT
IR @ VRWM
µA
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
MAXIMUM
CLAMPING
VOLTAGE
VC @ IPP
V
53.3
58.1
64.5
69.4
72.7
77.4
82.4
87.1
93.6
96.8
103
113
121
126
137
146
162
177
193
209
243
259
275
PEAK
PULSE
CURRENT
(Note 1)
IPP
A
28.1
25.8
23.2
21.6
20.6
19.4
18.2
17.2
16
15.5
14.6
13.3
12.4
11.4
10.4
10.3
9.3
8.4
7.9
7.2
6.2
5.8
5.5
CGFM
CGFP
CGFR
CGFT
CGFV
CGFX
CGFZ
CGGE
CGGG
CGGK
CGGM
CGGP
CGGR
CGGT
CGGV
CGGX
CGGZ
CGHE
CGHG
CGHK
CGHM
CGHP
CGHR
MARKING
CODE

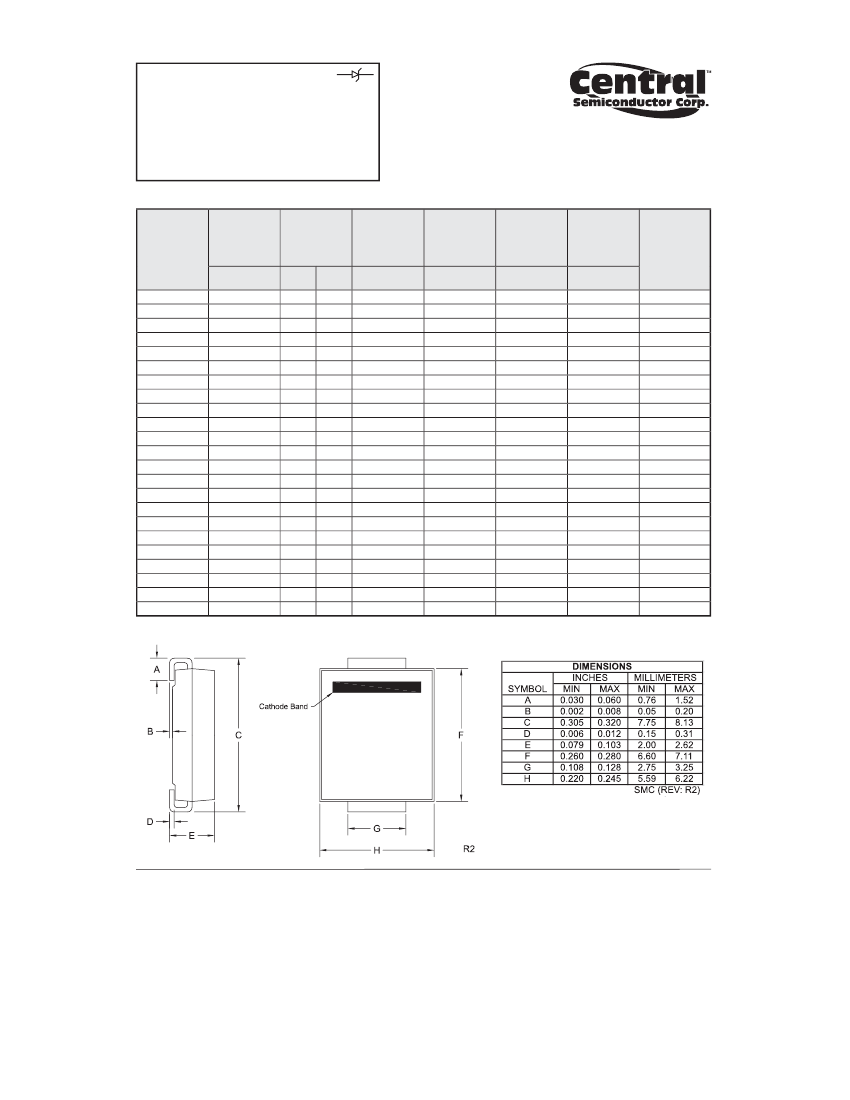

SMC CASE - MECHANICAL OUTLINE
R7 (22-August 2016)
w w w. c e n t r a l s e m i . c o m
1SMC5.0A
THRU
1SMC170A
SURFACE MOUNT SILICON
UNI-DIRECTIONAL
GLASS PASSIVATED JUNCTION
TRANSIENT VOLTAGE SUPPRESSORS
1500 WATT, 5.0 THRU 170 VOLT
TYPICAL ELECTRICAL CHARACTERISTICS
R7 (22-August 2016)
w w w. c e n t r a l s e m i . c o m
