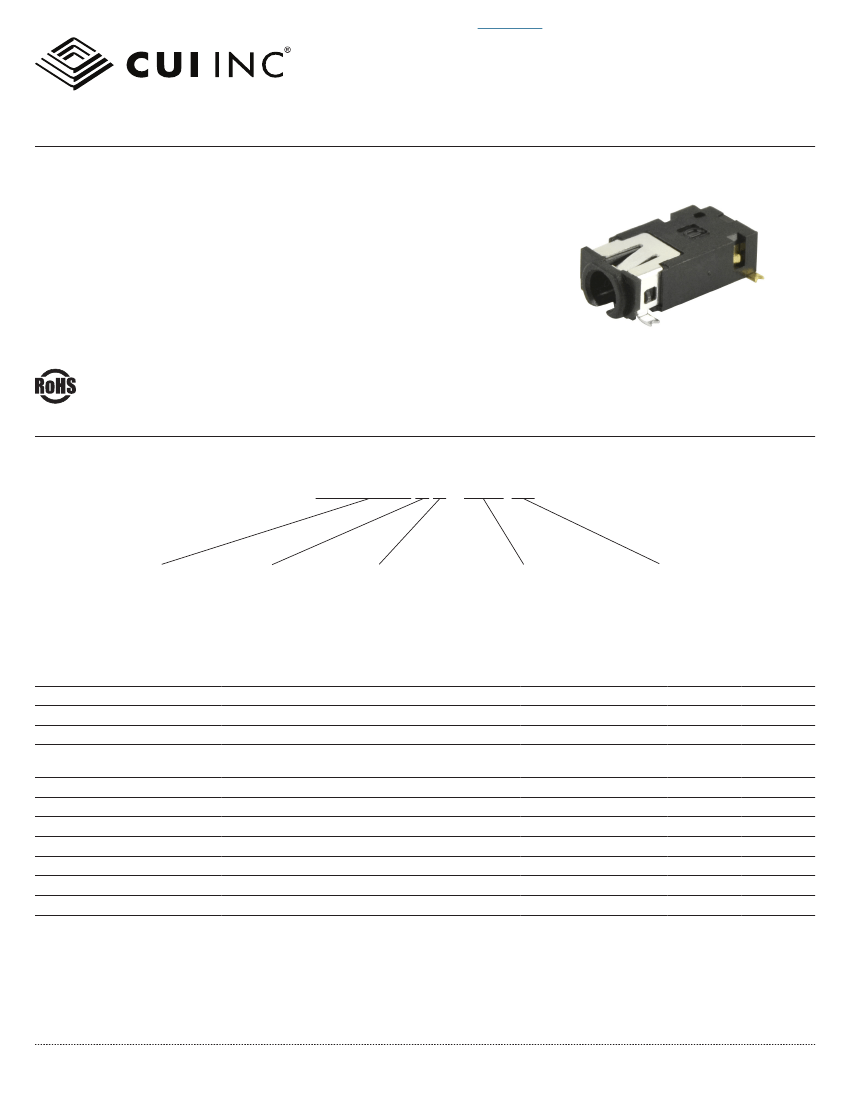

1. 2 conductor option only available with tip switch
SPECIFICATIONS
parameter
rated input voltage
rated input current
contact resistance
2
insulation resistance
voltage withstand
insertion/withdrawal force
operating temperature
life
flammability rating
RoHS
Note:
conditions/description
min
typ
12
max
1
units
Vdc
A
mΩ
mΩ
MΩ
Vac
kg
°C
cycles
between terminal and mating plug
between terminal in a closed circuit
at 500 Vdc
for 1 minute
0.3
-25
at a rate of 24 cycles/minute
UL94V-0
2011/65/EU
5,000
100
50
30
500
3
85
2. When measured at a current of less than 100 mA/1 kHz
3. All specifications measured at 10~35°C, humidity at 45~85%, under standard atmospheric pressure, unless otherwise noted.
cui.com
For more information, please visit the
product page.
CUI Inc
│
SERIES:
SJ2-2592X-SMT
│
DESCRIPTION:
AUDIO JACK
date
06/07/2017│
page
2 of 4

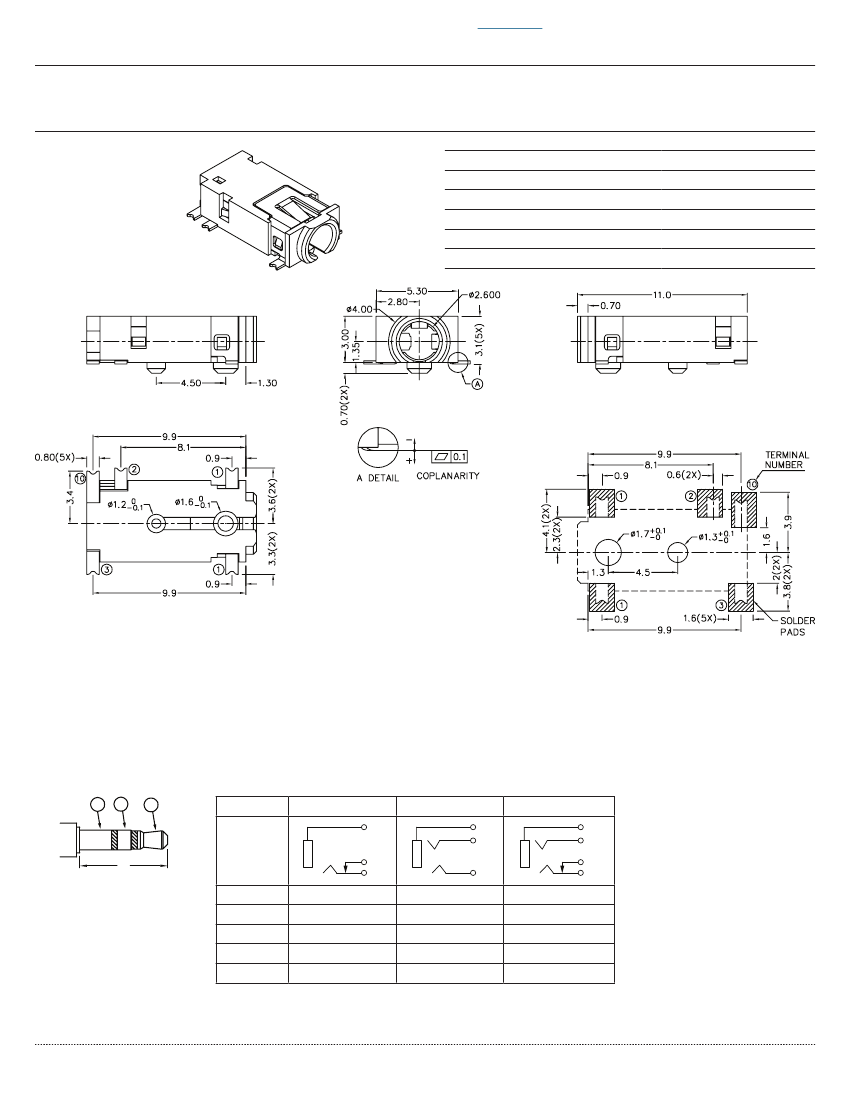

MECHANICAL DRAWING
units: mm
tolerance:
X.X ±0.2 mm
X.XX ±0.10 mm
X.XXX ±0.050 mm
PCB: ±0.05 mm
MATERIAL
terminal 1
terminal 2
terminal 3
terminal 10
plastic
copper alloy
copper alloy
copper alloy
brass
PA10T
PLATING
silver
gold flash
gold flash
gold flash
Recommended PCB Layout
Top View
1
3
2
Model No.
SJ2-25922B-SMT
1
SJ2-25923A-SMT
1
3
2
SJA-25923B-SMT
1
3
10
2
11
Ø2.5 MATING PLUG
Schematic
10
2
PIN
1
2
3
10
sleeve
tip
NP
tip switch
sleeve
tip
ring
NP
sleeve
tip
ring
tip switch
cui.com
For more information, please visit the
product page.
CUI Inc
│
SERIES:
SJ2-2592X-SMT
│
DESCRIPTION:
AUDIO JACK
date
06/07/2017│
page
3 of 4

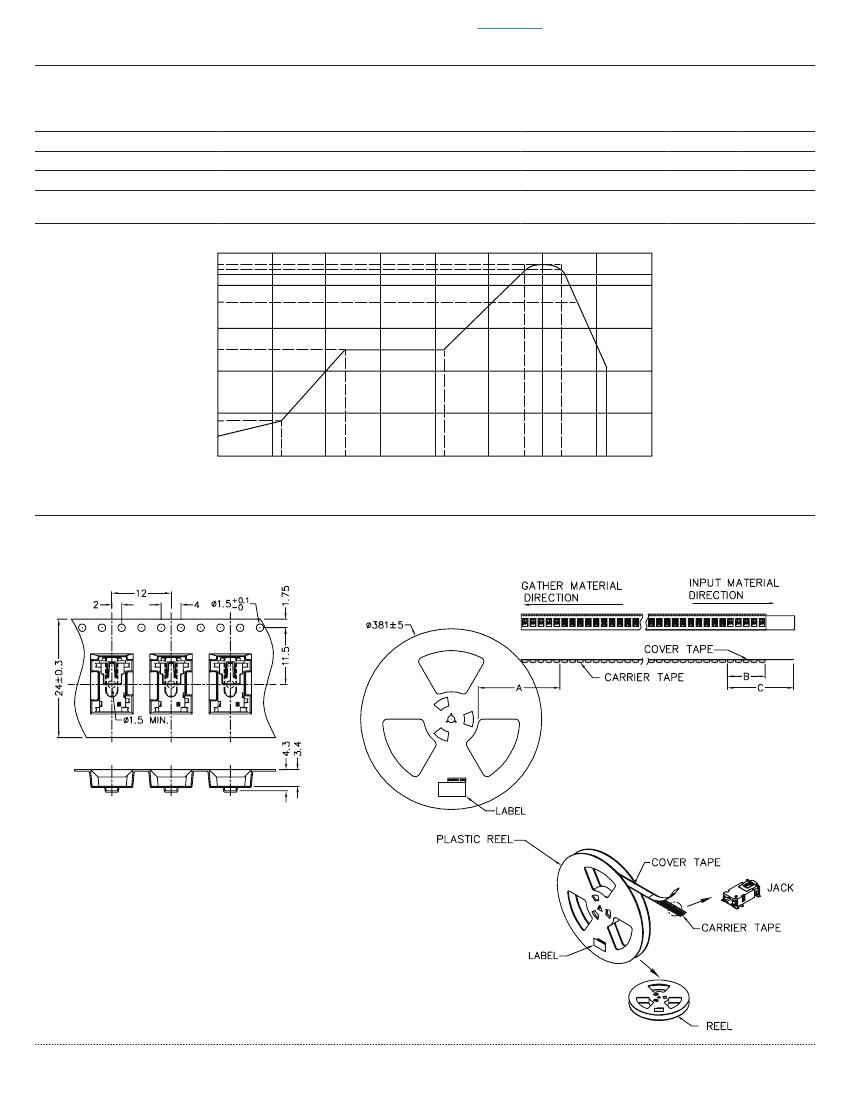

SOLDERABILITY
parameter
reel storage
reflow soldering
1
drying conditions
2
Note:
conditions/description
at relative humidity <80%
see reflow profile
min
255
typ
260
max
40
265
units
°C
°C
parts in reel: bake at 40°C ±5°C for 72 hours
parts removed from reel: bake at 40°C ±5°C for 10 hours
1. Must reflow solder within 72 hours from opening vacuum packaging at a temperature <30°C & relative humidity <60%.
2. When exceeding floor life by >72 hours.
270
260
250
240
Temperature (°C)
217
180
150
120
60
50
70
60
120
140
180
240
250
300
340
360
380
420
430
480
Time (sec)
PACKAGING
units: mm
Reel Size: Ø381 mm
Reel QTY: 1,600 pcs per reel
A: Empty 160 mm min.
B: Empty 100 mm min.
C: Cover 400 mm min.
cui.com
For more information, please visit the
product page.
CUI Inc
│
SERIES:
SJ2-2592X-SMT
│
DESCRIPTION:
AUDIO JACK
date
06/07/2017│
page
4 of 4
REVISION HISTORY
rev.
1.0
1.01
description
initial release
added storage and drying conditions
date
12/07/2016
06/07/2017
The revision history provided is for informational purposes only and is believed to be accurate.
