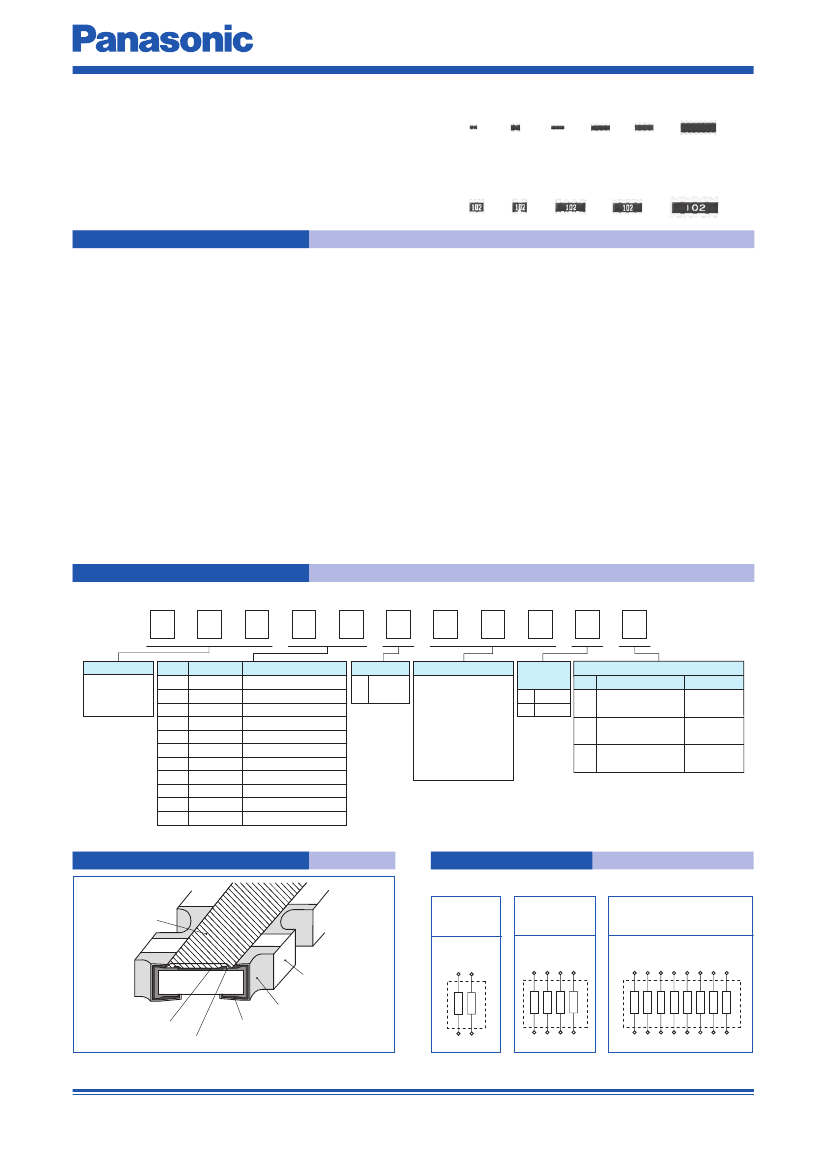

Chip Resistor Array
Chip Resistor Array
Type:
EXB 14V, 18V, 24V, 28V,
N8V, 2HV, 34V, V4V,
38V, V8V, S8V
Features
●
High
density
2 resistors in 0.8 mm
×
0.6 mm size / 0302 inch size : EXB14V
4 resistors in 1.4 mm
×
0.6 mm size / 0502 inch size : EXB18V
2 resistors in 1.0 mm
×
1.0 mm size / 0404 inch size : EXB24V
4 resistors in 2.0 mm
×
1.0 mm size / 0804 inch size : EXB28V, EXBN8V
8 resistors in 3.8 mm
×
1.6 mm size / 1506 inch size : EXB2HV
2 resistors in 1.6 mm
×
1.6 mm size / 0606 inch size : EXB34V, EXBV4V
4 resistors in 3.2 mm
×
1.6 mm size / 1206 inch size : EXB38V, EXBV8V
4 resistors in 5.1 mm
×
2.2 mm size / 2009 inch size : EXBS8V
●
Improvement of placement efficiency
Placement efficiency of Chip Resistor Array is two, four or eight times of the flat type chip resistor
●
Reference Standard…IEC 60115-9, JIS C 5201-9, EIAJ RC-2129
●
AEC-Q200 qualified (EXB2, EXB3)
●
RoHS compliant
■
As for Packaging Methods, Land Pattern, Soldering Conditions and Safety Precautions,
Please see Data Files
Explanation of Part Numbers
1
2
3
4
5
6
7
8
9
10
11
E
Product Code
Thick Film
Chip Resistor
Networks
Code
14
18
24
28
2H
34
38
N8
V4
V8
S8
X
Inch
0201×2
0201×4
0402×2
0402×4
0602×8
0603×2
0603×4
0402×4
0603×2
0603×4
0805×4
B
V
8
V
Schematics
4
7
2
J
V
Construction
Convex Terminal
Flat Terminal
Convex Terminal
Convex Terminal
Convex Terminal
Convex Terminal
Convex Terminal
Concave Terminal
Concave Terminal
Concave Terminal
Concave Terminal
Packaging Methods
Resistance Value
Resistance
Packaging
Part No.
Isolated The first two digits are Tolerance Code
V
type
significant figures of
J ±5 %
Embossed Carrier Taping
Nil 4 mm pitch, 2,500 pcs. EXBS8V
resistance value and
0 Jumper
the third one denotes
Punched Carrier Taping EXB14V, 18V,
the number of zeros
X 2 mm pitch, 10,000 pcs.
24V, 28V, N8V
following. Jumper is
expressed by R00
Punched Carrier Taping EXB2HV, 34V,
V 4 mm pitch, 5,000 pcs.
38V, V4V, V8V
Example : 222
→
2.2k
Ω
Construction (Example : Concave Terminal)
Schematics
●
Isolated type
Protective coating
14V, 24V,
34V, V4V
2 resistors
4
3
18V, 28V, N8V,
38V, V8V, S8V
4 resistors
8
7
6
5
2HV
8 resistors
16 15 14 13 12 11 10
9
Alumina substrate
Electrode (Outer)
Electrode (Between)
1
2
1
2
3
4
1
2
3
4
5
6
7
8
Thick film
resistive element
Electrode (Inner)
Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.
Should a safety concern arise regarding this product, please be sure to contact us immediately.
05 Feb. 2018
Chip Resistor Array
Ratings
[For Resistor]
Part No.
(inch size)
Power Rating Limiting Element Maximum Overload Resistance
(1)
(2)
Voltage
Voltage
at 70 °C
Tolerance
(W / element)
(V)
(V)
(%)
12.5
12.5
50
50
25
50
50
50
50
50
100
25
25
100
100
50
100
100
100
100
100
200
±5
±5
±5
±5
±5
±5
±5
±5
±5
±5
±5
Resistance
Range
(Ω)
10 to 1M (E24)
10 to 1M (E24)
1 to 1M (E24)
1 to 1M (E24)
10 to 1M (E24) <10
Ω
:
–200 to +600
1 to 1M (E24)
T.C.R.
–6
(×10 /°C)
Category
AEC-Q200
Temperature Range
Grade
(°C)
–55 to +125
–55 to +125
–
–
EXB14V
0.031
(0201×2)
0.031
EXB18V
(0201×2)
(0.1 W / package)
EXB24V
0.063
(0402×2)
EXB28V
0.063
(0402×4)
0.063
EXB2HV
(0602×8)
(0.25 W / package)
EXB34V
0.063
(0603×2)
EXB38V
0.063
(0603×4)
EXBN8V
0.031
(0402×4)
EXBV4V
0.063
(0603×2)
EXBV8V
0.063
(0603×4)
EXBS8V
0.1
(0805×4)
–55 to +125 Grade 1
–55 to +125 Grade 1
–55 to +125 Grade 1
–55 to +125 Grade 1
10
Ω
to1M
Ω
:
1 to 1M (E24) ±200
–55 to +125 Grade 1
10 to 1M (E24)
10 to 1M (E24)
10 to 1M (E24)
10 to 1M (E24)
–55 to +125
–55 to +125
–55 to +125
–55 to +125
–
–
–
–
(1) Rated Continuous Working Voltage (RCWV) shall be determined from RCWV=
√
Power Rating
×
Resistance Values, or Limiting Element Voltage listed above, whichever less.
(2) Overload Test Voltage (OTV) shall be determined from OTV=Specified Magnification (refer to performance)
×
RCWV or Maximum Overload Voltage listed above, whichever less.
[For Jumper]
Part No.
(inch size)
EXB14V
(0201×2)
EXB18V
(0201×4)
EXB24V
(0402×2)
EXB28V
(0402×4)
EXB2HV
(0602×8)
EXB34V
(0603×2)
EXB38V
(0603×4)
EXBN8V
(0402×4)
EXBV4V
(0603×2)
EXBV8V
(0603×4)
EXBS8V
(0805×4)
Rated Current
(A / element)
0.5
0.5
1
1
1
1
1
1
1
1
2
Maximum Overload Current
(A)
1
1
2
2
2
2
2
2
2
2
4
(1)
Power Derating Curve
For resistors operated in ambient temperatures above
70 °C, power rating shall be derated in accordance
with the figure below.
–55 °C
100
Rated Load (%)
80
60
40
20
125 °C
0
–60 –40 –20 0
20 40 60 80 100 120 140 160 180
70 °C
Ambient Temperature (°C)
(1) Overload test current
Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.
Should a safety concern arise regarding this product, please be sure to contact us immediately.
05 Feb. 2018
Chip Resistor Array

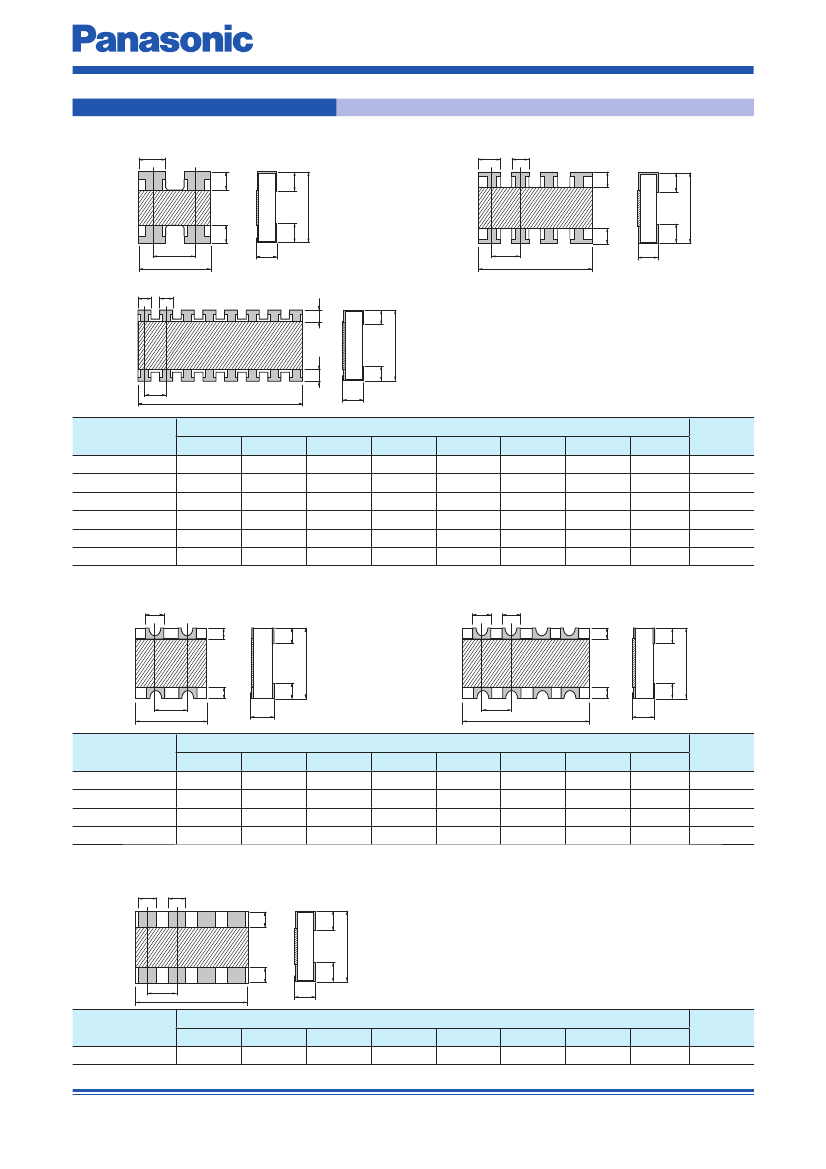

Dimensions in mm (not to scale)
(1) Convex Terminal type
A1
EXB14V, 24V, 34V
B
G
A1
A2
EXB28V, 38V
B
G
T
L
EXB2HV
B
G
G
W
P
B
T
G
W
B
G
W
P
L
A1 A2
T
P
L
Part No.
(inch size)
EXB14V (0201×2)
EXB24V (0402×2)
EXB28V (0402×4)
EXB2HV (0602×8)
EXB34V (0603×2)
EXB38V (0603×4)
Dimensions (mm)
L
0.80
±0.10
±0.10
±0.10
±0.10
±0.20
±0.20
B
W
0.60
1.00
1.00
1.60
1.60
1.60
±0.10
±0.10
±0.10
±0.10
±0.15
±0.15
T
0.35
0.35
0.35
0.45
0.50
0.50
±0.10
±0.10
±0.10
±0.10
±0.10
±0.10
A1
0.35
0.40
0.45
0.35
0.65
0.65
±0.10
±0.10
±0.10
±0.10
±0.15
±0.15
A2
—
—
0.35
0.35
0.45
±0.10
±0.10
B
0.15
0.18
0.20
0.30
0.30
±0.10
±0.10
±0.10
±0.10
±0.20
±0.20
P
(0.50)
(0.65)
(0.50)
(0.50)
(0.80)
(0.80)
G
0.15
0.25
0.25
0.30
0.30
0.35
±0.10
±0.10
±0.10
±0.10
±0.20
±0.20
Mass (Weight)
[g/1000 pcs.]
0.5
1.2
2.0
9.0
3.5
7.0
1.00
2.00
3.80
1.60
3.20
—
±0.15
0.30
( ) Reference
(2) Concave Terminal type
A1
EXBV4V
B
G
A1
A2
EXBN8V, V8V, S8V
B
G
T
G
W
P
L
G
W
P
L
B
T
Part No.
(inch size)
EXBN8V (0402×4)
EXBV4V (0603×2)
EXBV8V (0603×4)
EXBS8V (0805×4)
Dimensions (mm)
L
2.00
±0.10
+0.20
B
W
1.00
1.60
2.20
±0.10
+0.20
T
0.45
0.60
0.60
0.70
±0.10
±0.10
±0.10
±0.20
A1
0.30
0.60
0.60
0.80
±0.10
±0.10
±0.10
±0.15
A2
0.30
0.60
0.80
±0.10
B
0.20
0.30
0.50
±0.15
±0.15
±0.15
±0.15
P
(0.50)
(0.80)
(0.80)
(1.27)
G
0.30
0.45
0.45
0.55
±0.15
±0.15
±0.15
±0.15
Mass (Weight)
[g/1000 pcs.]
3.0
5.0
10
30
1.60
–0.10
3.20
5.08
+0.20
–0.10
+0.20
–0.10
1.60
–0.10
+0.20
–0.10
+0.20
–0.10
—
±0.10
±0.15
0.30
( ) Reference
(3) Flat Terminal type
A1
A2
EXB18V
G
T
G
W
P
L
B
B
Part No.
(inch size)
EXB18V (0201×4)
Dimensions (mm)
L
1.40±0.10
W
0.60±0.10
T
0.35±0.10
A1
0.20±0.10
A2
0.20±0.10
B
0.10±0.10
P
(0.40)
G
0.20±0.10
Mass (Weight)
[g/1000 pcs.]
1.0
( ) Reference
Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.
Should a safety concern arise regarding this product, please be sure to contact us immediately.
05 Feb. 2018
Chip Resistor Array
Perfomance
Test Item
Resistance
T. C. R.
Overload
Resistance to Soldering Heat
Rapid Change of Temperature
High Temperature Exposure
Damp Heat, Steady State
Load Life in Humidity
Endurance at 70 °C
Performance
Requirements
Within Specified
Tolerance
Within Specified
T. C. R.
±2%
±1%
±1%
±1%
±1%
±3%
±3%
Test Conditions
20 °C
+25 °C/+125 °C
Rated Voltage
×
2.5, 5 s
Jumper type : Max. Overload Current, 5 s
270 °C, 10 s
–55 °C (30min.) / +125 °C (30min.), 100 cycles
+125 °C , 1000 h
60 °C, 90% to 95 %RH, 1000 h
60 °C, 90% to 95 %RH, Rated Voltage (Jumper type: Rated Current),
1.5 h ON/0.5 h OFF cycle, 1000 h
70 °C, Rated Voltage(Jumper type: Rated Current),
1.5 h ON/0.5 h OFF cycle, 1000 h
Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.
Should a safety concern arise regarding this product, please be sure to contact us immediately.
05 Feb. 2018
