Tape and Packing
Product
Transistor / MOSFET
Package HSMT8
Type TB
1. Components description (Only for reference)
3.3
(8)
(7)
(6)
(5)
0.8
3.3
3.0
1pin mark
(1)
(2)
(3)
(4)
0.2
Unit
：
mm
1.75±0.1
2. Taping dimensions
Φ1.5
+0.1
-0
4.0±0.1
2.0±0.05
8.0±0.1
0.3±0.05
9.2±0.1
12.0
+0.3
-0.1
5.5±0.05
3.7±0.1
3.7±0.1
Φ1.5 Min.
1.1±0.1
Unit
：
mm
Note) Feed holes might be cover with the adhesive tape, but nothing will affect for using by that.
3. Tape and packing specification
3-1. Direction of tape winding
1pin on the reel side. The direction shall be one in a reel.
3-2. Cumulative pitch tolerance
The cumulative pitch tolerance of the mold for producing the carrier tape shall be within ±0.2mm
per 10pitches.
3-3. The minimum radius to bend the carrier tape
Carrier tape shall be flexible enough to protect from no component and damage under a minimum
radius of 30mm. However it shall be defined only inside of carrier tape．
3-4. The material of carrier tape
Special carbon paints are coated both sides of polystyrene.
3-5. Failure Rate
Incidence
Continuous missing
Discontinuous missing
0%
Max.0.1%／reel
Remark
Except
leader and trail portion
www.rohm.com
©2016 ROHM Co., Ltd. All rights reserved
1/4
2016.1 - Rev.A

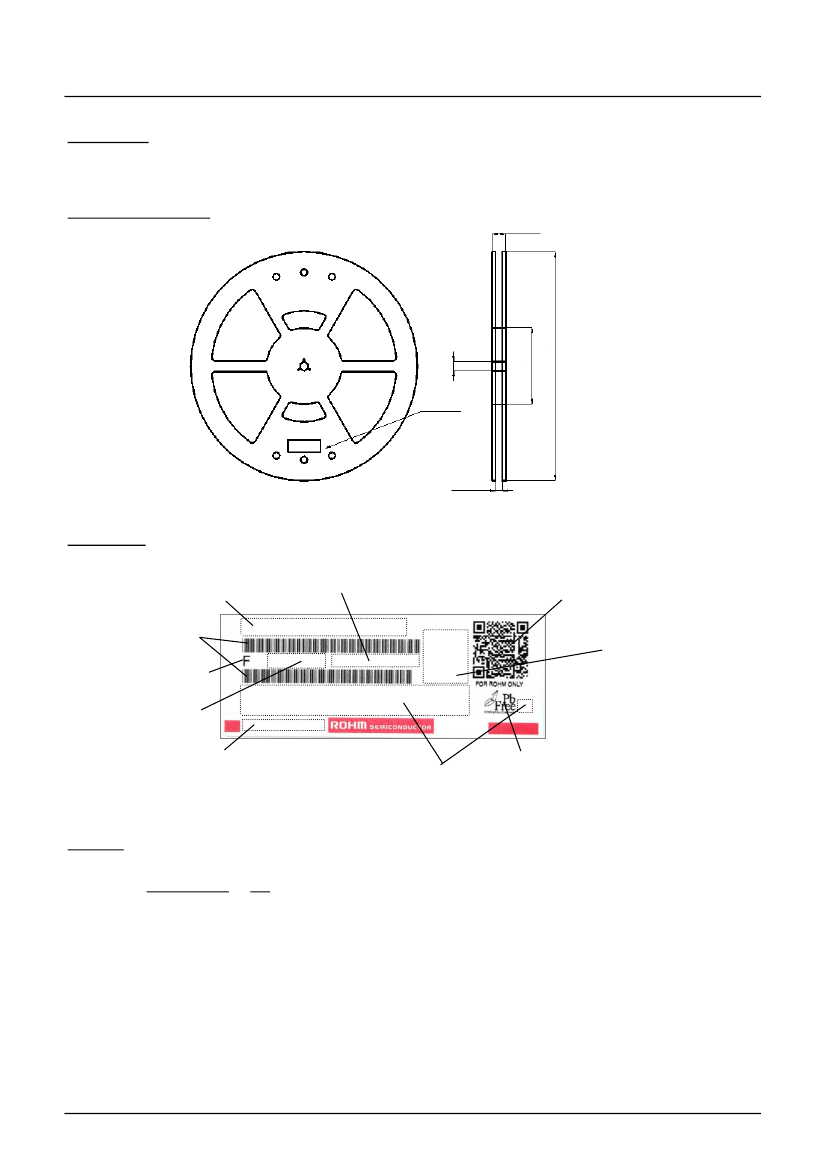

HSMT8 Tape Packing:TB

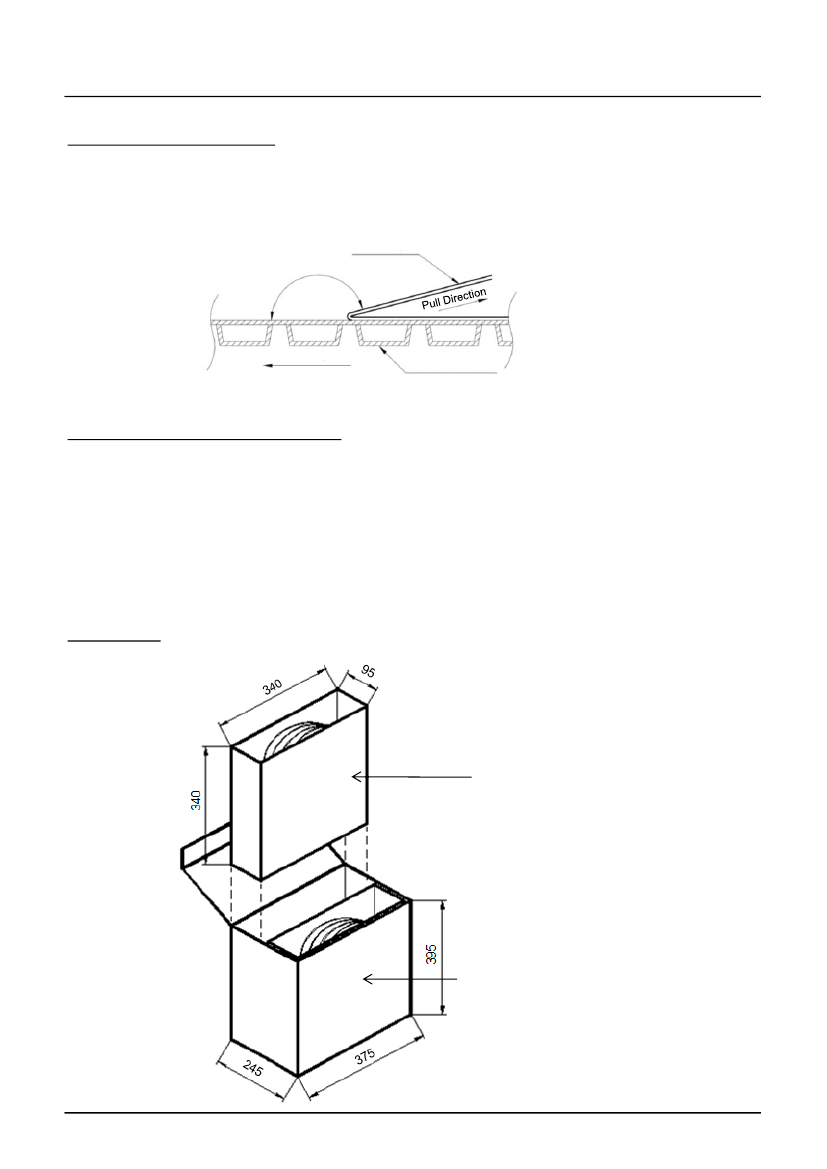

10. Taping Peeling Strength
Peeling strength : 0.1N½1.3N
（If
products have stored over our recommended storage condition.）
【Test
condition
（Based
on JIS C 0806-3）】
Pull direction at angle from 165°to 180°and pull the seal tape with the speed of 300mm/min±10mm/min.
Seal tape
165°½ 180°
Pull Direction
Emboss Carrier
11. Recommended storage condition
Recommended storage condition :
Temperature 5℃ - 40℃, Humidity 30%RH - 80%RH
Recommended storage time period :
Five years after production
Notes） It is strongly recommended to confirm solderability before using products of which storage time
is exceeding recommended storage time period.
12. Package
3kpcs
×
5 reel = 15kpcs
15kpcs
×
2 inner box = 30kpcs
(Unit : mm)
www.rohm.com
©2016 ROHM Co., Ltd. All rights reserved
4/4
2016.1 - Rev.A
