SPRING-LOADED
CONNECTORS

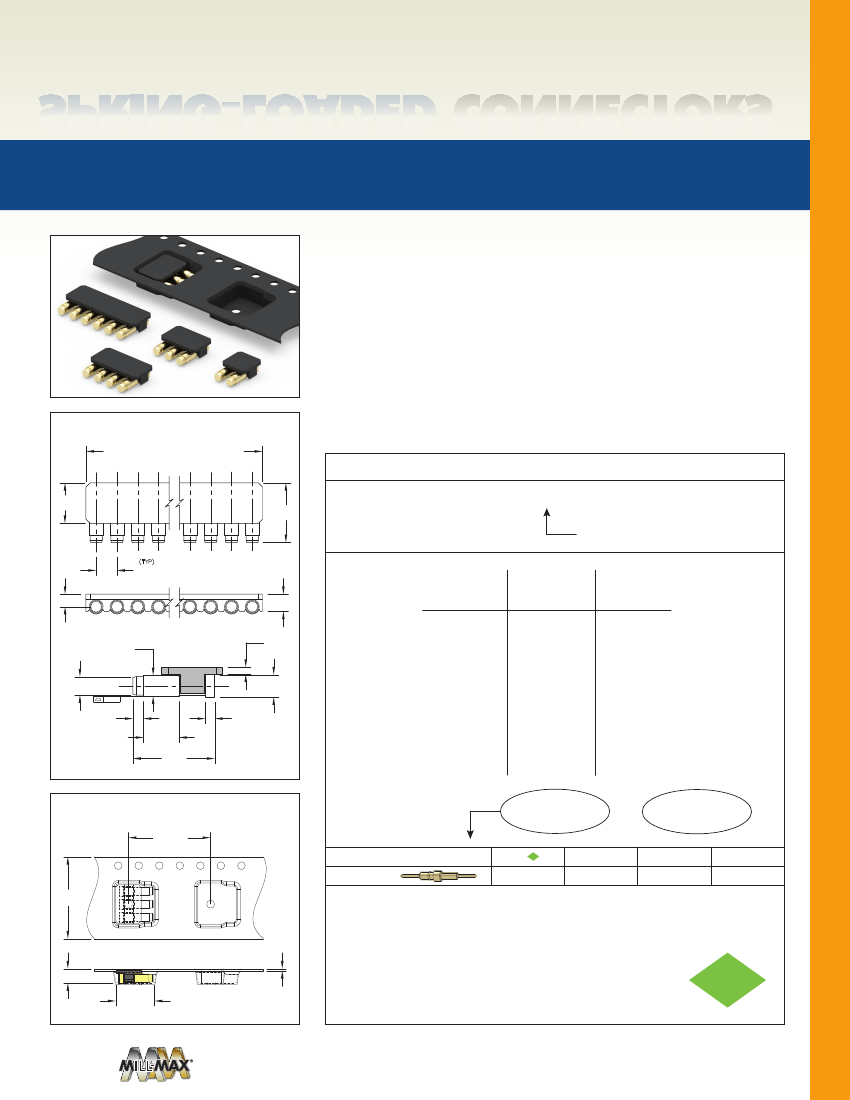

SERIES 319 • .100” GRID HSMT TARGET CONNECTORS
FOR SPRING
-
LOADED ASSEMBLIES • SINGLE ROW STRIPS
•
Series 319 HSMT Spring Target Connectors, supplied in single row strips
•
Target Connectors provide an excellent gold-plated conductive mating surface for
spring loaded connectors. This series is offered with a flat face for making contact
with our standard .042” dia. spring pin plungers
•
These target connectors provide a low profile, horizontal surface mount connection to
the PCB and are designed to mate with standard .100” pitch spring loaded connectors.
They are ideal for daisy chaining P.C.B.’s when mated with SLC 810-22-1XX-40-005191 or
for mating boards in a perpendicular orientation
•
The 319 series is packaged on tape & reel - 16, 24, 32 or 44 mm wide x 16 mm pitch,
making them simple to integrate into existing pick & place equipment and assembly
processes. The tape packaging is per EIA-481-D
Series 319 (HSMT Target)
[Number of Positions (XX)] X .100”
ORDERING INFORMATION
Series 319 (Tape & Reel Packaged)
319-10-1_ _-40-080001
Specify number of pins
02-10
.195
(.287)
.100
.060
.083
Number of
Pins
2
3
4
5
6
7
8
9
10
Tape Width
Size (A)
16mm
16mm
24mm
24mm
24mm
32mm
32mm
44mm
44mm
Quantity
per Reel
1,450
1,450
1,450
1,450
1,450
1,450
1,450
1,450
1,450
For
Electrical, Mechanical
& Enviromental Data,
See page 264
Ø.067
.023
Ø.059
.005
(XX) SURFACES
Ø.072
.034
.113
.262
.030
Series 319 (Tape Pocket Details)
[16mm]
.6299
XX=Plating Code
See Below
SPECIFY PLATING CODE XX=
Pin Plating
A
10
10
μ”
Au
Materials:
Pin Material: Brass Alloy 385 or 360, 1/2 Hard
Pin Finish: 10μ” Gold over Nickel
Insulator: High temperature Nylon 46, rated UL94 V-0
.108
.296
.016
Technical Specifications
Electrical:
Insulation resistance: 10,000MW min.
Dielectric strength: 700Vrms min.
2011/65/EU
RoHS - 2
Mill-Max Mfg. Corp. • 190 Pine Hollow Road, P.O. Box 300, Oyster Bay, NY 11771 • 516-922-6000 • Fax: 516-922-9253 • www.mill-max.com
PAGE 22.4 | SPRING-LOADED CONNECTORS
