POW-R-BLOK
TM
Dual SCR Isolated Module
100 Amperes / Up to 1800 Volts
BB
CD43__99C
Dual SCR Isolated
POW-R-BLOK
TM
Module
100 Amperes / Up to 1800 Volts
Description:
Powerex Dual SCR Modules are
designed for use in applications
requiring phase control and isolated
packaging. The modules are isolated
for easy mounting with other
components on a common heatsink.
Features:
Electrically Isolated Heatsinking
Compression Bonded for Increased
Power Cycling Capability
Low Thermal Impedance
for Improved Current Capability
RoHS Compliant
UL Recognition Pending

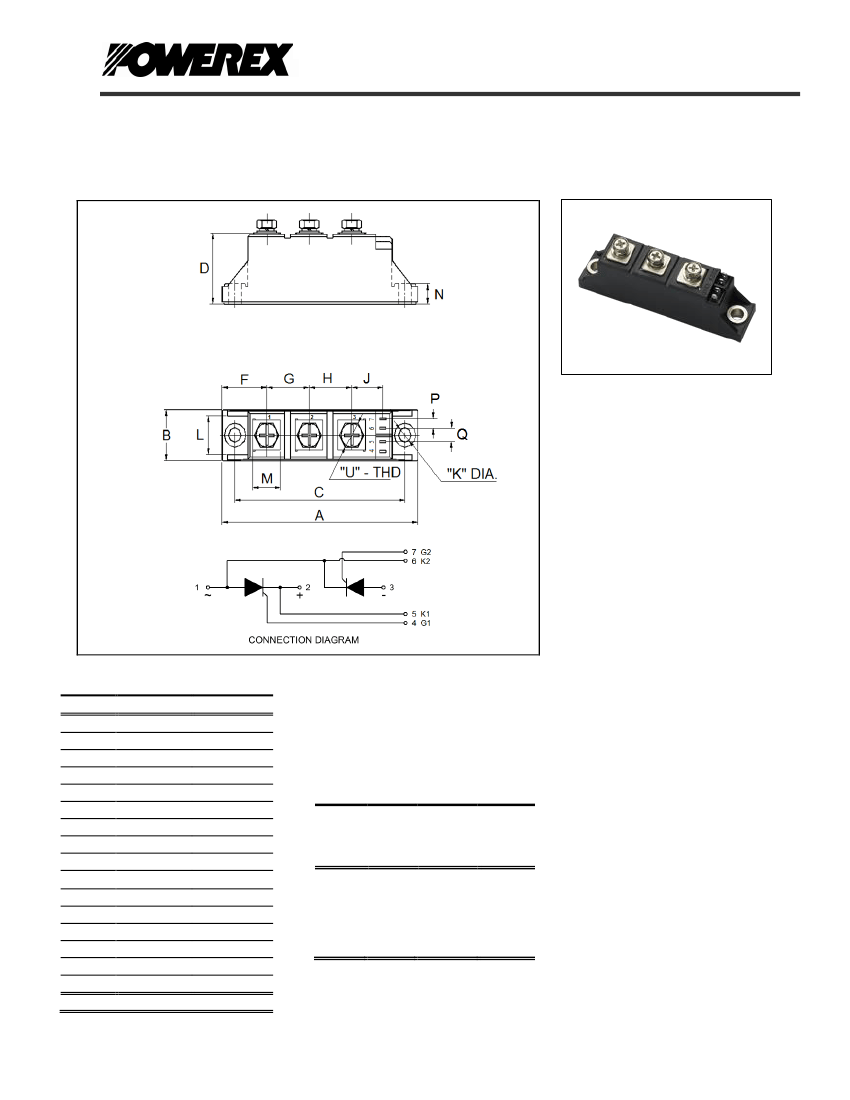

CD43__99C Outline Dimensions
Dimension
A
B
C
D
F
G
H
J
K
L
M
N
P
Q
S
U
Inches
3.62
0.83
3.15
1.18
0.83
0.79
0.79
0.57
0.24
0.63
0.51
0.33
0.16
0.22
0.11 x .02
M5
Millimeters
92
21
80
30
21
20
20
14.5
6.2
16
13
8.5
4
5.6
2.8 x 0.5
M5
Ordering Information:
Select the complete nine digit module
part number from the table below.
Example: CD431699C is a 1600Volt,
100 Ampere Dual SCR Isolated
POW-R-BLOK
TM
Module
Benefits:
No Additional Insulation
Components Required
Easy Installation
No Clamping Components
Required
Reduce Engineering Time
Type
Voltage Current
Volts Amperes
(x100)
08
12
14
16
18
99
(100 A)
Version
C
CD43
Applications:
Bridge Circuits
AC & DC Motor Drives
Battery Supplies
Power Supplies
Large IGBT Circuit Front Ends
Lighting Control
Heat & Temperature Control
Welders
Revision Date: 03/30/2015
Note: Dimensions are for reference only.
®
CD43__99C
Powerex, Inc., 173 Pavilion Lane, Youngwood, Pennsylvania 15697 (724) 925-7272
www.pwrx.com
POW-R-BLOK
TM
Dual SCR Isolated Module
100 Amperes / Up to 1800 Volts
Absolute Maximum Ratings
Characteristics
Repetitive Peak Forward and Reverse Blocking
Voltage
Non-Repetitive Peak Reverse Blocking Voltage
(t < 5 msec)
RMS Forward Current
Average Forward Current
Peak One Cycle Surge Current, Non-Repetitive
I
2
t for Fusing for One Cycle, 10 milliseconds
Maximum Rate-of-Rise of On-State Current,
(Repetitive)
Operating Temperature
Storage Temperature
Max. Mounting Torque, M5 Mounting Screw on
Terminals
Max. Mounting Torque, Module to Heatsink
Module Weight, Typical
V Isolation @ 25C
50 – 60 Hz, 1 minute
V
rms
180° Conduction, T
C
=85°C
180° Conduction, T
C
=88°C
180° Conduction, T
C
=85°C
180° Conduction, T
C
=88°C
50 Hz, 60% V
RRM
reapplied, T
j
=125°C
50 Hz, 60% V
RRM
reapplied, T
j
=125°C
T
j
=125°C
Conditions
Symbol
V
DRM
& V
RRM
V
RSM
I
T(RMS)
I
T(RMS)
I
T(AV)
I
T(AV)
I
TSM
up to 1800
V
RRM
+ 100
173
157
110
100
2400
Units
V
V
A
A
A
A
A
I
2
t
di/dt
T
J
T
stg
29,000
100
-40 to +125
-40 to +125
35
4
53
6
160
5.64
2500
A
2
sec
A/µs
°C
°C
in.-Lb.
Nm
in.-Lb.
Nm
g
oz.
V
Information presented is based upon manufacturers testing and projected capabilities.
This information is subject to change without notice.
The manufacturer makes no claim as to the suitability of use, reliability, capability,
or future availability of this product.
Revision Date: 03/30/2015
®
CD43__99C
Powerex, Inc., 173 Pavilion Lane, Youngwood, Pennsylvania 15697 (724) 925-7272
www.pwrx.com
POW-R-BLOK
TM
Dual SCR Isolated Module
100 Amperes / Up to 1800 Volts
Electrical Characteristics, T
J
=25°C unless otherwise specified
Characteristics
Repetitive Peak Forward Leakage Current
Repetitive Peak Reverse Leakage Current
Peak On-State Voltage
Threshold Voltage, Low-level
Slope Resistance, Low-level
Minimum dV/dt
Gate Trigger Current
Gate Trigger Voltage
Holding Current
Symbol
I
DRM
I
RRM
V
TM
V
(TO)1
r
T1
dV/dt
I
GT
V
GT
I
H
Test Conditions
Up to V
DRM
, T
J
=125°C
Up to V
RRM
, T
J
=125°C
I
TM
=270A
T
J
= 125°C, I = 16.7% x
I
T(AV)
to
I
T(AV)
T
j
=125°C, V
DM
= 0.67 V
DRM
T
j
= 25°C, V
D
=12V, I
A
= 1 A
T
j
= 25°C, V
D
=12V, I
A
= 1 A
T
j
= 25°C, V
D
=12V, I
A
= 1 A
800
30
0.75
20
100
2.5
150
Min.
Max.
12
12
1.83
0.8
3.01
Units
mA
mA
V
V
mΩ
V/µs
mA
Volts
mA
Thermal Characteristics
Characteristics
Thermal Resistance, Junction to Case
DC Operation
Thermal Resistance, Case to Sink Lubricated
Symbol
R
ΘJ-C
R
ΘC-S
Per Junction, both conducting
Per Module
Max.
0.25
0.15
Units
°C/W
°C/W
Revision Date: 03/30/2015
®
CD43__99C
Powerex, Inc., 173 Pavilion Lane, Youngwood, Pennsylvania 15697 (724) 925-7272
www.pwrx.com
POW-R-BLOK
TM
Dual SCR Isolated Module
100 Amperes / Up to 1800 Volts

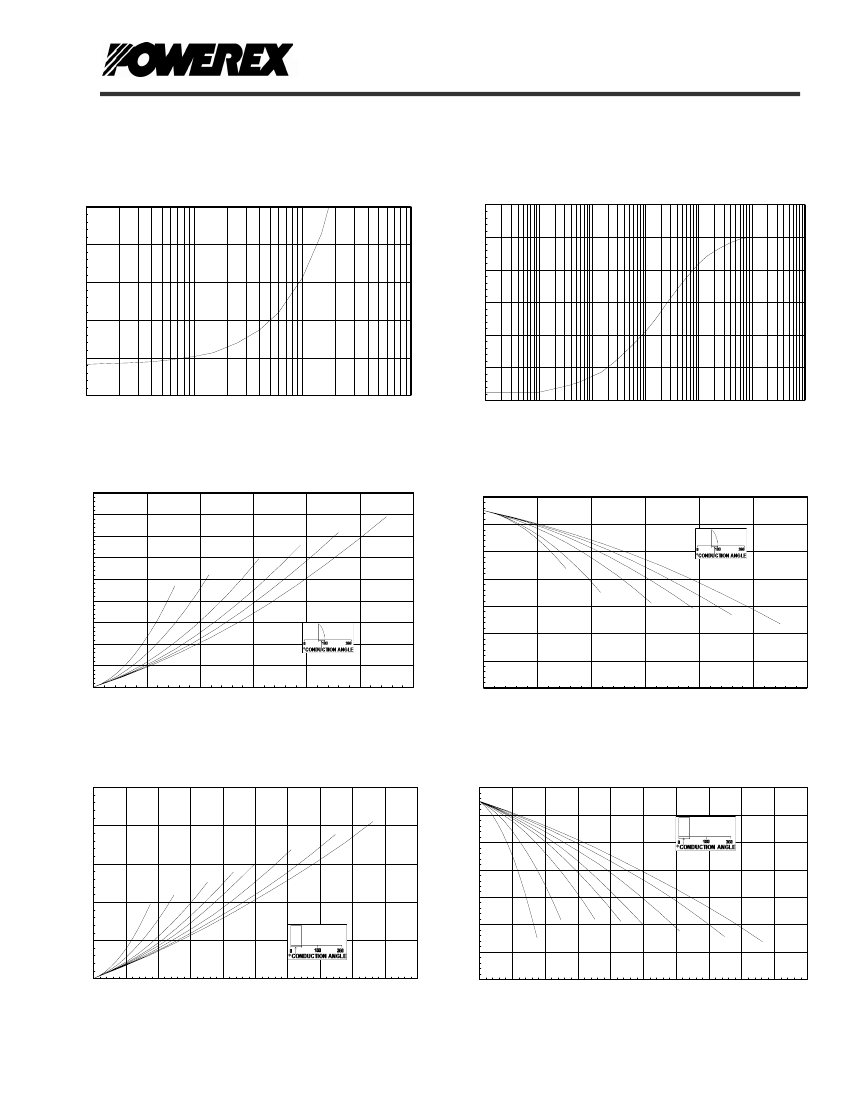

Maximum Transient Thermal Impedance
(Junction to Case)
Maximum On-State Forward Voltage Drop
( Tj = 125 C )
5
0.3
On-State Voltage - Vtm - Volts
Thermal Impedance - Rjc - °C/W
0.25
4
0.2
3
0.15
2
0.1
1
0.05
0
10
100
1000
10000
0
0.0001
0.001
0.01
0.1
Time - t - Seconds
1
10
100
Instantaneous On-State Current - Itm - Amperes
Maximum On-State Power Dissipation
(Sinusoidal Waveform)
180
130
180°
Maximum Allowable Case Temperature
(Sinusoidal Waveform)
Maximum Power Dissipation Per SCR - Watts
160
120°
140
90°
60°
30°
100
80
60
40
20
0
0
20
40
60
80
100
15°
Max. Case Temperature - Tcase - °C
120
120
110
15°
30°
60°
90°
120°
100
90
80
180°
70
60
120
0
20
40
60
80
100
120
Average On-State Current - It(av) - Amperes
Average On-State Current - It(av) - Amperes
Maximum On-State Power Dissipation
(Rectangular Waveform)
250
130
360°
200
180°
120°
150
60°
30°
100
15°
90°
270°
Maximum Allowable Case Temperature
(Rectangular Waveform)
Maximum Power Dissipation Per SCR - Watts
Max. Case Temperature - Tcase - °C
120
110
100
90
80
15°
30°
60°
90°
120°
50
180°
70
270°
360° (DC)
0
60
0
20
40
60
80
100
120
140
160
180
200
0
20
40
60
80
100
120
140
160
180
200
Average On-State Current - It(av) - Amperes
Average On-State Current - It(av) - Amperes
Revision Date: 03/30/2015
