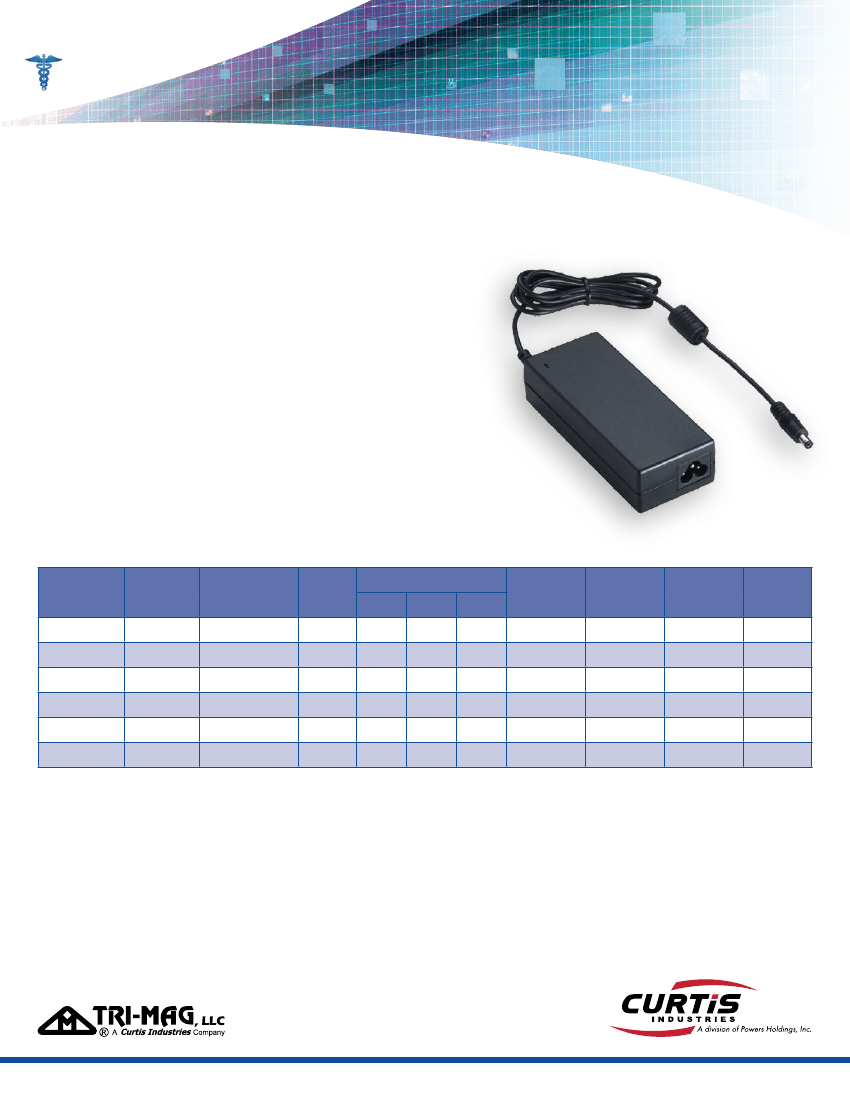

L6R90DM Series
90W Medical Power Supply
•
•
•
•
•
•
•
•
DOE Level VI Efficiency Rating
Universal Input: 90 ~ 264Vac, 47/63 Hz
ANSI/AAMI/IEC/EN ES60601-1:2012 Approved
Means of Protection: 2xMOPP
Corded Output Connection
IEC 60320 C6 / C14, C8 / C18 AC input connectors
Light Weight and Compact
2-Year Warranty
Output
Connector
Corded Connector
Corded Connector
Corded Connector
Corded Connector
Corded Connector
Corded Connector
Output
Voltage
+12.0V
+15.0V
+18.0V
+19.0V
+24.0V
+48.0V
Output Current (A)
Min
0
0
0
0
0
0
Rated
7.00
6.00
5.00
4.74
3.75
1.88
Peak
—
—
—
—
—
—
Voltage
Accuracy
±5%
±5%
±5%
±5%
±5%
±5%
Ripple
Noise
< ± 2%
< ± 2%
< ± 2%
< ± 2%
< ± 2%
< ± 2%
Line
Reg.
± 1%
± 1%
± 1%
± 1%
± 1%
± 1%
Load
Reg.
± 5%
± 5%
± 5%
± 5%
± 5%
± 5%
Model No.
1
Application
Medical
Medical
Medical
Medical
Medical
Medical
L6R90DM-120
L6R90DM-150
L6R90DM-180
L6R90DM-190
L6R90DM-240
L6R90DM-480
1. Add “C6”, C8, “C14” or “”C18” for the required AC input connector configuration.
•
•
•
•
•
The output voltage is verified to specs at 60 percent rated load condition.
The
line regulation
is defined by changing ± 10 percent of input voltage from the nominal line at rated load.
The
load regulation
is defined by changing ± 40 percent of the measured output load from 60 percent of the rated load.
The
ripple and noise
is measured by using 20MHz bandwidth limited oscilloscope with each output terminated with a 10 µF electrolytic and a 0.1 µF capacitor at rated load
and nominal line.
The
efficiency
is measured at rated load and nominal line.
1601 N. Clancy Ct. • Visalia, CA 93291 • (559) 651-2222 • FAX (559) 651-0188 • sales@tri-mag.com •
tri-mag.com
GREEN POW ER
Medical Power
Supplies
Power
Supplies
L6R90DM Series
Innovative, inexpensive and medical reliability. This
economical DOE Level VI compliant medical power
supply/charger is available in a variety of voltage
levels, 12.0 to 48.0Vdc (per the model number table)
to match your needs. Rated up to 90W when
powering either stationary or charging portable
devices for home healthcare and medical office/
hospital applications.
Specifications
Input
Input Voltage
Input Frequency
No Load Input Power
Input Current
Inrush Current
Leakage Current
Input Connection
•
•
•
•
•
•
•
90 Vac ~ 264 Vac, 100~240Vac Nominal
47 Hz to 63 Hz
< 0.15W
1.2A @ 120Vac / 0.5A @ 230Vac
60A Max. / 230Vac
< 100μA
IEC 60320 C6 / C14 or C8 / C18,
dependent upon output voltage and
resulting input current
Environmental
Operating Temperature
Operating Humidity
Storage Temperature
Storage Humidity
•
•
•
•
0°C to 40°C
20 to 80% RH, Non-Condensing
-20°C to +80°C
10 to 90%, Non-Condensing
EMC & Safety
Safety Approvals
EMC Approvals
• ANSI/AAMI ES60601-1:2012, edition 3.1
IEC/EN ES60601-1:2012, edition 3.1
• Radiated & Conducted Emissions:
EN55011 CISPR 11, Class B
Harmonic Current: EN61000-3-2, 3
EMC: IEC60601-1-2:2014, edition 4.0
Output
Output Voltages
Output Current Range
Minimum Load
Line Regulation
Load Regulation
Ripple & Noise
Hold-up Time
Overvoltage Protection
Overload Protection
Short Circuit Protection
•
•
•
•
•
•
•
•
•
•
12.0, 15.0, 18.0, 19.0, 24.0 and 48.0Vdc
7.00 to 1.88A
No min. load required.
± 1% at rated load across input
voltage range
± 5% (typical)
2% Vp-p Max. @ full load
10mS @ Full Load
Auto recovery
Auto recovery
Auto recovery
Warranty
Warranty Period
• 2 years
Dimensions and Notes
Dimensions in mm
Tolerance
Size
Weight
Connectors
• ± 0.2mm
• L 151 x W 64 x H 35 mm
L 5.94” x W 2.52” x H 1.38”
• Approx. 450g [1.0 lb.] (ref.)
• AC input: IEC 60320 C6 / C14 or
C8 / C18 connector
DC output: Standard 5.5mm x 2.1mm
corded dc output connector or
per customer specification.
• 1500 ±50 mm [59.1 ±2.0”]
General
Dielectric Withstand
Efficiency
MTBF
•
•
•
4,000Vac Primary to Secondary
DoE Level VI, ErP Stage 2 compliant
300,000 hrs. @ 25ºC per Telcordia SR-332
Output Cord length

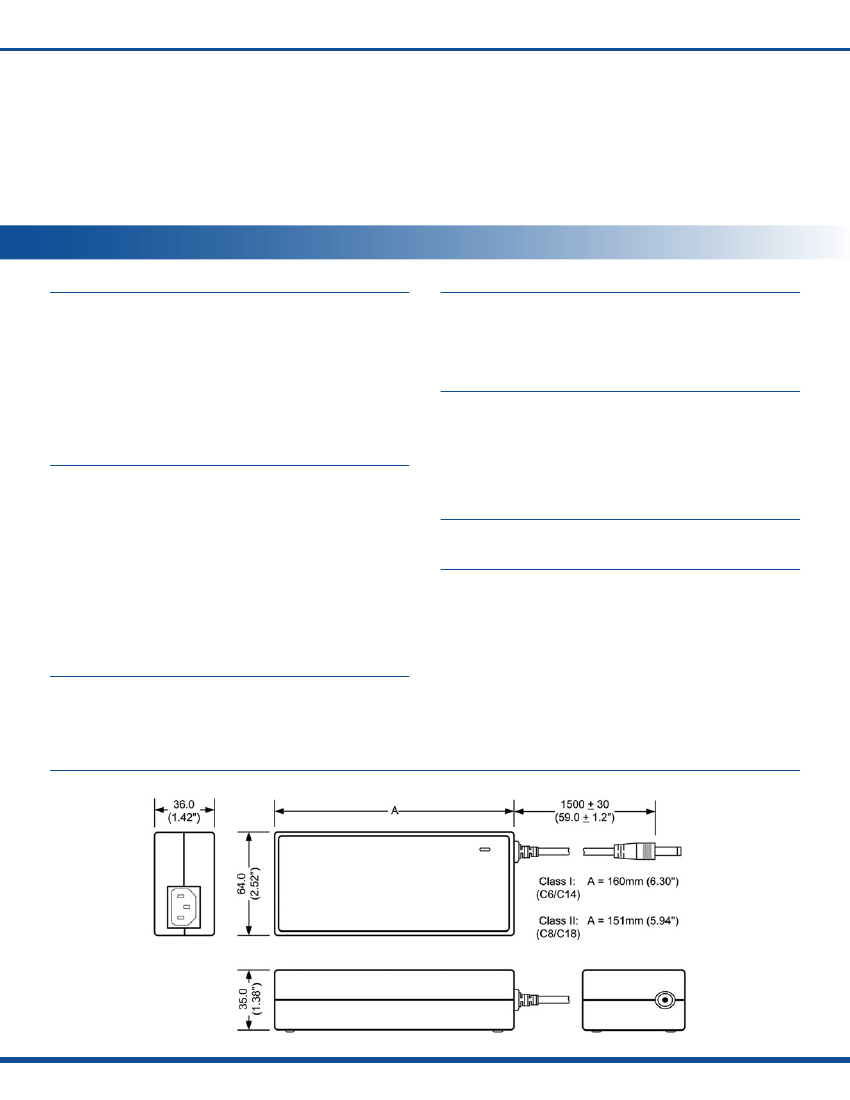

Mechanical Drawing
2017-08
