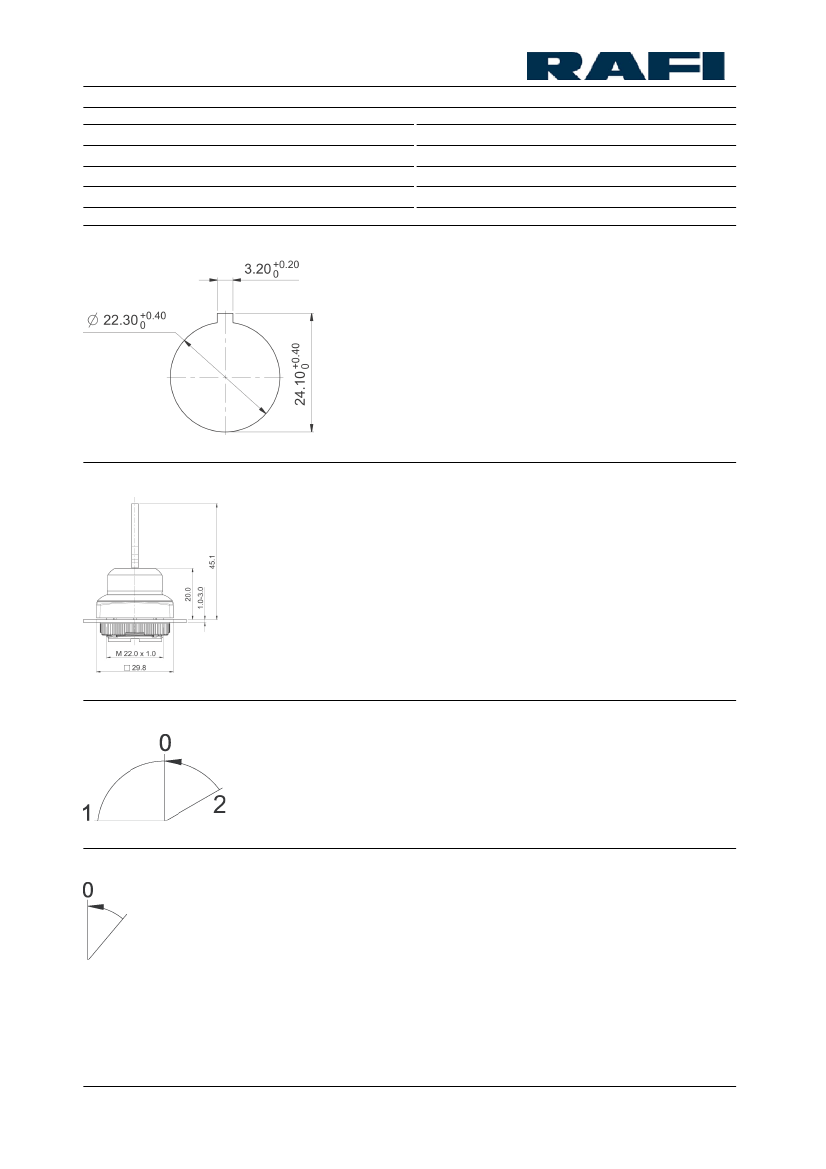

RAFIX 22 FS
+
- Keylock switch compact, square collar
1.30.275.551/0100
Other lock variants available on request.
Included: 2 keys.
General information
Color of front ring
Form of collar
Dimensions
Dimensions of collar
Width of collar
Overall height
Mounting depth
Mounting hole
Key grid
Mechanical design
Mounting
Contact function
Wafers
Illuminability
Lock type
Main key
Rotating angle
Key removal position
Torque for nut ring
Mechanical characteristics
Torque max.
Other specifications
Operating life
B10
Degree of protection from front side
Ambient temp. operating min.
Ambient temp. operating max.
Storage temperature min.
Storage temperature max.
Environmental restistance
black
square
29.8 x 29.8 mm
29.8 mm
44.1 mm
PCB 9.2 mm, QC 27 mm
22.3 mm
30 x 30 mm
ring nut
latching 1 x 90° and momentary 1 x 40°
5
no
001
on request
1 x 90° and 1 x 40°
0+1
1.2 Nm
1.3 Nm
300,000 momentary / 50,000 latching / 30,000 with key
removal cycle
400,000 momentary / 65,000 latching / 40,000 with key
removal cycle
IP65 (DIN EN 60529)
-25 °C
+70 °C
-40 °C
+80 °C
acc. to IEC 60068-2-14, -30, -33 and -78
Technical data are approximate and intended solely for general orientation in the selection of a product.
Subject to modifications and errors. Images and other graphics may only be similar.
For more information, refer to www.rafi.de chapter Imprint / Data Protection.
13.10.2016
ESD-strength lock / contact
ESD-strength key / front panel
Salt spray
ROHS compliant
REACH compliant
Panel cut-out to IEC 60947-5-1
15 kV
15 kV
IEC 600 68-2-11
yes
yes
Technical data are approximate and intended solely for general orientation in the selection of a product.
Subject to modifications and errors. Images and other graphics may only be similar.
For more information, refer to www.rafi.de chapter Imprint / Data Protection.
