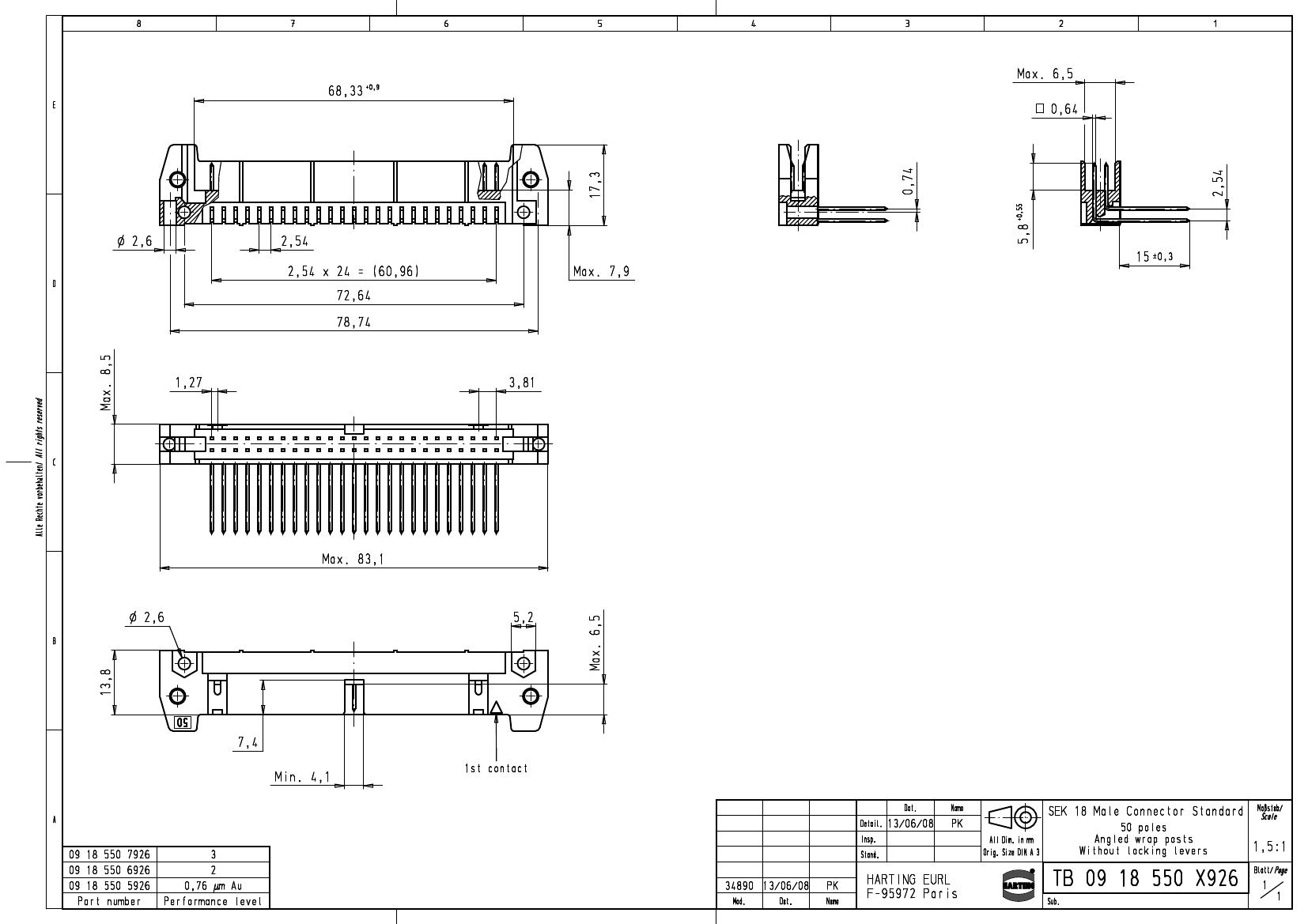

Preview

09185505926: DescriptionCONN HEADER 50POS T/H R/A GOLD; CategoryThe connector The connector; File Size58KB，1 Pages; ManufacturerHARTING; Environmental Compliance

Download Datasheet Parametric Compare View All

09185505926 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	09185505926	-	-	View	Buy Now

09185505926 Overview

CONN HEADER 50POS T/H R/A GOLD

09185505926 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	HARTING
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
Other features	STANDARDS: IEC 60603-1; DIN EN 60603-13, POLARIZED
Board mount options	HOLE .099-.111
body width	0.331 inch
subject depth	0.681 inch
body length	3.26 inch
Body/casing type	RECEPTACLE
Connector type	BOARD EURO CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
DIN compliance	YES
Dielectric withstand voltage	1000VAC V
Filter function	NO
IEC compliance	YES
Insulation resistance	1000000000 Ω
Insulator color	BEIGE
insulator material	POLYBUTYLENE TEREPHTHALATE
MIL compliance	NO
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	30u inch
polarization key	CTR W/GUIDE SLOTS
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.591 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	50
UL Flammability Code	94V-0
Base Number Matches	1
