EHF-125-01-LM-D-SM-15-P datasheet, PDF

Datasheet> All Categories > The connector> EHF-125-01-LM-D-SM-15-P

EHF-125-01-LM-D-SM-15-P: Description.050 EJECTOR HEADER ASSEMBLY; CategoryThe connector; File Size216KB，3 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric View All

EHF-125-01-LM-D-SM-15-P Overview

.050 EJECTOR HEADER ASSEMBLY

EHF-125-01-LM-D-SM-15-P Parametric

Parameter Name	Attribute value
Connector type	Connector
Contact type	Male pin
Spacing - Mating	0.050"（1.27mm）
Number of pins	50
Number of rows	2
Line spacing - patching	0.050"（1.27mm）
Number of pins loaded	49
style	Board to cable/wire
shield	Covered - 4 walls
Installation type	surface mount
Termination	welding
Fastening type	lock/eject hook
Contact Length - Mating	0.120"（3.05mm）
Contact length - terminal	-
Overall contact length	-
Insulation height	0.325"（8.25mm）
Contact shape	Square
Contact surface treatment - mating	gold
Contact Surface Treatment Thickness - Mating	10.0µin（0.25µm）
Contact Surface Preparation - Column	tin
Contact material	Phosphor bronze
Insulation Materials	Liquid crystal polymer (LCP), glass fiber reinforced
characteristic	keyway, pick and place
Operating temperature	-55°C ~ 125°C
Intrusion protection	-
Material flammability rating	-
Insulation color	black
Rated current	1.75A
Rated voltage	-
Joint stack height	-
Contact Surface Treatment Thickness - Column	-
application	-

Preview

Download Datasheet

View All

REVISION AE

DO NOT

SCALE FROM

THIS PRINT

No OF POSITIONS

-03, -04,-05, -08, -10,

2 MAX SWAY

-13, -17, -20, -25

LEAD STYLE

.100 2.54

.310 7.87 REF

-01

(TYP) REF

(No OF POS - 1)

PLATING SPECIFICATION

.135 3.43

x .050 [1.27]

-L: 10µ" SELECTIVE GOLD IN CONTACT AREA,

REF

MATTE TIN ON TAIL (USE T-1SXX-XX-L)

-F: 3µ" SELECTIVE GOLD IN CONTACT AREA,

"A"

MATTE TIN ON TAIL (USE T-1SXX-XX-F)

.263 6.67

-S: 30µ" SELECTIVE GOLD IN CONTACT AREA,

REF

MATTE TIN ON TAIL (USE T-1SXX-XX-S)

-H: 30µ" GOLD IN CONTACT AREA, 3µ" GOLD

"A"

ON TAIL (USE T-1SXX-XX-H)

-LM: 10µ" SELECTIVE GOLD IN CONTACT AREA,

.020 0.51

MATTE TIN ON TAIL (USE T-1SXX-XX-L)

(No OF POS x.050 [1.27])

-SM: 30µ" SELECTIVE GOLD IN CONTACT AREA,

REF

+ .200 [5.08] REF

MATTE TIN ON TAIL (USE T-1SXX-XX-S)

.05 1.270

-FM: 3µ" SELECTIVE GOLD IN CONTACT AREA,

MATTE TIN ON TAIL (USE T-1SXX-XX-F)

.016 0.41 REF

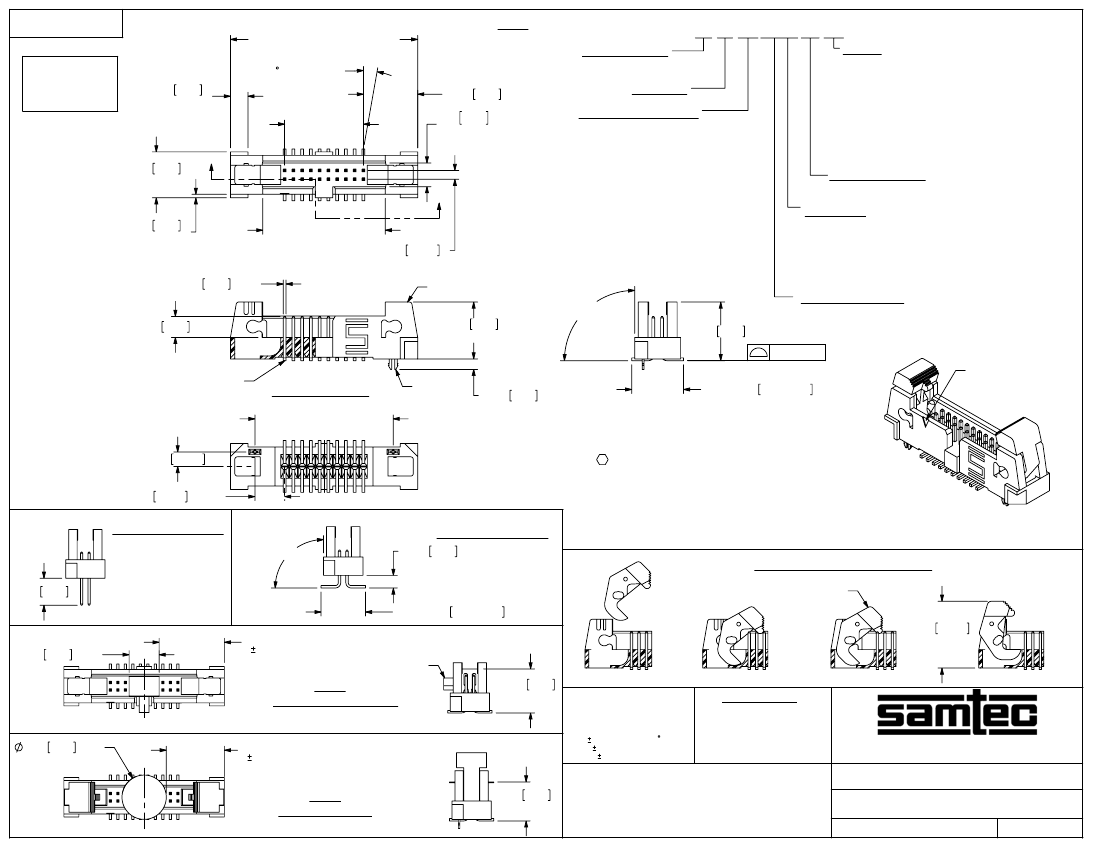

EHF-XX-D

.120 3.05 REF

.325 8.26

REF

90°

- 3°

.335 8.51

+2°

(No OF POS x .050 [1.27]) +

.570 [14.48] REF

EHF-110-01-XX-D-SM-LC

FIG 1

EHF-1XX-01-XX-D-XX-XX-XX

OPTION

-LC: LOCKING CLIP (FOR -D-SM ONLY)

(SEE NOTE 7)

-P: PICK & PLACE PAD (FOR -D-SM ONLY)

(FOR -03 & -04, USE PPP-25, SEE FIG 7, SHT 3)

(FOR -05 THRU -25, USE PPP-48, SEE FIG 2)

-K: POLYIMIDE FILM

(USE K-500-300, SEE FIG 3)

-TR: TAPE & REEL PACKAGING

(FOR -D-SM, -D-SM-P, & -D-SM-K ONLY)

(NOT AVAILABLE ON -D-SM-LC)

POLARIZED OPTION

-XX = PIN OMITTED

(N/A ON -RA OPTION)

TAIL OPTION

(LEAVE BLANK FOR THROUGH HOLE,

SEE FIG 4, SHEET 2, USE T-1S63-01-XX)

-SM: SURFACE MOUNT (USE T-1S15-02-XX)

-RA: RIGHT ANGLE

(USE T-1S63-02-XX AND T-1S63-03-XX)

(SEE FIG 5, SHEET 2)

ROW SPECIFICATION

-D: DOUBLE

.004[0.10]

T-1S15-02-XX

POS 1 INDICATOR

SECTION "A"-"A"

(No OF POS x .050 [1.27])

+ .290 [7.37] REF

LC-09-TM

.060 1.52

.296±.010 7.52±0.25

NOTES:

REPRESENTS A CRITICAL DIMENSION.

2. COPLANARITY TO BE WITHIN .004 [.10].

3. BURR ALLOWANCE: .0015 [.038] MAX.

4. MINIMUM PUSHOUT FORCE: 1 LB MIN.

5. MAXIMUM ALLOWABLE BOW: .002 [.05] INCH/INCH AFTER ASSEMBLY.

6. NOTE DELETED.

7. DUE TO THE HIGH AMOUNT OF INSERTION FORCE NEEDED, THE –LC OPTION IS NOT

COMPATIBLE WITH AUTO PLACEMENT. SAMTEC RECOMMENDS MANUAL PLACEMENT

FOR ALL ASSEMBLIES WITH THE –LC OPTION.

.083 2.111

.170 4.318 (TYP)

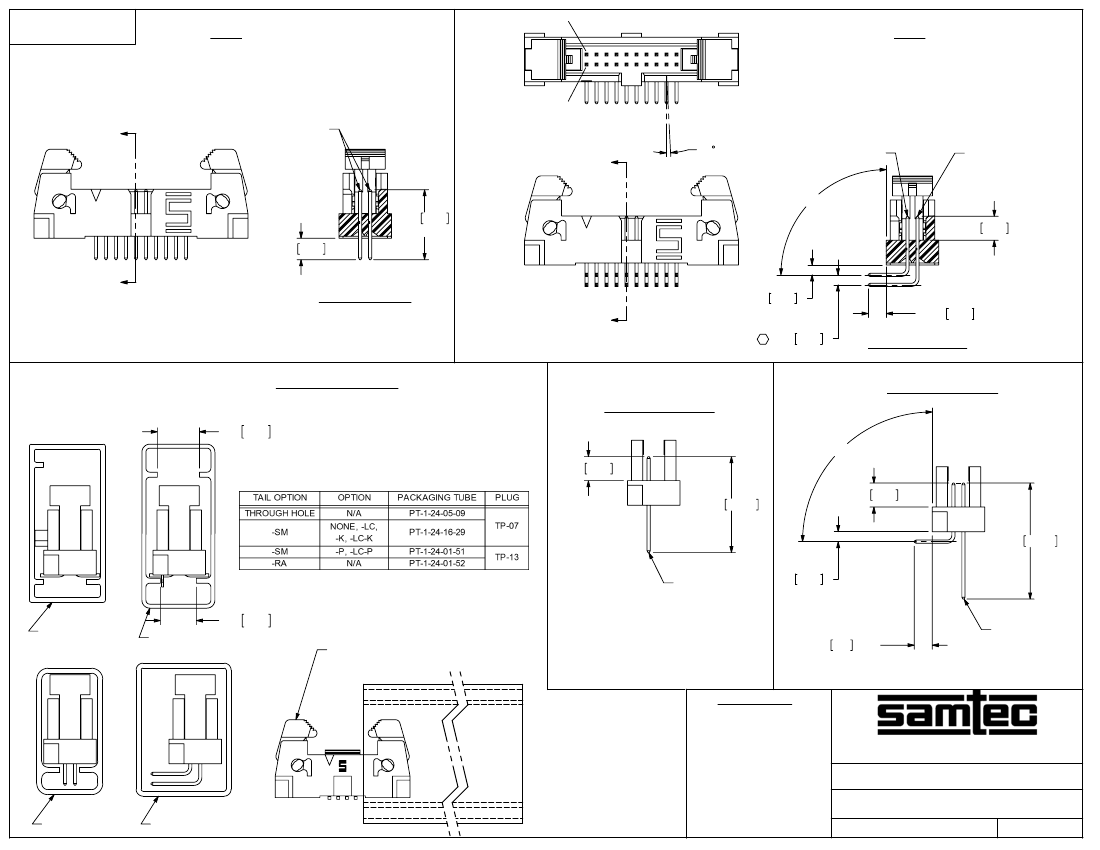

-SM IN-PROCESS 1

(SCALE: 1.5:1)

90°±3°

-SM IN-PROCESS 2

.084 2.13

(SCALE: 1.5:1)

ARM ASSEMBLY & ROTATION

EHA-02

.180 4.57

.296±.010 7.52±0.25

{(No OF POS X .050[1.27] + .370[9.40]) / 2}

.020[0.51]

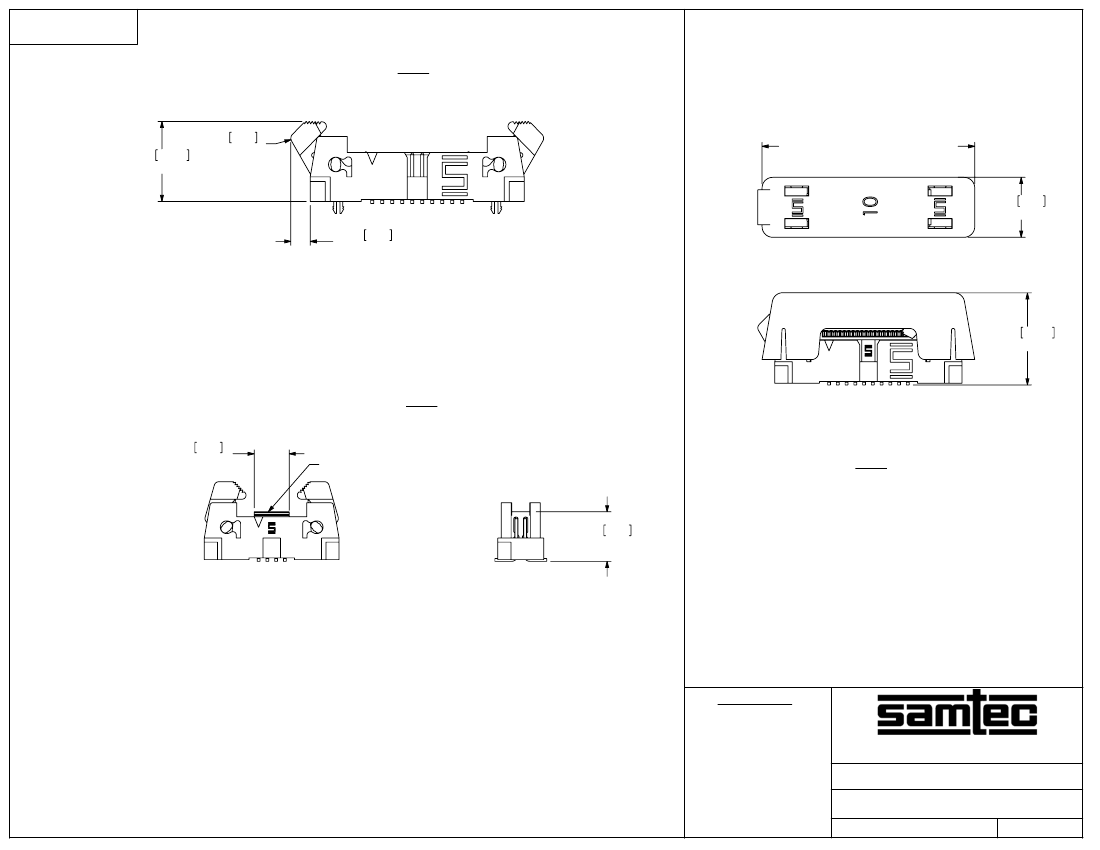

PPP-48

-P: PICK AND PLACE PAD

(SCALE 1.5:1)

{(NO OF POS X .050[1.27] + .275[6.98]) / 2}

.020[0.51]

.200 5.08 REF

.445 11.31

REF

FIG 2

.293 7.44

REF

.295 7.50 REF

UNLESS OTHERWISE SPECIFIED,

DIMENSIONS ARE IN INCHES.

TOLERANCES ARE:

DECIMALS

PROPRIETARY NOTE

THIS DOCUMENT CONTAINS INFORMATION

CONFIDENTIAL AND PROPRIETARY TO

SAMTEC, INC. AND SHALL NOT BE REPRODUCED

OR TRANSFERRED TO OTHER DOCUMENTS OR

DISCLOSED TO OTHERS OR USED FOR ANY

PURPOSE OTHER THAN THAT WHICH IT WAS

OBTAINED WITHOUT THE EXPRESSED WRITTEN

CONSENT OF SAMTEC, INC.

.XX: .01 [.3]

.XXX: .005 [.13]

.XXXX: .0020 [.051]

ANGLES

520 PARK EAST BLVD, NEW ALBANY, IN 47150

PHONE: 812-944-6733

FAX: 812-948-5047

e-Mail: info@SAMTEC.com

code: 55322

DESCRIPTION:

DWG. NO.

MATERIAL:

-K: POLYIMIDE FILM

(SCALE: 1.5:1)

FIG 3

.260 6.60

REF

INSULATOR: VECTRA E130i, COLOR BLACK

50% REGRIND

TERMINAL: PHOS BRONZE 510 SPRING

DO NOT SCALE DRAWING

SHEET SCALE: 1.75:1

.050 EJECTOR HEADER ASSEMBLY

EHF-1XX-01-XX-D-XX-XX-XX

08/17/01

SHEET

F:\DWG\MISC\MKTG\EHF-1XX-01-X-D-XX-XX-XX-MKT.SLDDRW

BY:

ERIC M.
