SNL201212S(1/7)-P1/3
SNL201212 Series Type
SMD Inductor for Signal Line
FEATURES
• Utilizing a miniaturized winding structure.
• These products provide high Q characteristics.
• Resin-coated surface enables excellent mounting
• Low DC resistance design is ideal for low loss.
• Precision inductance tolerance is available.
APPLICATIONS
• Personal computers,Hard disk drives
• ADSL modem and Cable modem
• Digital camera and other electronic equipment
PRODUCT IDENTIFICATION
SNL 201212 S - 1R0 J - T
(1)
(2)
(3)
(4) (5) (6)
(5) Tolerance
J : ±5% ; K : ±10%
(6) Taping style
T : Taping ; None : Bulk
(1) Product name
(2) Shapes and Dimensions (LxWxT)
201212 : 2.0x1.2x1.2 mm
(3) Type name
(4) Inductance
1R0 : 1.0uH ; 100 : 10uH

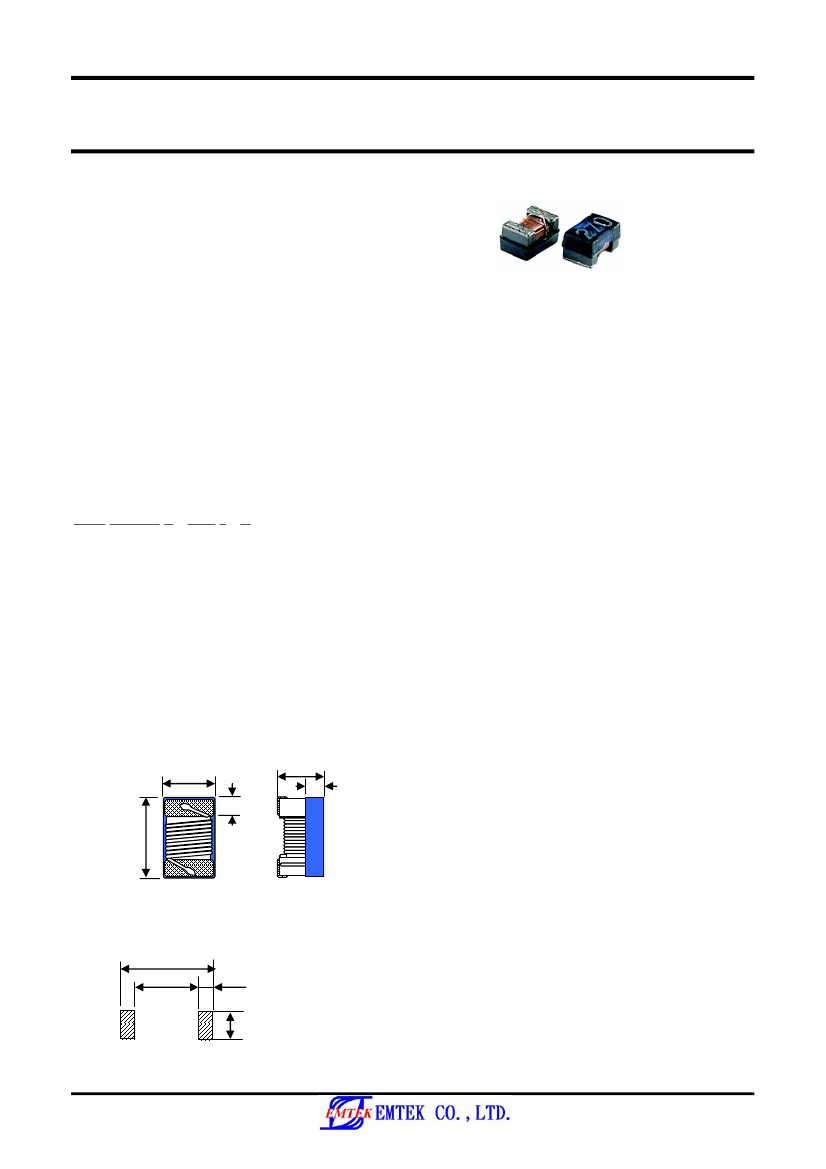

SHAPES AND DIMENSIONS(Unit:mm)
B
E
A
C
D
A : 2.4 max.
B : 1.6 max.
C : 1.4 max.
D : ( 0.51)
E : 0.40 ± 0.1
mm
mm
mm
mm
mm
RECOMMENDED FOOTPRINT(Unit:mm)
2.8
1.0
0.9
1.8
SNL201212S(1/7)-P2/3
SNL201212 Series Type
SMD Inductor for Signal Line
ELECTRICAL CHARACTERISTICS
Our Product Part Number
SNL201212S-R18□-T
SNL201212S-R27□-T
SNL201212S-R47□-T
SNL201212S-R56□-T
SNL201212S-R68□-T
SNL201212S-R82□-T
SNL201212S-1R0□-T
SNL201212S-1R2□-T
SNL201212S-1R5□-T
SNL201212S-1R8□-T
SNL201212S-2R2□-T
SNL201212S-2R7□-T
SNL201212S-3R3□-T
SNL201212S-3R9□-T
SNL201212S-4R7□-T
SNL201212S-5R6□-T
SNL201212S-6R8□-T
SNL201212S-8R2□-T
SNL201212S-100□-T
Inductance
(uH)
0.18
0.27
0.47
0.56
0.68
0.82
1.0
1.2
1.5
1.8
2.2
2.7
3.3
3.9
4.7
5.6
6.8
8.2
10
*Inductance
Tolerance
J,K
J,K
J,K
J,K
J,K
J,K
J,K
J,K
J,K
J,K
J,K
J,K
J,K
J,K
J,K
J,K
J,K
J,K
J,K
Q
Min.
30
30
30
30
30
30
30
25
25
25
20
20
15
15
15
15
15
15
15
Test
Frequency
L,Q(MHz)
25.2/100
25.2/100
25.2/100
25.2/100
25.2/100
25.2/100
25.2/100
25.2/100
25.2/25.2
25.2/25.2
25.2/25.2
25.2/25.2
25.2/25.2
25.2/25.2
25.2/25.2
7.96/7.96
7.96/7.96
7.96/7.96
7.96/7.96
SRF
Min.
(MHz)
850
660
570
560
480
449
394
297
206
177
141
128
110
103
98
96
82
64
56
DC
Resistance
(Ω)Max.
0.34
0.43
0.54
0.64
0.68
0.77
0.86
0.97
1.08
1.18
1.32
1.42
1.73
1.72
1.87
2.18
2.90
3.31
3.72
Idc Max.
(mA)
460
440
420
400
350
325
300
260
250
230
220
210
200
195
185
180
175
140
115
*
□:
Please specify the inductance tolerance, J(±5%),K(±10%)
• Inductance and Q-value : HP 4287A LCR meter, or equivalent
• SRF : HP 8753E RF network analyzer
• RDC : DIGITAL MILLIOHM METER 16502 , or equivalent
TEST EQUIPMENT :
* All specification are subject to change without notice. Please contact our sales representatives for details.
SNL201212S(1/7)-P3/3
SNL201212 Series Type
SMD Inductor for Signal Line

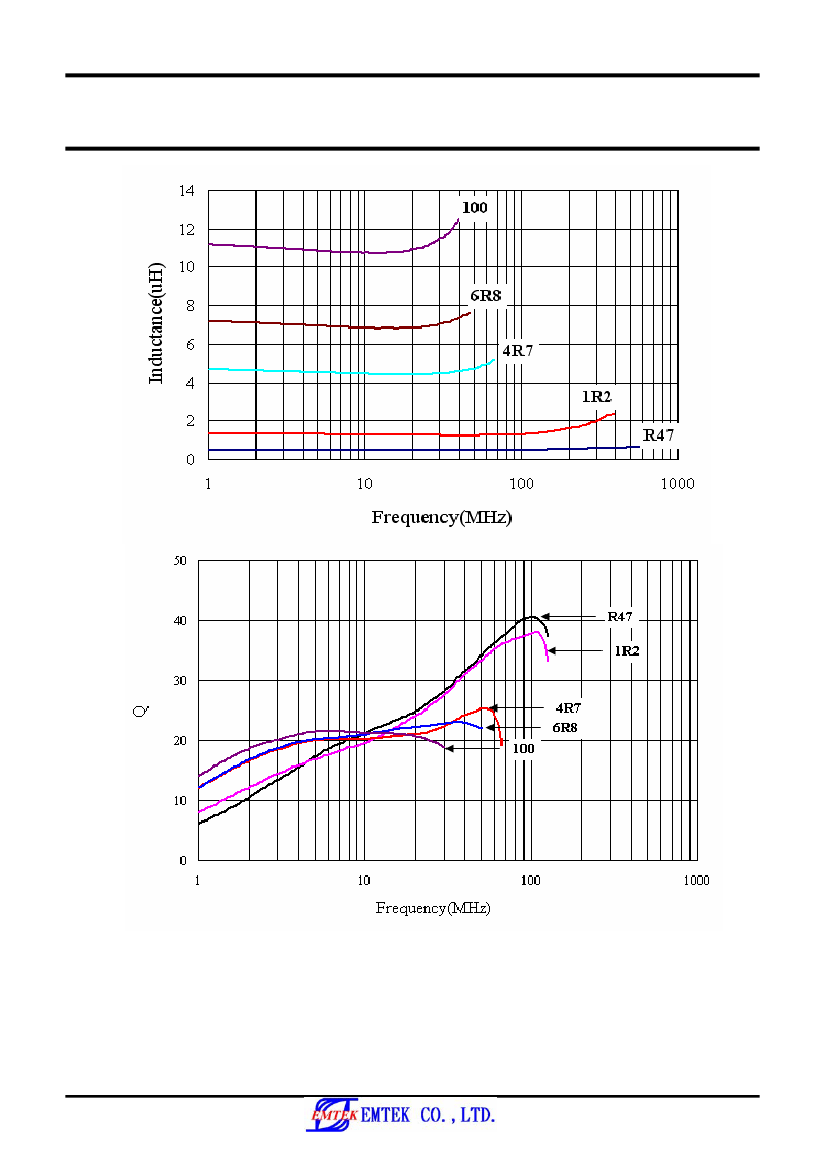

* All specification are subject to change without notice. Please contact our sales representatives for details.
