84517-191LF datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 84517-191LF

84517-191LF: DescriptionCONN ARRAY FEMALE 200POS SMD; CategoryThe connector The connector; File Size137KB，3 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

84517-191LF Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	84517-191LF	-	-	View	Buy Now

84517-191LF Overview

CONN ARRAY FEMALE 200POS SMD

84517-191LF Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Amphenol
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Factory Lead Time	6 weeks
Connector type	BOARD STACKING CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	Tin/Silver/Copper (Sn95.5Ag4.0Cu0.5)
Contact material	NOT SPECIFIED
JESD-609 code	e1

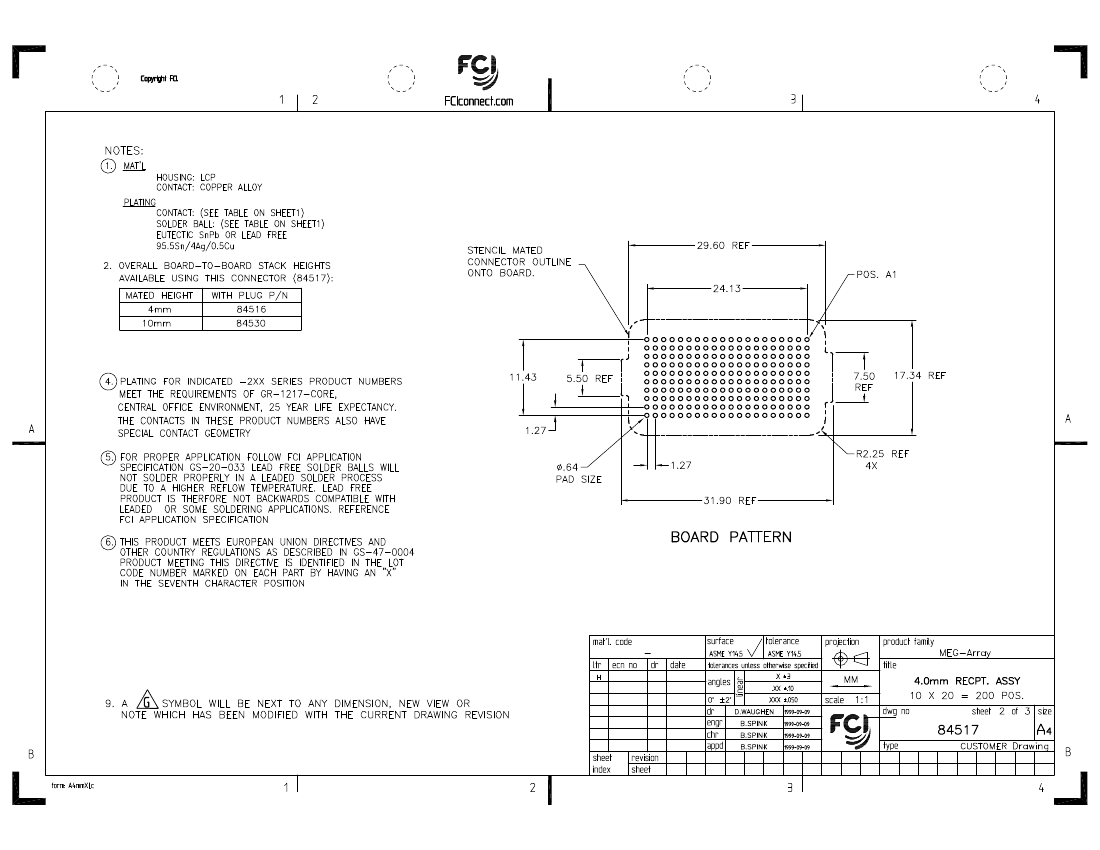

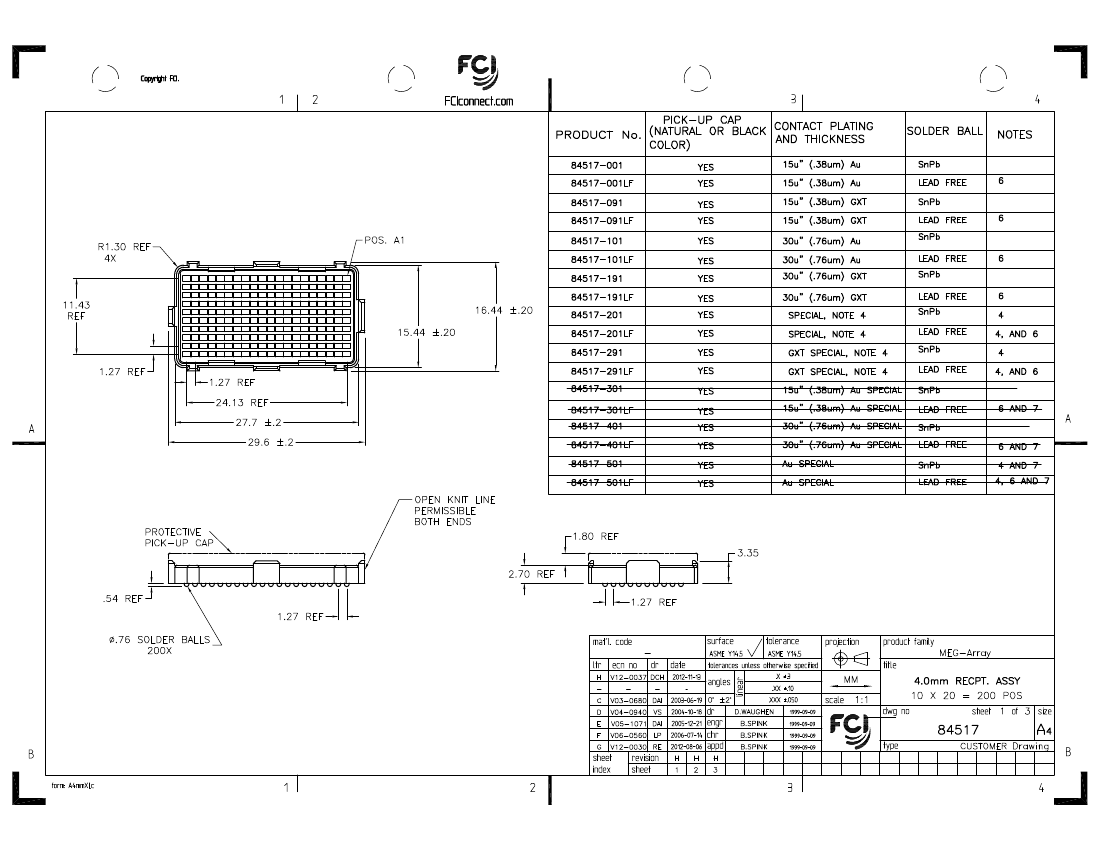

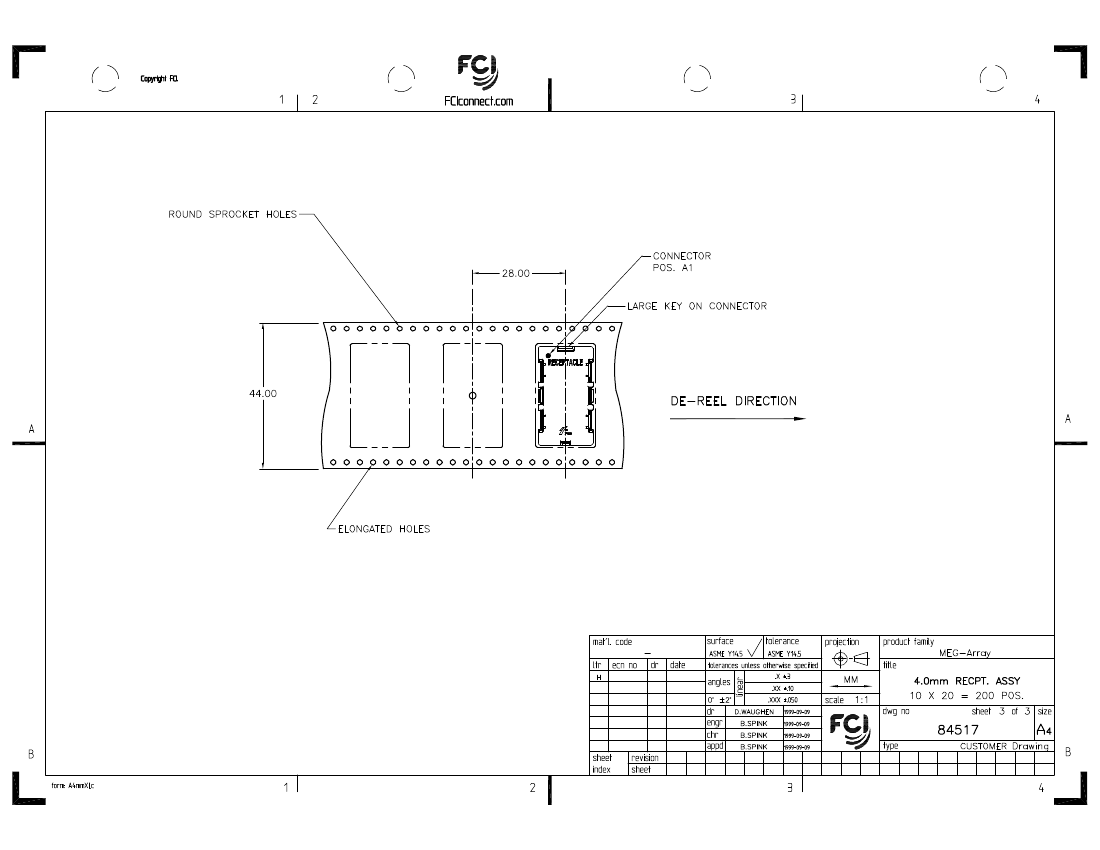

Preview

Download Datasheet

View All

PDM: Rev:H

STATUS:

Released

Printed: Nov 15, 2012

84517-191LF Related Products

	84517-191LF	84517-091	84517-191	84517-291	84517-291LF	84517-091LF
Description	CONN ARRAY FEMALE 200POS SMD	Board Stacking Connector	Board Stacking Connector,	Board Stacking Connector	Board Stacking Connector, ROHS COMPLIANT	CONN ARRAY FEMALE 200POS SMD
Reach Compliance Code	compliant	unknown	compliant	unknown	unknown	compliant
Connector type	BOARD STACKING CONNECTOR	BOARD STACKING CONNECTOR	BOARD STACKING CONNECTOR	BOARD STACKING CONNECTOR	BOARD STACKING CONNECTOR	BOARD STACKING CONNECTOR
Objectid	-	1277592609	1277592611	1277592613	1277592612	-
ECCN code	-	EAR99	EAR99	EAR99	EAR99	-
YTEOL	-	8.76	8.76	8.76	8.76	-
body width	-	0.683 inch	0.683 inch	0.683 inch	0.683 inch	-
subject depth	-	0.153 inch	0.153 inch	0.153 inch	0.153 inch	-
body length	-	1.236 inch	1.236 inch	1.236 inch	1.236 inch	-
Body/casing type	-	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	-
Contact point gender	-	FEMALE	FEMALE	FEMALE	FEMALE	-
contact mode	-	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	-
Contact resistance	-	20 mΩ	20 mΩ	20 mΩ	20 mΩ	-
Contact style	-	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	-
Dielectric withstand voltage	-	200VAC V	200VAC V	200VAC V	200VAC V	-
Durability	-	50 Cycles	100 Cycles	200 Cycles	200 Cycles	-
Filter function	-	NO	NO	NO	NO	-
Insulation resistance	-	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	-
insulator material	-	LIQUID CRYSTAL POLYMER (LCP)	LIQUID CRYSTAL POLYMER (LCP)	LIQUID CRYSTAL POLYMER (LCP)	LIQUID CRYSTAL POLYMER (LCP)	-
Plug contact pitch	-	0.05 inch	0.05 inch	0.05 inch	0.05 inch	-
Match contact row spacing	-	0.05 inch	0.05 inch	0.05 inch	0.05 inch	-
Plug information	-	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	-
Mixed contacts	-	NO	NO	NO	NO	-
Installation option 1	-	LOCKING	LOCKING	LOCKING	LOCKING	-
Installation method	-	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	-
Installation type	-	BOARD	BOARD	BOARD	BOARD	-
Number of connectors	-	ONE	ONE	ONE	ONE	-
PCB row number	-	10	10	10	10	-
Number of rows loaded	-	10	10	10	10	-
Maximum operating temperature	-	85 °C	85 °C	85 °C	85 °C	-
Minimum operating temperature	-	-40 °C	-40 °C	-40 °C	-40 °C	-
Options	-	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	-
PCB contact pattern	-	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	-
PCB contact row spacing	-	1.27 mm	1.27 mm	1.27 mm	1.27 mm	-
Plating thickness	-	15u inch	30u inch	50u inch	50u inch	-
polarization key	-	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	-
Rated current (signal)	-	0.45 A	0.45 A	0.45 A	0.45 A	-
Guideline	-	CSA,CUL,UL	CSA,CUL,UL	CSA,CUL,UL	CSA,CUL,UL	-
Terminal pitch	-	1.27 mm	1.27 mm	1.27 mm	1.27 mm	-
Termination type	-	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	-
Total number of contacts	-	200	200	200	200	-
UL Flammability Code	-	94V-0	94V-0	94V-0	94V-0	-
