JAN2N5416UA

Description
Small Signal Bipolar Transistor, 1A I(C), 300V V(BR)CEO, 1-Element, PNP, Silicon,
CategoryDiscrete semiconductor    The transistor
File Size320KB,6 Pages
ManufacturerMicrosemi
Websitehttps://www.microsemi.com
Download Datasheet Parametric Compare View All

JAN2N5416UA Online Shopping

Suppliers Part Number Price MOQ In stock
JAN2N5416UA - - View Buy Now

JAN2N5416UA Overview

Small Signal Bipolar Transistor, 1A I(C), 300V V(BR)CEO, 1-Element, PNP, Silicon,

JAN2N5416UA Parametric

Parameter NameAttribute value
Is it lead-free?Contains lead
Is it Rohs certified?incompatible
Objectid2078541077
Reach Compliance Codeunknown
ECCN codeEAR99
Shell connectionCOLLECTOR
Maximum collector current (IC)1 A
Collector-emitter maximum voltage300 V
ConfigurationSINGLE
Minimum DC current gain (hFE)30
JESD-30 codeR-XDSO-N4
JESD-609 codee0
Number of components1
Number of terminals4
Package body materialUNSPECIFIED
Package shapeRECTANGULAR
Package formSMALL OUTLINE
Polarity/channel typePNP
Certification statusQualified
GuidelineMIL-19500/485H
surface mountYES
Terminal surfaceTIN LEAD
Terminal formNO LEAD
Terminal locationDUAL
transistor applicationsSWITCHING
Transistor component materialsSILICON
Maximum off time (toff)10000 ns
Maximum opening time (tons)1000 ns

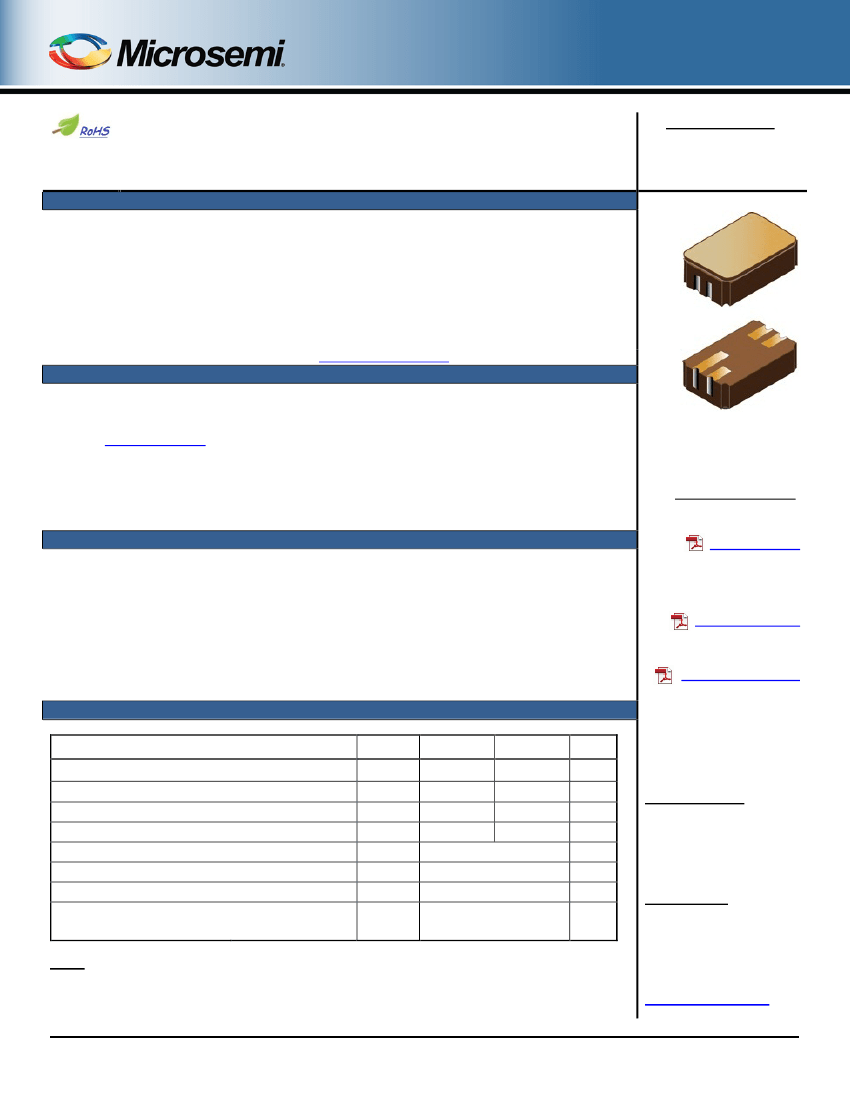

2N5415UA – 2N5416UA
Qualified Levels:
JAN, JANTX, JANTXV
and JANS
Compliant
PNP Silicon Low-Power Transistor
Qualified per MIL-PRF-19500/485
DESCRIPTION
This family of 2N5415UA and 2N5416UA epitaxial planar transistors are military qualified up to
a JANS level for high-reliability applications. The UA package is hermetically sealed and
provides a low profile for minimizing board height. These devices are also available in the
long-leaded TO-5, short-leaded TO-39 and low profile U4 packaging.
Important:
For the latest information, visit our website
http://www.microsemi.com.
FEATURES
JEDEC registered 2N5415 through 2N5416 series
JAN, JANTX, JANTXV, and JANS qualifications are available per MIL-PRF-19500/485.
(See
part nomenclature
for all available options.)
RoHS compliant
UA Package
Also available in:
TO-5 package
APPLICATIONS / BENEFITS
General purpose transistors for low power applications requiring high frequency switching.
Low package profile
Military and other high-reliability applications
(long-leaded)
2N5415 – 2N5416
TO-39 (TO-205AD)
package
(short-leaded)
2N5415S – 2N5416S
U4 package
(surface mount)
2N5415U4 – 2N5416U4

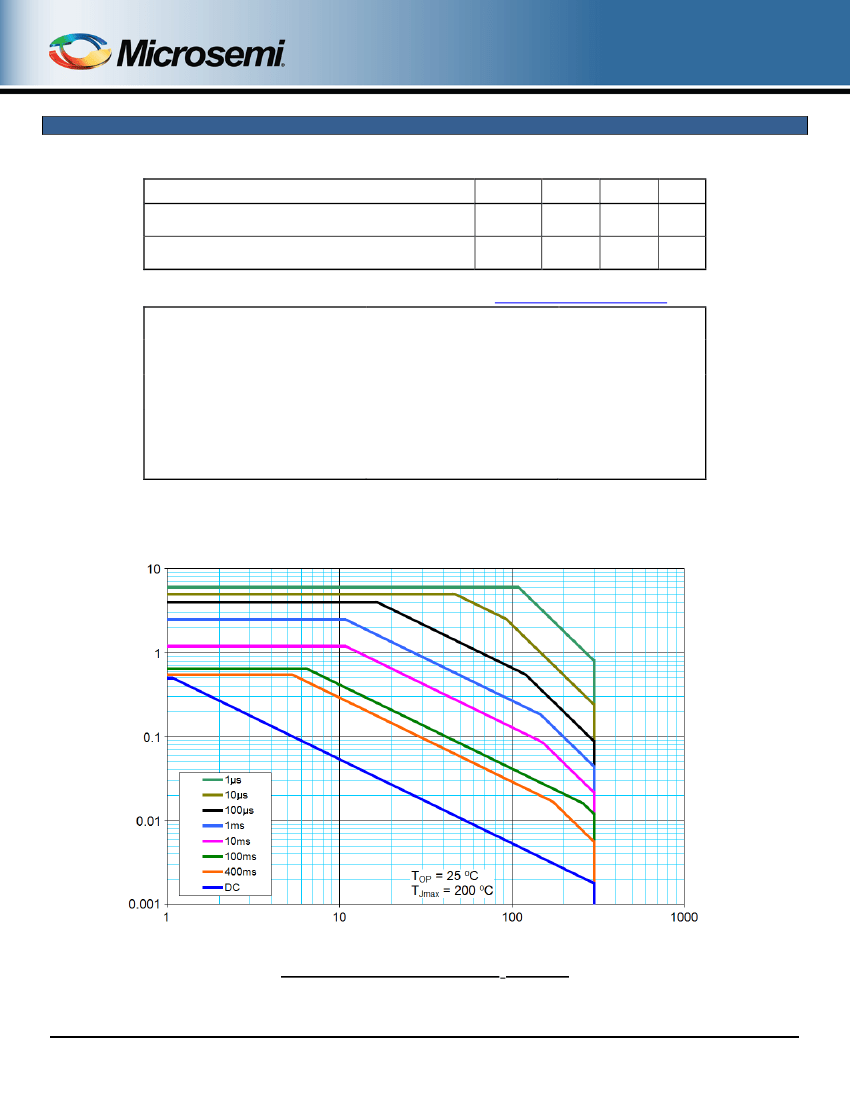

MAXIMUM RATINGS
@ T
A
= +25
ºC
unless otherwise noted
Parameters / Test Conditions
Collector-Emitter Voltage
Collector-Base Voltage
Emitter-Base Voltage
Collector Current
Operating & Storage Junction Temperature Range
Thermal Resistance Junction-to-Ambient
Thermal Resistance Junction-to-Solder Pad
Total Power Dissipation
@ T
A
= +25 °C
(2)
@ T
SP
= +25 °C
(1)
Symbol
V
CEO
V
CBO
V
EBO
I
C
T
J
, T
stg
R
ӨJA
R
ӨJSP
P
T
2N5415UA
200
200
6.0
1.0
2N5416UA
300
350
6.0
1.0
Unit
V
V
V
A
°C
o
o
-65 to +200
234
80
0.75
2
C/W
C/W
W
MSC – Lawrence
6 Lake Street,
Lawrence, MA 01841
Tel: 1-800-446-1158 or
(978) 620-2600
Fax: (978) 689-0803
MSC – Ireland
Gort Road Business Park,
Ennis, Co. Clare, Ireland
Tel: +353 (0) 65 6840044
Fax: +353 (0) 65 6822298
Website:
www.microsemi.com
Notes:
1. Derate linearly 4.29 mW/°C for T
A
> +25°C
2. Derate linearly 12.5 mW/°C for T
SP
> +25 °C
T4-LDS-0305-3, Rev. 1 (7/30/13)
©2013 Microsemi Corporation
Page 1 of 6
