Part Number

Search

5452957

Description
TERM BLOCK PLUG 7POS 5.08MM
CategoryThe connector
File Size92KB,3 Pages
ManufacturerPHOENIX CONTACT
Websitehttps://www.phoenixcontact.com
Environmental Compliance
Download Datasheet Parametric View All

5452957 Online Shopping

Suppliers Part Number Price MOQ In stock
5452957 - - View Buy Now

5452957 Overview

TERM BLOCK PLUG 7POS 5.08MM

5452957 Parametric

Parameter NameAttribute value
typeplug, female socket
Number of pins7
Number of pins per level7
Number of levels1
spacing0.200"(5.08mm)
Needle seat direction-
Plug entrance270°
Terminal typescrews
Installation typefree hanging
Current - IEC12A
Voltage - IEC320V
Current - UL12A
Voltage - UL300V
Wire Gauge or Range - AWG12-30 AWG
Wire gauge or range - mm²0.2-2.5mm²
colorblack
Operating temperature-
Contact mating surface treatmenttin
characteristicMating flange, retaining latch (conductor side)
Material flammability rating-
Intrusion protection-
Screw size-
Torque - Screws-
Wire stripping length-
Contact material-
Shell material-
Contact tail length-
Insulation height1.024"(26.01mm)
https://www.phoenixcontact.com/us/products/5452957
Printed-circuit board connector - BCVP-508WF- 7 BK - 5452957
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Plug component, Nominal current: 12 A, Rated voltage (III/2): 320 V, Number of positions: 7, Pitch: 5.08 mm,
Connection method: Screw connection with tension sleeve, Color: black, Contact surface: Tin

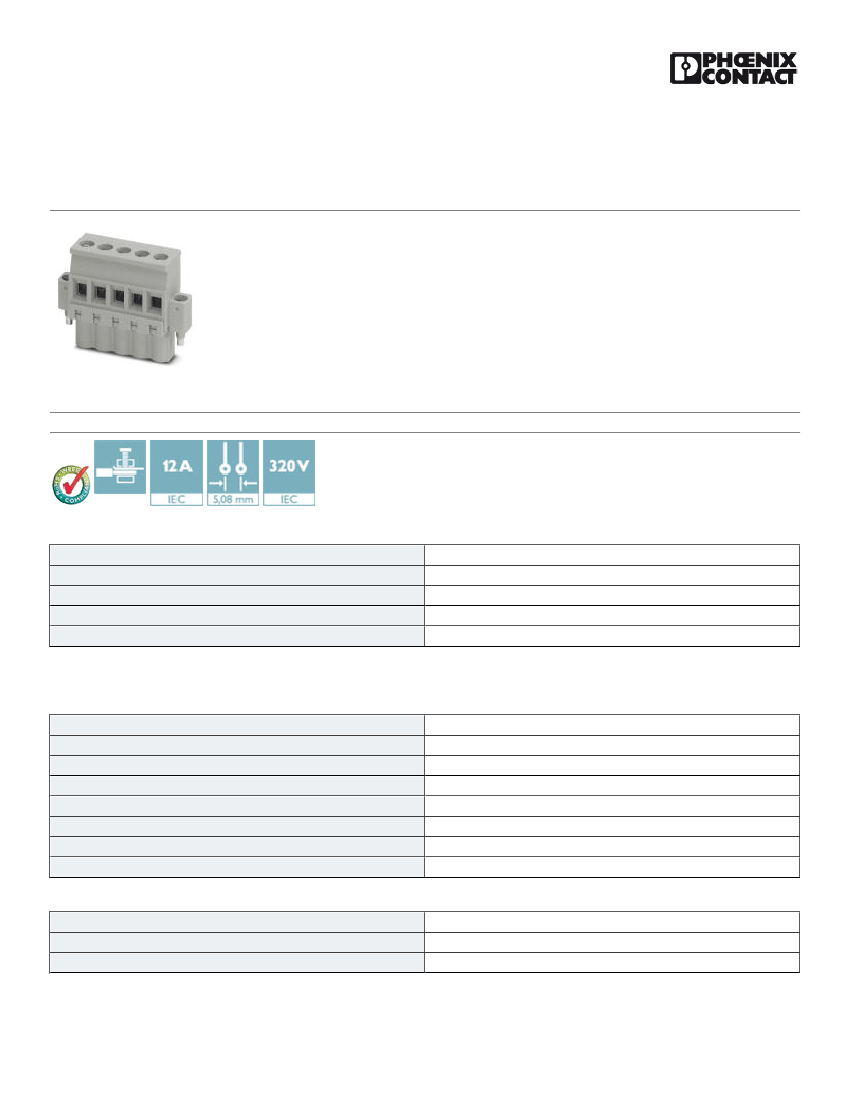

The figure shows a 5-pos. version of
the product in gray
Key Commercial Data
Packing unit
Minimum order quantity
Weight per Piece (excluding packing)
Custom tariff number
Country of origin
1 pc
100 pc
15.6 g
85366990
Germany
Classifications
eCl@ss
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
eCl@ss 8.0
eCl@ss 9.0
272607xx
27260701
27260701
27260701
27261101
27139190
27440309
27440309
ETIM
ETIM 3.0
ETIM 4.0
ETIM 5.0
EC001121
EC002638
EC002638
04/25/2016   Page 1 / 3
