171-008
Single Row Surface Mount MicroStrips
These .050" pitch single row surface mount microstrips are available with 1
to 30 contacts. SMT tails are .013" diameter and are solder dipped in 63/37
tin-lead. Optional latching mechanism provides secure connection. Optional
guide pins provide circuit polarization. Contacts are twistpin type and
are gold-plated. Housing is molded LCP thermoplastic. Suitable for high-
reliability applications where long-term resistance to fretting corrosion is a
necessity. 3 A., 600 Vac, -55C to +150C.
171-008-5P
How To Order Surface Mount Strips
Series
Number of
Cavities
Contact Type
Optional Guide
Pin
Optional Latch
Optional
Mounting Holes
Single Row
MicroStrip, .050"
Contact Spacing,
Surface Mount Tails
171-008
Total number of
cavities including
guide pins,latches
and mounting
holes.
The number of
cavities equals the
number of electrical
circuits plus 1 cavity
for each guide pin
and latch, plus 6
cavities for the
mounting hole option.
-1
to
-30
Pin Contacts
P
For No Guide Pin
Omit
-P1
For No Latch
Omit
CL
For No Mounting
Holes
Mounting Holes
Omit
MH
Guide Pin in Cav. #1
Center Latch
Socket Contacts
The three cavities on
each end are filled
with epoxy. Two .062"
(1.57mm) holes are
cross-drilled to allow
for attachment to a
mounting surface.
S
Guide Pin at Both
Ends
-PB
Latch at Both Ends
BL
Replace (X) with
guide pin location.
P3 shown below:
-P(X)
Sample Part Number
171-008
-5
P
© 2011 Glenair, Inc.
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
Q-13
Micro-D
Latching
MicroStri ps
Series 171 MicroStrips
Single Row Surface Mount Strips
Q
Series 171 MicroStrips
Single Row Surface Mount Strips

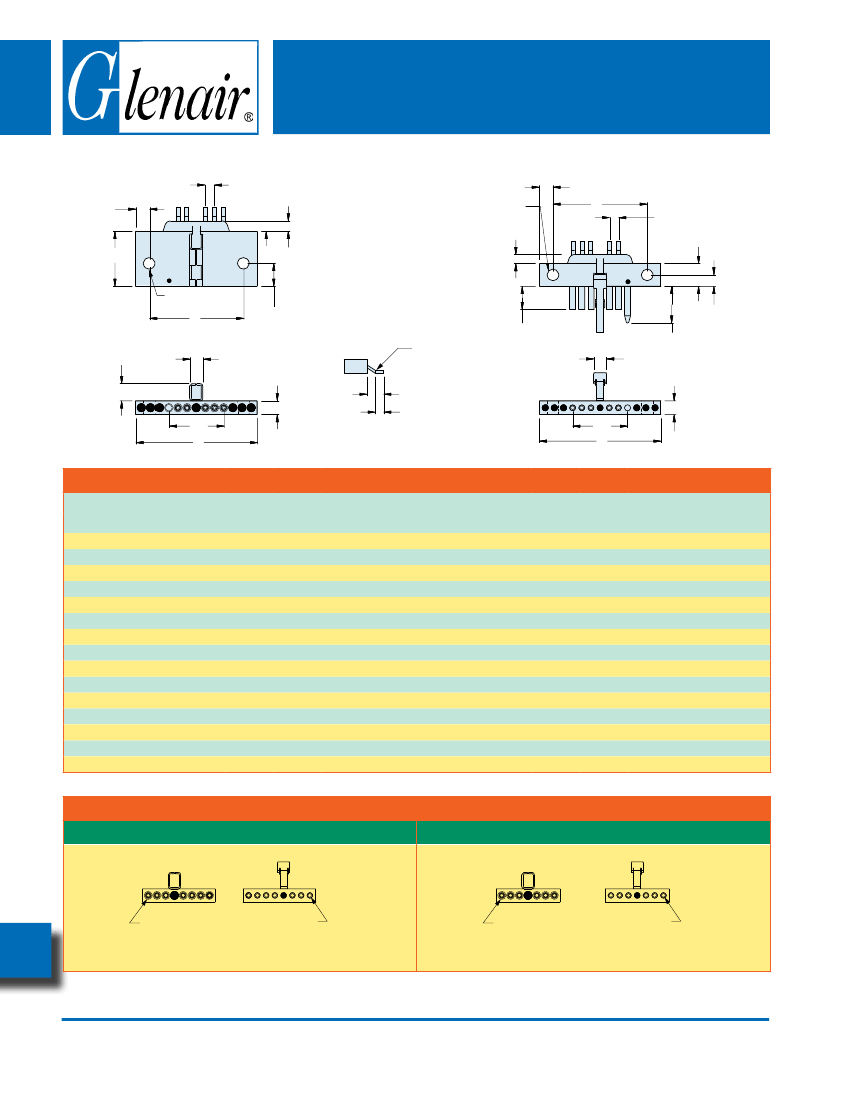

171-008
PIN CONNECTOR
.075
(1.91)
TYP
.300 (7.62)
2Xø.062 (1.57)
C
.110 (2.79)
MAX
.125 (3.18)
.050 (1.27)
TYP
Micro-D
Latching
MicroStri ps
.050 (1.27)
MAX
.075 (1.91)
.075 (1.91)
(A)
B
SOCKET CONNECTOR
2Xø.062
(1.57)
.050 (1.27)
MAX
.075 (1.91) TYP
C
.050 (1.27) TYP
.125 (3.18)
TYPICAL SURFACE MOUNT
CONFIGURATION
#28 AWG
.090 (2.29)
.045 (1.14)
(A)
B
.135/.116
(3.43/2.95)
.075 (1.91)
MAX
.062 (1.57)
.200 (5.08) REF
.075 (1.91)
Dimensions
# of
Cavities
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
(A)
In.
-
.050
.100
.150
.200
.250
.300
.350
.400
.450
.500
.550
.600
.650
.700
B Max.
mm.
In.
.085
.135
.185
.235
.285
.335
.385
.435
.485
.535
.585
.635
.685
.735
.785
C
In.
N/A
N/A
N/A
N/A
N/A
N/A
.200
.250
.300
.350
.400
.450
.500
.550
.600
mm.
2.16
3.43
4.70
5.97
7.24
8.51
9.78
11.05
12.32
13.59
14.86
16.13
17.40
18.67
19.94
mm.
N/A
N/A
N/A
N/A
N/A
N/A
5.08
6.35
7.62
8.89
10.16
11.43
12.7
13.97
15.24
-
1.27
2.54
3.81
5.08
6.35
7.62
8.89
10.16
11.43
12.70
13.97
15.24
16.51
17.78
# of
Cavities
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
(A)
In.
.750
.800
.850
.900
.950
1.000
1.050
1.100
1.150
1.200
1.250
1.300
1.350
1.400
1.450
B Max.
mm.
In.
.835
.885
.935
.985
1.035
1.085
1.135
1.185
1.235
1.285
1.335
1.385
1.435
1.485
1.535
C
In.
.650
.700
.750
.800
.850
.900
.950
1.000
1.050
1.100
1.150
1.200
1.250
1.300
1.350
mm.
21.21
22.48
23.75
25.02
26.29
27.56
28.83
30.10
31.37
32.64
33.91
35.18
36.45
37.72
38.99
mm.
16.51
17.78
19.05
20.32
21.59
22.86
24.13
25.4
26.67
27.94
29.21
30.48
31.75
33.02
34.29
19.05
20.32
21.59
22.86
24.13
25.40
26.67
27.94
29.21
30.48
31.75
33.02
34.29
35.56
36.83
Center Latch Locations
Even Number of Cavities
PIN CONNECTOR SOCKET CONNECTOR
Odd Number of Cavities
PIN CONNECTOR SOCKET CONNECTOR
Q
CAVITY 1
CAVITY 1
CAVITY 1
CAVITY 1
Latch placed on next lower cavity prior to centerline.
Latch position = (# of Cavities) ÷ 2.
Latch placed in cavity on centerline.
Latch Position = (# of Cavities+1) ÷ 2.
© 2011 Glenair, Inc.
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
Q-14
